Description

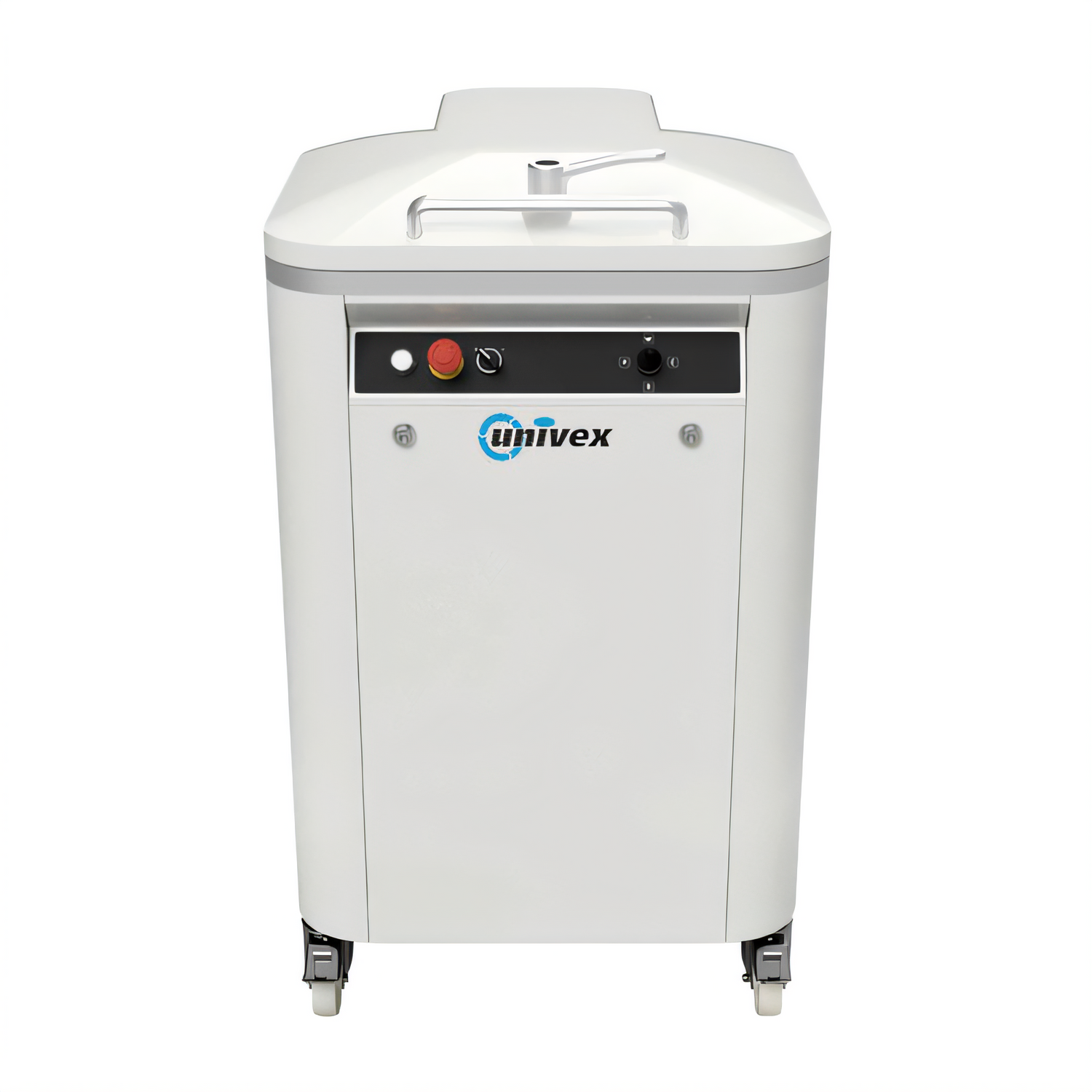

Univex SQD24 Semi-Automatic Square Dough Divider
24 portions in 7 seconds • 4.58 oz – 29.27 oz (130 g – 830 g) • 1,800 pcs/hrEngineered for high-volume bakeries and pizzerias, the Univex SQD24 divides dough into 24 perfectly weighted, uniformly square pieces in a single 7-second cycle. Rugged, easy-to-use controls and industrial-strength components keep production moving shift after shift.
Key advantages
- Consistently portions dough from 4.58 oz to 29.27 oz (130 g – 830 g)
- Delivers 24 identical square pieces every cycle—up to 1,800 per hour
- Semi-automatic operation with simple, intuitive controls
- Painted-steel construction built for commercial environments
- cETLus & ETL-Sanitation listed for electrical and food-safety compliance
- One-year, on-site parts & labor warranty backed by Univex nationwide service
Technical specifications
| Model | SQD24 |
|---|---|
| Pieces per cycle | 24 (square) |
| Dough weight range | 4.58 oz – 29.27 oz / 130 g – 830 g |
| Cycle time | 7 seconds |
| Hourly output | Up to 1,800 pieces |
| Construction | Painted steel cabinet with caster wheels |
| Standard voltage | 208–240 V / 3 Ph / 1.01 hp (0.75 kW) / 3.77 A NEMA L-15-20P |
| Optional voltage | 110 V / 1 Ph / 1.01 hp (0.75 kW) / 12 A |
| Overall dimensions (W × D × H) | 29.5" × 29.5" × 57" (74.9 cm × 74.9 cm × 144.8 cm) |
| Net weight | 507.1 lb (230 kg) |
| Shipping weight | 532 lb (241.3 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1 year, on-site parts & labor |
Production estimate based on a full 45-second start-to-finish process, including loading and unloading.
Electrical notice: Verify available voltage and phase before
ordering. Installation must comply with all local electrical and sanitation
codes.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
43.63in
Width
23.88in
Depth
27.88in
Shipping Weight
532.0lbs
Hourly Production
750 - 3000 pieces per hr
Style
floor model
Power Type
semi-automatic
No of Portions
24 pieces
Specifications
Dough Divider, semi-automatic, square, 4.58 - 29.27 oz., 24 pieces/7 seconds (1800 pieces/hour), painted steel, cETLus, ETL-Sanitation
