Univex SQD20 Dough Dividers & Rounders
Description

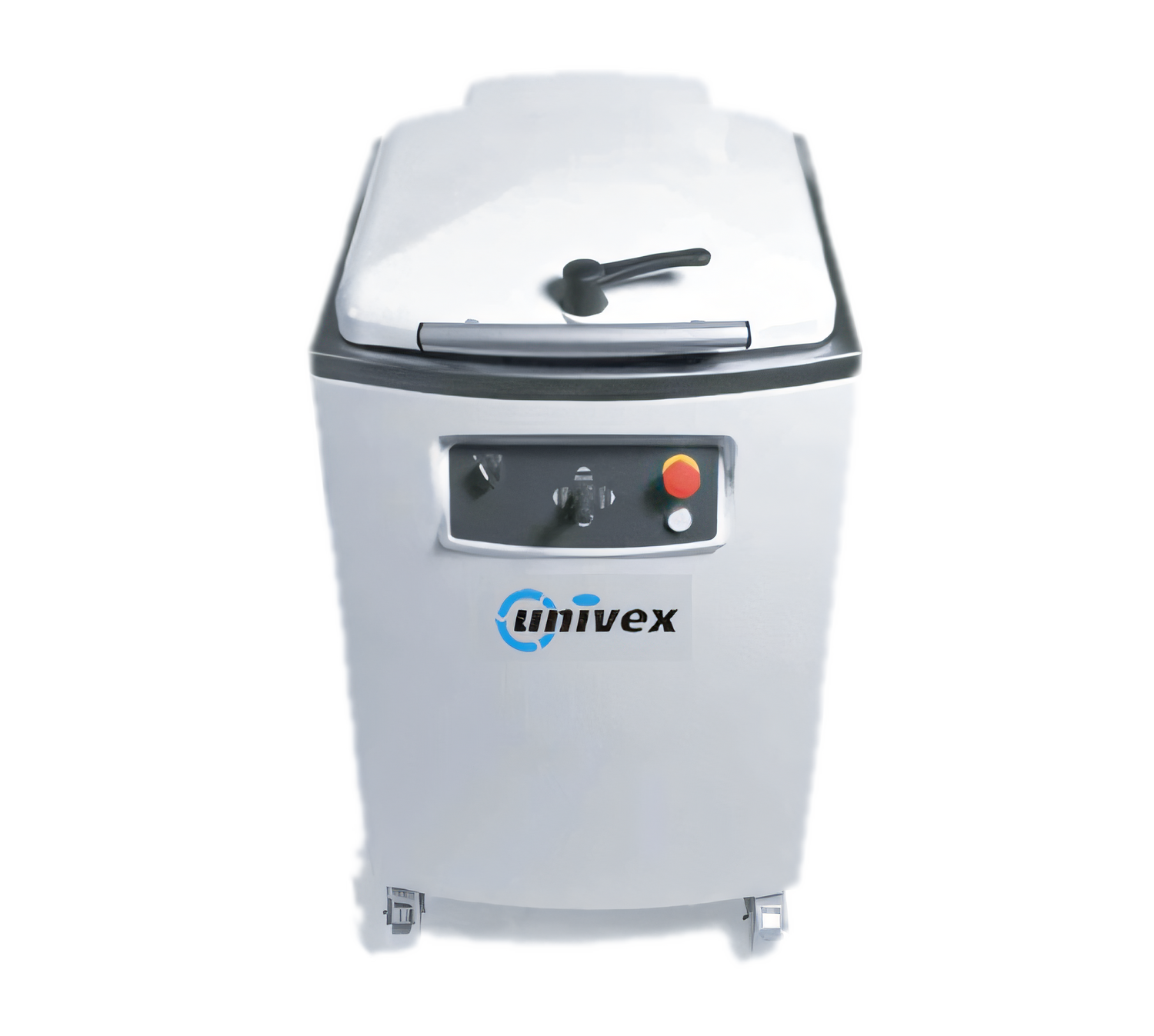

Univex SQD20 Semi-Automatic Square Dough Divider
20 equal pieces • 5.30 – 35.27 oz (150 – 1,000 g) • up to 2,400 pcs/hrCut portioning time to seconds and guarantee uniform results every single batch. The Univex SQD20 is a commercial-grade, semi-automatic divider that transforms a single dough mass into twenty identical, square-cut pieces in just one cycle—perfect for bakeries, pizzerias, commissaries and institutional kitchens that refuse to compromise on speed or consistency.
Key benefits
- Lightning-fast output – 20 perfectly squared portions in ≈7 seconds (≈2,400 pieces/hour).
- Wide weight range – Handles individual portions from 5.30 to 35.27 oz (150–1,000 g).
- Industrial strength – 1.01 hp motor and painted-steel cabinet built for continuous, high-volume use.

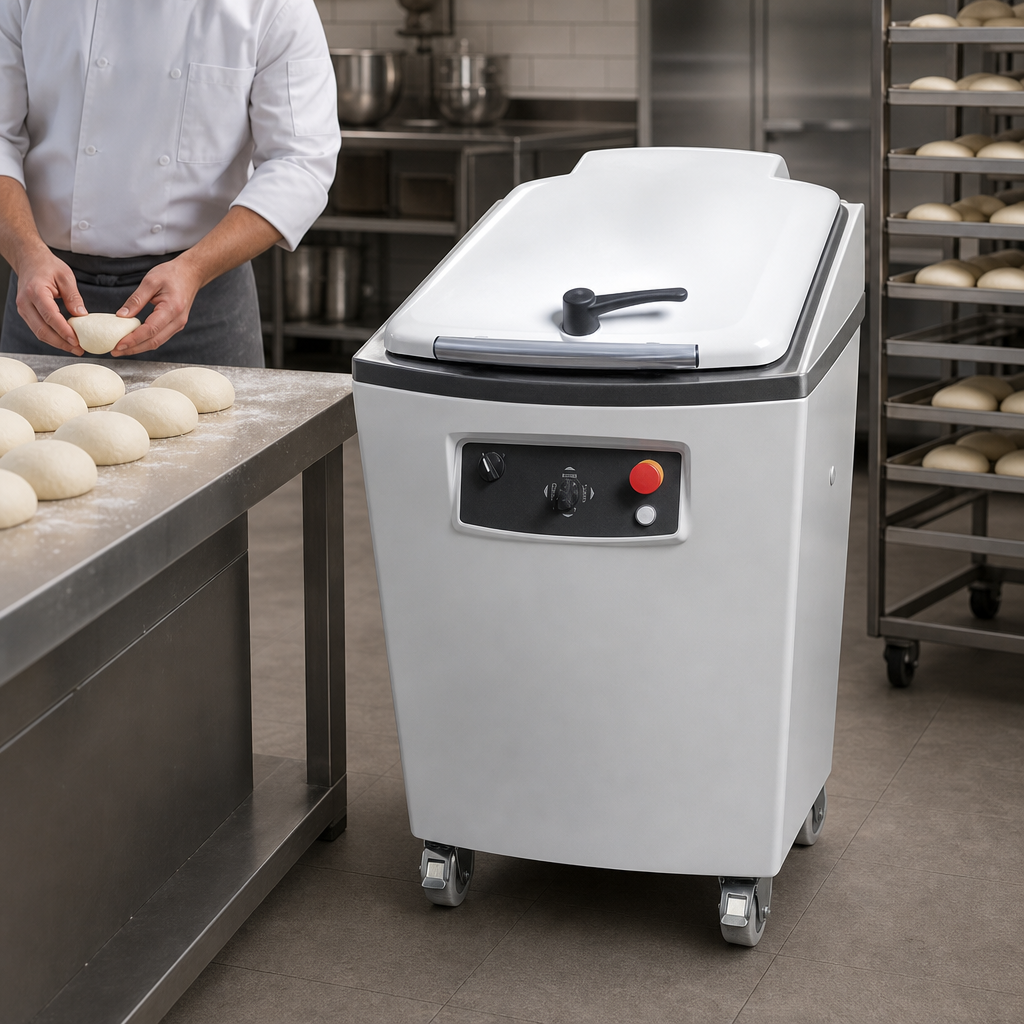

- Simple, intuitive controls – Minimal training required; ideal for multi-operator environments.
- Consistent shape & weight – 3.9" × 3.9" (10 × 10 cm) press grid guarantees uniform dough blocks for proofing, sheeting or moulding.
- Certified sanitation & safety – cETLus & ETL-Sanitation listed for peace of mind and code compliance.
Technical specifications
| Pieces per cycle | 20 |
|---|---|
| Cycle time | ≈7 seconds |
| Hourly capacity | Up to 2,400 pieces (estimate based on a 45-second start-to-finish workflow) |
| Piece weight range | 5.30 – 35.27 oz (150 – 1,000 g) |
| Piece shape / size | Square, 3.9" × 3.9" (10 × 10 cm) |
| Motor power | 1.01 hp (0.75 kW) |
| Standard voltage | 208 – 240 V / 3-phase / 3.77 A (NEMA L-15-20P) |
| Optional voltage | 110 V / 1-phase / 12 A |
| Construction | Painted steel cabinet |
| Overall dimensions | 57" H × 29.5" W × 29.5" D (145 × 75 × 75 cm) |
| Net / shipping weight | 507 lb / 532 lb (230 kg / 241 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Univex backs every SQD20 with nationwide service coverage and a 24/7 technical support hotline. Contact us for additional accessories, voltage options, or extended-service plans.
