Description

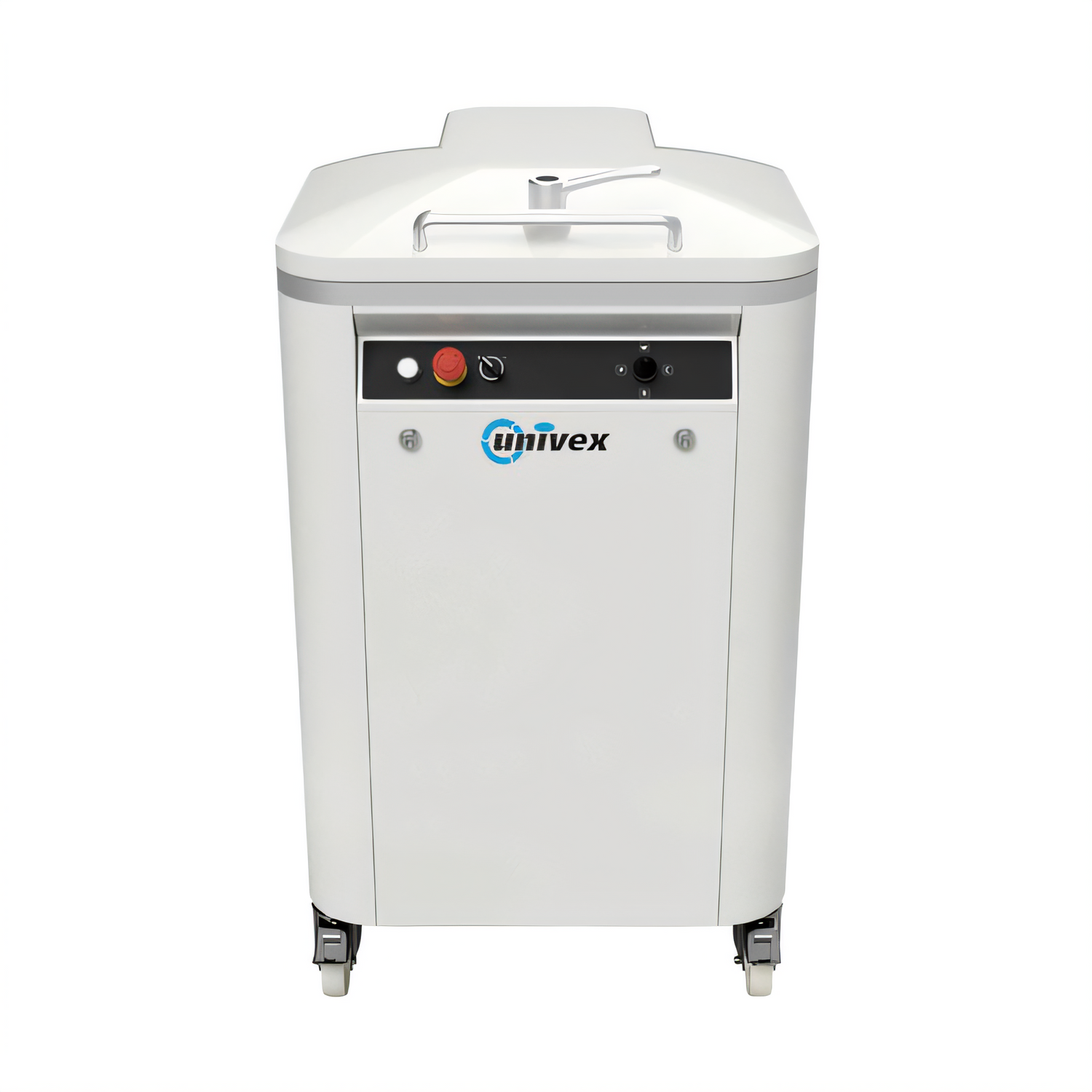

Univex SQD10 Semi-Automatic Square Dough Divider
10 pieces | 10.58 – 70.54 oz (300 – 2000 g) | Up to 750 pieces/hrTake the guesswork out of portioning. The Univex SQD10 divides up to 2 kg of dough into ten perfectly weighted, uniform squares in just seven seconds—giving your bakery the speed and consistency it needs to stay ahead of demand.
Key Features
- Wide portion range: 10.58 – 70.54 oz (300 – 2000 g) per piece.
- Fast cycles: 10 equal pieces in ≈ 7 seconds; ~45 seconds total cycle with loading & unloading.
- High output: up to 750 pieces per hour.
- Industrial-grade painted-steel cabinet built for continuous production.
- Simple, intuitive push-button controls reduce training time.

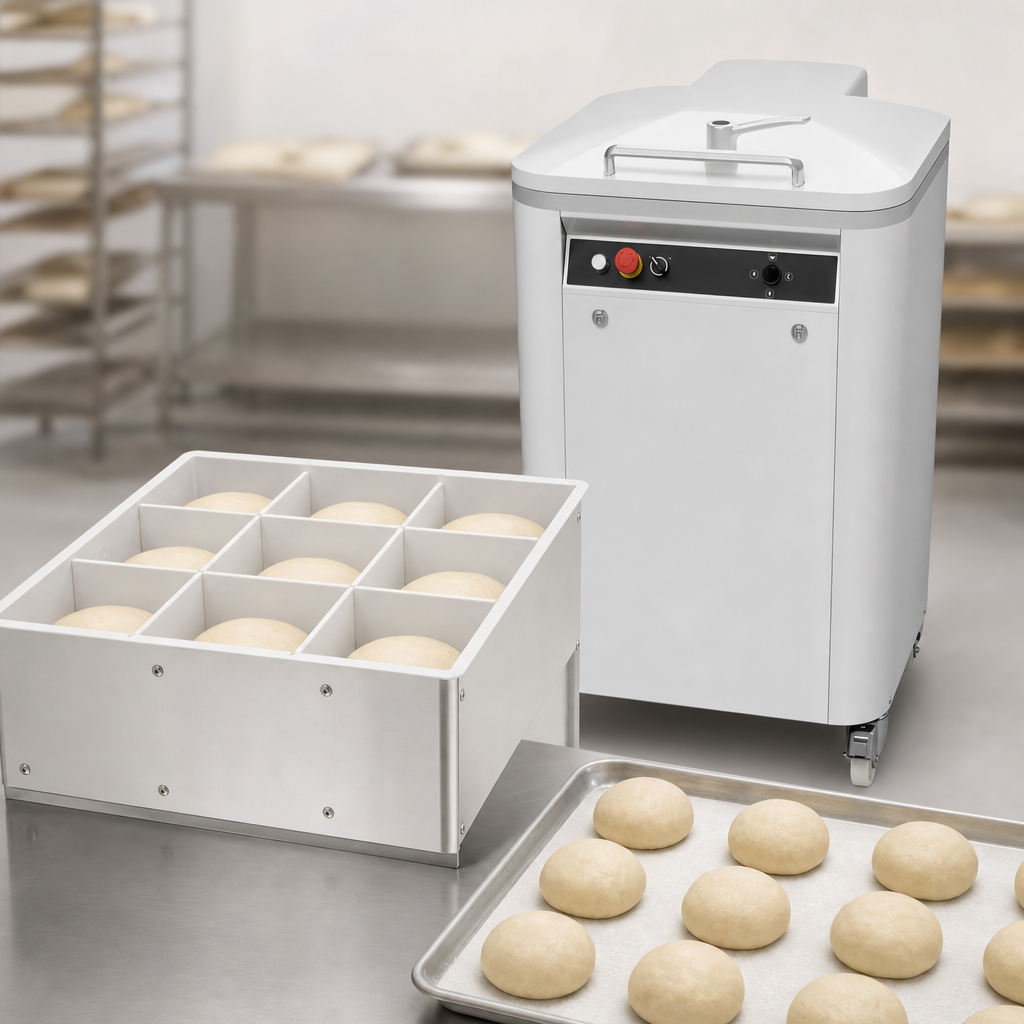

- Square grid delivers clean, uniform blocks—ideal for focaccia, ciabatta, Sicilian pizza and more.
- Heavy-duty casters allow quick repositioning for cleaning or changing production lines.
- cETLus & ETL-Sanitation listed for electrical and food-safety compliance.
- Backed by a 1-year on-site parts & labor Univex warranty.
Ideal For
- Artisan & wholesale bakeries
- Pizza commissaries & pizzerias
- Hotels, resorts & institutional kitchens
- Supermarket bake-off departments
Technical Specifications
| Model | SQD10 |
|---|---|
| Pieces per Cycle | 10 |
| Piece Weight Range | 10.58 – 70.54 oz • 300 – 2000 g |
| Cycle Time (dividing) | ≈ 7 seconds |
| Hourly Output | Up to 750 pieces (based on ~45 sec cycles incl. prep) |
| Grid Shape | Square |
| Press Dimension | 3.9″ × 7.8″ (10 × 19.8 cm) |
| Standard Electrical | 208–240 V / 3 ph / 1.01 hp (0.75 kW) / 3.77 A — NEMA L-15-20P |
| Optional Electrical | 110 V / 1 ph / 1.01 hp (0.75 kW) / 12 A |
| Overall Dimensions | 57″ H × 29.5″ W × 29.5″ D (144.8 × 74.9 × 74.9 cm) |
| Net / Shipping Weight | 507 lb / 532 lb (230 kg / 241 kg) |
| Construction | Painted steel |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Important: Electrical installation must match site voltage and phase. Always use a qualified technician
and follow local codes.
Production rates are estimates and can vary with dough type, hydration and operator technique.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
43.63in
Width
23.88in
Depth
27.88in
Shipping Weight
532.0lbs
Hourly Production
750 - 3000 pieces per hr
Power Type
semi-automatic
Style
floor model
No of Portions
10 pieces
Specifications
Dough Divider, semi-automatic, square, 10.58 - 70.54 oz., 10 pieces/7 seconds (750 pieces/hour), painted steel, cETLus, ETL-Sanitation
