Description

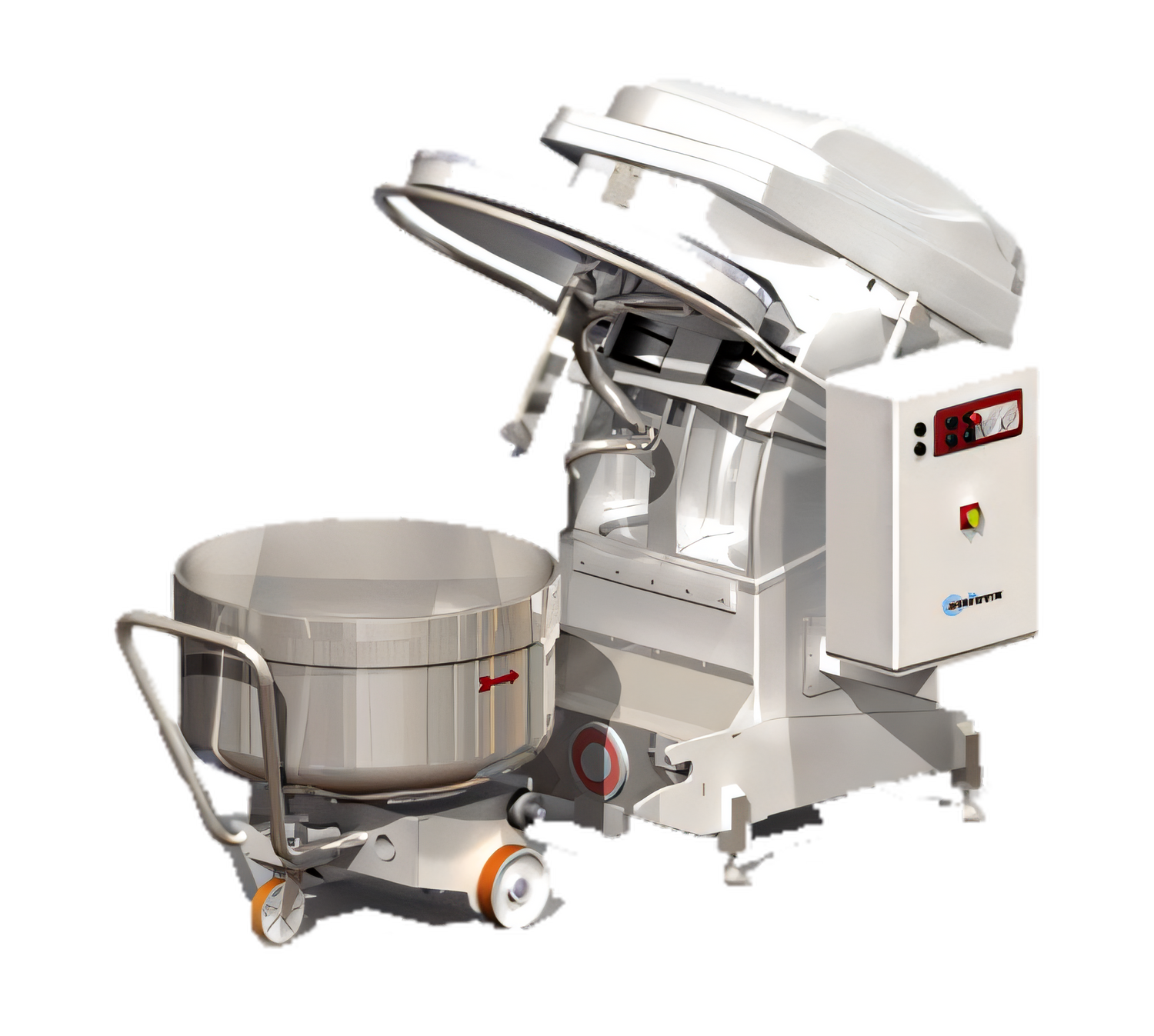

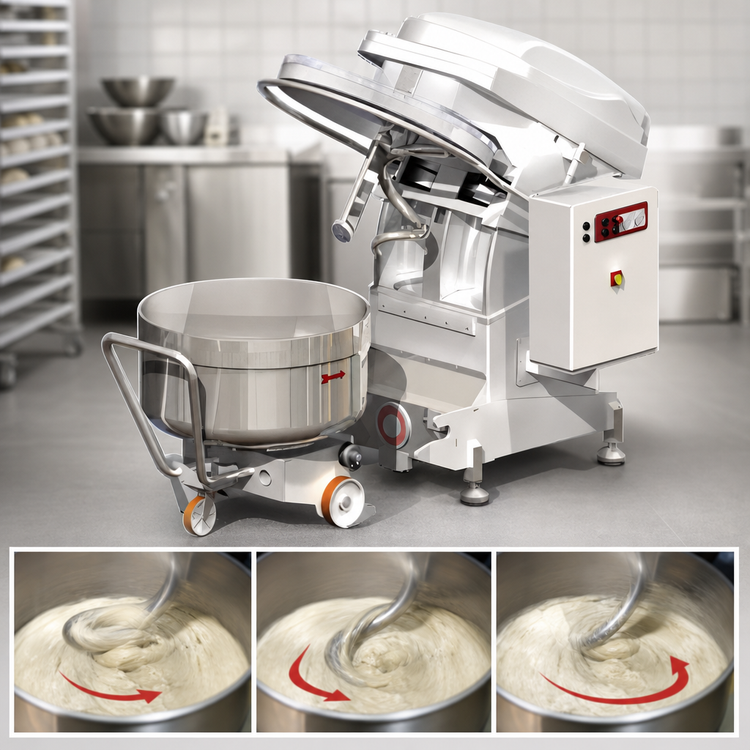

Univex SL80RB Silverline Spiral Mixer – 137 Qt Removable Bowl

High-torque, low-noise solution for up to 175 lb (80 kg) of finished dough

Engineered for busy bakeries, pizzerias and commissaries, the Univex SL80RB delivers powerful two-speed spiral mixing in a compact footprint. Its 11 HP spiral motor, wear-free electromagnetic bowl lock and swing-open safety guard make every batch faster, quieter and safer – while the wheeled bowl dolly lets one person move 175 lb of dough with ease.

Key Features
  • 137 qt (130 L) stainless steel bowl handles up to 175 lb (80 kg) finished dough per batch
  • Separate spiral (11 HP) and bowl (1 HP) motors give maximum torque with minimal vibration

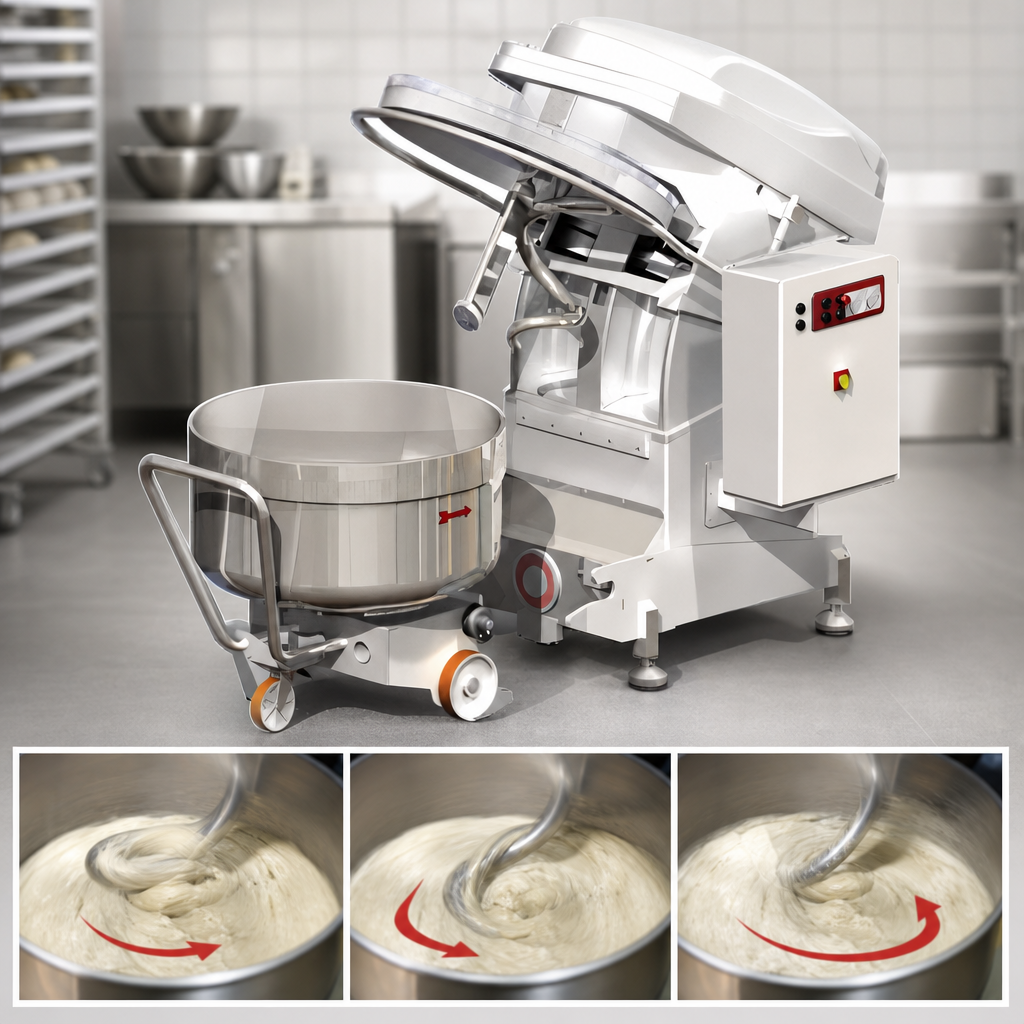

  • Two fixed speeds (95 & 190 RPM) plus reverse and bowl-jog for easy unloading
  • Digital control panel with individual timers for low & high speed assures perfect consistency

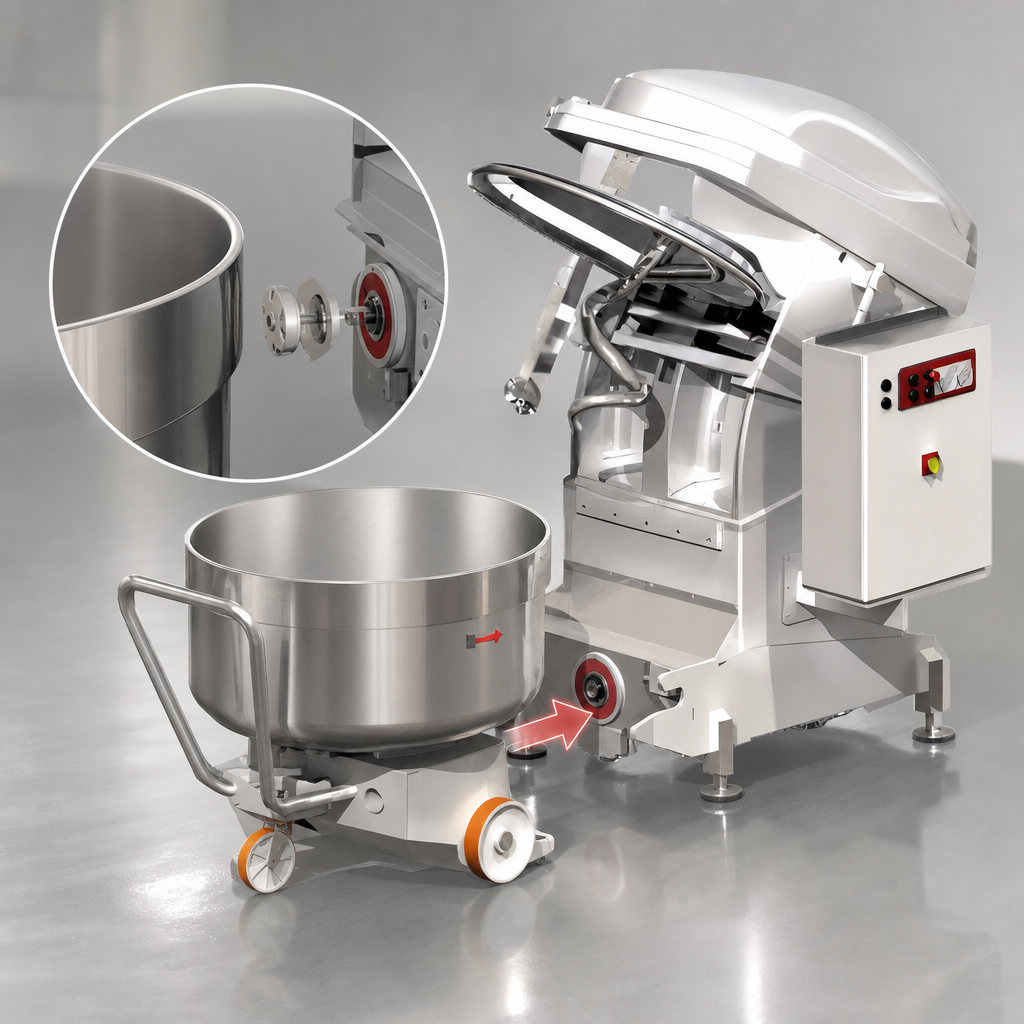

  • Removable bowl locks automatically with a high-power electromagnetic coupling—no mechanical wear
  • Swing-open stainless guard provides full access; safety interlock prevents operation when open
  • Heavy-duty belt drive keeps noise low and maintenance costs down
  • Dolly with leveling feet lets you roll, store or load dough without heavy lifting
  • Certified cETLus & ETL-Sanitation for electrical & food-safety compliance in North America
  • Backed by Univex one-year, on-site parts & labor warranty
Standard Accessories
  • 137 qt stainless steel bowl on wheeled dolly
  • Stainless steel spiral dough hook & shaft
  • Electromagnetic bowl-locking system
  • Leveling feet for fixed installation
Optional Accessory
  • Extra bowl + dolly set (swap batches without waiting)
Performance at a Glance
Finished dough capacity 175 lb | 80 kg
Bowl volume 137 qt | 130 L
Dough hook speed – 1st / 2nd 95 RPM / 190 RPM
Bowl rotation 20 RPM (+ reverse jog)
Mixing modes 2 speeds  •  Reverse  •  Bowl jog
Timers Independent digital timers for low & high speed
Technical Specifications
Electrical 220 V | 60 Hz | 3-phase • Hard-wire with shut-off
Spiral motor 11 HP (8 kW) • 38.5 A
Bowl motor 1 HP (0.75 kW) • 4.48 A
Head motor 1 HP (0.75 kW) • 4.48 A
Total power 13 HP (9.5 kW)
Net weight 1,410 lb | 640 kg
Shipping weight 1,521 lb | 690 kg
Overall dimensions (HxWxD) 79 in × 41 in × 73 in (200.7 × 104.1 × 185.4 cm)

Capacities are based on 70 °F water and 12 % flour moisture. Reduce batch size when using colder water or high-gluten flour.

This equipment must be installed and hard-wired by a qualified electrician in accordance with all local codes.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

53.1in

Width

28.3in

Depth

56.3in

Shipping Weight

1521.0lbs

Speed

2-speed

Bowl Type

removable

Housing Construction

painted

Attachments

bowl, dough hook

Controls

timer

Dough Capacity

101 - 200 lbs

Specifications

Silverline Spiral Mixer, 137 qt. (130 liter) bowl, 175 lb. (80 kg) dough capacity, two speeds and reverse, control panel with separate timers for low and high speed settings, bowl jog, swing open bowl guard, stainless steel bowl, dough hook & shaft, bowl dolly, leveling feet, separate bowl & agitator motors, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (11 hp, 38.5 Amps, 8 kW) and head (1 HP, 4.48 amps, .75 kW), cETLus, ETL-Sanitation
