Univex SL280LH Spiral Dough Mixers
Description

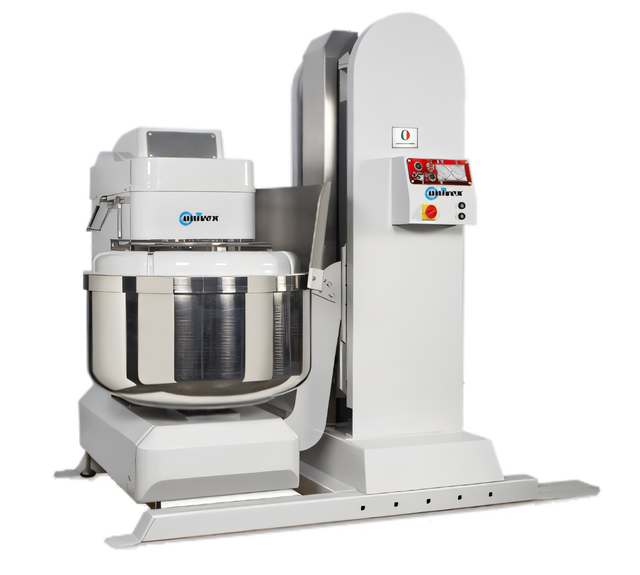

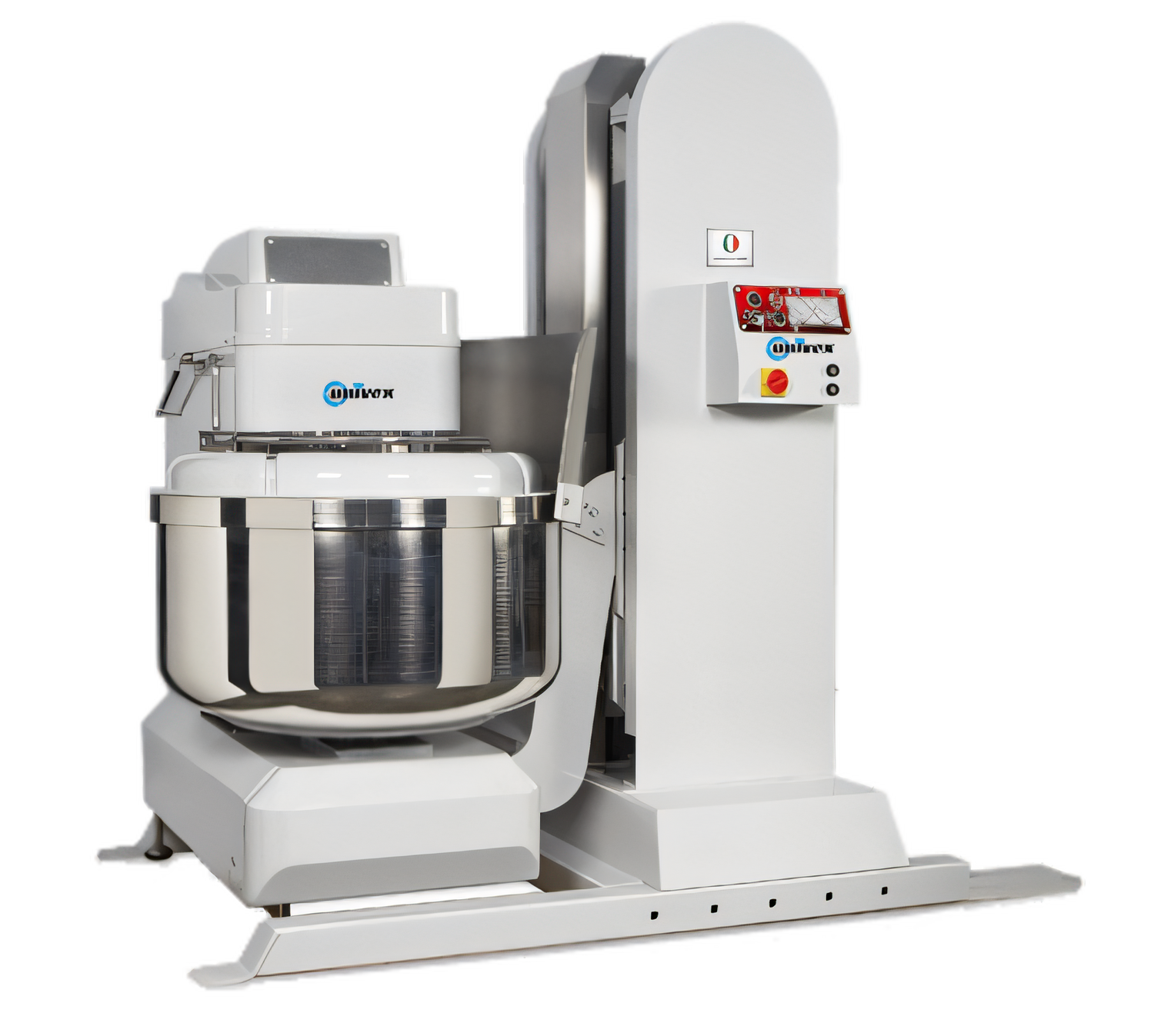

Univex Silverline SL280L Spiral Mixer with Attached Lifter

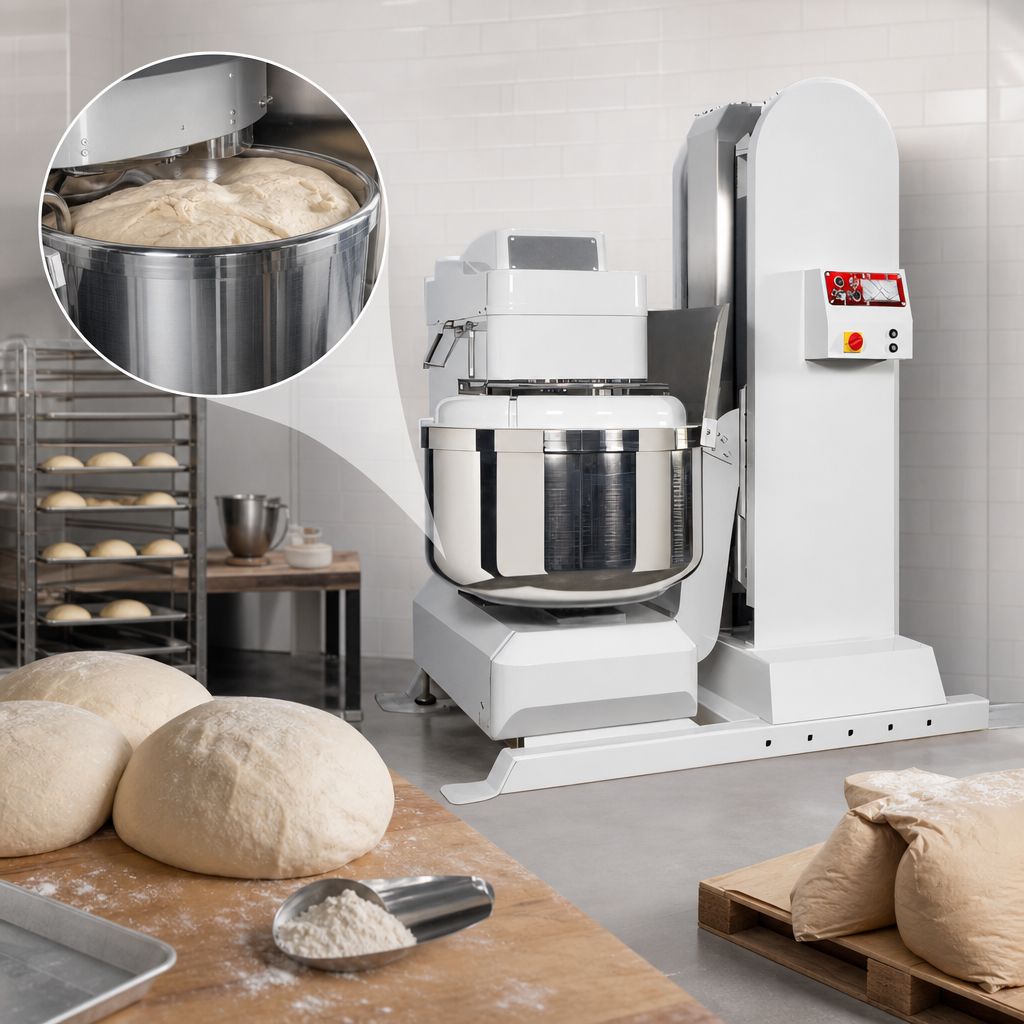

615 lb (280 kg) finished-dough capacity | Models SL280LH • SL280LBEngineered for industrial bakeries and high-volume pizzerias, the SL280L series delivers flawless dough development and automatic discharge in one rugged, easy-to-use package. Mix up to 615 lb of dough, then let the built-in lifter tilt and empty the bowl—no manual handling, no extra equipment, no wasted time.
Why you’ll love it
- Integrated lifter tilts the entire mixer left or right* for direct discharge into tables, hoppers or dividers

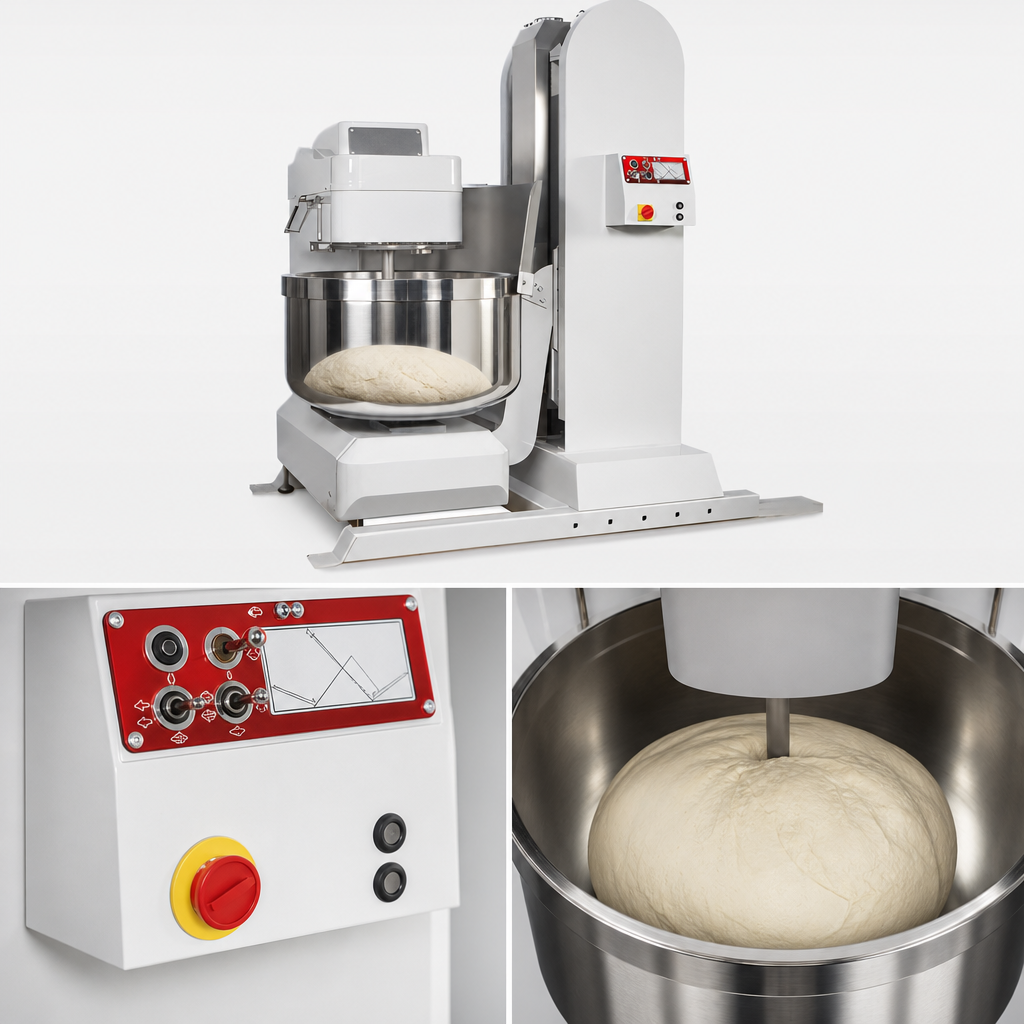

- Two mixing speeds (95 rpm & 190 rpm) + reverse bowl rotation for rapid pre-mixing
- Independent motors: 18 hp spiral | 1 hp bowl | 3 hp lifter—full torque under any load
- Digital control panel with separate low- & high-speed timers and manual security key
- Stainless-steel bowl, spiral dough hook and shaft for maximum hygiene and longevity
- Heavy-duty belt drive keeps vibration and noise low while slashing maintenance costs
- Full-opening bowl guard with safety interlocks—mixer stops if the guard is raised
- cETLus & ETL-Sanitation listed; ships ready for hard-wire installation
Performance snapshot
| Finished-dough capacity | 615 lb (280 kg) |
|---|---|
| Hook speeds | 1st: 95 rpm | 2nd: 190 rpm |
| Bowl speed | 15 rpm (forward & reverse) |
| Spiral motor | 18 hp • 63.5 A • 13.2 kW |
| Bowl motor | 1 hp • 4.48 A • 0.75 kW |
| Lifter motor | 3 hp • 13 A • 2.2 kW |
| Total power | 22 hp (16.15 kW) @ 220 V / 3 Ph 60 Hz (400 V / 3 Ph option) |
Select your discharge height
| Model | Height | Net weight | Overall (W × D) |
|---|---|---|---|
| SL280LH – High Lift | 91 in (231 cm) | 4,409 lb (2,000 kg) | 101 in × 96 in (257 × 244 cm) |
| SL280LB – Low Lift | 71 in (180 cm) | 3,748 lb (1,700 kg) | 101 in × 96 in (257 × 244 cm) |
Ideal for
- High-output pizzerias & commissaries
- Artisan and pan-bread bakeries
- Bagel, bun & roll production lines
- Institutional and central kitchens
Supplied with Univex’s one-year on-site parts & labor warranty.
*Tilt direction must be selected prior to production; field conversion is not available.
