Univex SL280LB Spiral Dough Mixers
$76,663.20
Unit price
/
Unavailable
Description

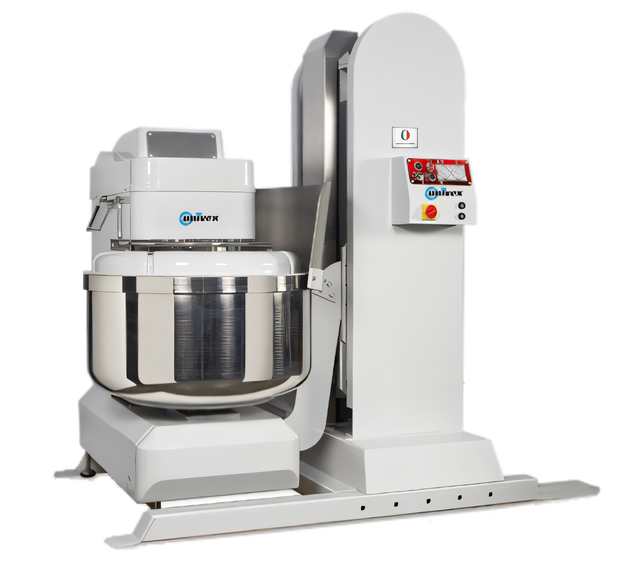

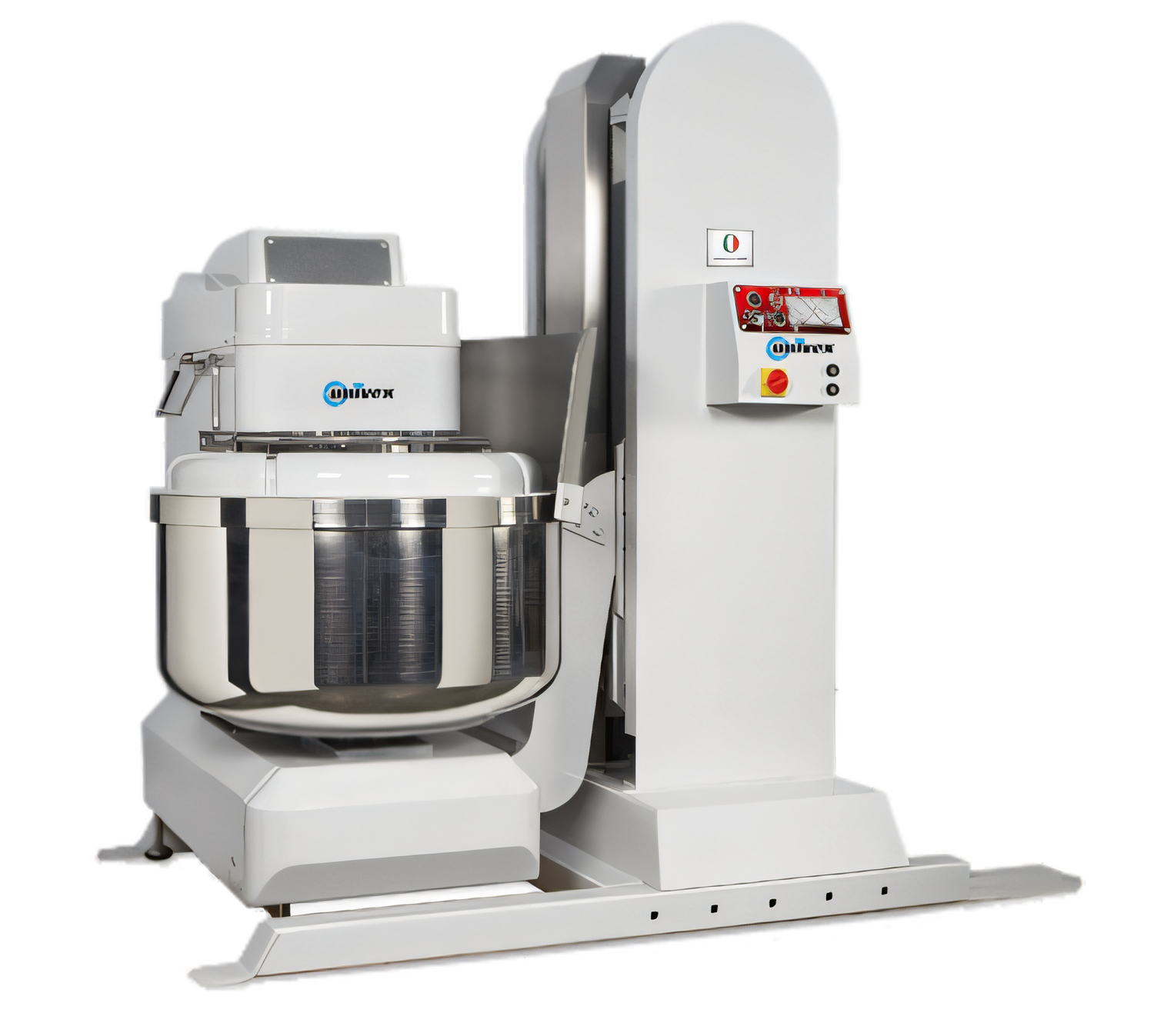

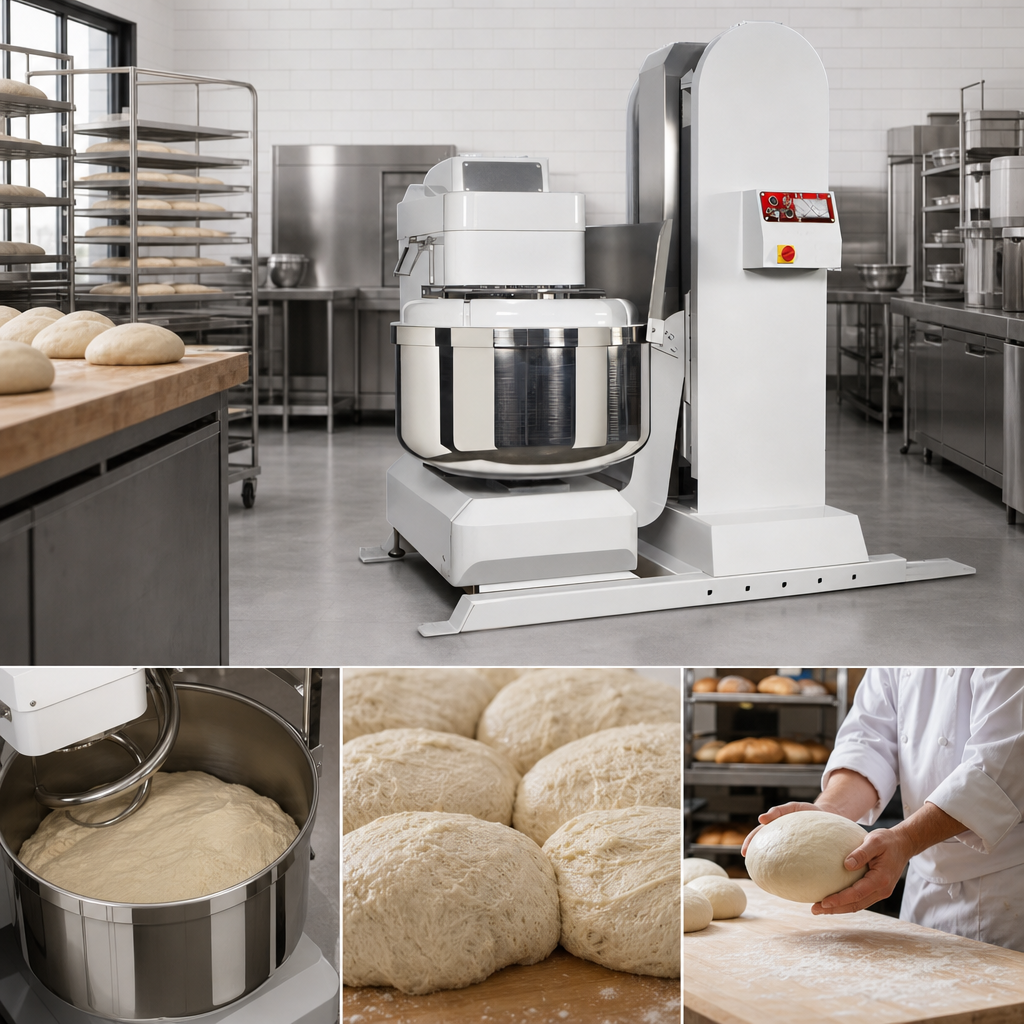

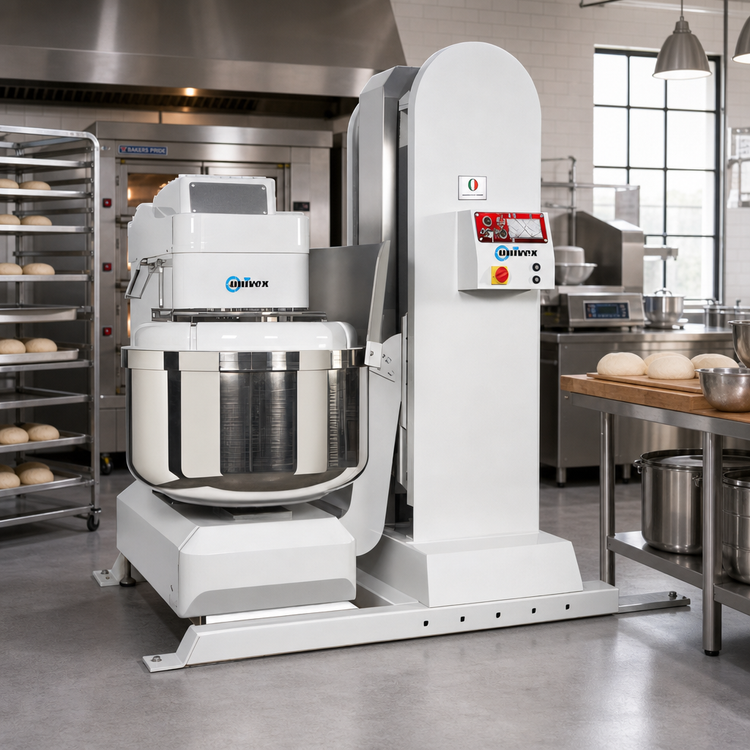

Univex Silverline SL280L Series Spiral Mixer – 615 lb (280 kg) Dough Capacity
Models: SL280LH (high-lift) • SL280LB (bench-lift)Engineered for industrial bakeries and high-volume pizzerias, the Univex Silverline SL280L Spiral Mixer kneads up to 615 lb of finished dough in a single, ultra-efficient cycle and then tips the bowl automatically for effortless discharge.
Key advantages
- Built-in lifter tilts the entire mixer right or left for direct discharge – specify side and height (LH or LB) when ordering.
- Powerful dual-motor design: 18 HP spiral + 1 HP bowl for consistent kneading, even with stiff dough.

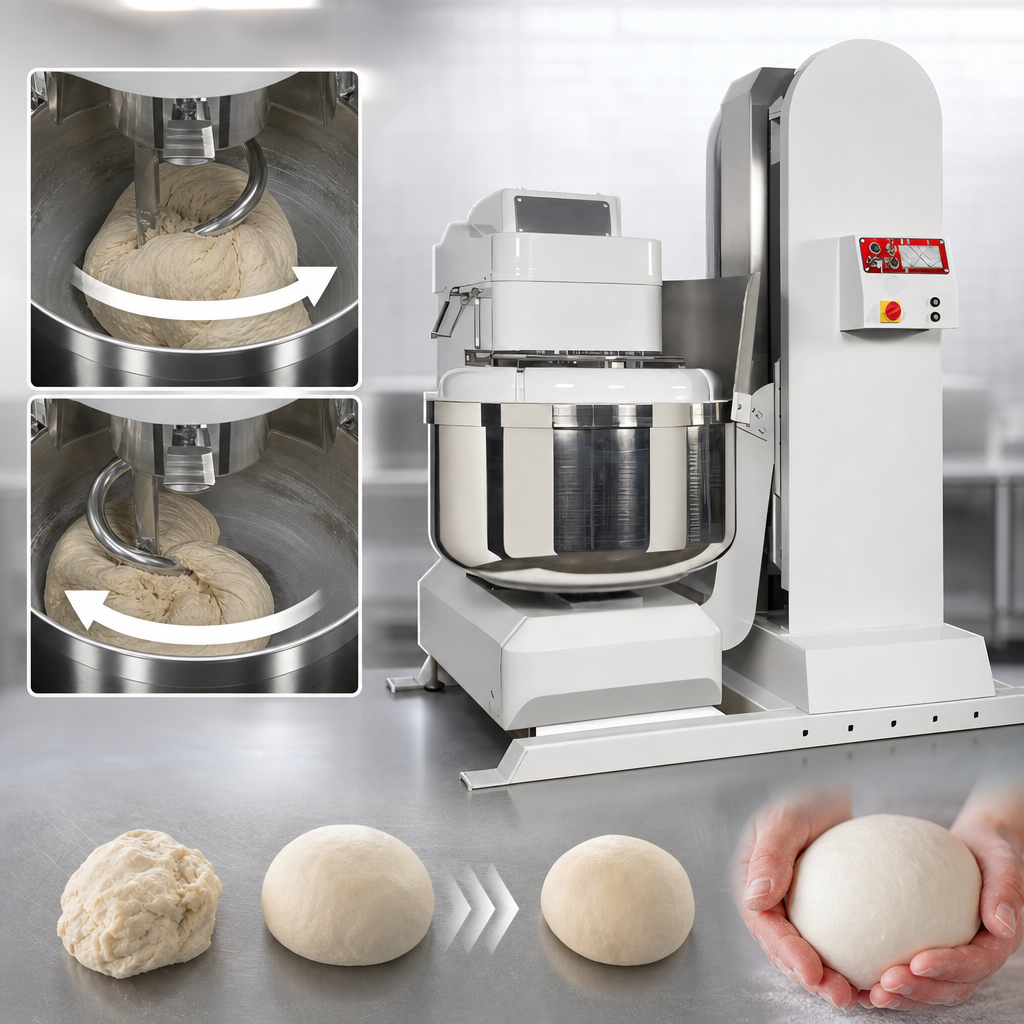

- Two fixed speeds (95 RPM / 190 RPM) & reverse bowl rotation for rapid incorporation and gluten development.
- Independent digital timers for first & second speed let you set and walk away.
- All-stainless spiral hook, bowl & shaft for maximum sanitation and longevity.
- Heavy-duty belt drive keeps vibration and noise low while slashing maintenance costs.
- ETL-Sanitation & cETLus listed; bowl guard interlock and safety micro-switches protect operators.
- 1-year, on-site parts & labor warranty backed by Univex’s 24/7 U.S. service network.
Performance at a glance
| Finished dough capacity | 615 lb | 280 kg |
|---|---|
| Bowl volume | 444 qt | 420 L |
| Spiral speeds | 1st 95 RPM • 2nd 190 RPM |
| Bowl speed | 15 RPM |
| Lifter discharge | Right or left (factory set) |
Electrical & power
| Voltage (60 Hz) | 220 V / 3 ph (400 V optional) |
|---|---|
| Spiral motor | 18 HP | 13.2 kW | 63.5 A |
| Bowl motor | 1 HP | 0.75 kW | 4.48 A |
| Lifter motor | 3 HP | 2.2 kW | 13 A |
| Total connected load | 22 HP | 16.15 kW | 68 A |
| Connection | Hard-wired with lockable disconnect (installer supplied) |
Dimensions & weight
| SL280LH (high-lift) | SL280LB (bench-lift) | |
|---|---|---|
| Height | 91 in | 231 cm | 71 in | 180 cm |
| Width | 101 in | 257 cm | |
| Depth | 96 in | 244 cm | |
| Net weight | 4,409 lb | 2,000 kg | 3,748 lb | 1,700 kg |
Need a different discharge height, voltage, or optional accessories? Contact our sales team for custom configurations.
Installation note: This unit ships fully assembled on a skid and
requires a doorway clearance greater than 101 in W × 96 in D. Verify site access,
electrical service, and floor loading before purchase.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
101.13in
Width
93.0in
Depth
62.75in
Shipping Weight
4098.0lbs
Speed
2-speed
Attachments
bowl, dough hook
Housing Construction
painted
Bowl Type
tilting
Controls
timer
Dough Capacity
600 - 800 lbs
Specifications
Silverline Spiral Mixer, 615 lb. dough capacity, 2 speed, reverse function, control board with separate timers, includes: built-in lifter, stainless steel bowl, spiral dough hook & shaft, separate bowl & agitator motors, belt drive, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (18 HP, 63.5 Amps, 13.2 kW) and lift (3 HP, 13.0 amps, 2.2 kW), cETLus, ETL-Sanitation
