Univex SL280 Spiral Dough Mixers
Univex SL280 Spiral Dough Mixers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

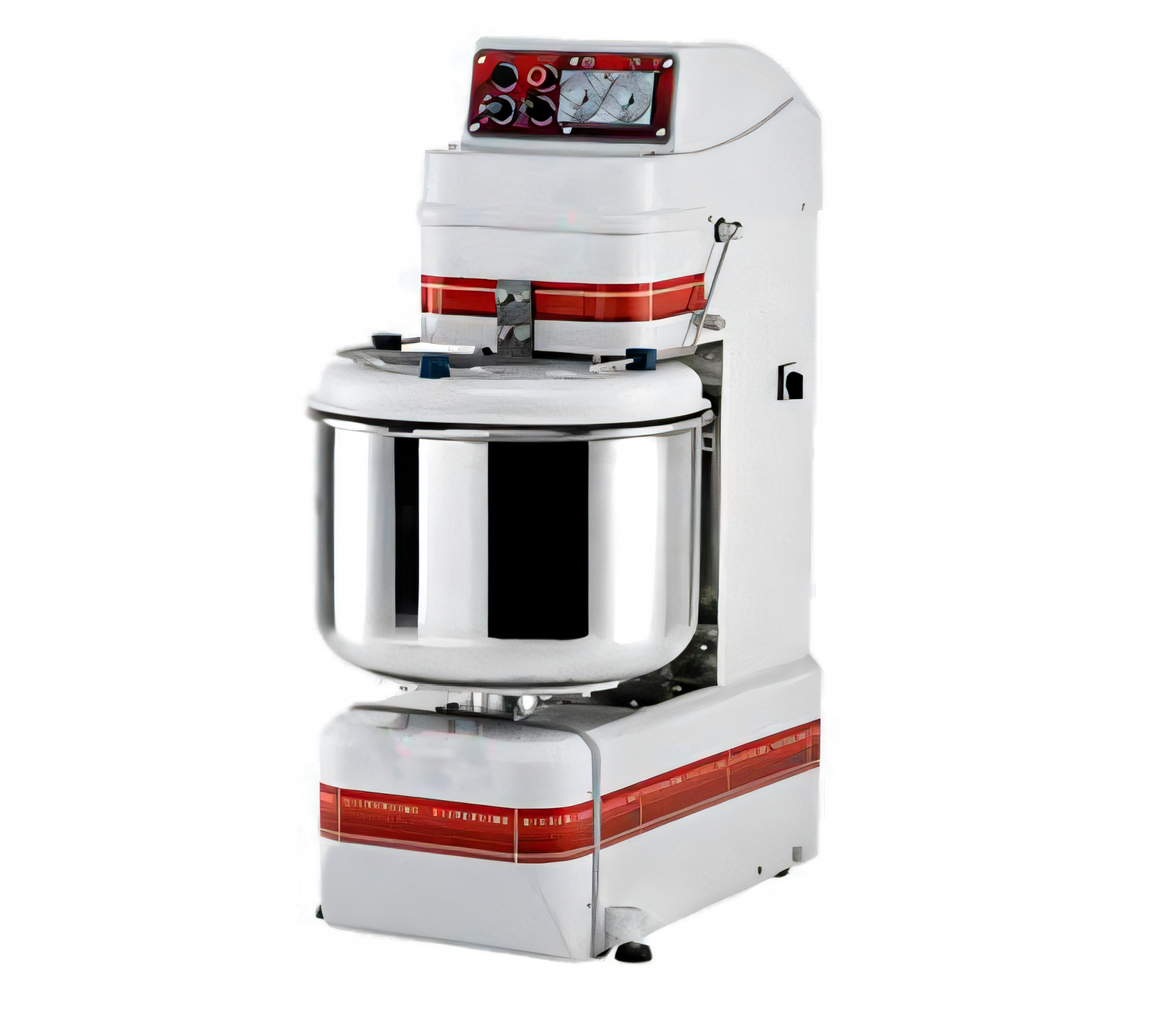

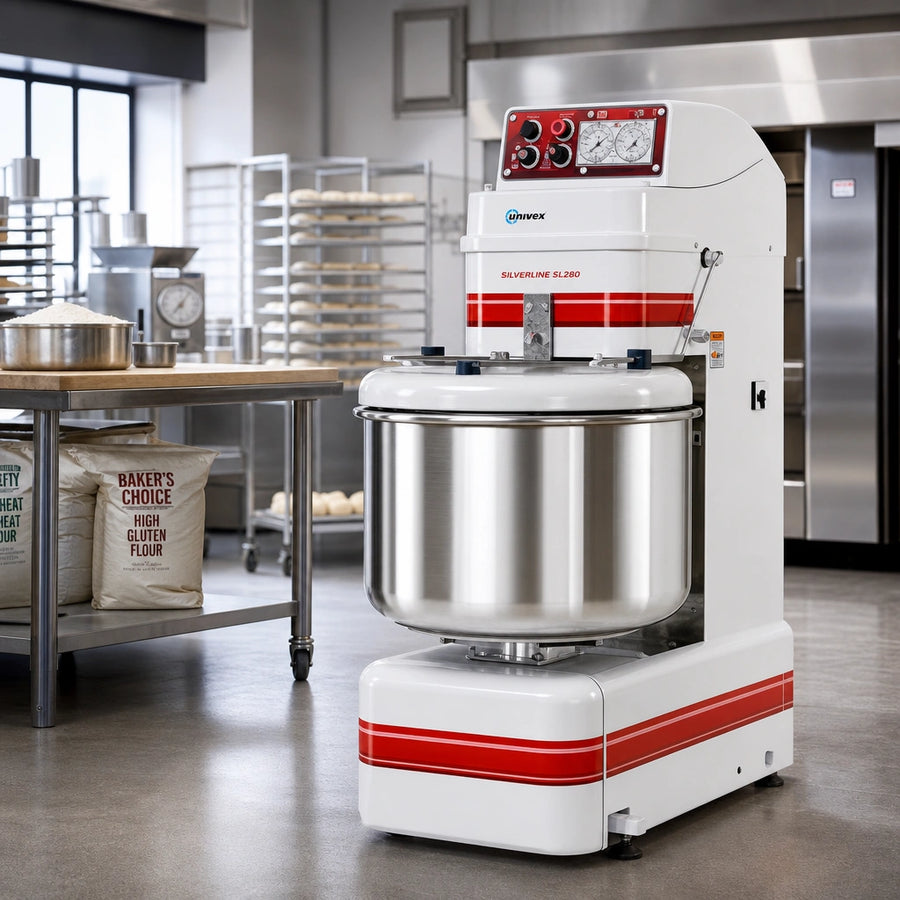

Univex Silverline SL280 Spiral Mixer
444 qt / 617 lb Dough Capacity – Two-Speed + ReverseBuilt for serious, high-volume dough production, the Univex SL280 delivers the power, consistency, and operator safety today’s bakeries and pizzerias demand. A rugged belt-drive transmission, independent bowl and spiral motors, and a swing-open safety guard make this 280 kg mixer a dependable workhorse shift after shift.
Why the SL280?

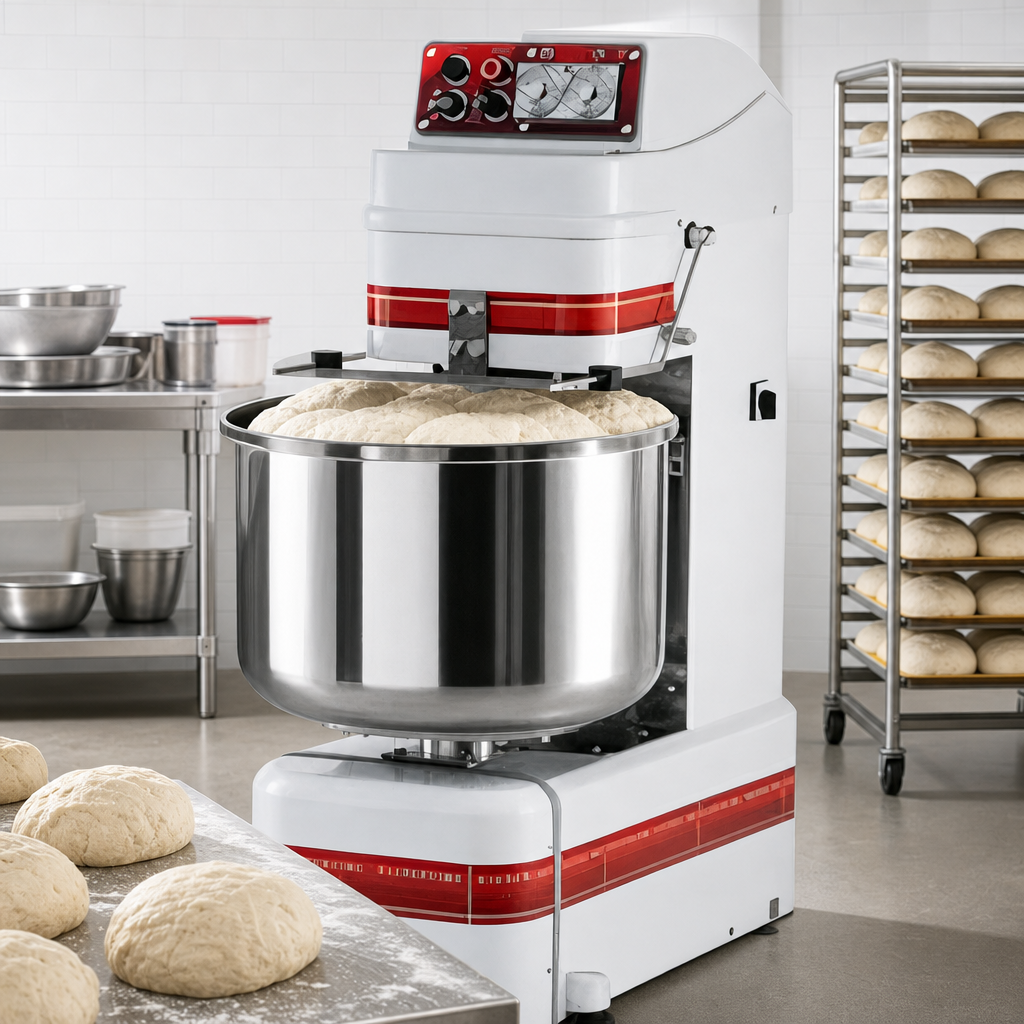

- Massive 444 qt (420 L) stainless-steel bowl handles up to 617 lb (280 kg) of finished dough.
- Separate 15 HP spiral motor & 1 HP bowl motor for uninterrupted torque and low heat generation.
- Two fixed speeds (95 RPM & 190 RPM) plus reverse jog for easy incorporation and bowl clean-out.
- Digital control panel with independent timers for 1st and 2nd speed—no guesswork, perfect repeatability.
- Heavy-duty belt drive = low vibration, whisper-quiet operation, and minimal maintenance costs.
- Swing-open stainless wire guard and bowl jog button provide full-access loading and safe dough removal.
- Factory-installed casters & leveling feet—move it when you need to, lock it when you don’t.
- cETLus & ETL Sanitation listed for peace-of-mind code compliance.
Technical Specifications
Model | SL280 (Silverline Series) |
---|---|
Finished Dough Capacity | 617 lb / 280 kg |
Bowl Volume | 444 qt / 420 L |
Dough Hook Speed | 1st: 95 RPM | 2nd: 190 RPM |
Bowl Rotation | 20 RPM (forward & reverse jog) |
Spiral Motor | 15 HP (11 kW) – 52.5 A @ 220 V, 3 ph |
Bowl Motor | 1 HP (.75 kW) – 3.6 A @ 220 V, 3 ph |
Electrical | 220 V / 3 ph (400 V option available) – hard-wire with local disconnect |
Drive System | Heavy-duty, low-noise belt |
Overall Dimensions | 69″ H × 55″ W × 87″ D (176 × 140 × 220 cm) |
Net / Ship Weight | 1,830 lb / 1,940 lb (830 kg / 880 kg) |
Certifications | cETLus, ETL-Sanitation |
Built to Last
- All food-contact parts—bowl, spiral hook, and shaft—are polished 304 stainless steel.
- Reinforced cabinet with powder-coated finish resists dents and scratches in demanding environments.
- Safety interlocks disable operation if the guard is open or the bowl is out of position.
- Service-friendly layout with front-mounted components for easy preventive maintenance.
What’s Included

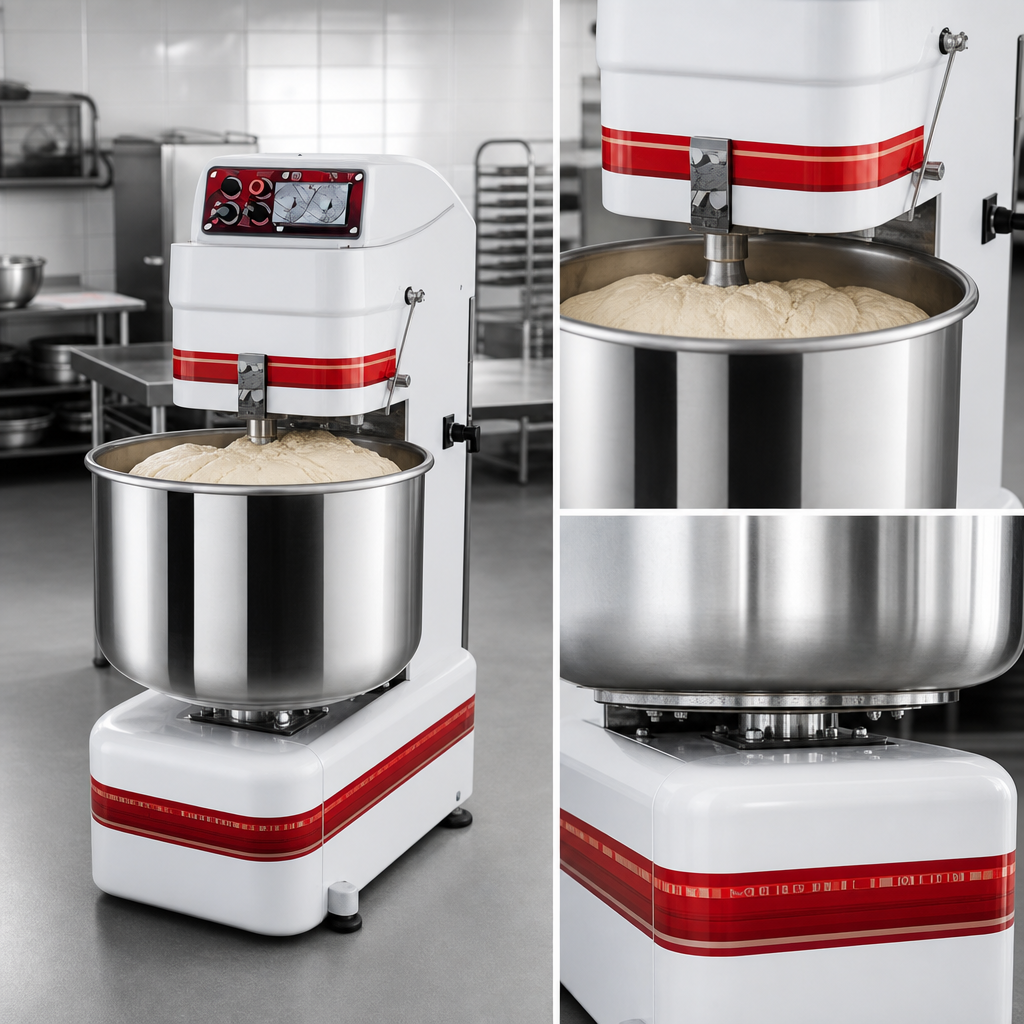

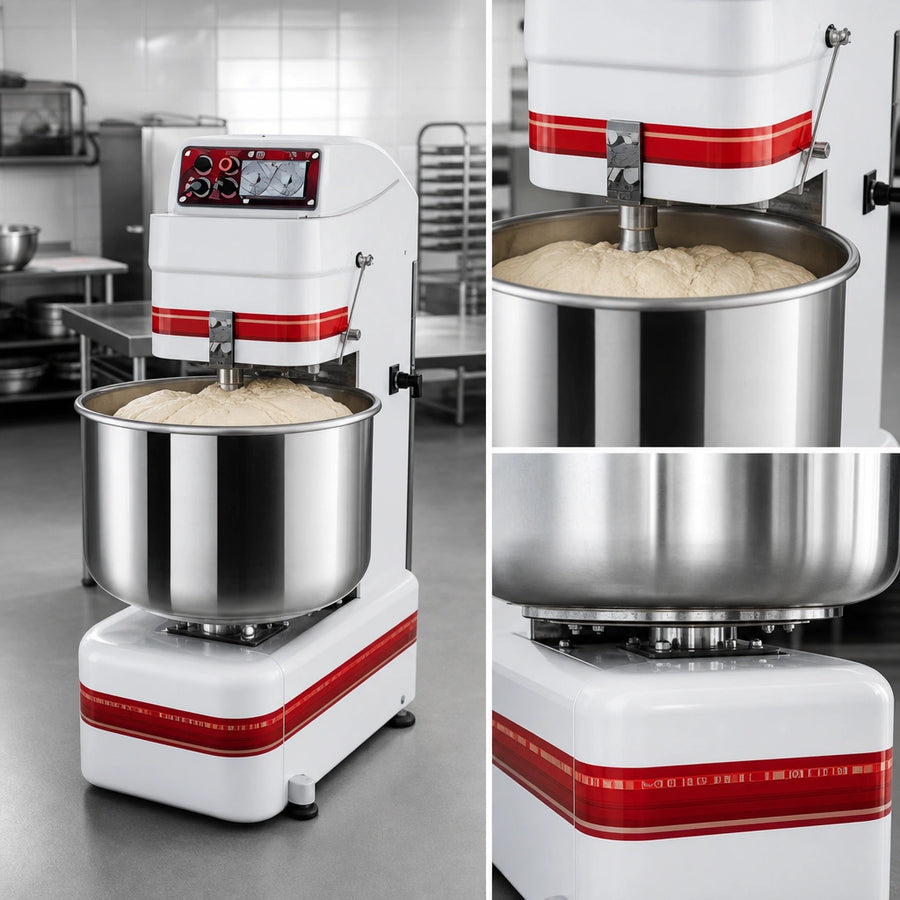

- Stainless-steel fixed bowl
- Stainless-steel spiral dough hook
- Built-in casters with locking leveling feet
- Owner’s/parts manual
Warranty: 1-year on-site parts & labor, backed by Univex’s factory-trained service network.
