Key specifications

Amps
4.48 Amps (Bowl Motor)
Phase
3-Phase
Dimensions
90.08"W × 56.95"D × 128.91"H
Type
Spiral Mixer
Style
Attached Lifter
Installation Type
Floor Model
Spec sheet
Univex SKU: SL200LH

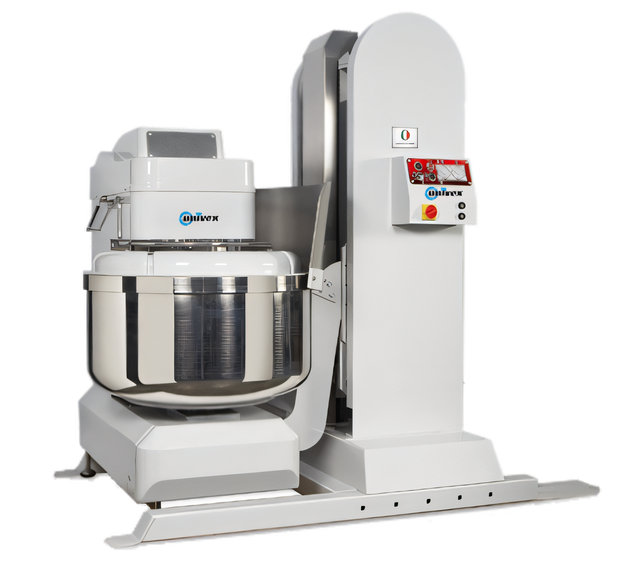

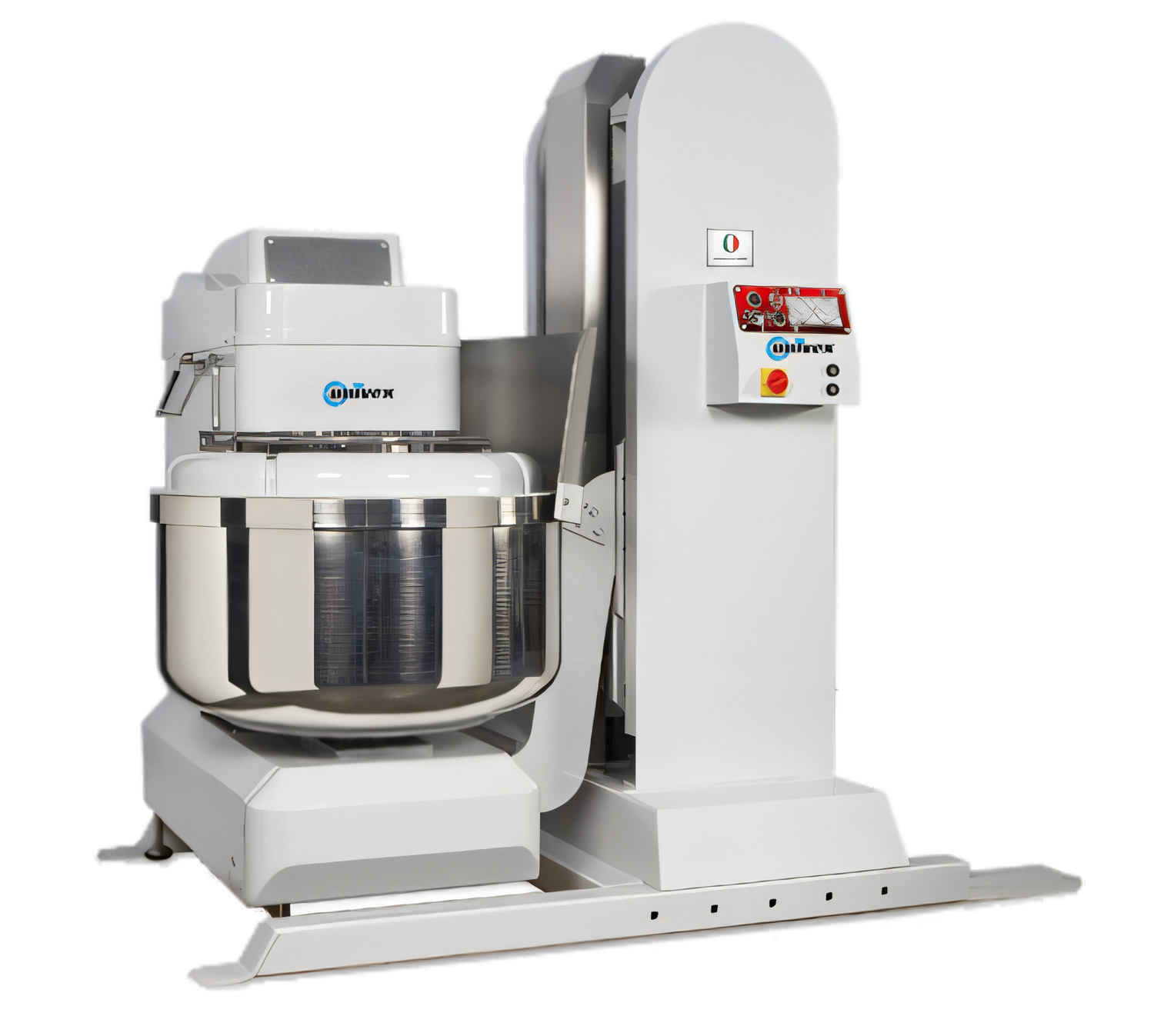

Univex SL200LH 440 lb Dough Spiral Mixer with Lifter

$74,607.60
/each
Estimated to ship in 11–14 business days Free Shipping

Ships by freight. At about 4,299 lb it’s too heavy for a liftgate, so delivery needs a loading dock or a forklift rated for at least 6,000 lb with 6-ft forks.

Lifter tilt directionRequired
Included: Univex warranty One-year on-site parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $6,901/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Spiral Mixer
Style Attached Lifter
Installation Type Floor Model
Capacity 440 lb Dough
Bowl Type Tilting
Controls Manual Timers
Speed 2-Speed
Reverse Function Yes
Housing Construction Painted
Bowl Material Stainless Steel
Included Components Bowl, Spiral Dough Hook, Shaft, Built-In Lifter
Voltage 220 Volts
Amps 4.48 Amps (Bowl Motor)
Hertz 60 Hz
Phase 3-Phase
Watts 13.4 kW Total
Bowl Motor Power 1 HP (750 Watts)
Spiral Motor Power 14 HP (10.4 kW)
Lifter Motor Power 3 HP (2.2 kW)
Dough Hook Speed 95 rpm (1st); 190 rpm (2nd)
Bowl Speed 15 rpm

Description

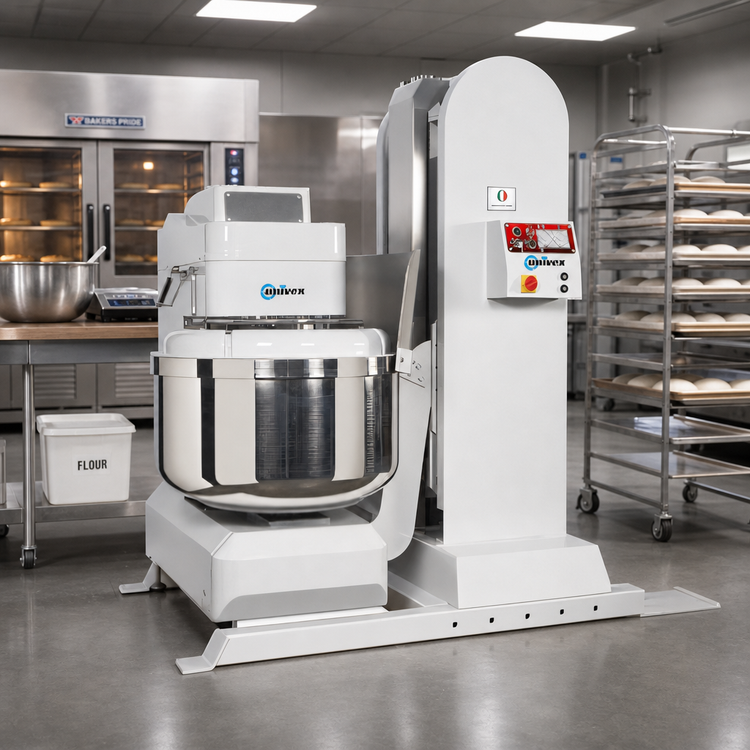

The Univex SL200LH is a Silverline spiral mixer with a 440 lb dough capacity and an attached built-in lifter for lifting and dumping mixed product.

It has two speeds, a reverse function, separate manual timers for first and second speed, and separate bowl and agitator motors.

  • Stainless steel bowl, spiral dough hook, and shaft are included.
  • The belt drive is specified for low vibration and low noise.
  • Mixer operation requires the bowl guard to be closed.

Overall Dimensions:

90.08"W x 56.95"D x 128.91"H

Product Weight:

4299.0 lb

Attached Lifter

The built-in lifter is designed for lifting and dumping mixed product.

Two Speeds with Reverse

The mixer has two speeds and a reverse function, with a bowl reverse direction switch.

Manual Timers

The control board has separate timers for first and second speed.

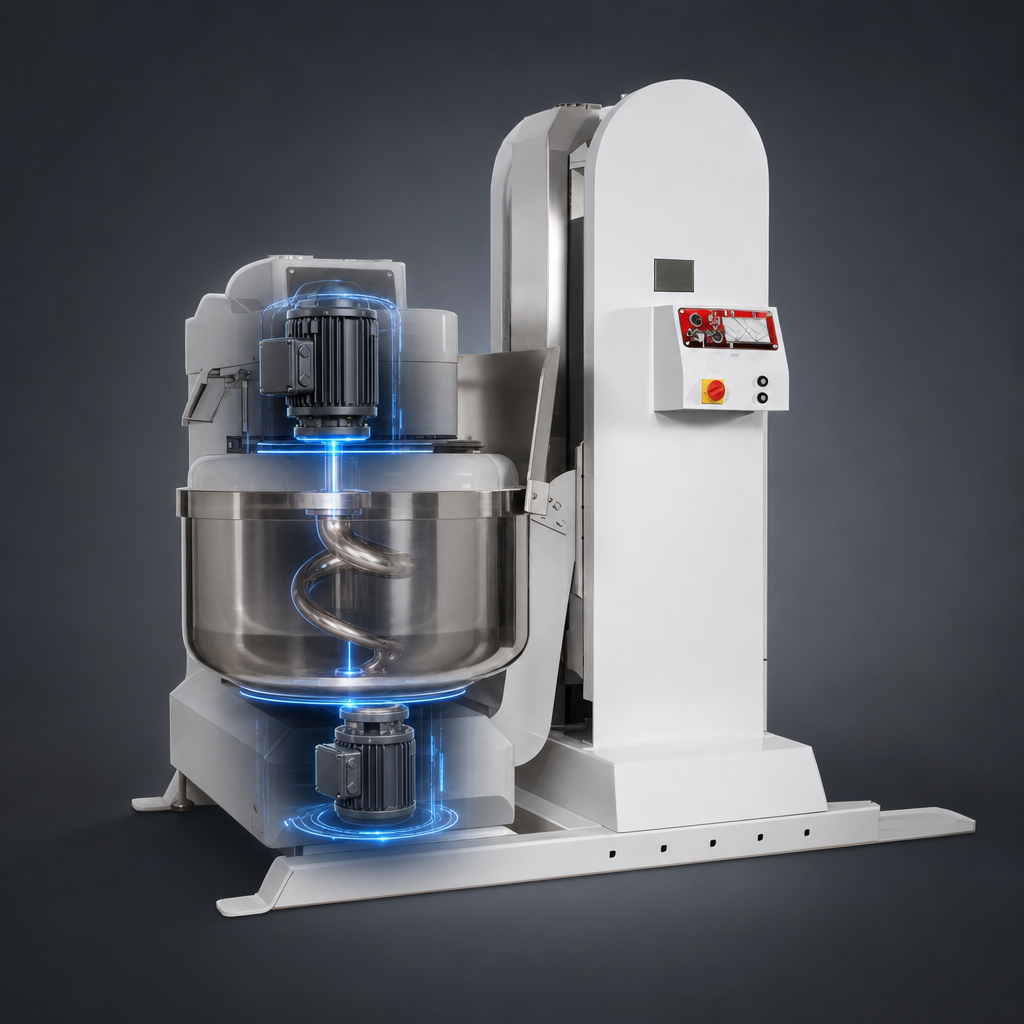

Separate Motors

Separate motors power the bowl and agitator.

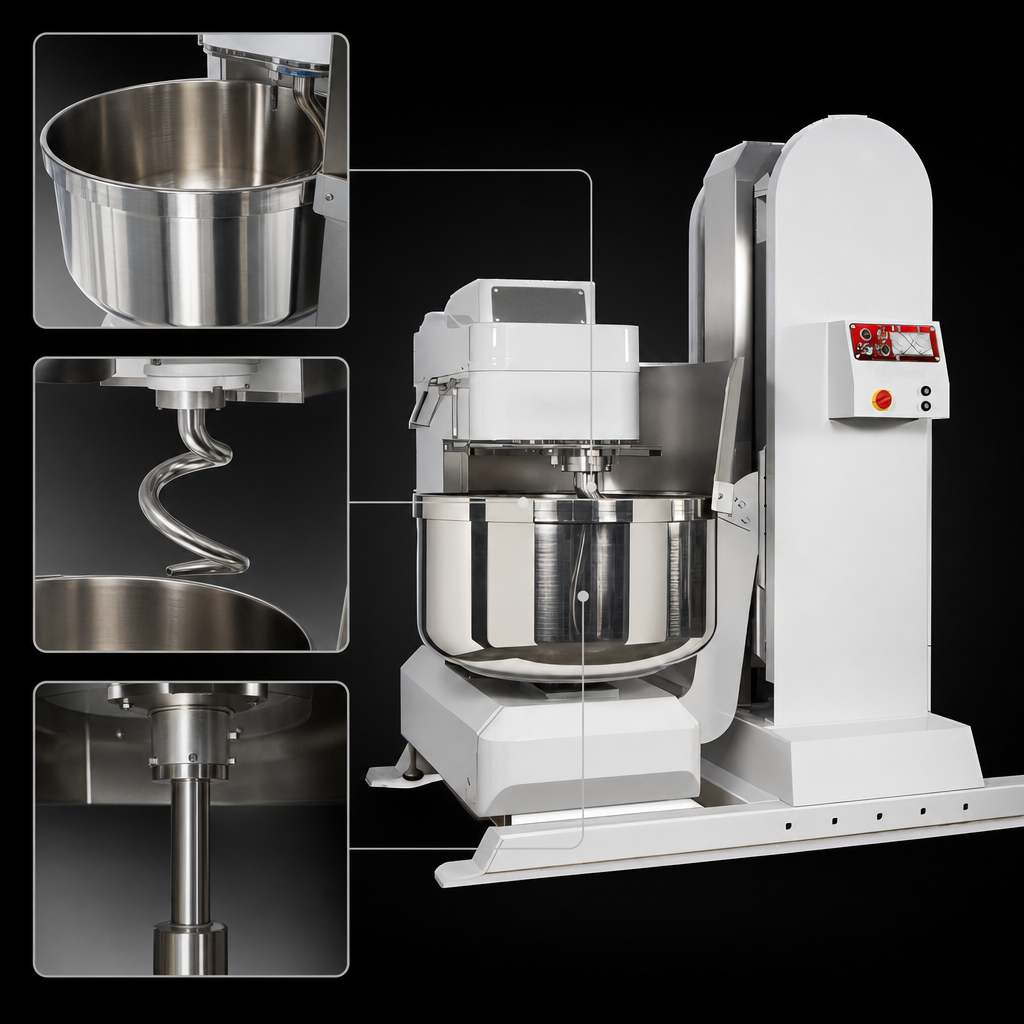

Stainless Steel Mixing Components

The included bowl, spiral dough hook, and shaft are stainless steel.

Belt Drive

The heavy-duty belt drive is specified as low-noise and low-vibration.

Safety Switches

Safety switches protect the operator if the bowl lid is open, and the bowl guard must be closed for operation.

Frequently Asked Questions

The SL200LH has a 440 lb (200 kg) dough capacity.
Yes. It includes a built-in attached lifter for lifting and dumping mixed product.
The mixer includes a stainless steel bowl, spiral dough hook, shaft, and built-in lifter.
The cutsheet lists 220 Volts, 3-Phase, and 60 Hz.
The control panel has manual timers with separate timers for high and low speed, a bowl reverse direction switch, and a security key for manual use.
The SL200LH has a one-year on-site parts and labor warranty.
