Key specifications

Amps
70.56 Amps
Phase
3-Phase
Dimensions
48.8"W × 74.0"D × 58.3"H
Type
Spiral Mixer
Style
Removable Bowl
Installation Type
Floor Model
Spec sheet
Univex SKU: SL160RB

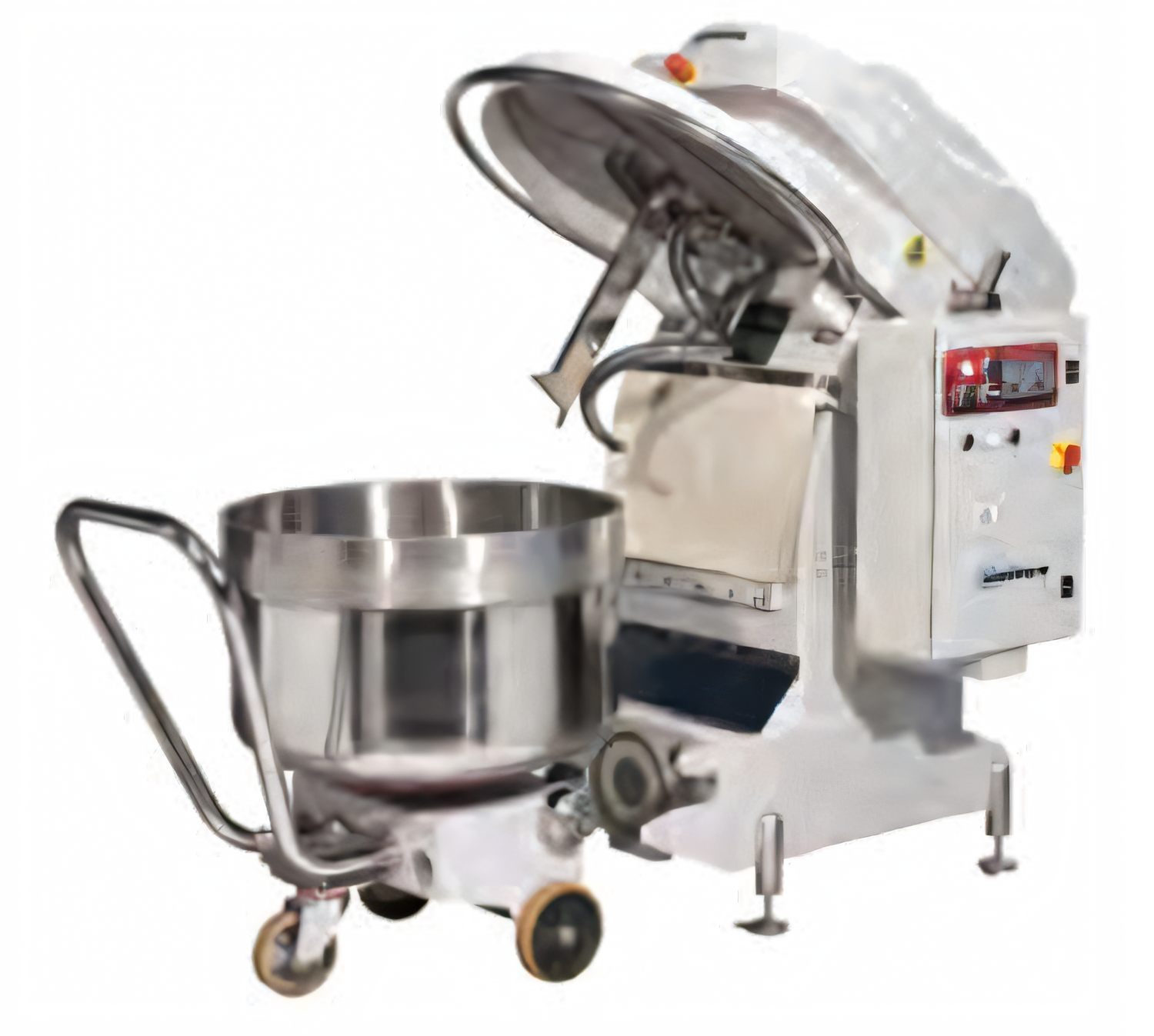

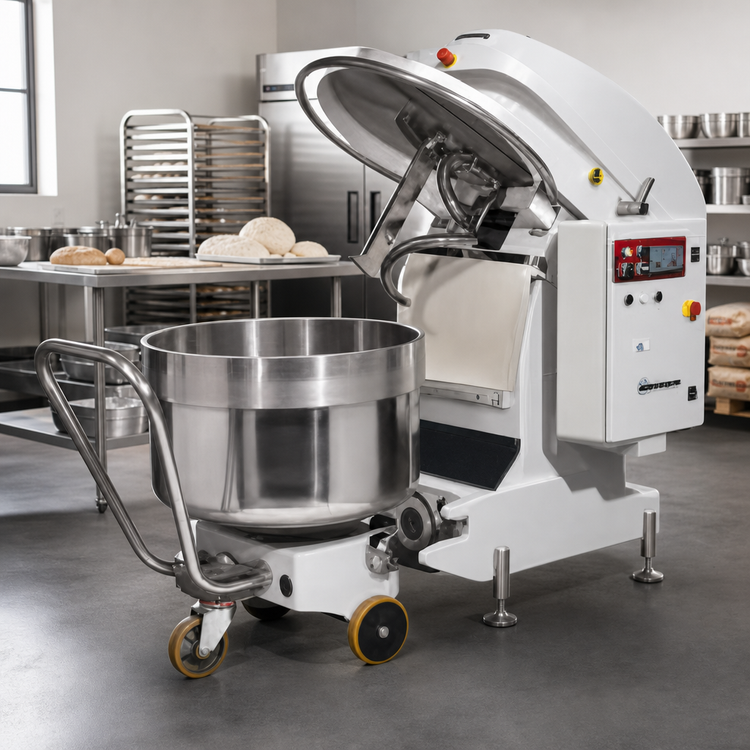

Univex SL160RB 350 lb Removable Bowl Spiral Mixer

$81,151.20
/each
Estimated to ship in 11–14 business days Free Shipping
Dough capacity
Electrical220 V · 3-phase · 70.56 A
Included: Univex warranty One year on-site parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $7,506/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Spiral Mixer
Style Removable Bowl
Installation Type Floor Model
Capacity 243 qt (230 L)
Dough Capacity 350 lb (160 kg)
Bowl Type Removable
Bowl Material Stainless Steel
Controls Digital Timers
Speed 2-Speed
Rotation Reverse
Motor Configuration Separate Bowl And Agitator Motors
Housing Finish Painted
Voltage 220 Volts
Amps 70.56 Amps
Watts 15.9 kW
Hertz 60 Hz
Phase 3-Phase
Electrical Connection Hardwire With Shutoff

Description

The Univex SL160RB is a floor spiral mixer with a 350 lb (160 kg) dough capacity and a 243 qt (230 L) bowl. Its removable bowl, two speeds, reverse function, and digital timers support controlled dough mixing.

The mixer features a stainless steel bowl, spiral dough hook and shaft, separate bowl and agitator motors, bowl jog, a swing-open bowl guard, built-in casters, and leveling feet.

  • 350 lb (160 kg) dough capacity
  • Removable bowl
  • Two speeds with reverse function
  • Separate digital timers for first and second speed
  • Stainless steel bowl, dough hook, and shaft

Overall Dimensions:

48.8"W x 74.0"D x 58.3"H

Product Weight:

2350.0 lb

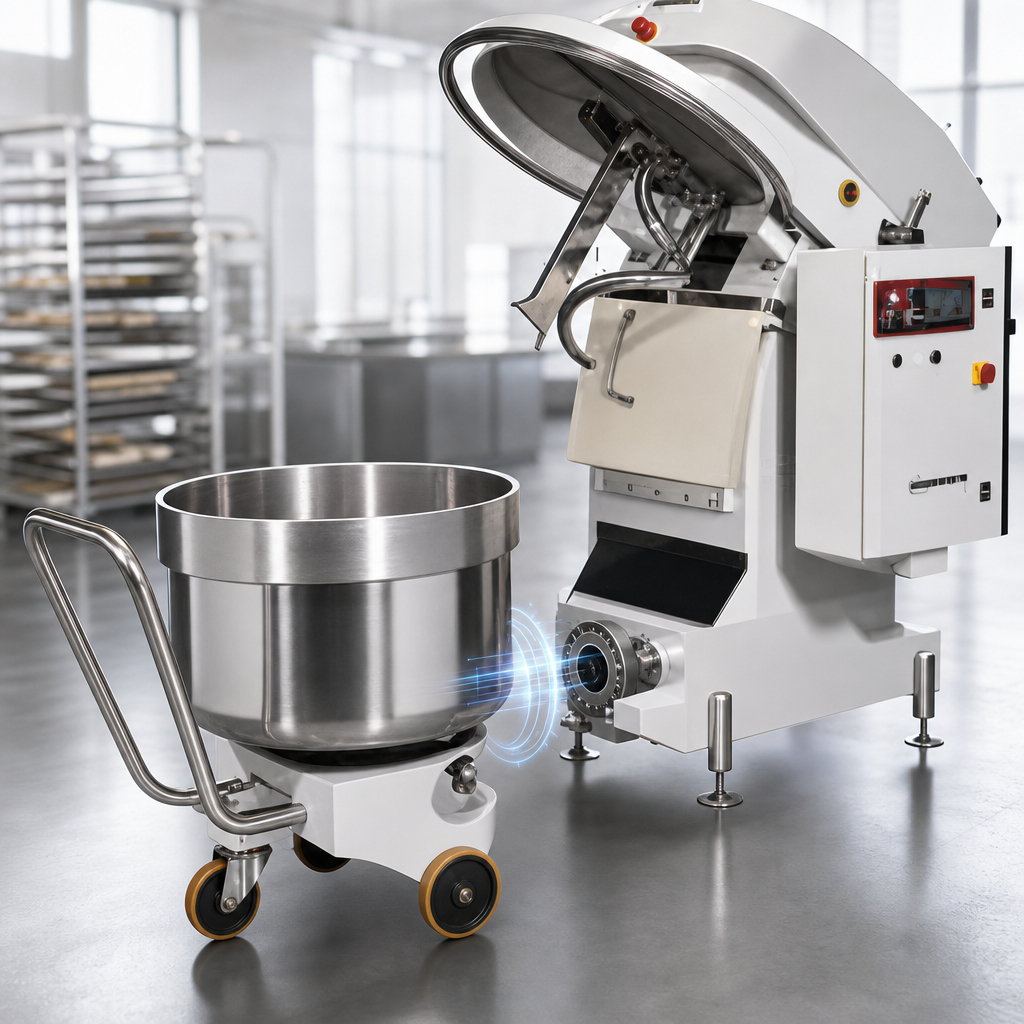

Removable Bowl

The bowl is designed to be removed from the mixer.

Two Speeds and Reverse

The mixer has two speeds and a reverse function.

Digital Timers

The control board has separate timers for first and second speed.

Bowl Jog

A bowl jog function is specified for the mixer.

Swing-Open Bowl Guard

The bowl guard swings open for access to the bowl and must be closed for operation.

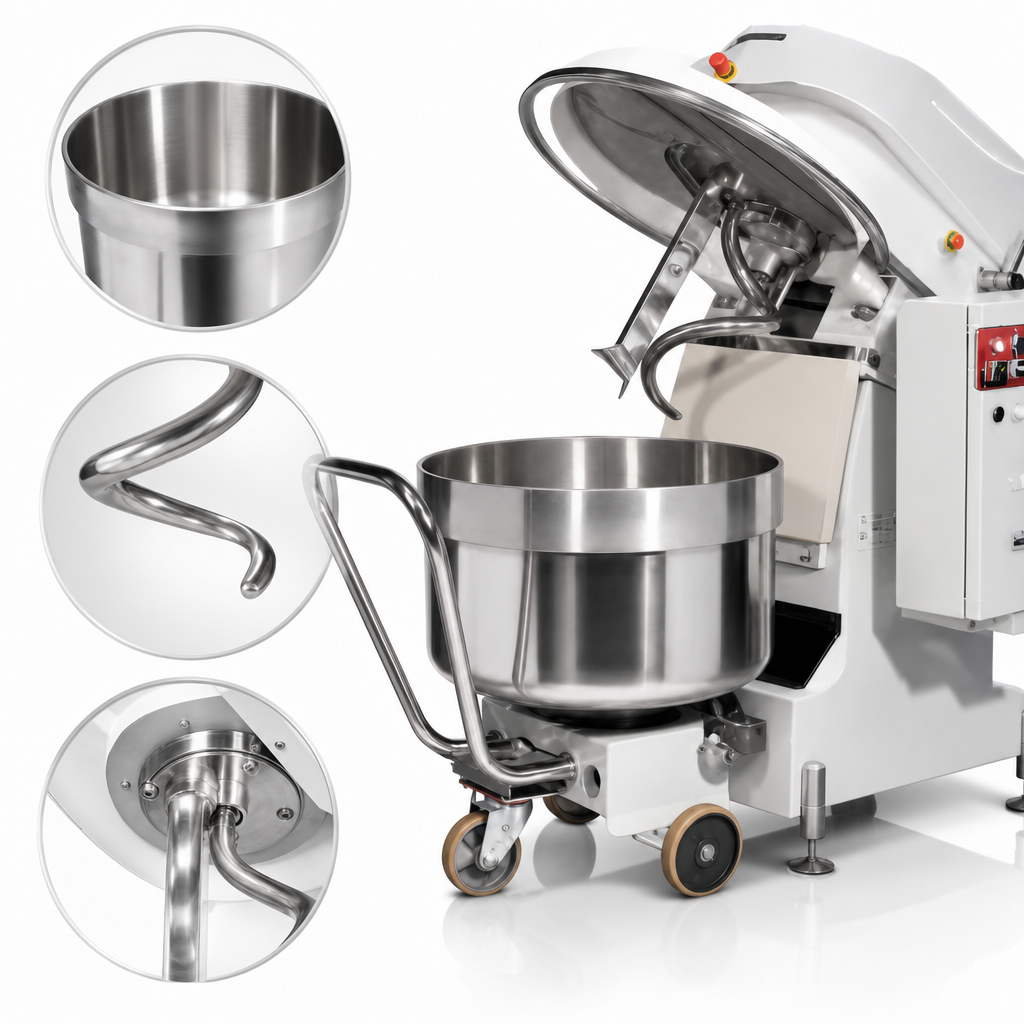

Stainless Steel Mixing Components

The mixer includes a stainless steel bowl, spiral dough hook, and shaft.

Separate Motors

Separate motors drive the bowl and agitator.

Casters and Leveling Feet

Built-in casters and leveling feet are included.

Safety Switches

Safety switches protect operation when the bowl lid is open.

Frequently Asked Questions

The SL160RB has a dough capacity of 350 lb (160 kg).
Yes. The SL160RB has a removable bowl.
It has a control panel with separate digital timers for first and second speed, along with bowl jog and reverse functions.
The listed configuration is 220 Volts, 3-Phase, 60 Hz, with 70.56 total amps and a hardwire connection with shutoff.
The specified warranty is one year on-site parts and labor.
