Univex SL160LH Spiral Dough Mixers
Description

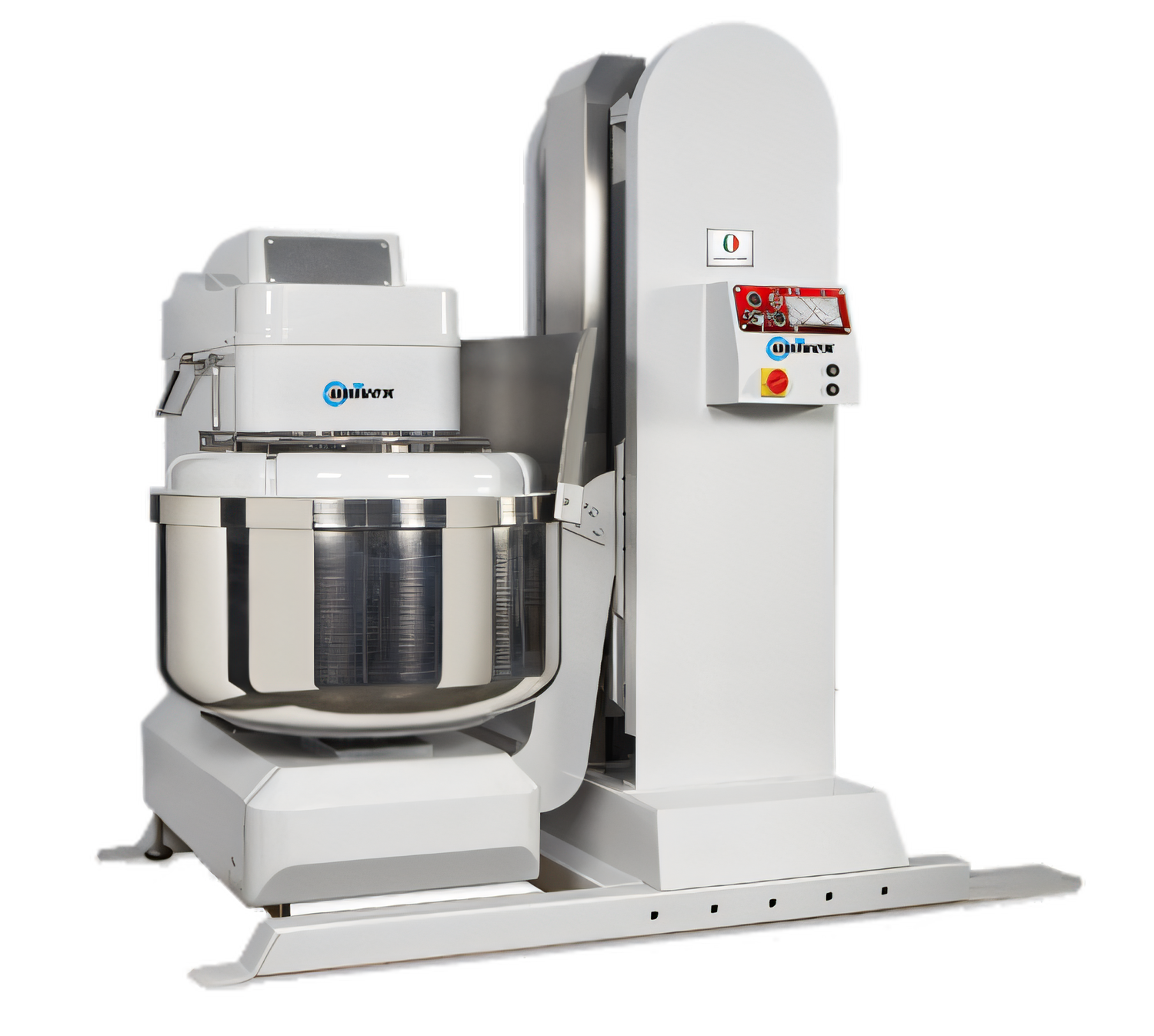

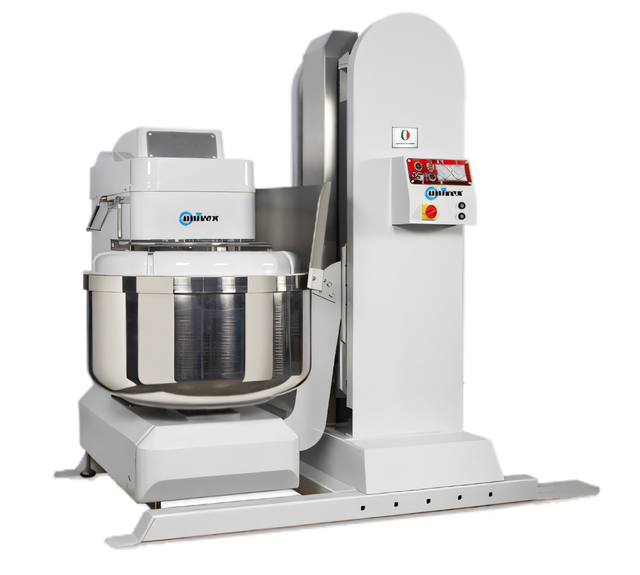

Silverline SL160L Series Spiral Mixer with Built-In Lifter
Models SL160LH (high-lift) | SL160LB (bench-lift)Turn 350 lb (160 kg) of dough into perfectly developed, ready-to-use product with the power, consistency, and safety only Univex can deliver. The Silverline SL160L Series combines a heavy-duty spiral mixer with an integrated bowl lifter/tilter, giving high-volume bakeries, commissaries and pizza operations a seamless mix-to-discharge workflow.
Why the SL160L Series stands out

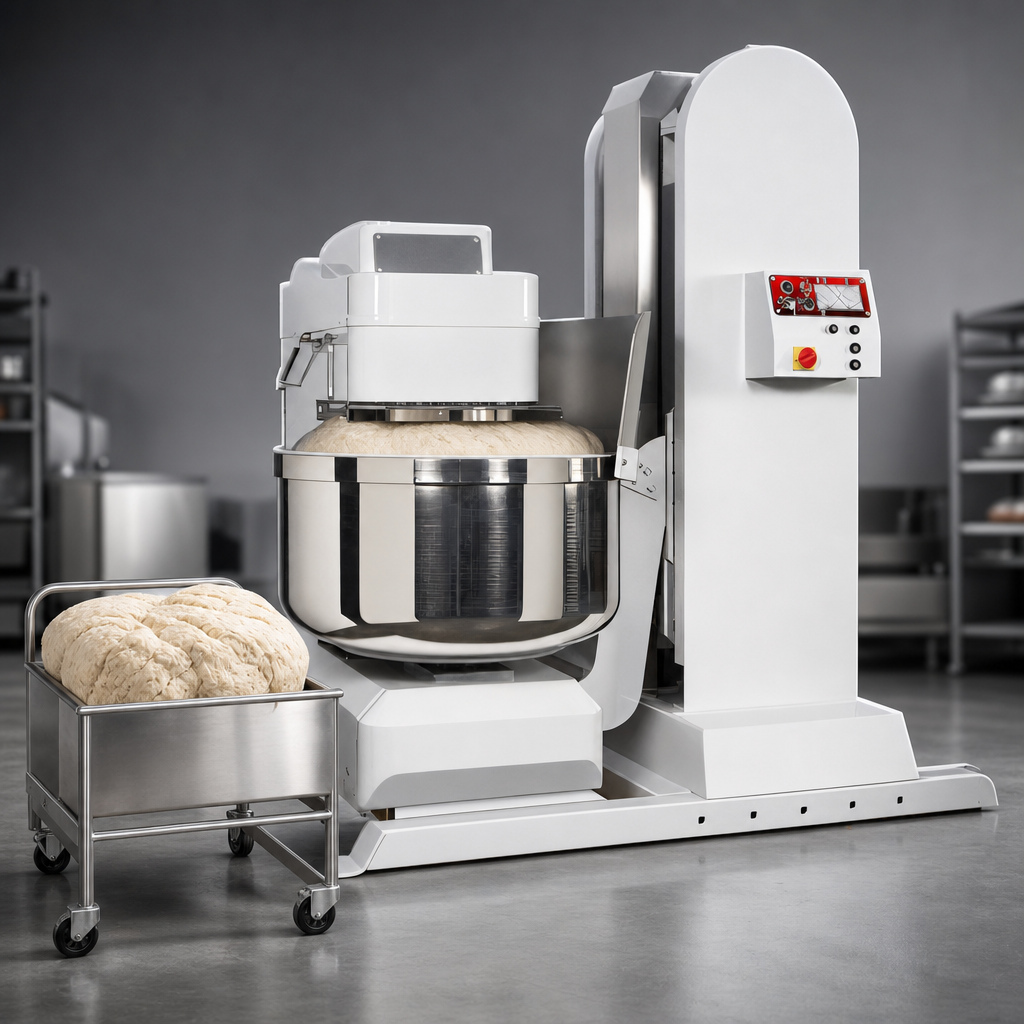

- 350 lb finished-dough capacity handles large batches without compromising gluten development.
- Two fixed speeds (95 & 190 RPM) plus reverse bowl rotation for quick pre-mixing and cleanup.

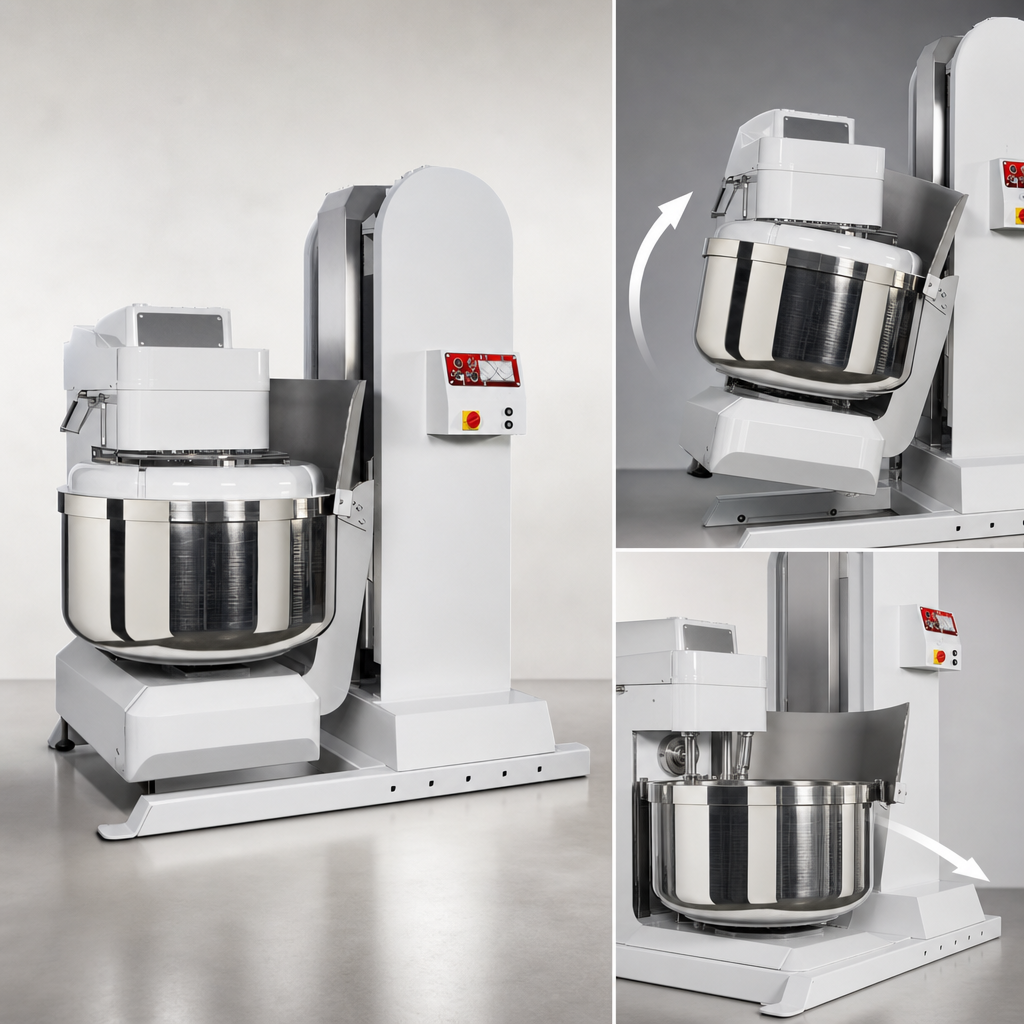

- Integrated hydraulic lifter tilts left or right (specify at order) for direct discharge into benches, hoppers or dividers—no manual bowl handling.
- Independent motors for spiral hook (15 HP), bowl (1 HP) and lifter (3 HP) maintain maximum torque under load.
- Programmable control board with separate timers for low and high speed—set it, walk away, repeat.
- Food-grade stainless-steel bowl, spiral hook and shaft resist corrosion and speed up sanitation.
- Belt-drive transmission delivers low vibration, low noise and virtually maintenance-free operation.
- Full-coverage bowl guard & magnetic safety interlocks meet the latest cETLus & ETL-Sanitation standards.
Technical Specifications
| Finished dough capacity | 350 lb / 160 kg |
|---|---|
| Hook speed | 1st speed 95 RPM | 2nd speed 190 RPM |
| Bowl speed | 15 RPM |
| Motor power | Spiral 15 HP (11 kW) | Bowl 1 HP (0.75 kW) | Lifter 3 HP (2.2 kW) |
| Electrical (standard) | 220 V / 60 Hz / 3 Ph • 57.3 A total • Hard-wired with local disconnect |
| Electrical (optional) | 400 V / 50 Hz / 3 Ph • 29 A total |
| Dimensions (W × D × H) |
SL160LH 96″ × 60″ × 91″ SL160LB 96″ × 60″ × 71″ |
| Net weight |
SL160LH 4,188 lb (1,900 kg) SL160LB 3,527 lb (1,600 kg) |
| Certifications | cETLus • ETL-Sanitation |
| Warranty | One-year, on-site parts & labour |
Included Accessories
- Fixed stainless-steel mixing bowl
- Heavy-duty stainless-steel spiral dough hook & shaft
- Hydraulic lifter/tilter assembly
- Removable bowl guard for fast cleaning
Need help integrating the SL160L into your production line? Our 24/7 technical team is only a call away: 1 (800) 258-6358.
