Univex  |  SKU: SL160LB

Univex SL160LB Spiral Dough Mixers

$65,132.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Brochure pizza Brochure bakery Owner's manual Warranty sheet
Related Searches
Mixers Spiral Dough Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

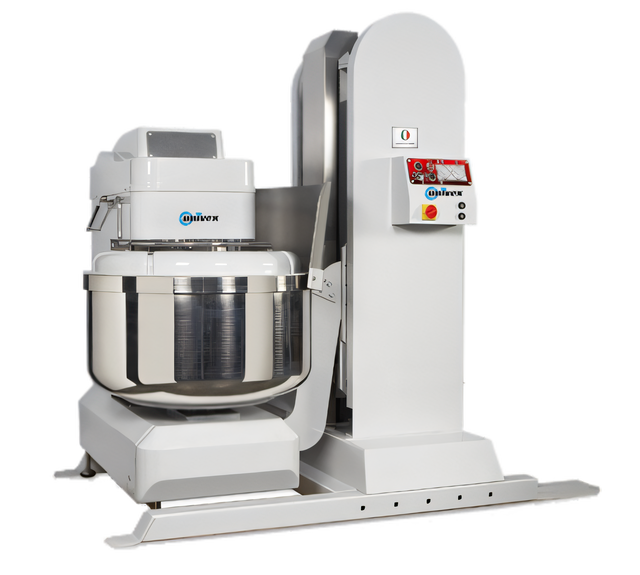

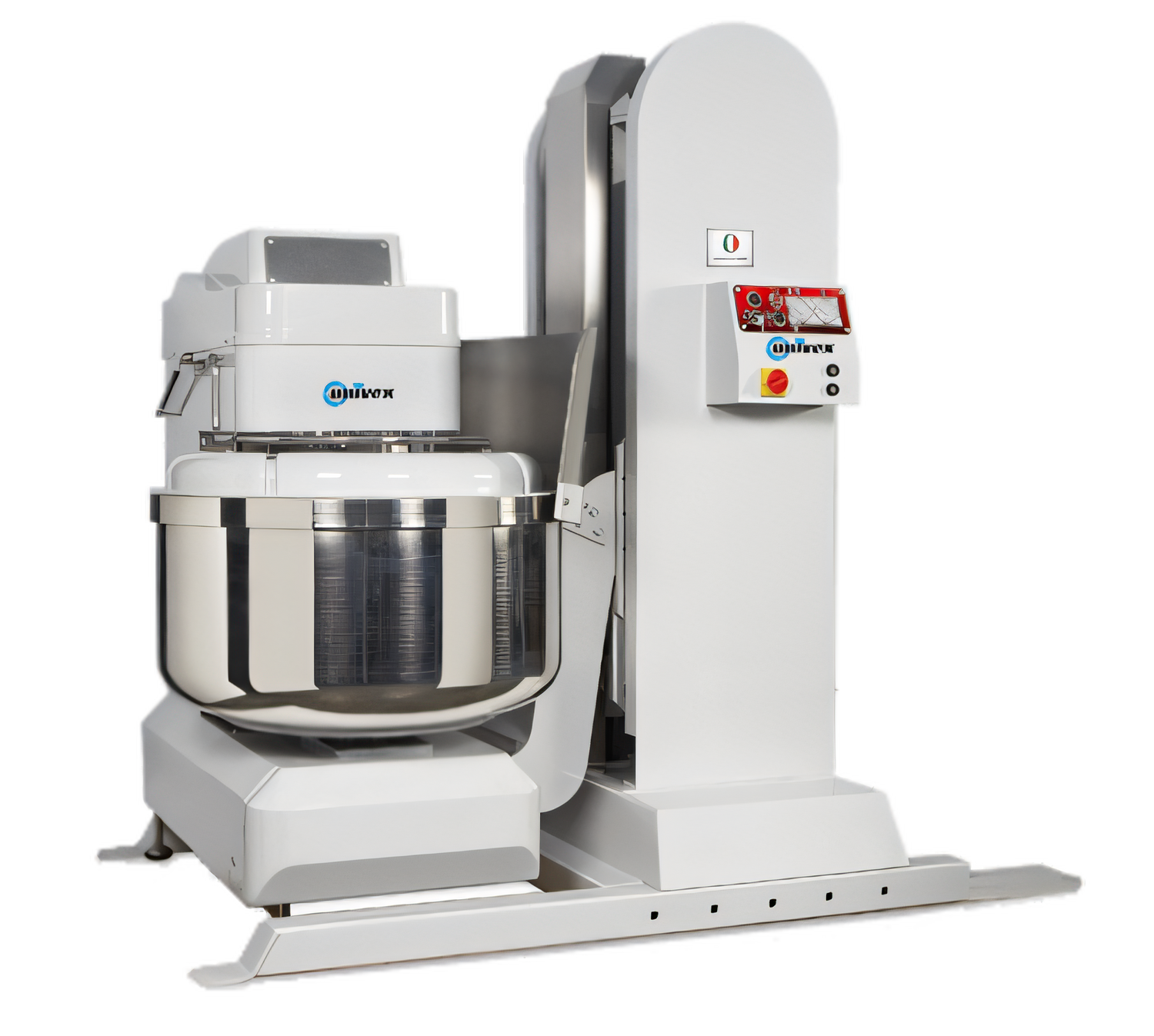

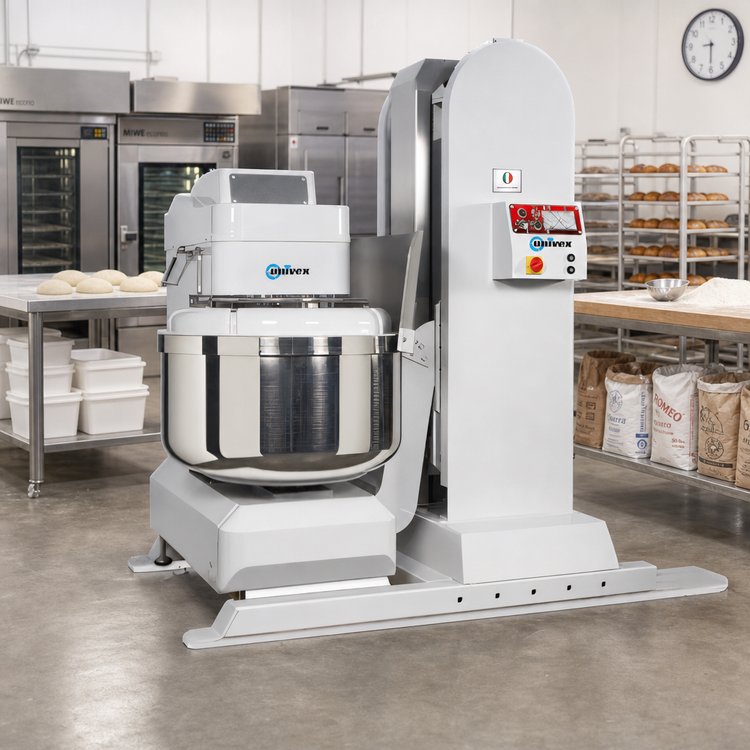

Univex Silverline SL160L Series Spiral Mixer with Built-In Lifter – 350 lb Dough Capacity

Models SL160LH (high-lift) & SL160LB (low-lift)

Engineered for high-output bakeries, pizzerias and commissaries, the Univex Silverline SL160L Series mixes up to 350 lb (160 kg) of dough to perfect gluten development—then lifts and tips the entire mixer for effortless discharge. Two speeds, heavy-duty power and rugged stainless-steel construction ensure consistent results shift after shift.

Key Features

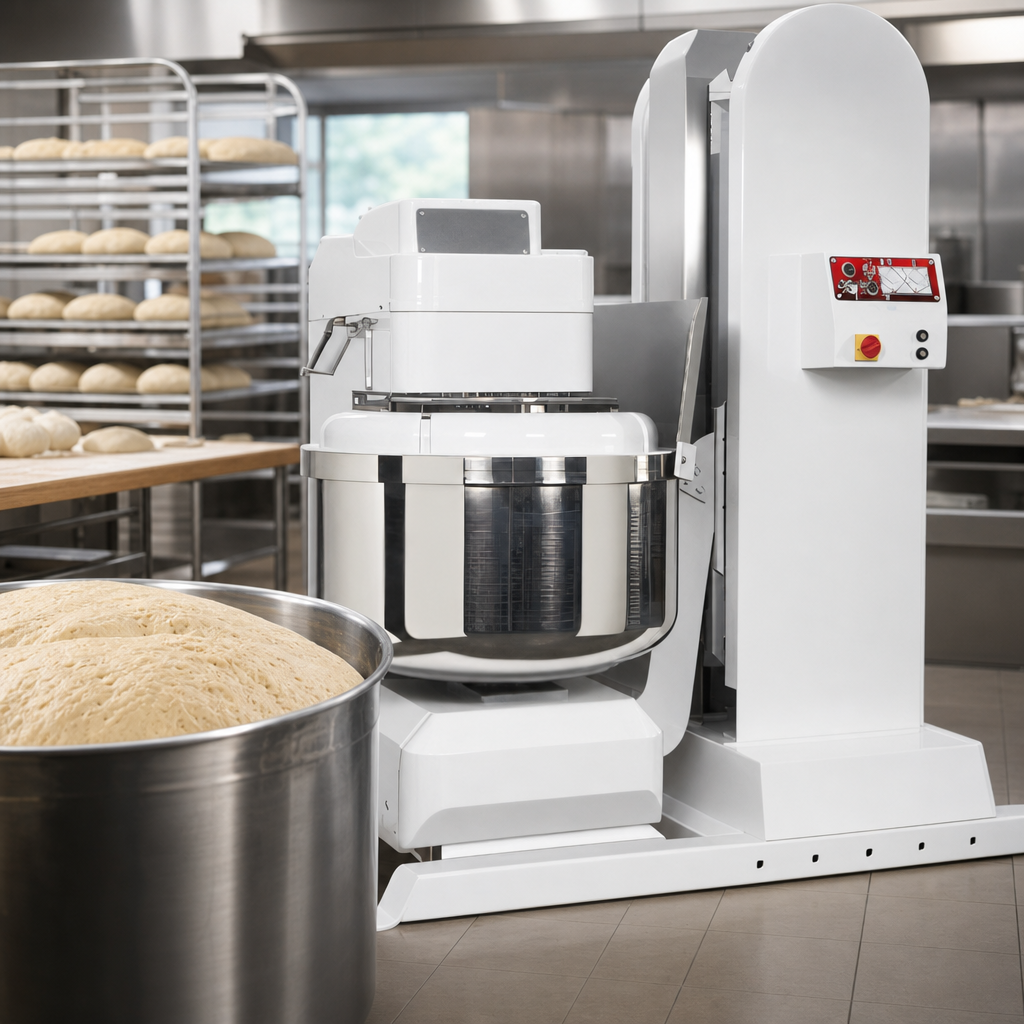

  • 350 lb (160 kg) finished dough capacity in a single batch
  • Two hook speeds – 95 RPM (1st) & 190 RPM (2nd) with bowl reverse
  • Integrated hydraulic lifter tilts left or right (specify at order) for fast, mess-free unloading
  • Independent bowl (1 HP) & spiral (15 HP) motors deliver maximum torque and longevity
  • Electronic control board with separate timers for low & high speed—set, start, walk away
  • Food-contact parts—bowl, spiral hook and shaft—are heavy-gauge stainless steel
  • Low-noise, low-vibration belt drive keeps maintenance and energy costs down
  • Swiveling bowl guard and bowl-lid interlock for operator safety
  • cETLus & ETL-Sanitation listed for electrical & hygiene compliance
  • Backed by Univex 1-year on-site parts & labor warranty and 24/7 technical support

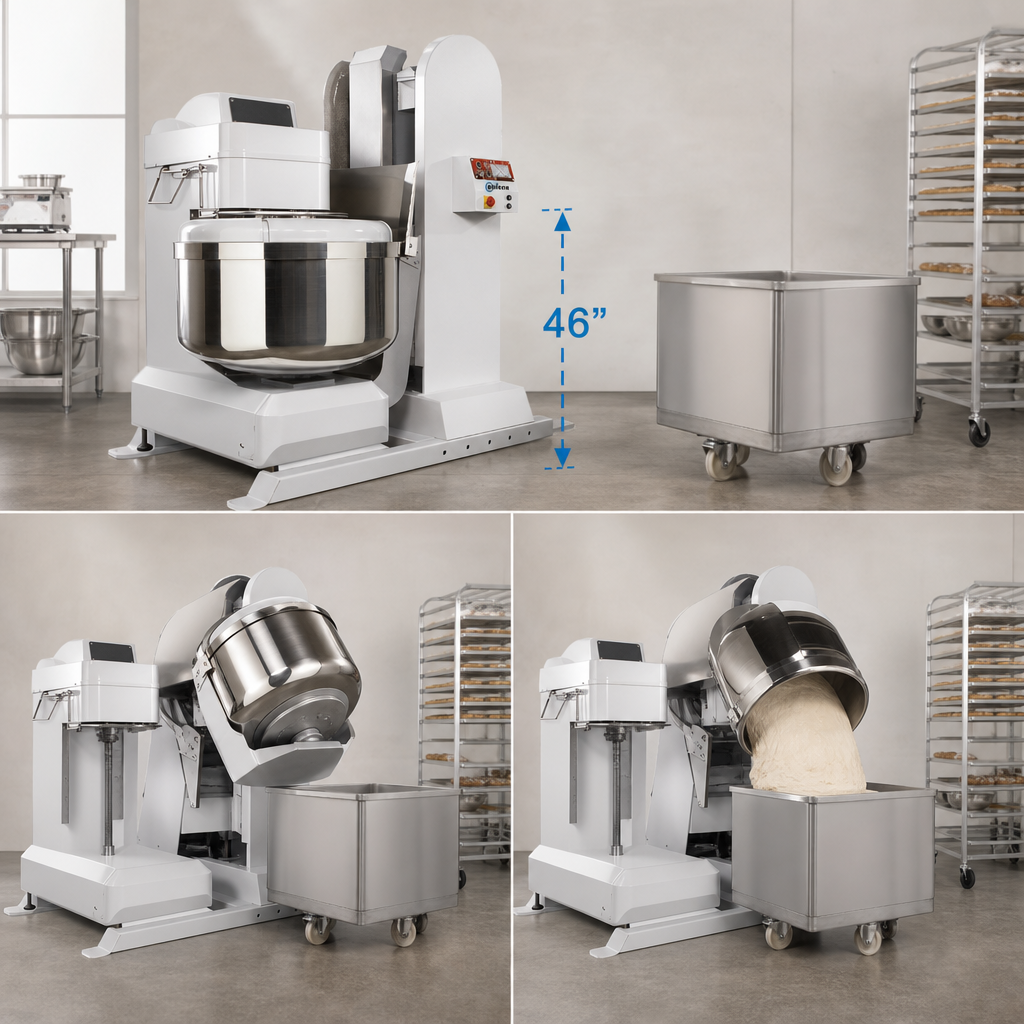

Why a Built-In Lifter?

Dump finished dough directly into dividers, hoppers or work tables—no separate bowl carts, hoists or manual lifting. Choose the SL160LB for low hopper applications or the SL160LH for bench-height discharge.

Specifications
Finished Dough Capacity 350 lb (160 kg)
Hook Speeds 1st 95 RPM  |  2nd 190 RPM
Bowl Speed 15 RPM
Lifter Operation Hydraulic tilt – left or right
Spiral Motor 15 HP (11 kW) – 52.8 A
Bowl Motor 1 HP (0.75 kW) – 4.48 A
Lifter Motor 3 HP (2.2 kW) – 13 A
Total Connected Load 19 HP (13.95 kW) – 57.3 A
Electrical 220 V, 3-Phase, 60 Hz – hard-wired with disconnect
Drive System Heavy-duty belt
Net Weight SL160LH 4,188 lb (1,900 kg) | SL160LB 3,527 lb (1,600 kg)
Overall Dimensions (W × D) 96 " × 60 " (243.8 × 152.4 cm)
Height LH 91 " (231 cm) | LB 71 " (180 cm)
Certifications cETLus, ETL-Sanitation

Need a special voltage, tilt direction or custom paint finish? Contact our equipment specialists—each Silverline mixer is built to order.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

101.13in

Width

88.88in

Depth

54.63in

Shipping Weight

3877.0lbs

Housing Construction

painted

Attachments

bowl, dough hook

Speed

2-speed

Bowl Type

tilting

Controls

timer

Dough Capacity

201 - 400 lbs

Specifications

Silverline Spiral Mixer, 350 lb. dough capacity, 2 speeds, reverse function, control board with separate timers, includes: built-in lifter, stainless steel bowl, spiral dough hook & shaft, separate bowl & agitator motor, belt drive, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (15 HP, 52.8 Amps, 11.0 kW) and lift (3 HP, 13.0 amps, 2.2 kW), cETLus, ETL-Sanitation
