Univex SL160 Spiral Dough Mixers

Univex SL160 Silverline Spiral Mixer

Built to thrive in the busiest bakeries and pizzerias, the Univex SL160 delivers perfectly developed dough every time. Dual motors, two speeds plus reverse, and a rugged stainless-steel build give your team the power and consistency they need—shift after shift, year after year.

Why the SL160 stands out

• 243 qt (230 L) fixed stainless-steel bowl handles up to 353 lb of finished dough
• Separate 15 HP spiral motor & 1 HP bowl motor for maximum torque and efficiency
• Two mixing speeds (95 & 190 RPM) plus reverse and bowl jog functions
• Digital control panel with independent timers for 1^st and 2^nd speeds
• Swing-```html

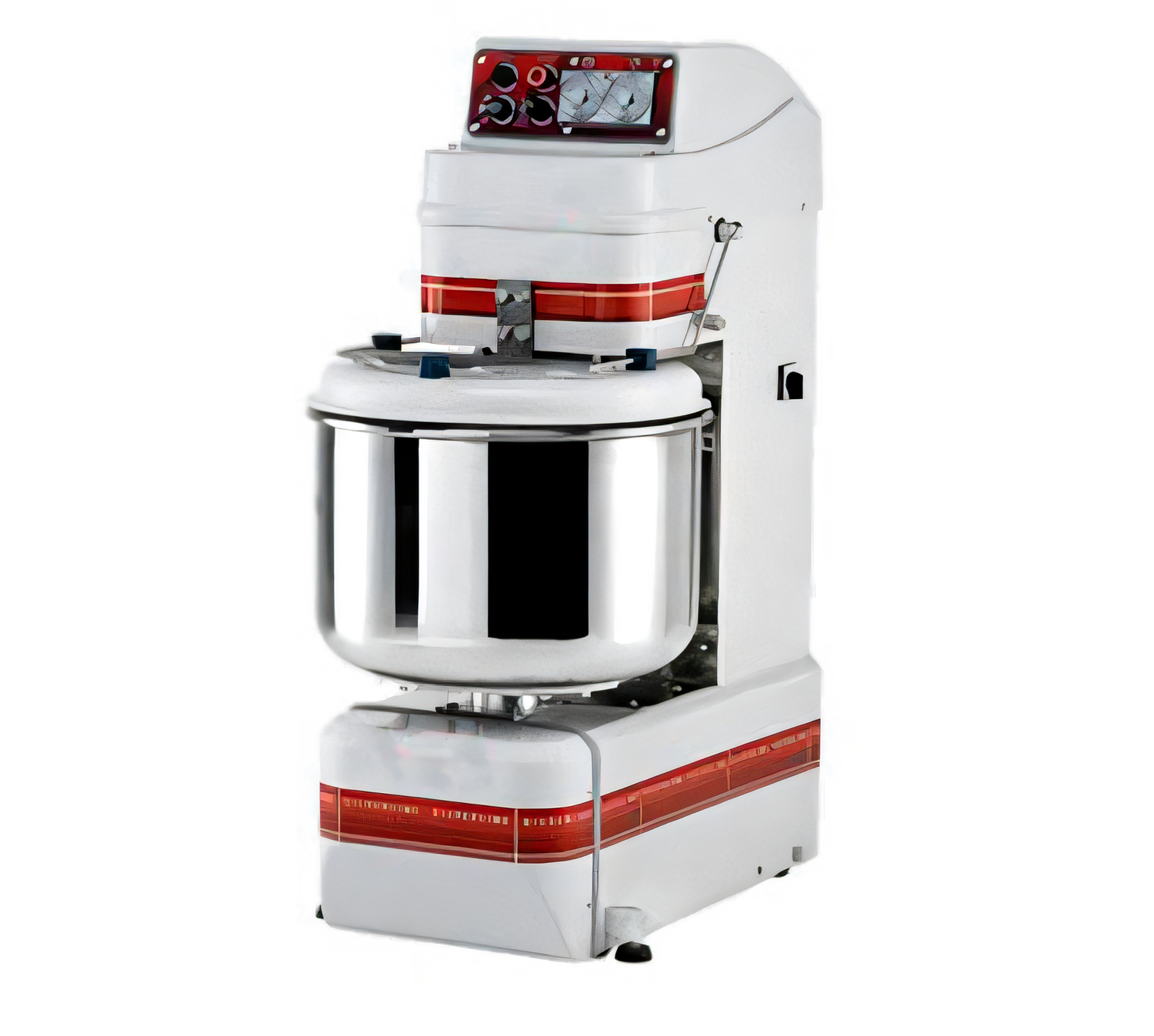

  Univex SL160 Silverline Spiral Mixer

  243 qt / 353 lb Heavy-Duty Dough Mixer

  Engineered for high-volume bakeries and pizzerias, the SL160 kneads up to 353 lb (160 kg) of dough to perfection—fast, quiet, and with unbeatable consistency. Dual motors, digital controls, and a rugged stainless-steel build make this mixer a dependable cornerstone for any production line.

  Key benefits

  • Spacious 243 qt (230 L) stainless-steel bowl with swing-open guard for full access
  • Two mixing speeds (95 & 190 RPM) plus reverse & bowl-jog functions for easy dough release

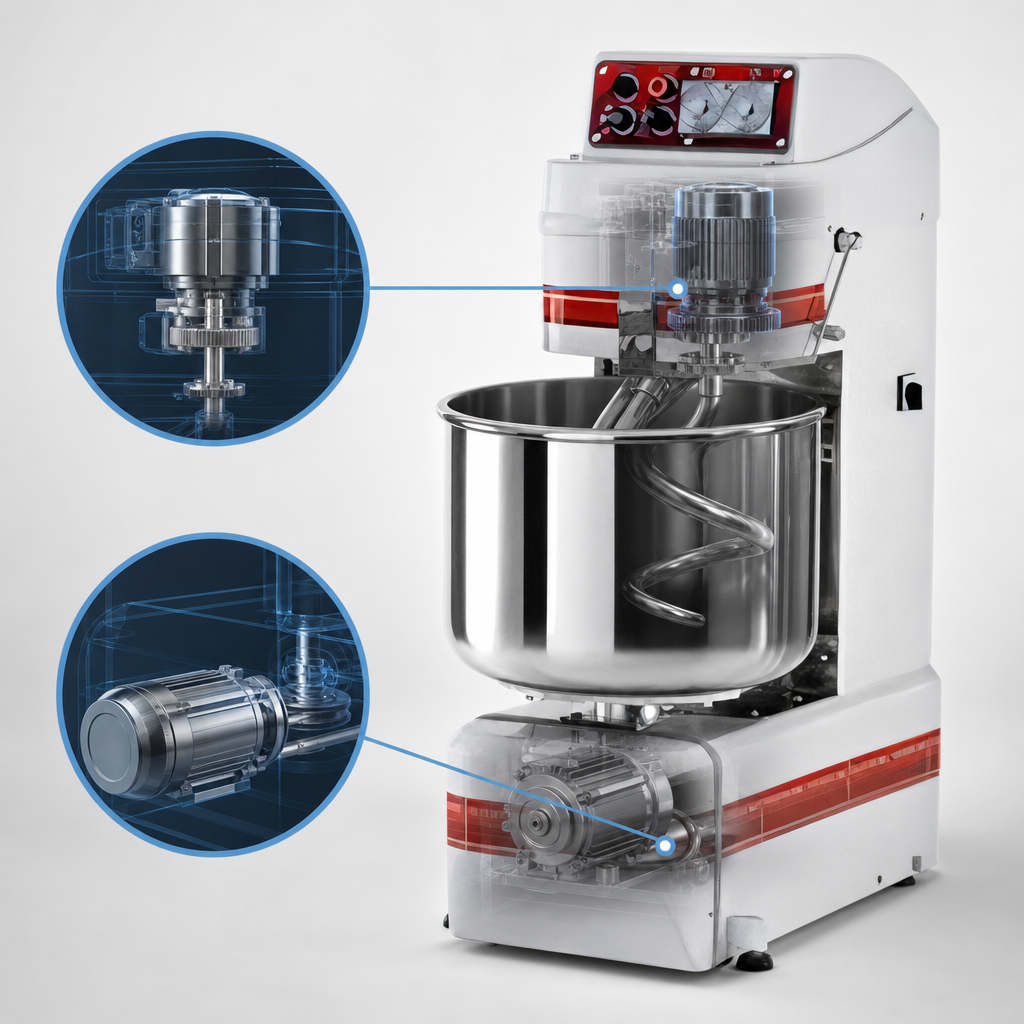

  • Independent 15 HP spiral & 1 HP bowl motors deliver maximum torque and efficiency
  • Digital control panel with separate timers for low & high speed—set it and walk away
  • Low-noise, low-vibration belt drive keeps maintenance costs down
  • Built-in casters for effortless positioning; leveling feet lock the mixer firmly in place
  • Safety interlocks stop operation when the bowl guard is open
  • cETLus & ETL-Sanitation listed for electrical and food-contact safety
  • Backed by a 1-year, on-site parts & labor warranty from Univex

  Technical specifications

  Model	SL160 Silverline Spiral Mixer
  Bowl Capacity	243 qt / 230 L (fixed)
  Finished Dough Capacity	353 lb / 160 kg
  Spiral Speeds	1st: 95 RPM  |  2nd: 190 RPM
  Bowl Speed	20 RPM (constant)
  Motor – Spiral	15 HP  •  11 kW  •  52.8 A @ 220 V / 3 Ø
  Motor – Bowl	1 HP  •  0.75 kW  •  3.6 A @ 220 V / 3 Ø
  Electrical	220 V / 3-phase (standard)  |  400 V / 3-phase (optional) – hard-wired
  Drive System	Heavy-duty, low-maintenance belt

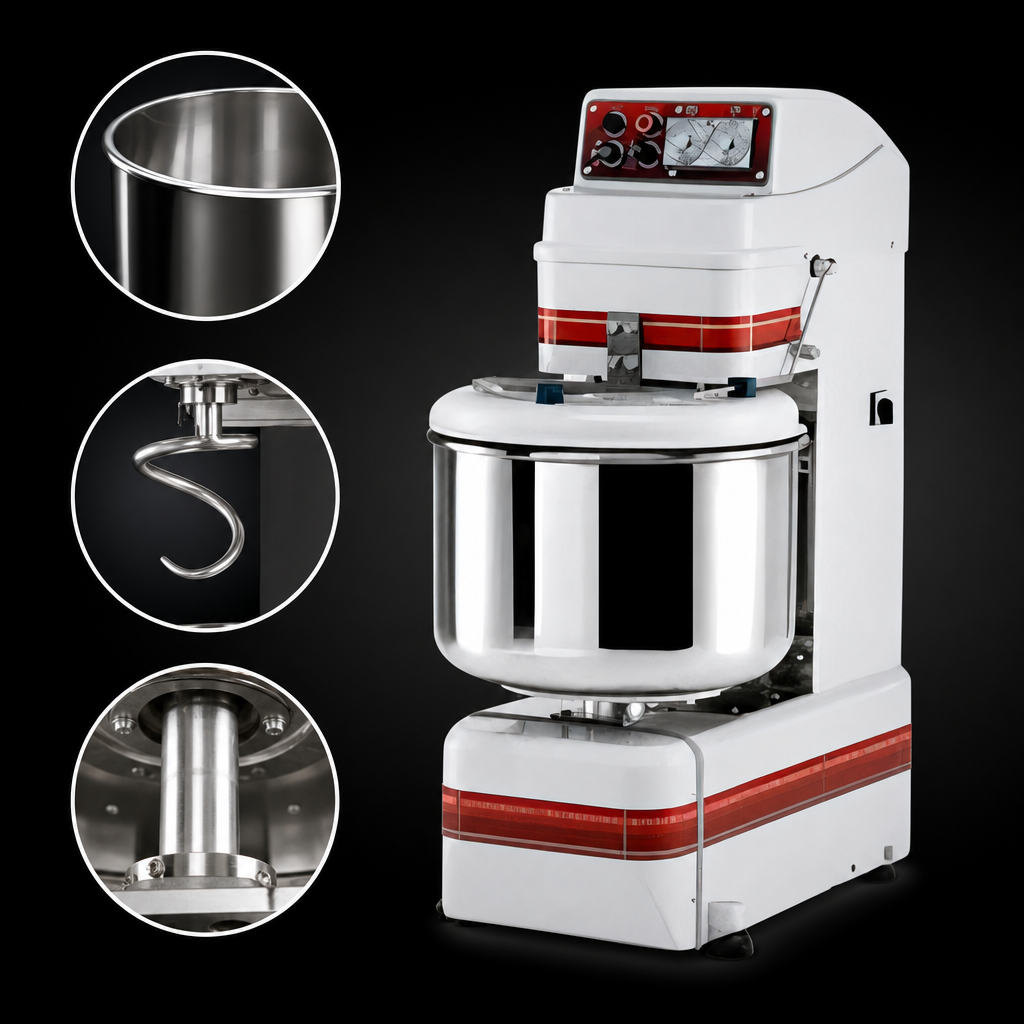

  Construction	Stainless-steel bowl, hook & shaft; powder-coated steel frame
  Overall Dimensions	41" W × 63" D × 69" H (104 cm × 160 cm × 176 cm)
  Net Weight	1,521 lb / 690 kg
  Certifications	cETLus, ETL-Sanitation
  Warranty	1-year on-site parts & labor

  Electrical Note: This mixer ships without a cord or plug and must be hard-wired by a qualified electrician in accordance with local codes.

  Performance specifications are based on 70 °F water and 12 % flour moisture. Reduce batch size when using colder water or high-gluten flours.
