Univex  |  SKU: SL120RB

Univex SL120RB Spiral Dough Mixers

$59,679.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure Owner's manual Brochure pizza Brochure bakery Warranty sheet
Related Searches
Mixers Spiral Dough Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

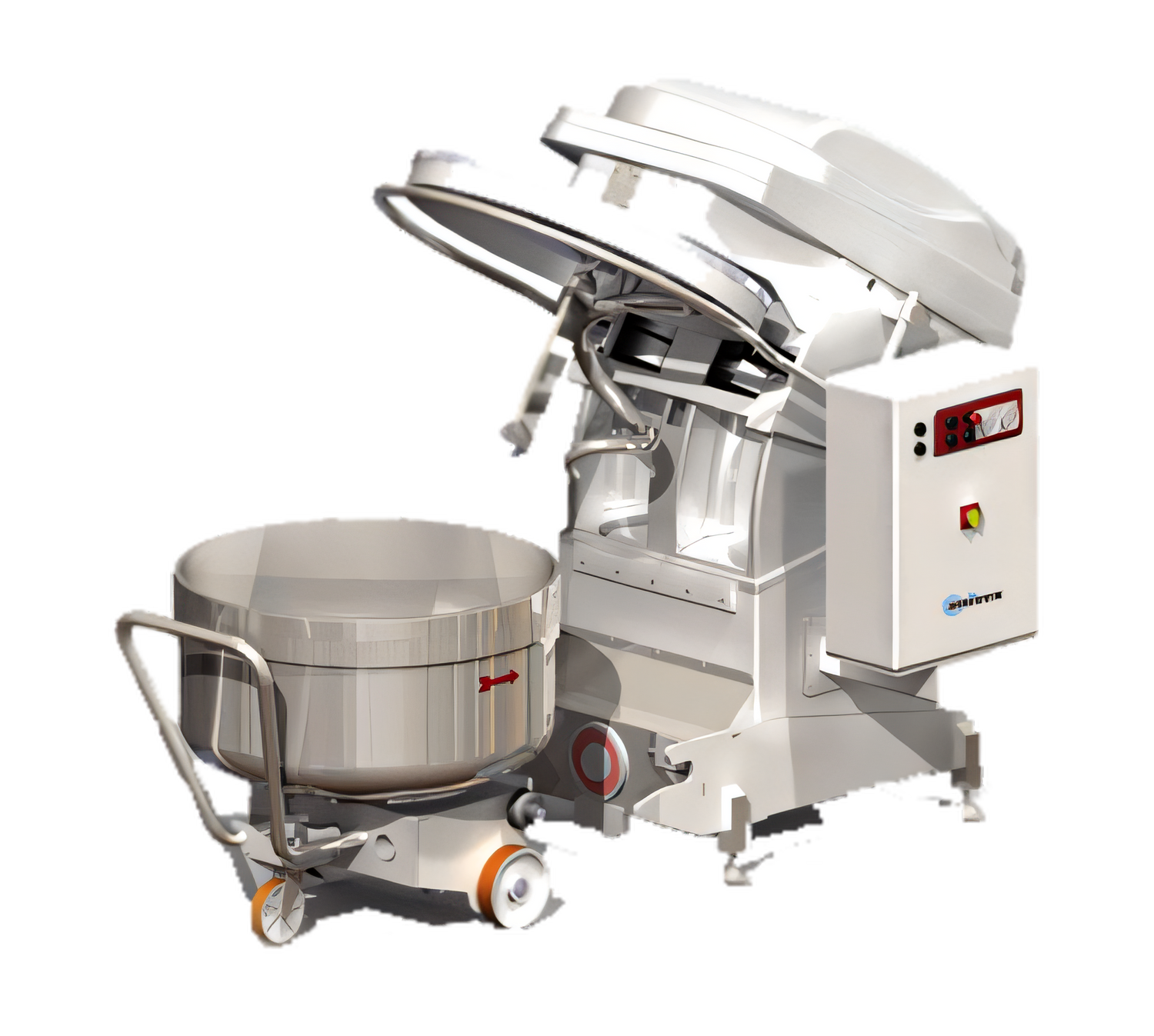

Univex SL120RB Silverline Spiral Mixer

180 Qt (170 L) Removable Bowl • 265 lb (120 kg) Dough Capacity

Built for high-volume artisan bread, pizza and pastry operations, the Univex SL120RB delivers the power of a 13 HP, belt-driven spiral system in a quiet, low-vibration package. Two speeds, reverse and a jog function give dough makers total control—while the removable, stainless-steel bowl and included dolly keep production moving fast.

Why You’ll Love It

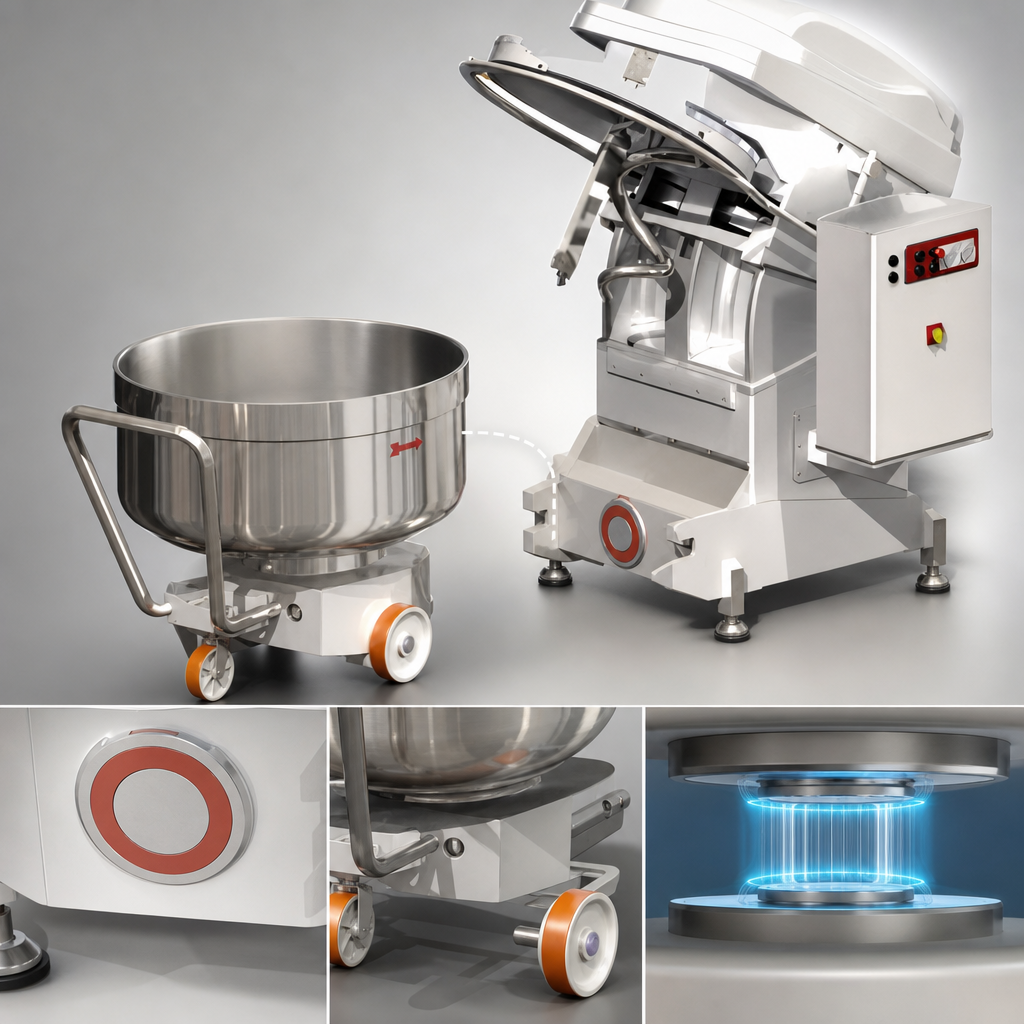

  • Genuine 180 qt (170 L) stainless-steel bowl removes in seconds for effortless loading, proofing or cleaning
  • Spiral agitator handles up to 265 lb (120 kg) of dough per batch without overheating gluten structure

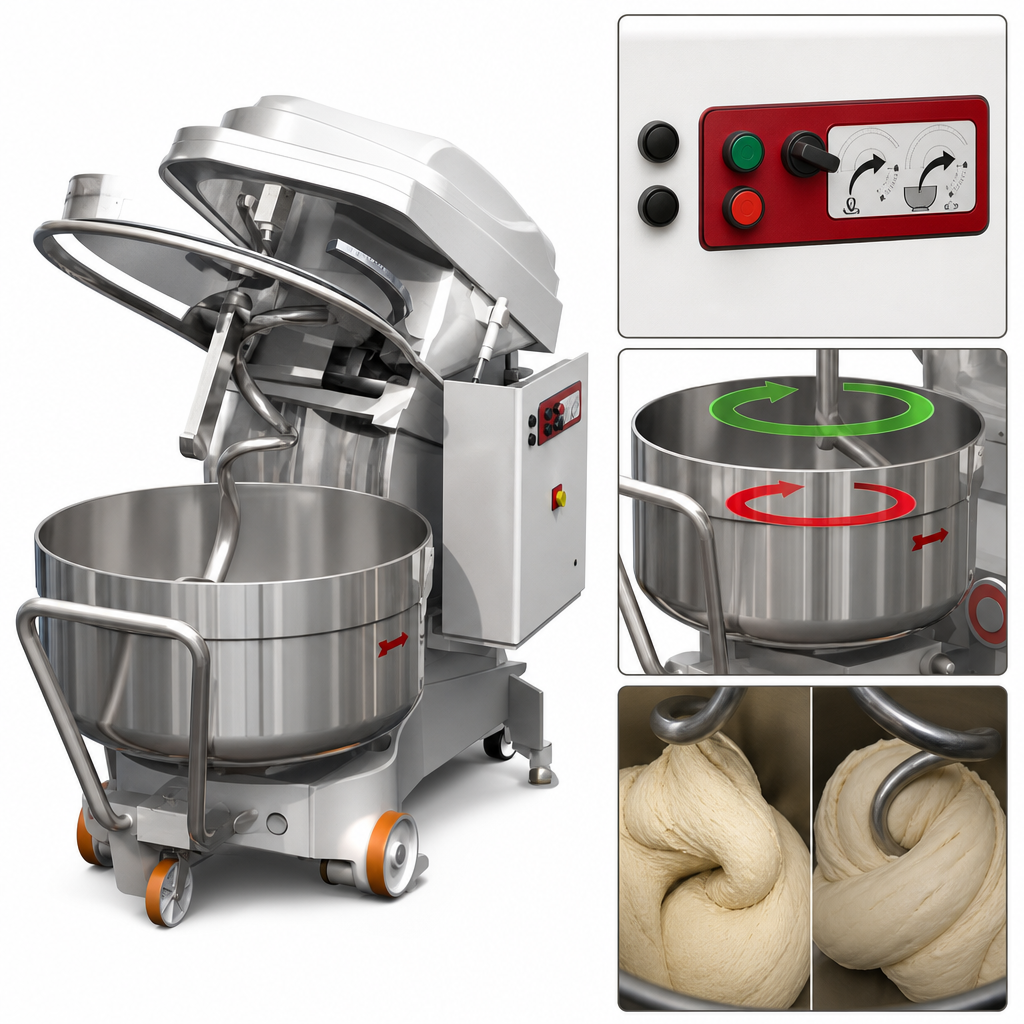

  • Two fixed speeds (95 RPM / 190 RPM) plus reverse and bowl-jog for perfect dough development
  • Independent motors: 11 HP spiral + 1 HP bowl + 1 HP head ensure maximum torque at every speed
  • Digital control panel with separate timers for low & high speed—set it and walk away
  • Swing-open bowl guard and magnetic safety interlocks protect staff and meet ETL sanitation standards
  • Heavy-duty belt drive runs cooler & quieter than gear systems and costs less to maintain
  • Factory-installed leveling feet keep the mixer stable on uneven bakery floors

Standard Accessories

  • Stainless-steel removable bowl (180 qt)
  • Stainless-steel spiral dough hook & shaft
  • Bowl dolly with locking casters
  • Electromagnetic bowl-clamp hook

Technical Specifications

Model SL120RB
Dough Capacity 265 lb  (120 kg)
Bowl Volume 180 qt  (170 L)
Agitator Speeds 1st: 95 RPM   |   2nd: 190 RPM
Bowl Speed 20 RPM (fixed)
Drive System Low-noise, low-vibration belt drive
Safety Features Magnetic bowl-guard interlock, emergency stop, manual-use security key
Construction All food-zone parts in stainless steel; powder-coated steel frame
Certifications cETLus, ETL-Sanitation
Warranty One-year, on-site parts & labor

Electrical (60 Hz, 3-Phase, Hard-Wired)

Voltage Spiral Motor Bowl Motor Head Motor Total Load
220 V 11 HP / 8 kW – 38.5 A 1 HP / 0.75 kW – 4.48 A 1 HP / 0.75 kW – 4.48 A 13 HP / 9.5 kW – 47.46 A
380 V (optional) Total 9.5 kW – 21.49 A

Dimensions & Shipping

Overall (H × W × D) 79 in × 41 in × 73 in   (200.7 cm × 104.1 cm × 185.4 cm)
Net / Ship Weight 1,433 lb / 1,543 lb   (650 kg / 700 kg)
Packing Palletized; weight & dimensions above include pallet
Important: This mixer is supplied for hard-wire installation only and must be connected by a qualified electrician to a fused disconnect switch of appropriate rating.

Need help choosing the right spiral mixer for your bakery?  Contact our food-service specialists for personalized assistance 24 / 7.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

66.5in

Width

41.88in

Depth

72.13in

Shipping Weight

1543.0lbs

Housing Construction

painted

Bowl Type

removable

Speed

2-speed

Attachments

bowl, dough hook

Controls

timer

Dough Capacity

201 - 400 lbs

Specifications

Silverline Spiral Mixer, 180 qt. (170 liter) removable bowl, 265 lb. (120 kg) dough capacity, two speeds and reverse, control panel with separate timers for low and high speed settings, bowl jog, swing open bowl guard, stainless steel bowl, dough hook & shaft, bowl dolly, leveling feet, separate bowl & agitator motors, bowl (1 hp, 4.48 Amps, .75 kW) and spiral (11 hp, 38.5 Amps, 8 kW) and head (1 HP, 4.48 amps, .75 kW), cETLus, ETL-Sanitation
