Key specifications

Phase
3-Phase
Dimensions
87.5"W × 51.63"D × 124.63"H
Type
Spiral Mixer
Style
High-Lift
Installation Type
Floor Model
Capacity
265 lb
Spec sheet
Univex SKU: SL120LH

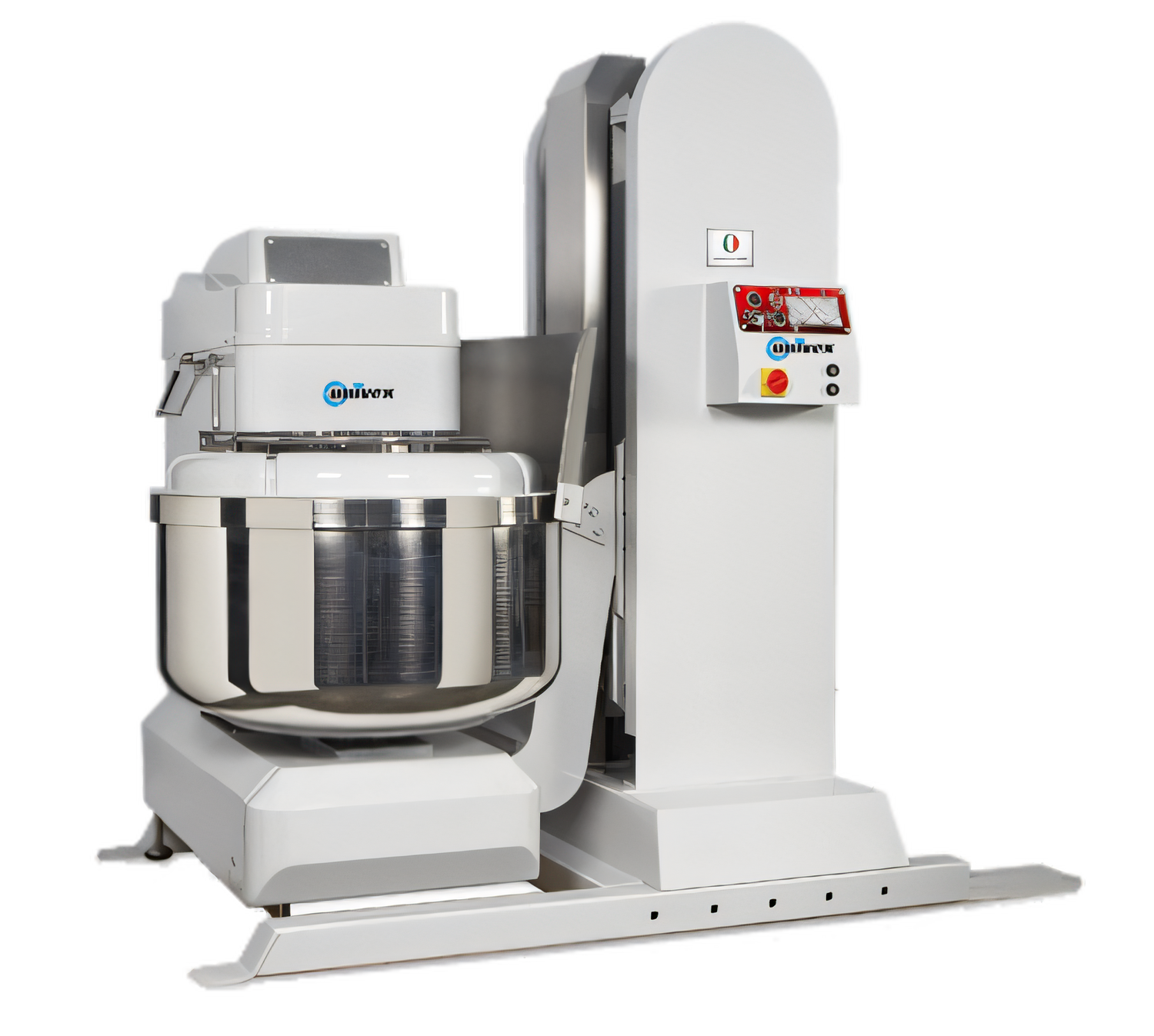

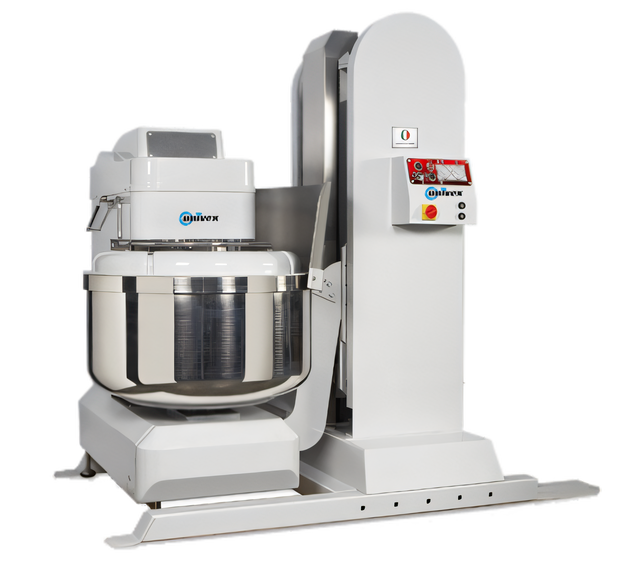

Univex SL120LH 265 lb High-Lift Spiral Mixer

$63,318.00
/each
Estimated to ship in 11–14 business days Free Shipping

Ships by freight. At about 3,877 lb it’s too heavy for a liftgate, so delivery needs a loading dock or a forklift rated for at least 6,000 lb with 6-ft forks.

Bowl design
Electrical220 V
Lifter tilt directionRequired
Included: Univex warranty 1 year on-site parts and labor

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $5,857/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Spiral Mixer
Style High-Lift
Installation Type Floor Model
Capacity 265 lb
Bowl Type Tilting
Speed 2-Speed
Controls Separate Timers
Attachments Bowl, Dough Hook
Housing Construction Painted
Bowl Material Stainless Steel
Motor Configuration Separate Bowl And Agitator Motors
Drive Type Belt Drive
Reverse Function Yes
Connection Type Hardwired With Shutoff
Voltage 220 Volts Standard; 380 Volts Optional
Hertz 60 Hz
Phase 3-Phase
Bowl Speed 15 RPM
Dough Hook First Speed 95 RPM
Dough Hook Second Speed 190 RPM
Bowl Motor Power 1 HP (0.75 kW)
Spiral Motor Power 8 HP (6.0 kW)
Lifter Motor Power 3 HP (2.2 kW)

Description

The Univex SL120LH is a Silverline spiral mixer with a 265 lb bowl capacity, two-speed operation, a tilting bowl, and a built-in lifter for lifting and discharging mixed products.

  • Separate timers control first- and second-speed operation.
  • The mixer includes a stainless steel bowl, spiral dough hook, and shaft.
  • A reverse function, safety switch, and belt drive are included.

Overall Dimensions:

87.5"W x 51.63"D x 124.63"H

Product Weight:

3877.0 lb

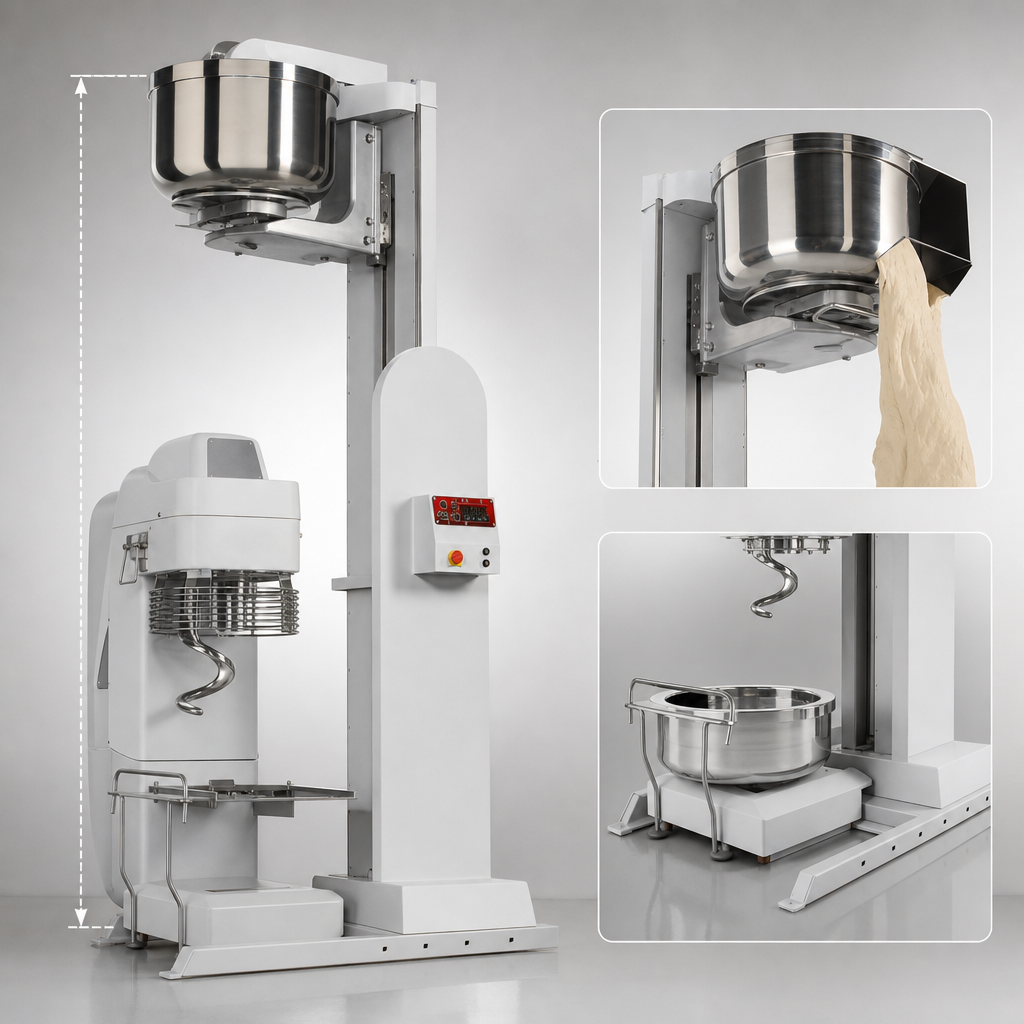

Built-In Lifter

The built-in lifter is designed for lifting and discharging mixed products.

Two-Speed Operation

The spiral dough hook operates at 95 RPM in first speed and 190 RPM in second speed.

Separate Timers

The control board has separate timers for first- and second-speed operation.

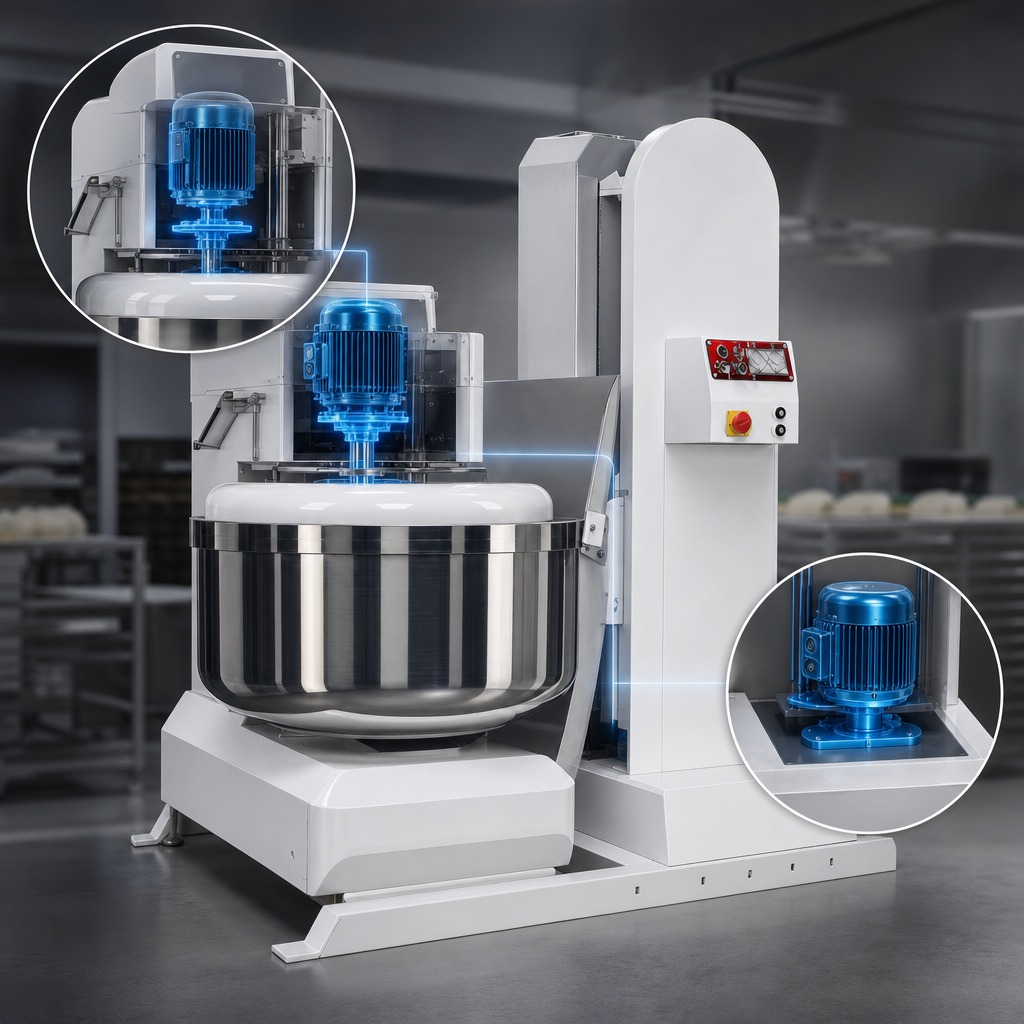

Separate Motors

Separate motors drive the bowl and agitator.

Tilting Bowl

The bowl type is tilting.

Included Mixing Components

Includes a stainless steel bowl, spiral dough hook, and shaft.

Reverse Function

A reverse function is included for bowl operation.

Safety Switch

Safety switches are provided, and the bowl guard must be closed for mixer operation.

Frequently Asked Questions

The SL120LH has a 265 lb bowl capacity.
Yes. The SL120LH includes a built-in lifter for lifting and discharging mixed products.
It has two speeds. The spiral dough hook is listed at 95 RPM in first speed and 190 RPM in second speed.
The mixer is hardwired with a shutoff. The cutsheet lists 220 Volts standard and 380 Volts optional, at 60 Hz and 3-phase.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

It’s too heavy for a liftgate, so you need a loading dock, or a forklift rated for at least 6,000 lb with 6-ft forks and an operator on site. The driver won’t unload it.

Getting ready for a dock or forklift delivery

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
