Univex SL120LB Spiral Dough Mixers
Description

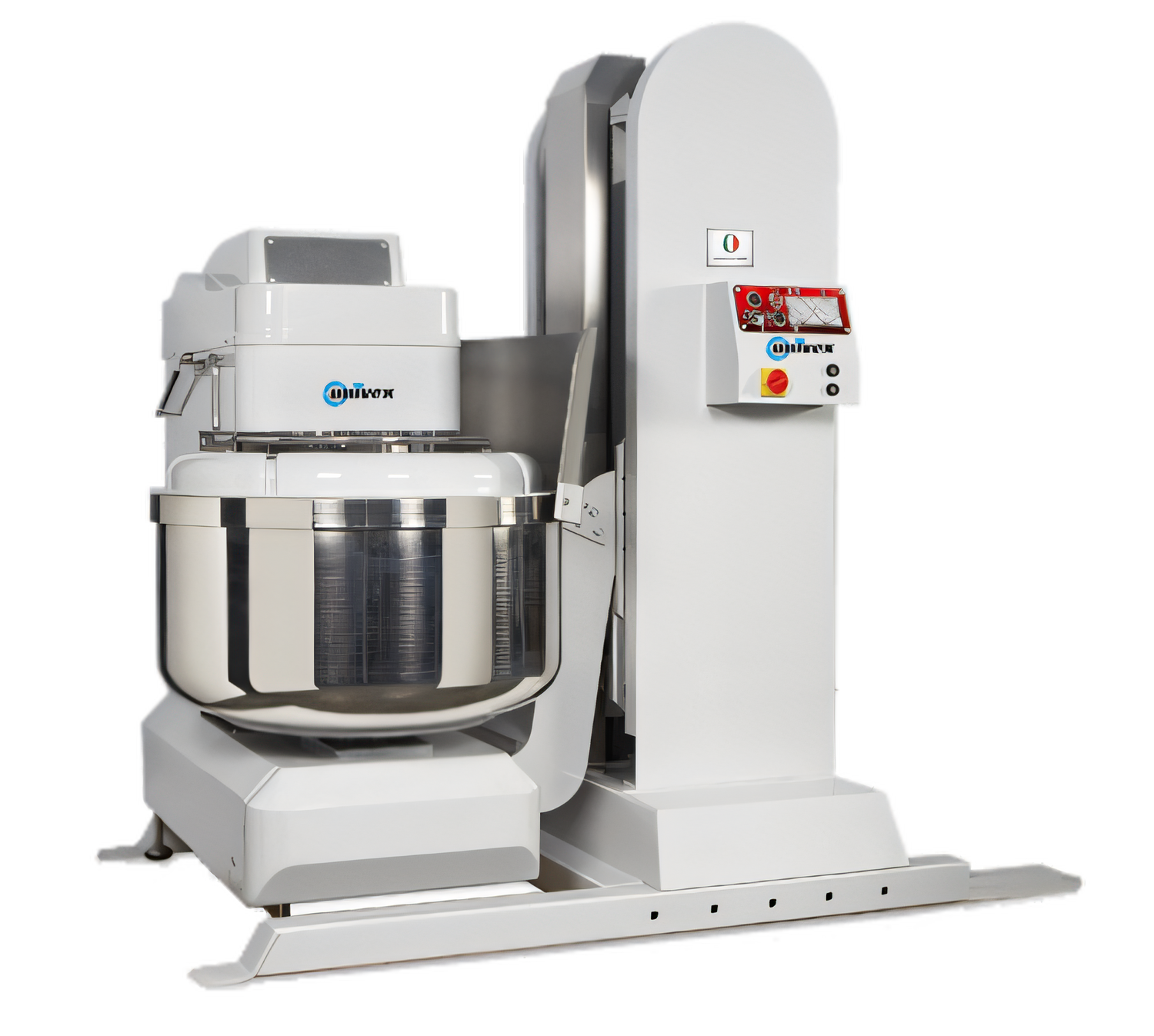

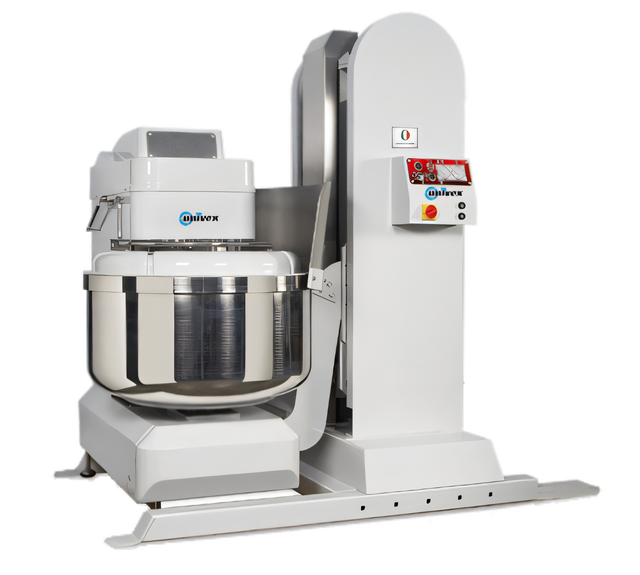

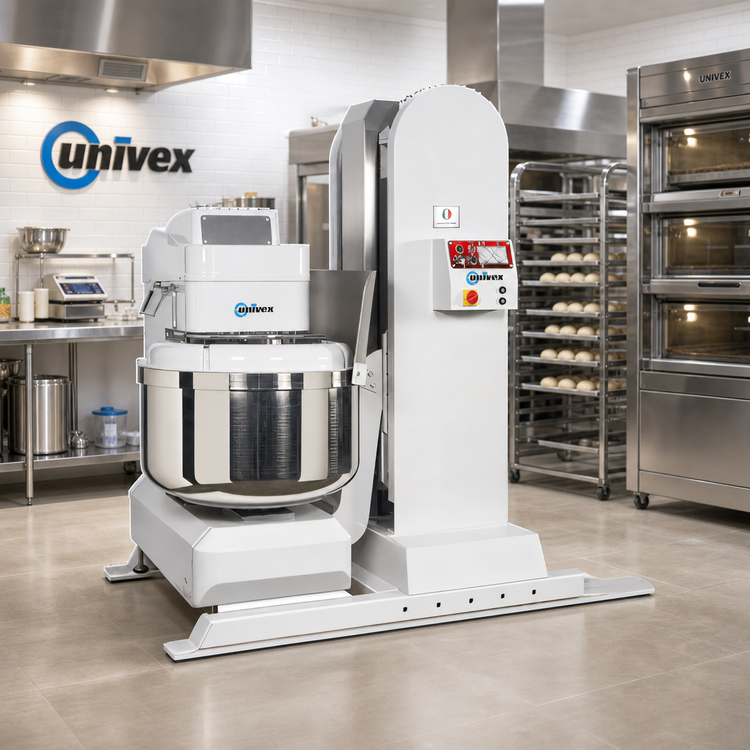

Univex Silverline SL120LH / SL120LB Spiral Mixer — 265 lb Capacity with Built-In Lifter
Two-speed, reverse bowl, dual-motor drive, cETLus & ETL-Sanitation listedDesigned for busy pizzerias, bakeries and commissaries, the Univex Silverline 265 lb spiral mixer delivers perfectly developed dough every batch while its hydraulic lifter tips the bowl for fast, labor-saving discharge.
Key advantages
- 265 lb (120 kg) finished-dough capacity keeps production moving at peak hours.

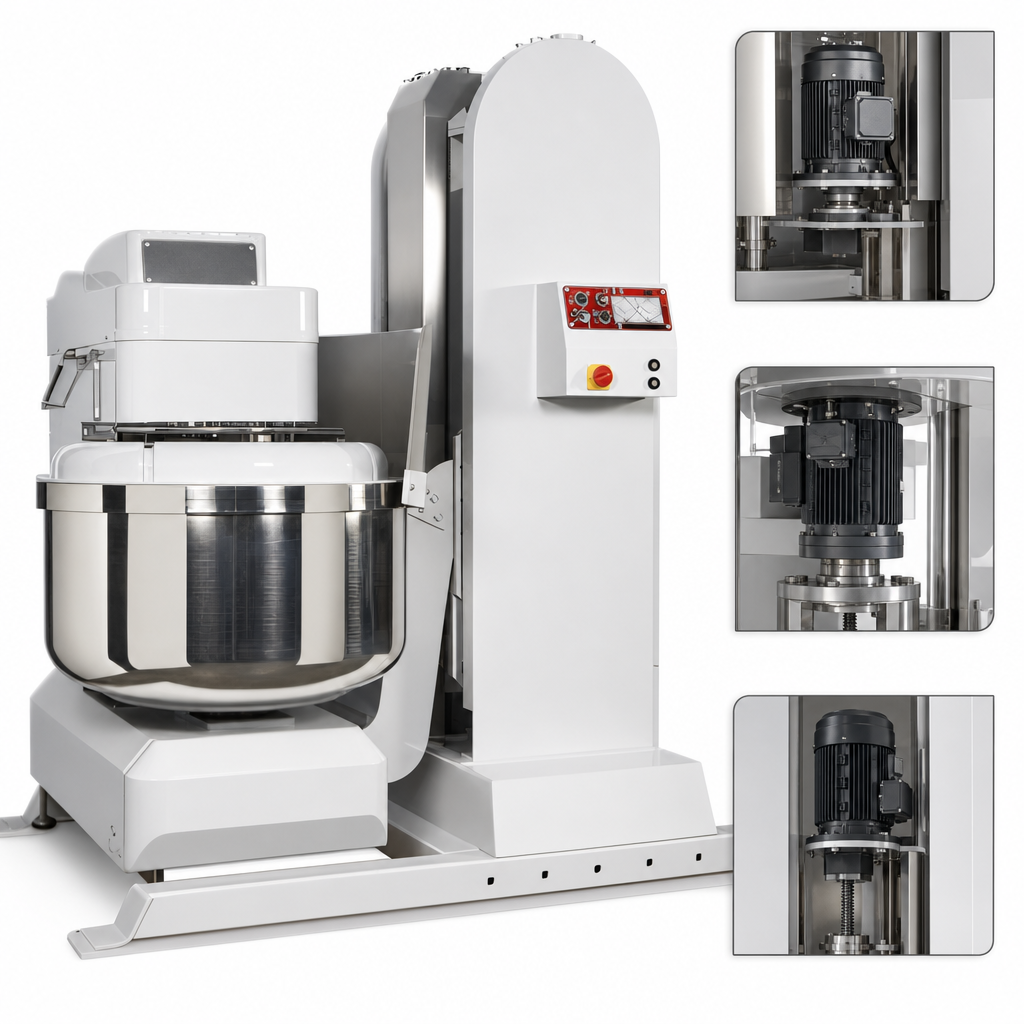

- Independent 8 HP spiral and 1 HP bowl motors maintain torque under the heaviest loads.
- Quiet, low-maintenance belt drive minimizes vibration and extends component life.
- Two fixed speeds (95 & 190 rpm) plus reverse for quick incorporation of ingredients.
- Control board with separate timers for each speed ensures batch-to-batch consistency.

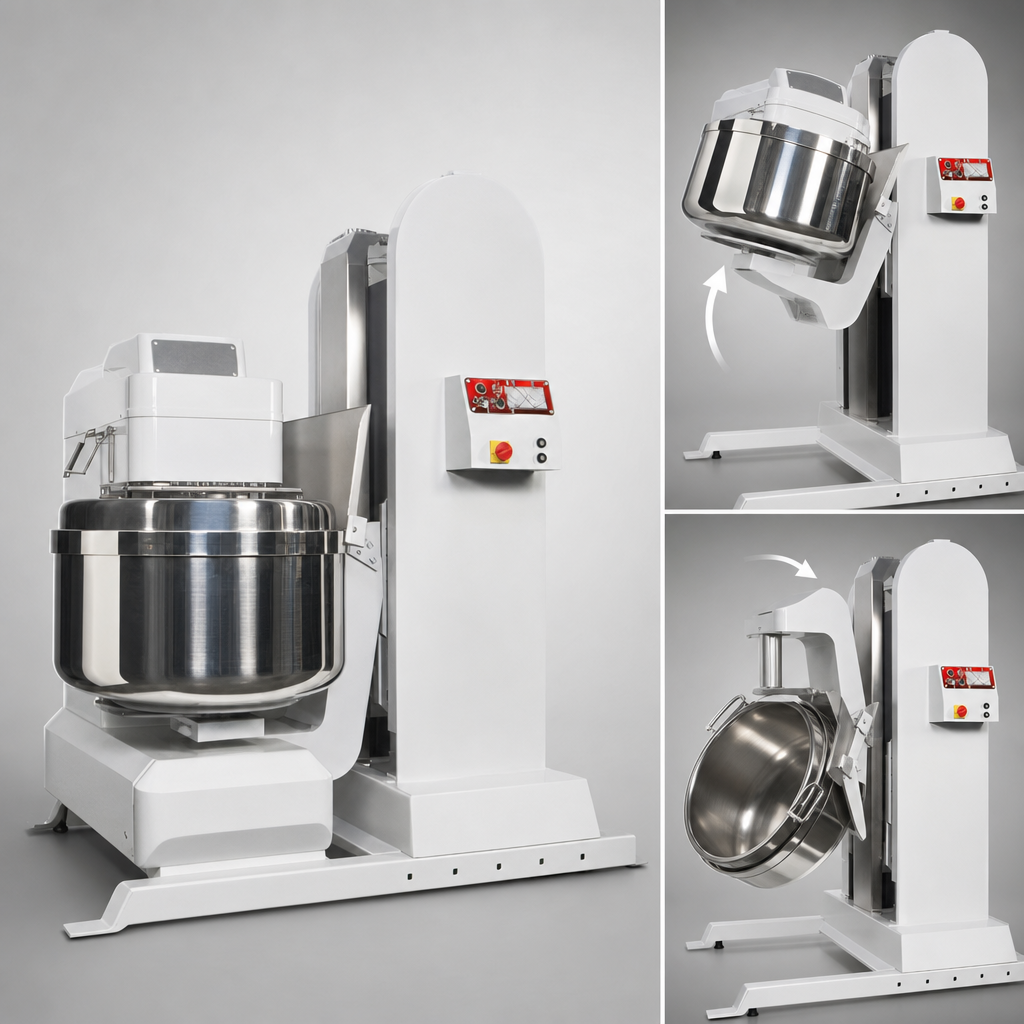

- Integrated 3 HP hydraulic lifter tilts the entire mixer left or right (specify) for effortless emptying into carts, hoppers or work tables.
- Lift-up stainless bowl guard with safety interlock stops all motion when opened.
- One-piece stainless steel bowl, spiral hook and shaft resist corrosion and clean up fast.
- Security key allows manual operation when required.
- Backed by a 1-year on-site parts & labor warranty plus Univex 24/7 technical support.
Performance data
| Mixing action | |
|---|---|
| Spiral hook speed | 1st speed 95 rpm | 2nd speed 190 rpm |
| Bowl speed | 15 rpm |
| Reverse function | Yes – bowl & spiral |
| Capacities | |
| Finished dough per batch | 265 lb / 120 kg |
| Flour (approx.)* | 165 lb / 75 kg |
| Motor ratings (220 V, 60 Hz, 3 Ph) | |
| Spiral drive | 8 HP (6 kW) – 27.2 A |
| Bowl drive | 1 HP (0.75 kW) – 4.48 A |
| Lifter drive | 3 HP (2.2 kW) – 13 A |
| Total connected load | 12 HP (8.95 kW) – 31.7 A |
| Construction & compliance | |
| Primary materials | Stainless bowl, hook & shaft; epoxy-coated steel frame |
| Certifications | cETLus, ETL-Sanitation |
*Capacities vary with dough absorption ratio and recipe.
Choose the lift height that matches your workflow
| Model | Overall height | Net weight | Standard voltage |
|---|---|---|---|
| SL120LH – High lifter | 91 in (231 cm) | 3,527 lb | 220 V/3 Ph |
| SL120LB – Low lifter | 67 in (170 cm) | 2,866 lb | 220 V/3 Ph (380 V option) |
Power through large dough batches safely, quietly and consistently—upgrade to the Univex Silverline Spiral Mixer with integrated lifter and keep production on a roll.
