Description

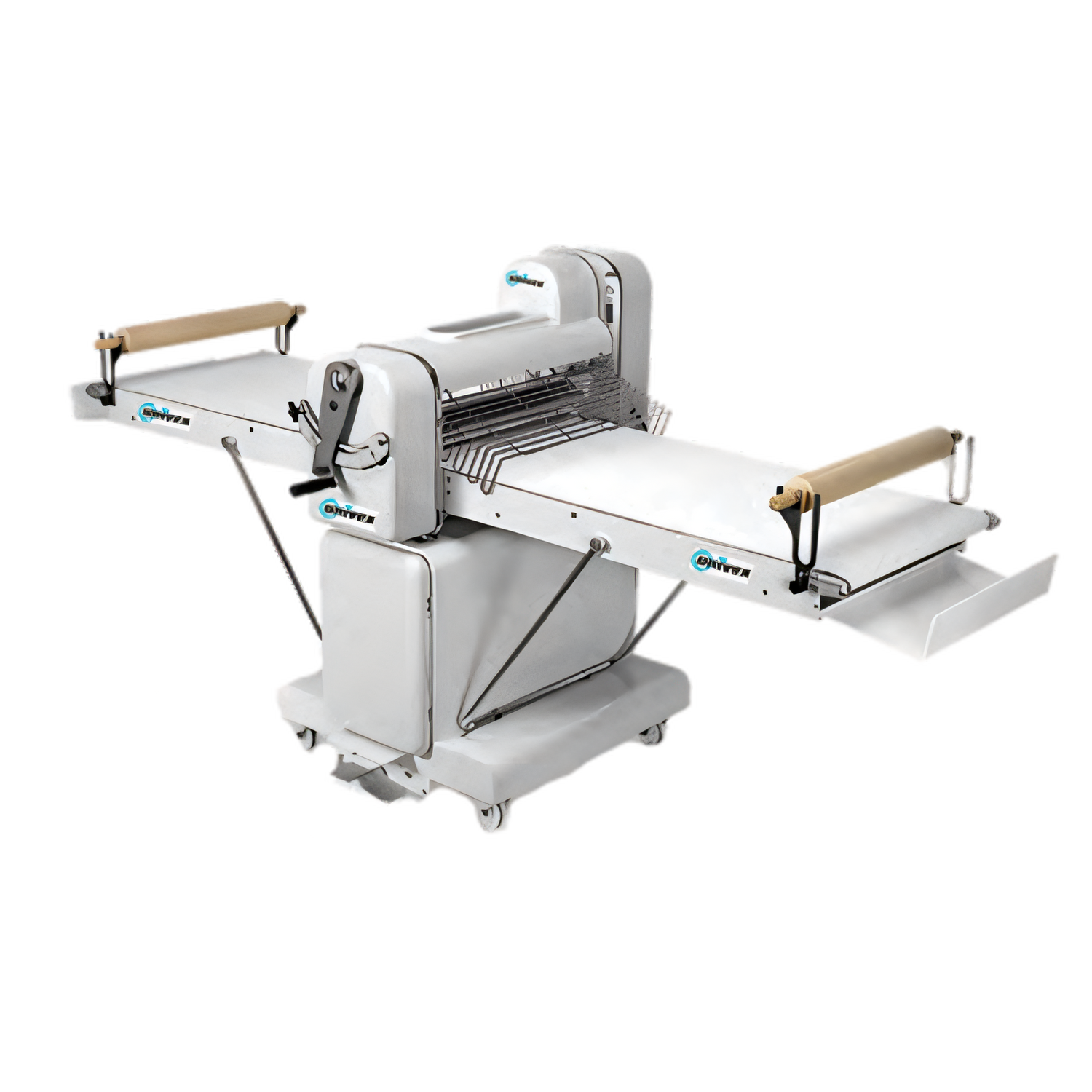

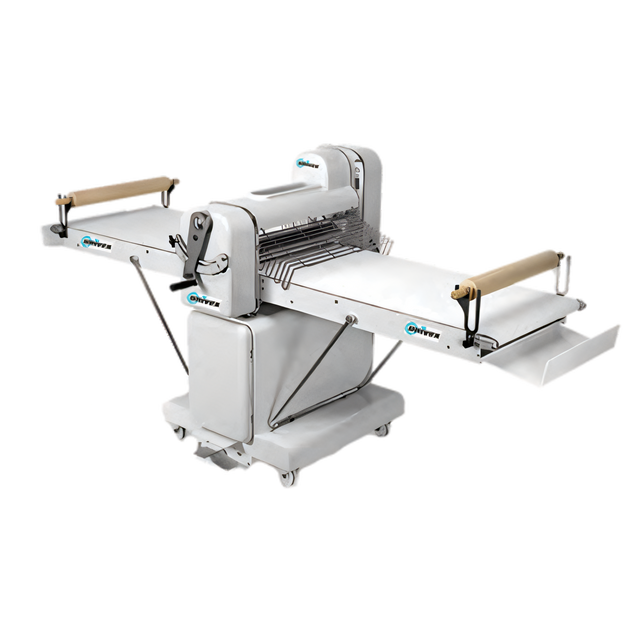

Univex SFG600TMM Reversible Dough Sheeter – Floor Model
146-inch production powerhouse with foot-pedal carpet controlEngineered for high-volume bakeries, pastry shops and pizzerias, the Univex SFG600TMM makes fast work of laminating croissant dough, stretching pizza crusts or thinning fondant – without compromising consistency or safety.
Key features & benefits

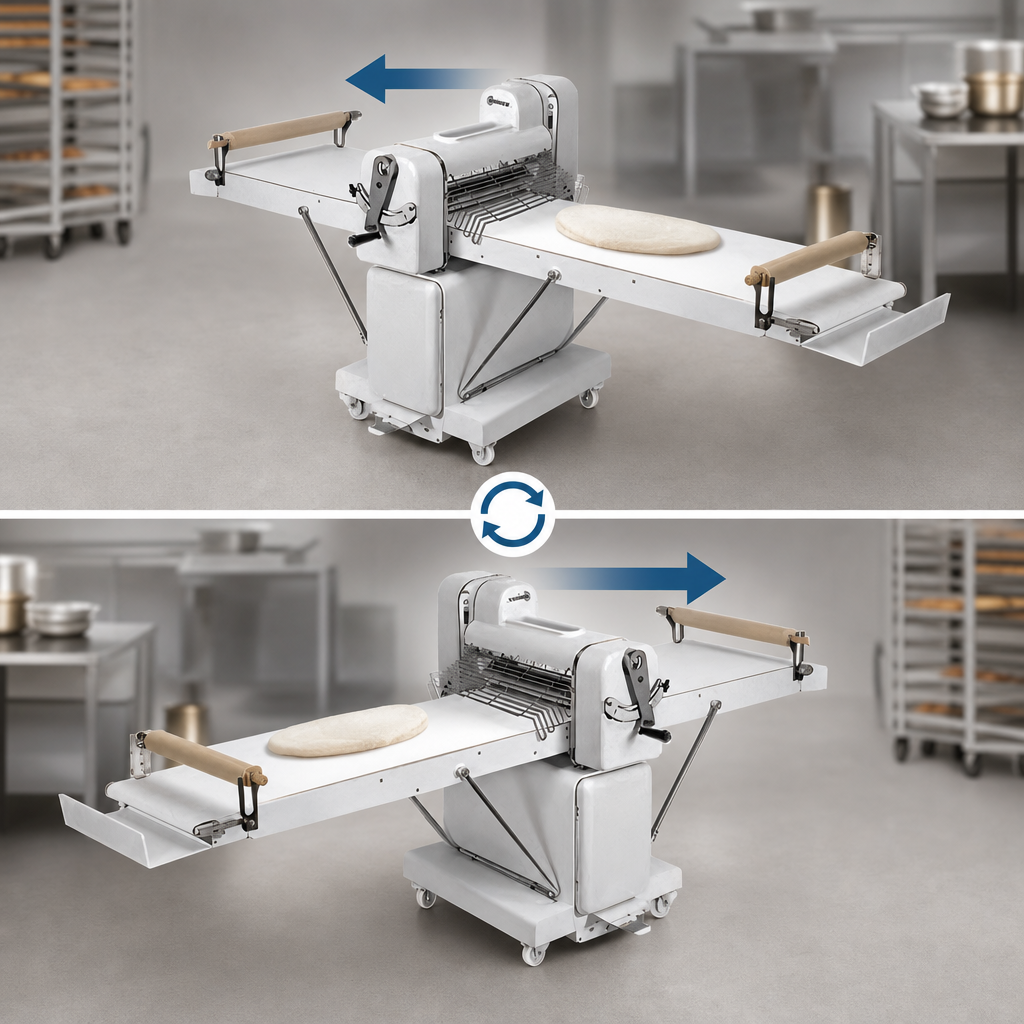

- Reversible sheeting: forward or reverse the belt instantly with a convenient foot-pedal, keeping both hands free to guide dough.

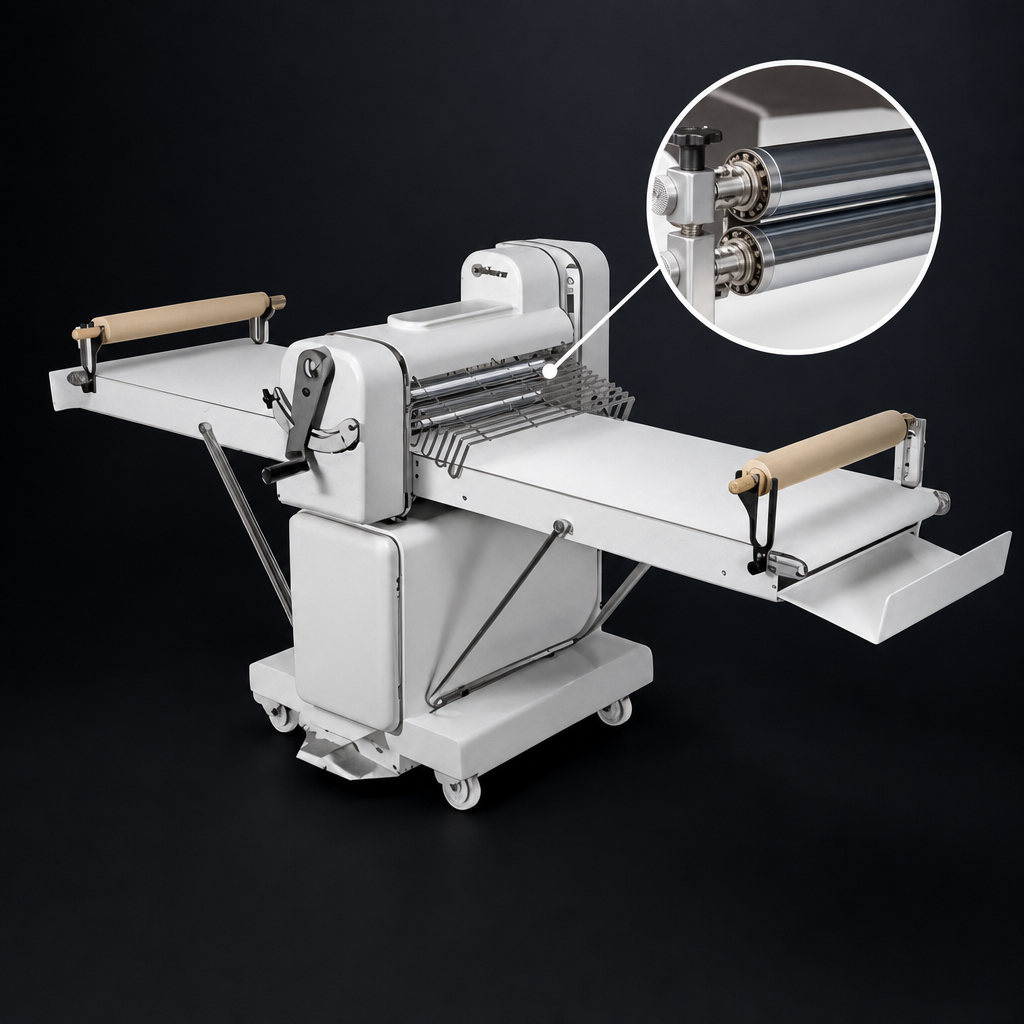

- Precision thickness control: hand-wheel adjusts the hard-chrome cylinders from 0" to 1.9" (0–4.8 cm) in fine, repeatable increments.
- Wide 23 ¾" (60 cm) carpet handles full pastry blocks, pizza dough, flatbreads and more.
- Extended 146" overall length maximises output; pivoting, removable arms speed up cleaning and maintenance.
- Sheets directly onto the included heavy-duty rolling pins – then store the pins neatly in the built-in base rack.
- Rugged chain-drive transmission and a full 1 HP motor deliver reliable torque for dense doughs.
- Operator-first control panel with Start/Stop buttons, direction lever, emergency stop and guard interlock.
- cETLus & ETL-Sanitation listed; backed by a 1-year, on-site parts & labour warranty.
Technical specifications
Model | SFG600TMM |
---|---|
Type | Floor, reversible dough sheeter |
Overall length | 145.9" (370.6 cm) |
Belt width | 23.75" (60.3 cm) |
Cylinder gap range | 0" – 1.9" (0 – 4.8 cm) |
Cylinder finish | Hard-chrome polished steel |
Drive system | Heavy-duty chain drive |
Motor | 1 HP / 0.75 kW |
Electrical | 220 V / 60 Hz / 3-phase, 4.48 – 9.11 A (NEMA L-15-20 plug) |
Controls | Main power, Start/Stop, direction lever & foot-pedal |
Certifications | cETLus, ETL-Sanitation |
Shipping weight | 683 lb (310 kg) |
Warranty | 1-year on-site parts & labour |
This model’s extra-long tables are fixed; the unit is not designed to be stored in a folded position. Optional single-phase or 400 V configurations are available – please contact us before ordering.
