Univex  |  SKU: SFG 500 TM

Univex SFG 500 TM Dough Sheeters

$13,057.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Brochure Brochure bakery Warranty sheet
Related Searches
Dough Preparation Equipment Dough Sheeters

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

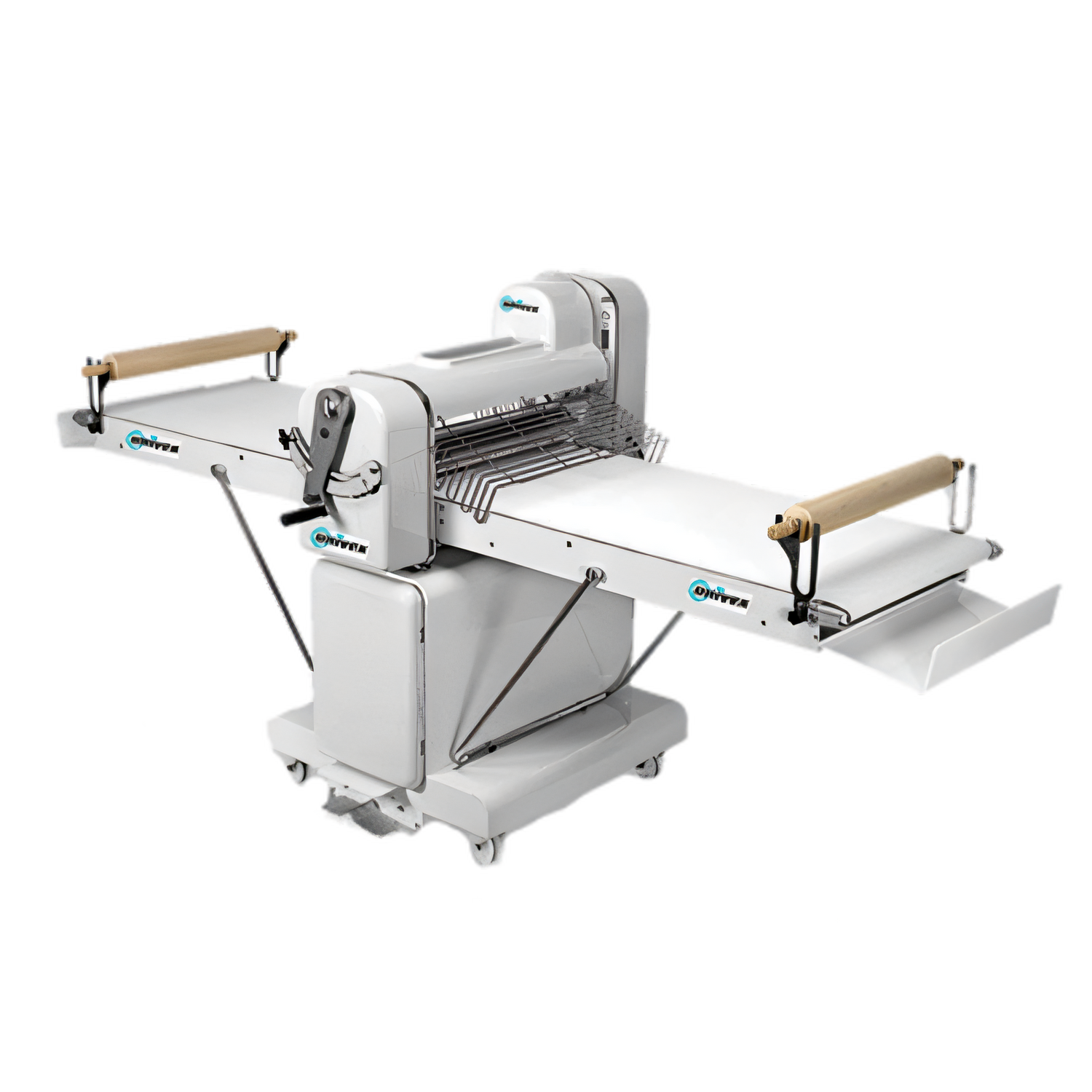

Univex SFG500TM Reversible Dough Sheeter

Floor model • 19-3/4 in belt • 111.2 in overall length

Built for busy bakeries, pizzerias and pastry shops, the Univex SFG500TM transforms dense dough blocks into perfectly uniform sheets in seconds. A foot-pedal controlled reversible belt lets you keep both hands on the product, while hand-adjustable hard-chrome cylinders give you precision from 0″ to 1.9″. Fold-up tables, pivoting arms and on-board rolling-pin storage make the most of your floor space when the rush is over.

Key features

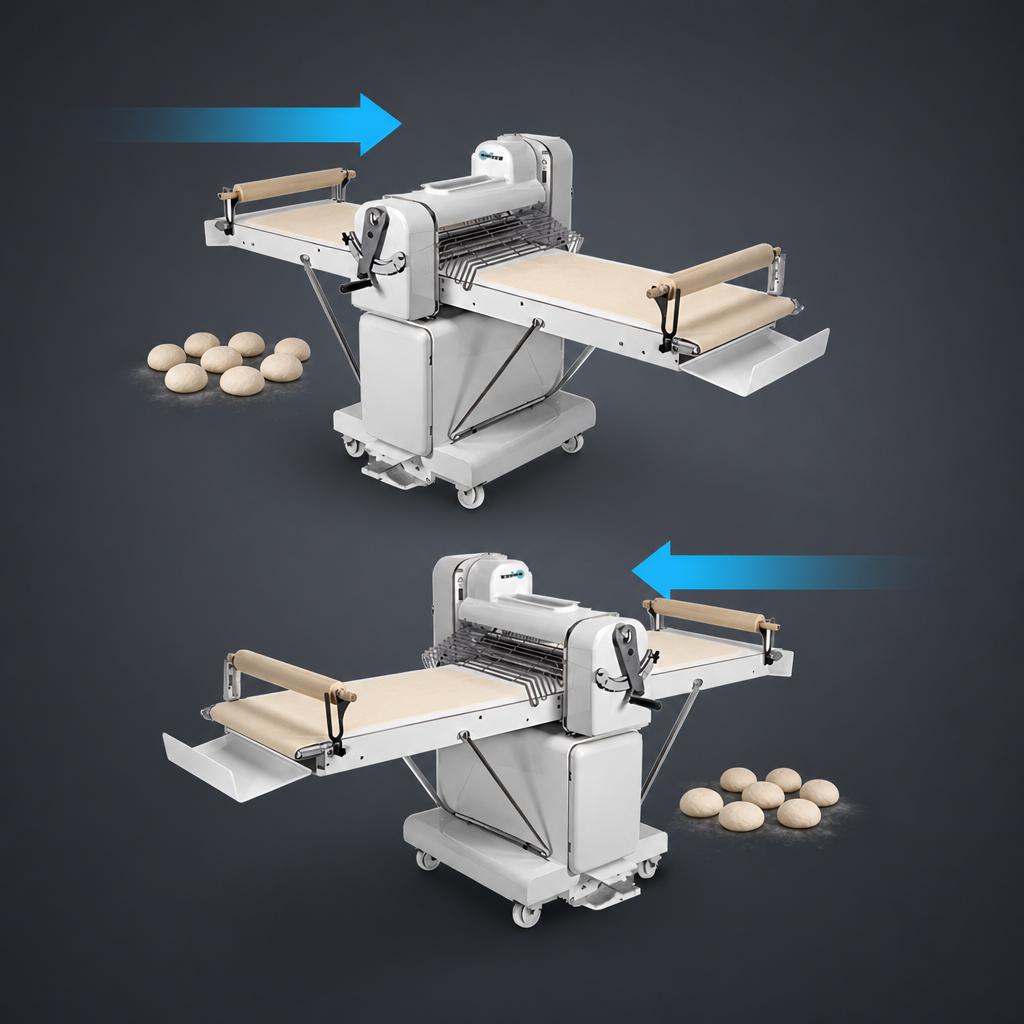

  • Reversible sheeting with foot-pedal control (left-to-right carpet movement)

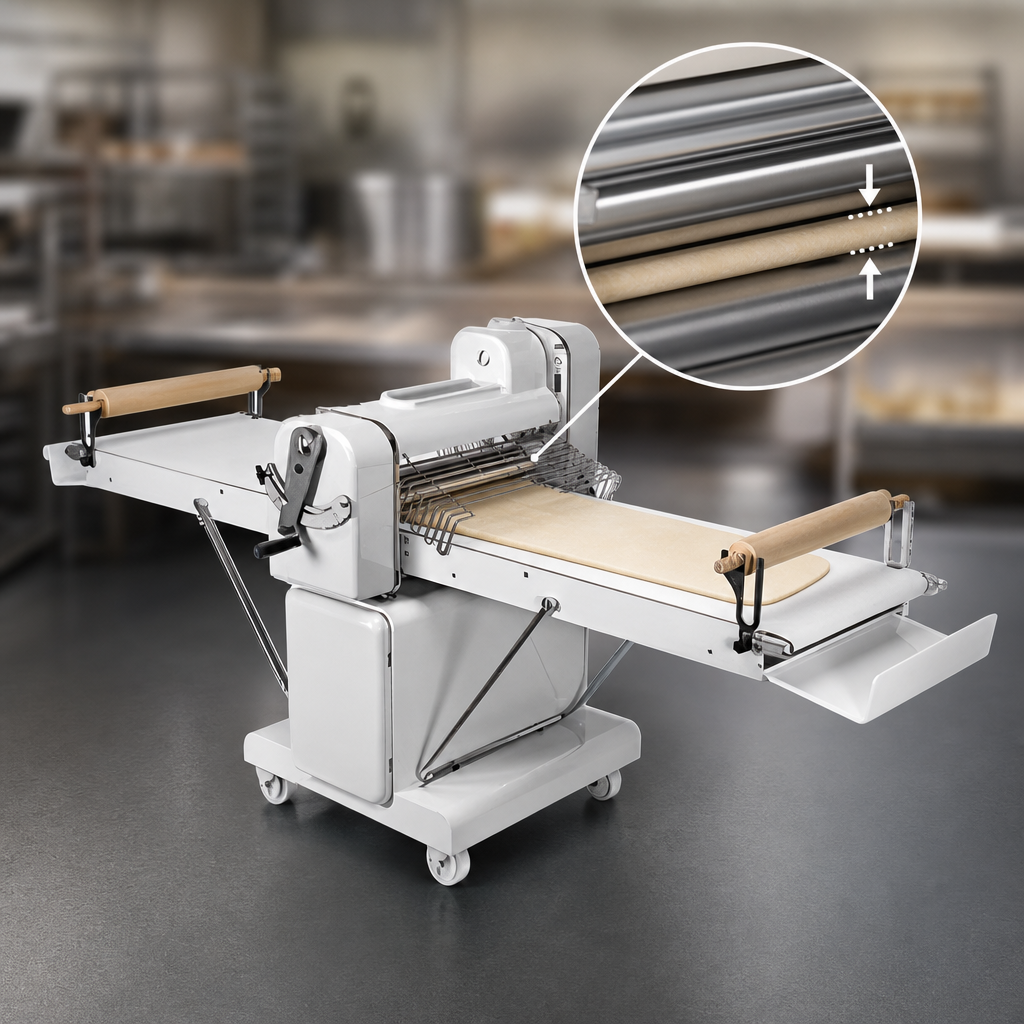

  • 0″–1.9″ (0–4.8 cm) gap adjustment via smooth hand wheel
  • Hard-chrome polished cylinders for long life and easy cleaning
  • 19 3/4″ (50.2 cm) wide food-grade belt
  • Heavy-duty ¾ hp motor and rugged chain drive
  • Fold-up tables, pivoting/removable arms & compact 43.4″ folded length
  • Pair of commercial rolling pins with dedicated storage in the base
  • Main power, start/stop & emergency-stop buttons with guard interlocks
  • cETLus & ETL Sanitation listed for electrical & food-safety compliance

Productivity boosters

  • Designated flour trough keeps dough pieces moving freely.
  • Sheets directly onto rolling pins for quick transfer to makeup tables.
  • Optional hand-lever carpet control available (specify when ordering).

Technical specifications

Model SFG500TM (floor)
Overall length – in use 111.2″ (282.5 cm)
Width 42.2″ (107.2 cm)
Height 50″ (127 cm)
Belt width 19.75″ (50.2 cm)
Cylinder gap range 0″ – 1.9″ (0 – 4.8 cm)
Drive system Heavy-duty chain drive
Motor ¾ hp / 0.55 kW
Electrical (standard) 220 V / 60 Hz / 3 Ph, 2.60 – 7.35 A
Optional voltages 220 / 60 / 1 • 400 / 60 / 1 • 400 / 60 / 3
Net weight 485 lb (220 kg)
Shipping weight 518 lb (235 kg)
Certifications cETLus, ETL-Sanitation
Warranty 1-year on-site parts & labor

What’s included

  • SFG500TM floor-model reversible dough sheeter with cord & plug
  • (2) heavy-duty wood rolling pins
  • Owner’s/installation manual

Perfect for

  • High-volume bakeries producing puff pastry, croissants & laminated dough
  • Pizzerias rolling consistent pizza skins in seconds
  • Hotel, resort & commissary kitchens needing industrial-grade sheeting power
Need more capacity or different voltage? Chat with our equipment specialists—Univex offers multiple configurations to match your workflow.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

50.0in

Width

111.2in

Depth

42.2in

Shipping Weight

518.0lbs

Roller size

20"

Bench or Floor

floor

Rollers

s/s frame with hard chrome rollers

Specifications

Reversible Dough Sheeter, floor model, 111-1/5" long, hand operation for thickness & foot pedal operation for carpet (left-to-right), 0" to 1.9" adjustable hard chrome polished cylinders, chain drive, 19-3/4" wide belt, start/stop buttons, folding tables, pivoting and removable arms, heavy duty rolling pins with storage in base, cord and plug, 3/4 hp, 2.60-7.35 amps, cETLus, ETL-Sanitation
