Key specifications

Amps
9 Amps
Phase
1-Phase
Dimensions
22.0"W × 33.0"D × 16.0"H
Type
Power Drive Unit
Style
Extended Legs
Installation Type
Countertop
Spec sheet
Univex SKU: PM91G

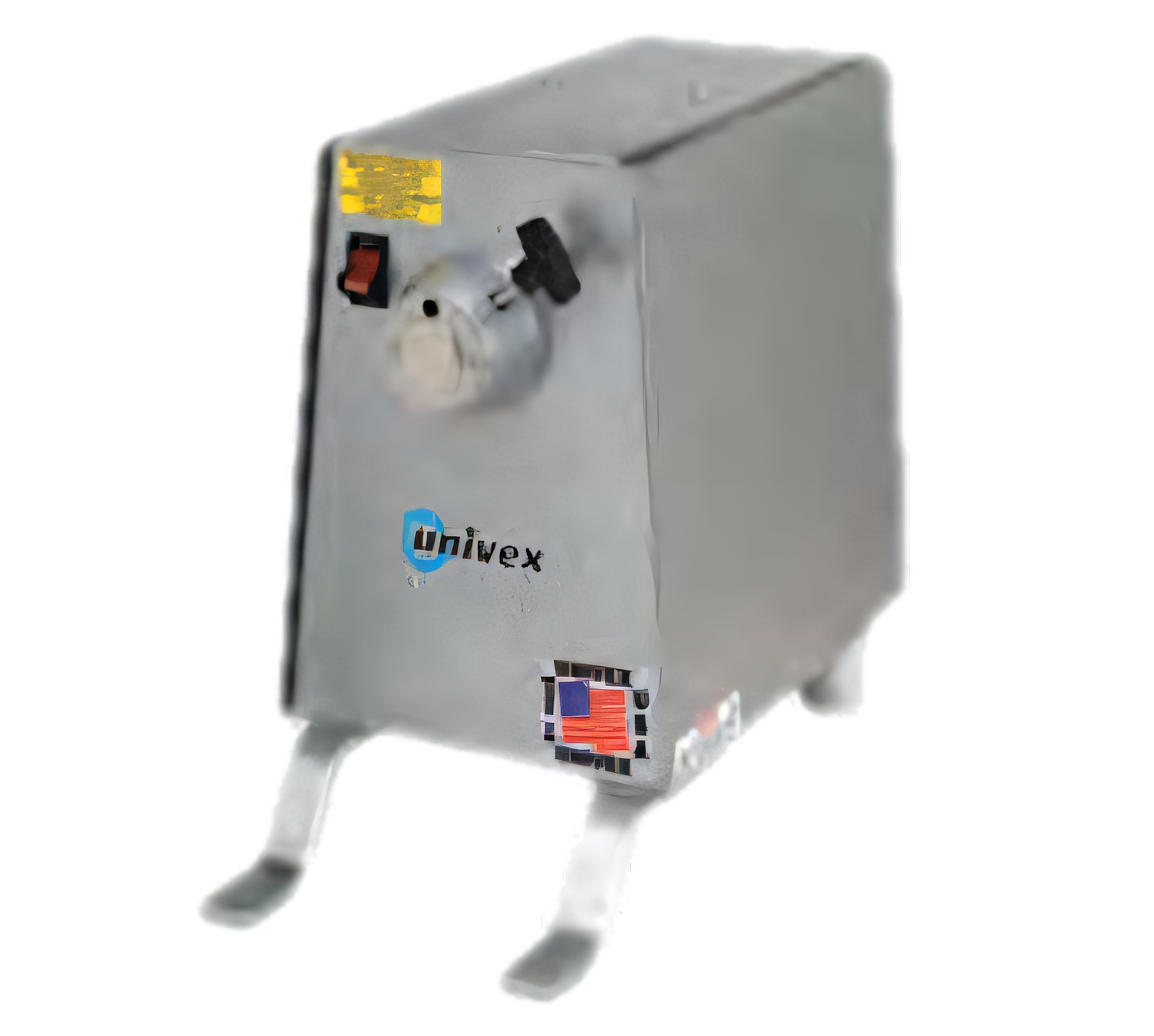

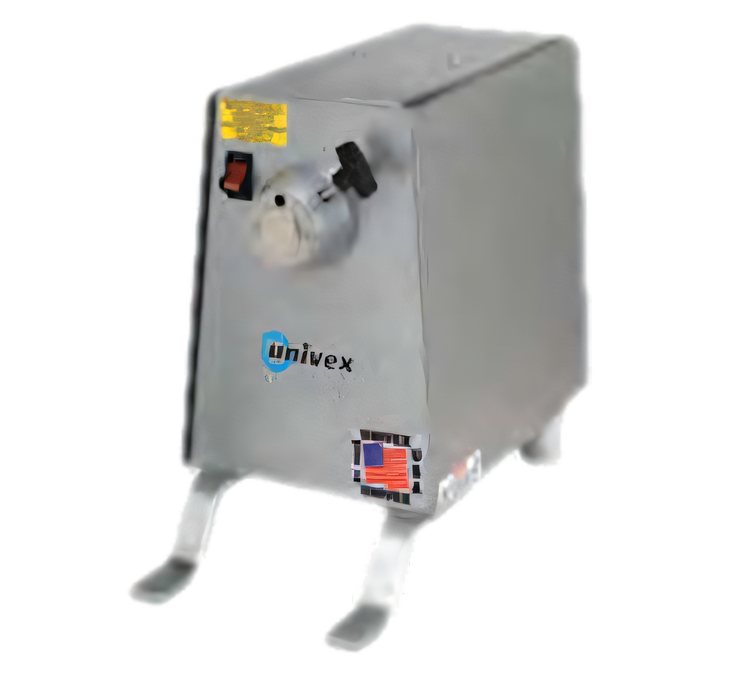

Univex PM91G Extended-Leg #12 Power Drive Unit

$2,134.80
/each
Estimated to ship in 11–14 business days
Attachments
Included: Univex warranty One-year on-site parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $197/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Power Drive Unit
Style Extended Legs
Installation Type Countertop
Material Steel
Country of Origin USA
Finish Enamel
Attachment Hub #12
Motor Power 1 HP
Speed 250 RPM
Prep Container Depth 5 in.
Voltage 115 Volts
Amps 9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

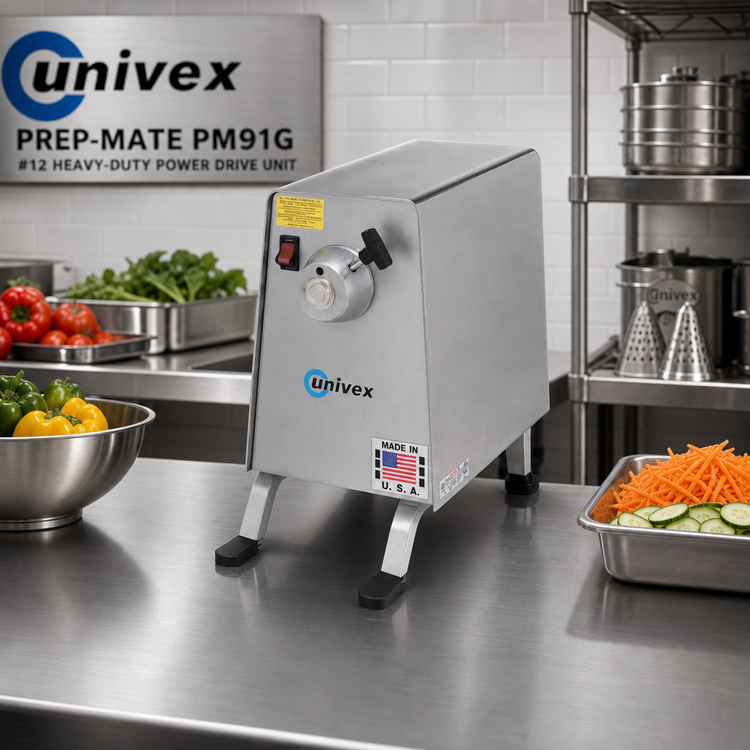

The Univex PM91G is a heavy-duty, table-model power drive unit with extended legs and a #12 power take-off hub. Its 1 HP motor runs compatible attachments at 250 RPM.

It includes a 5 in. deep prep container with cover and uses a 115-Volt, single-phase electrical connection. The unit is a power drive unit only; processing attachments are separate.

Overall Dimensions:

22.0"W x 33.0"D x 16.0"H

Product Weight:

92.0 lb

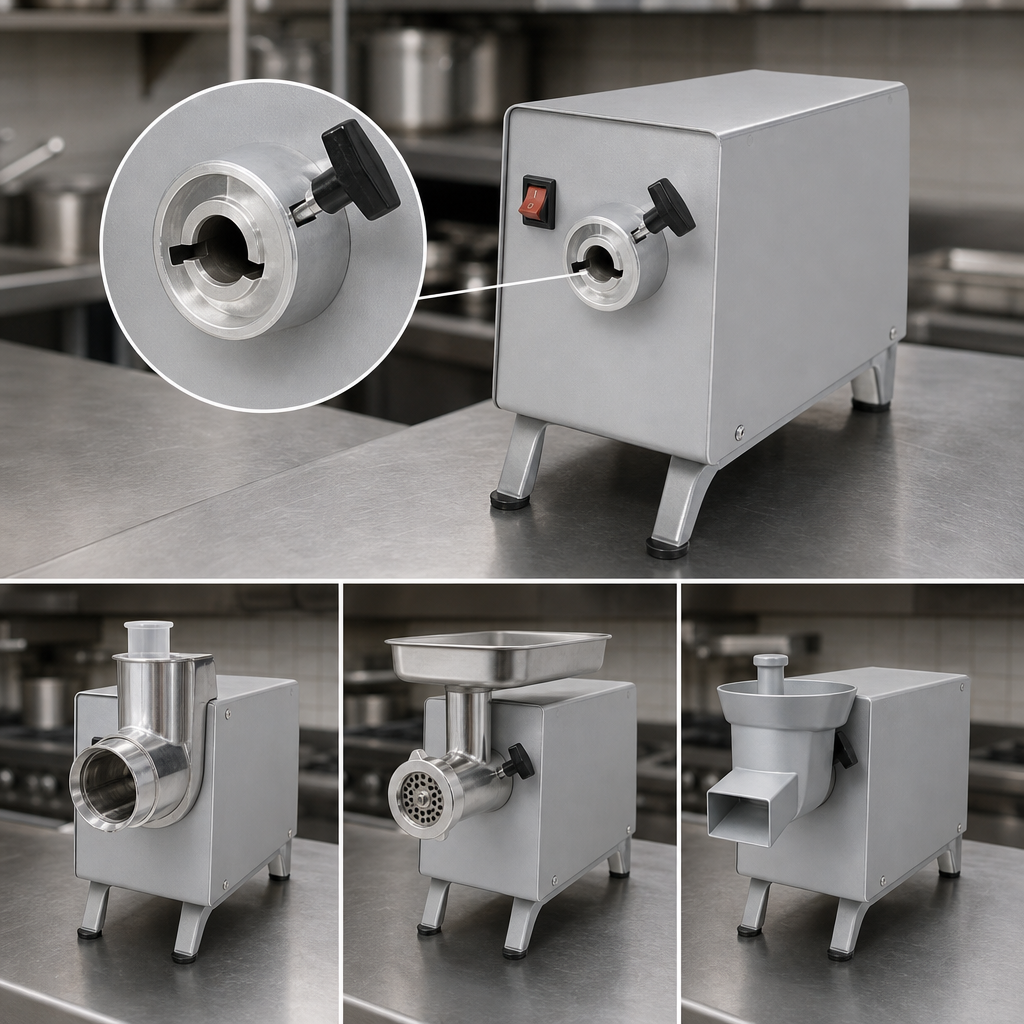

#12 PTO Hub

Accepts VS9H, VS9, and MFC12 attachments.

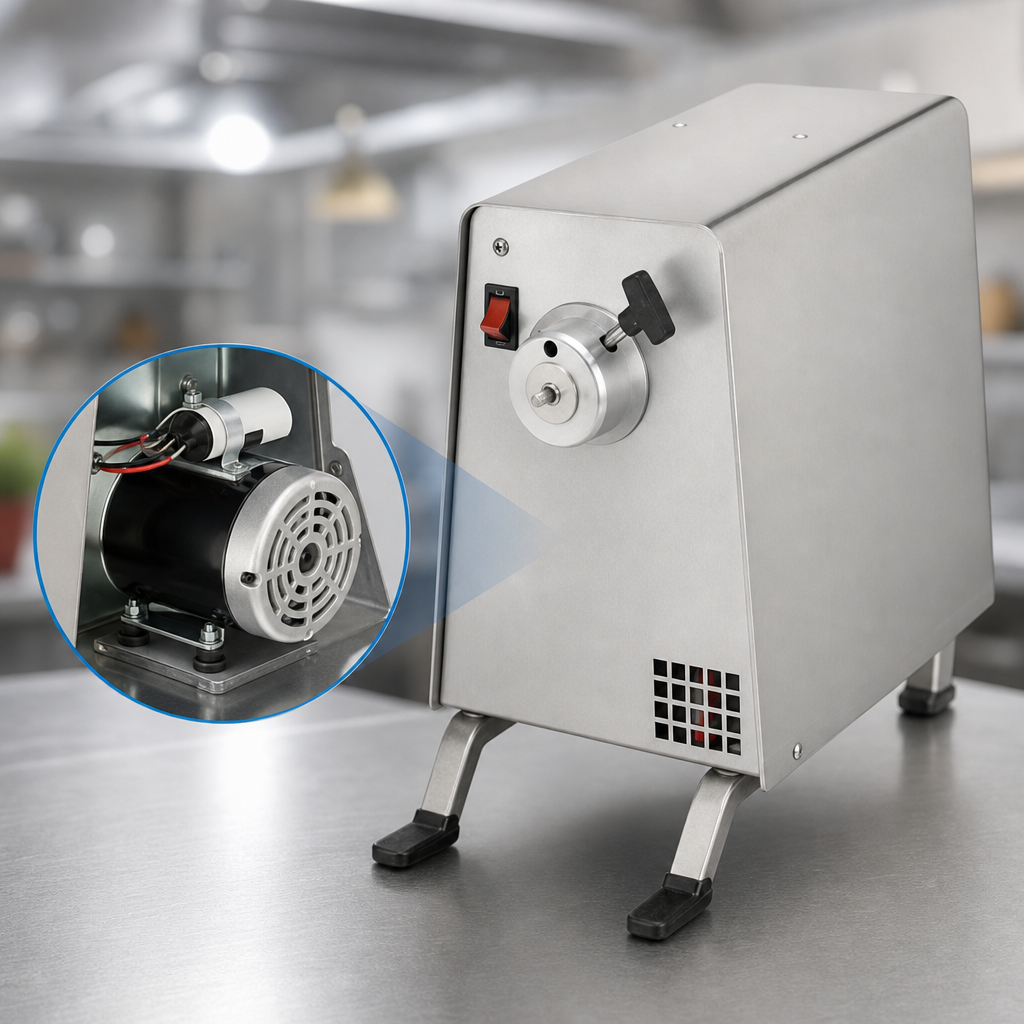

1 HP Motor

Drives compatible attachments at 250 RPM.

Extended Legs

Allow use with a larger prep container.

Prep Container and Cover

Includes a 5 in. deep prep container with cover.

Removable Operator Key

The on/off switch includes a removable key to help prevent unauthorized operation.

Enamel Finish

Power Unit Configuration

The unit is a power drive unit only; processing attachments are separate.

Frequently Asked Questions

The #12 hub accepts VS9H, VS9, and MFC12 attachments.
Yes. It includes a 5 in. deep prep container with cover.
The unit operates at 115 Volts, 60 Hz, single phase, draws 9 Amps, and uses a NEMA 5-15P plug.
The drive runs at 250 RPM.
The product measures 22 in. wide, 33 in. deep, and 16 in. high.
