Key specifications

Amps
9 Amps
Phase
1-Phase
Dimensions
22.0"W × 33.0"D × 16.0"H
Type
Power Drive Unit
Style
Tabletop
Installation Type
Countertop
Spec sheet
Univex SKU: PM91

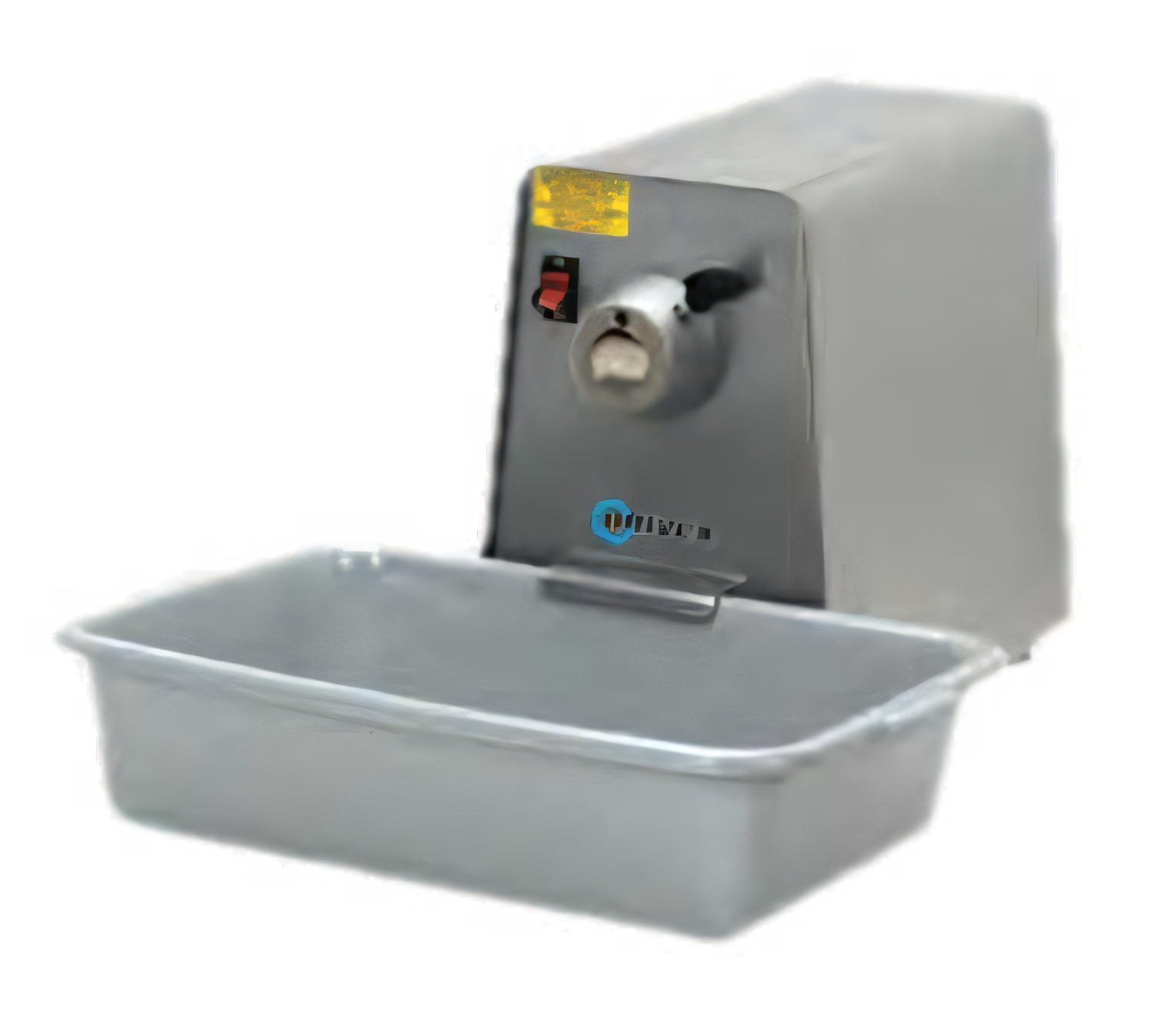

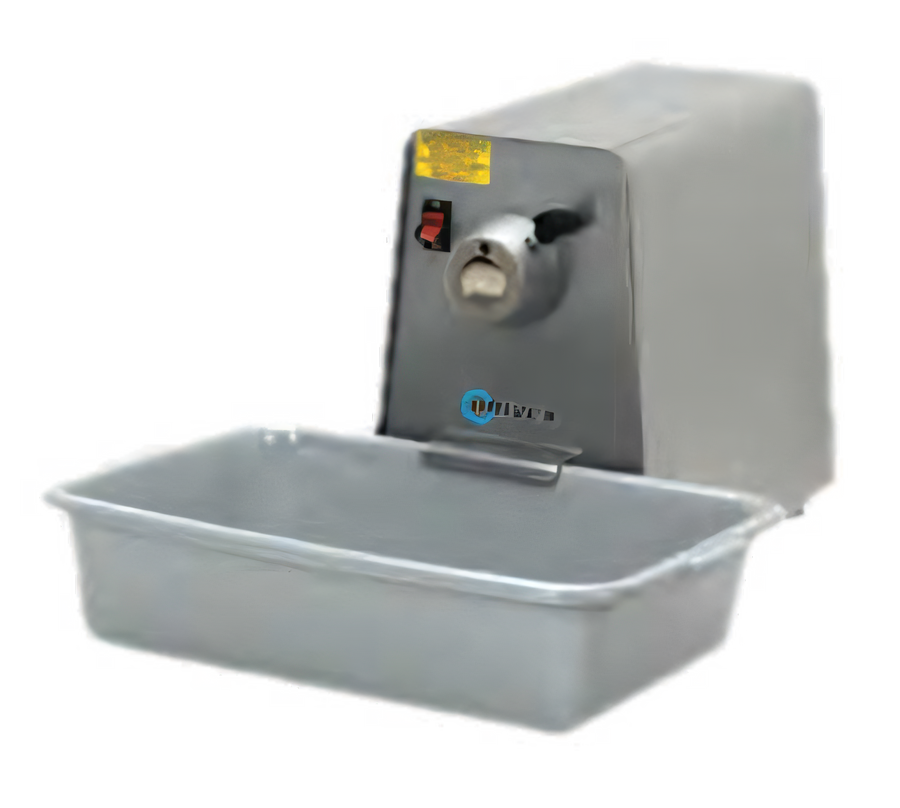

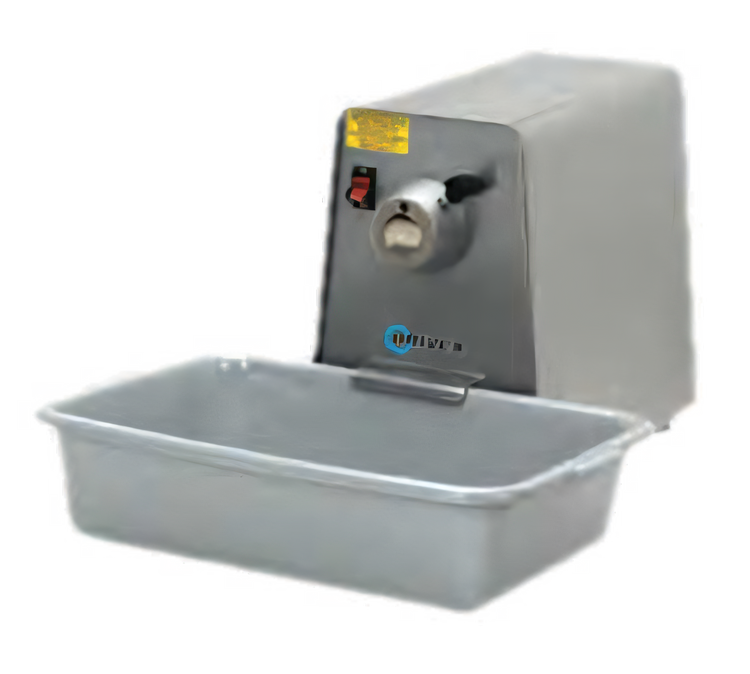

Univex PM91 Tabletop #12 Hub Power Drive Unit, 1 HP

$1,705.20
/each
Estimated to ship in 6–9 business days
Base
Attachments
Included: Univex warranty One-year on-site parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $158/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Power Drive Unit
Style Tabletop
Installation Type Countertop
Material Steel
Finish Enamel
Country of Origin USA
Attachment Hub #12
Motor Power 1 HP
Drive Speed 250 RPM
Prep Container Depth 5 Inches
Belt Type Poly-V
Belt Width 1 Inch
Controls On/Off Switch
Voltage 115 Volts
Amps 9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P

Description

The Univex PM91 is a heavy-duty tabletop power drive unit with a #12 hub, 1 HP motor, and 250 RPM drive.

It includes a 5-inch deep prep container with cover and accepts VS9H, VS9, and MFC12 attachments.

  • 115 V, 60 Hz, 1-phase electrical configuration with 9 A draw and NEMA 5-15P plug.
  • Enamel finish and 1-inch-wide Poly-V belt system.
  • On/off switch with removable operator key.

Overall Dimensions:

22.0"W x 33.0"D x 16.0"H

Product Weight:

92.0 lb

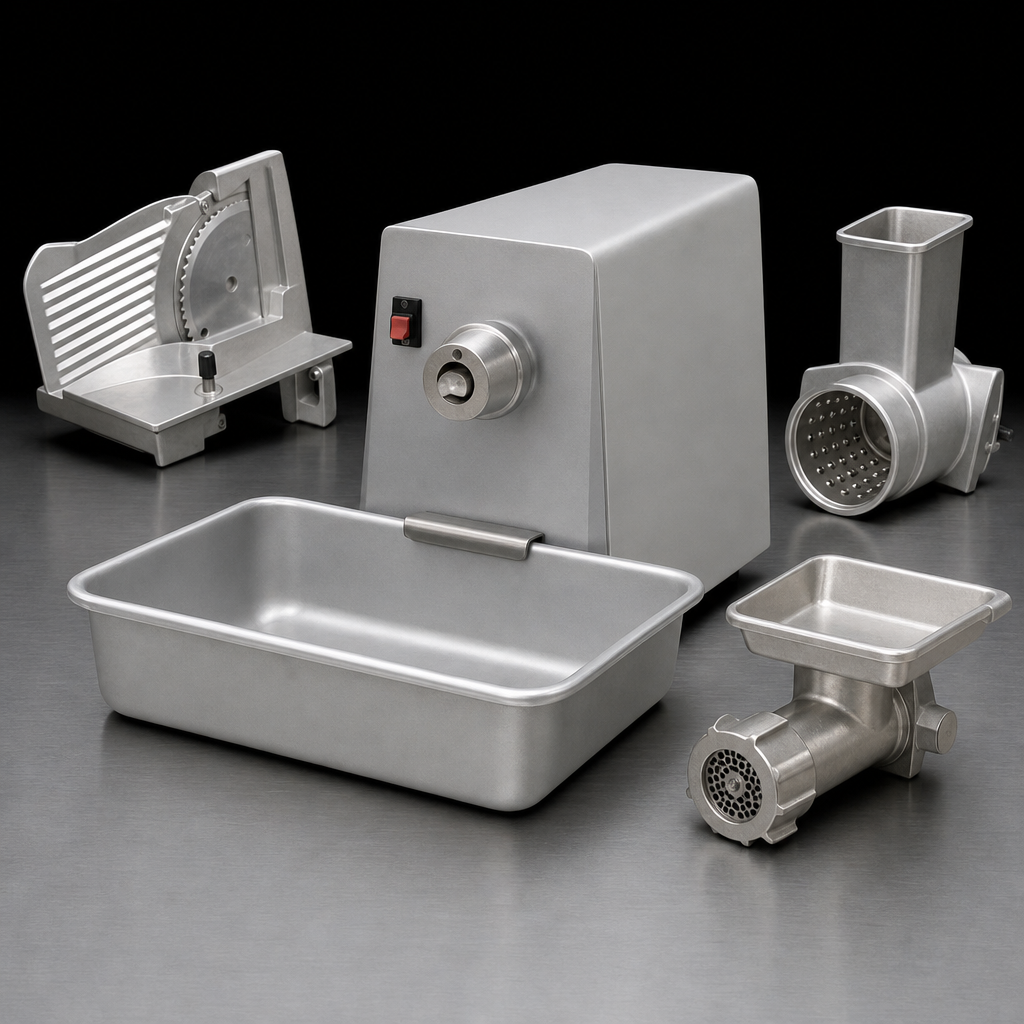

#12 PTO Hub

The power drive unit accepts VS9H, VS9, and MFC12 attachments.

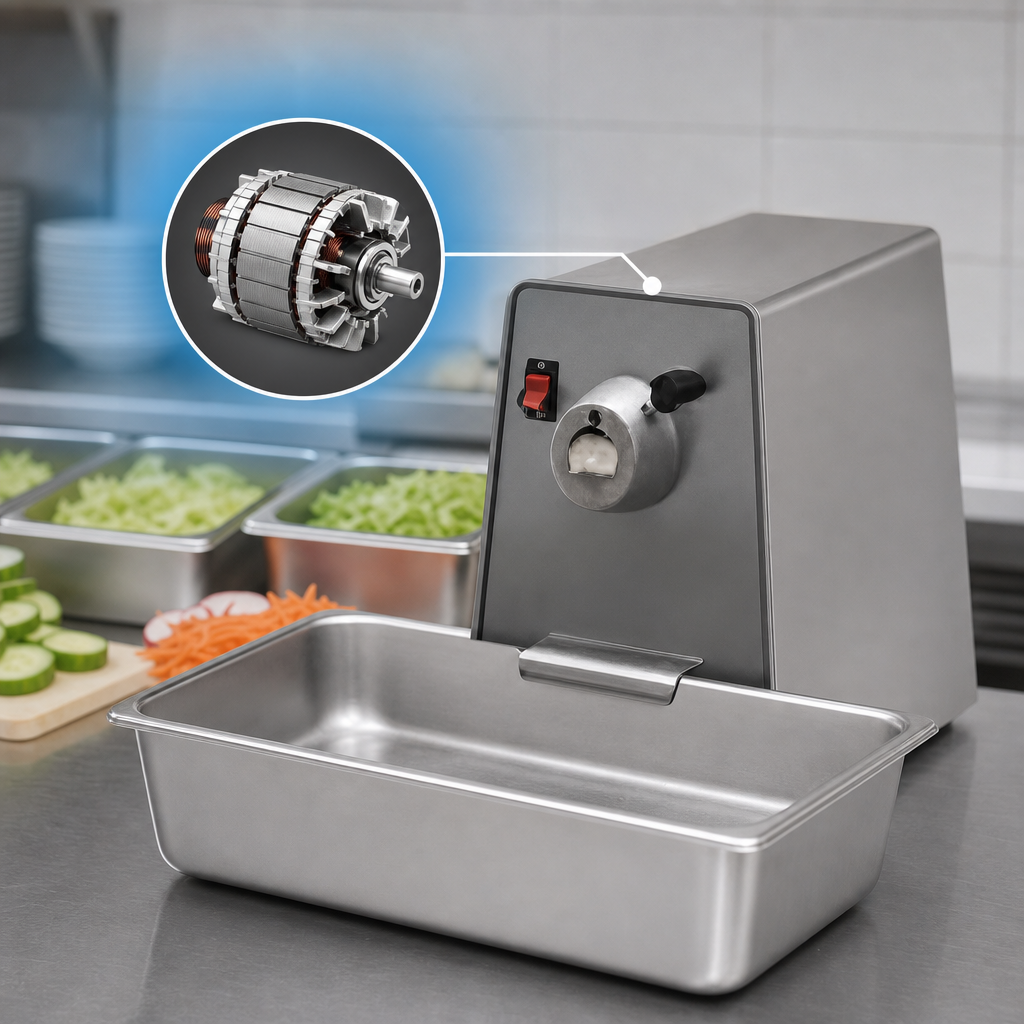

1 HP Motor

Equipped with a 1 HP drive motor.

250 RPM Drive

Runs compatible attachments at 250 RPM.

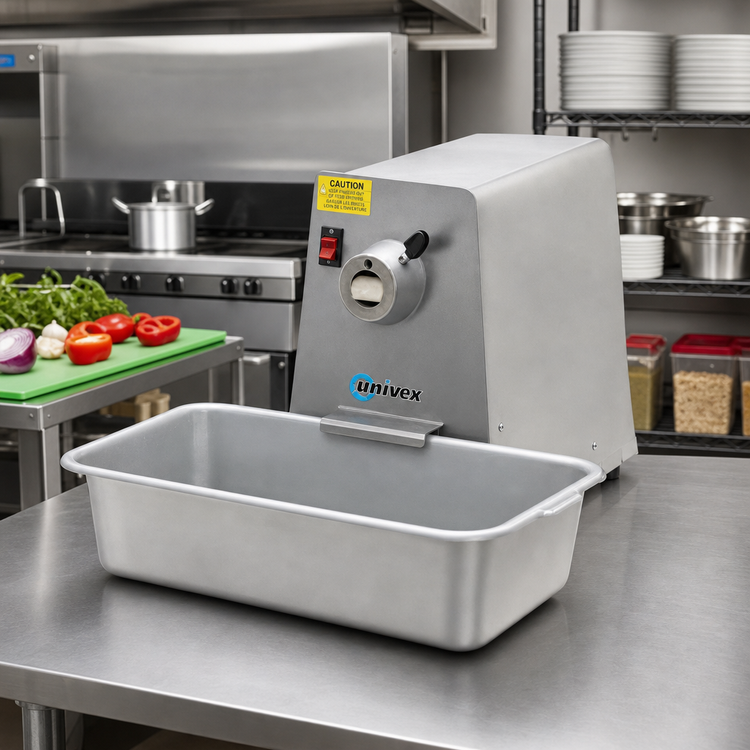

Prep Container With Cover

Includes a 5-inch deep prep container with cover.

Poly-V Belt System

Uses a 1-inch-wide Poly-V belt system.

Removable Operator Key

The on/off switch includes a removable key to help prevent unauthorized operation.

Frequently Asked Questions

Yes. The unit comes with a 5-inch deep prep container and cover.
It accepts VS9H, VS9, and MFC12 attachments.
The PM91 operates at 115 Volts, 60 Hz, and 1-Phase, draws 9 Amps, and uses a NEMA 5-15P plug.
The listed dimensions are 22 Inches wide by 33 Inches deep by 16 Inches high, with a listed weight of 92 Pounds.
The PM91 includes a one-year on-site parts and labor warranty.
