Univex  |  SKU: DOME59P

Univex DOME59P Coal/Wood Fired Ovens

$37,113.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Brochure pizza Owner's manual original control Brochure Owner's manual digital control Warranty sheet
Related Searches
Coal/Wood Fired Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

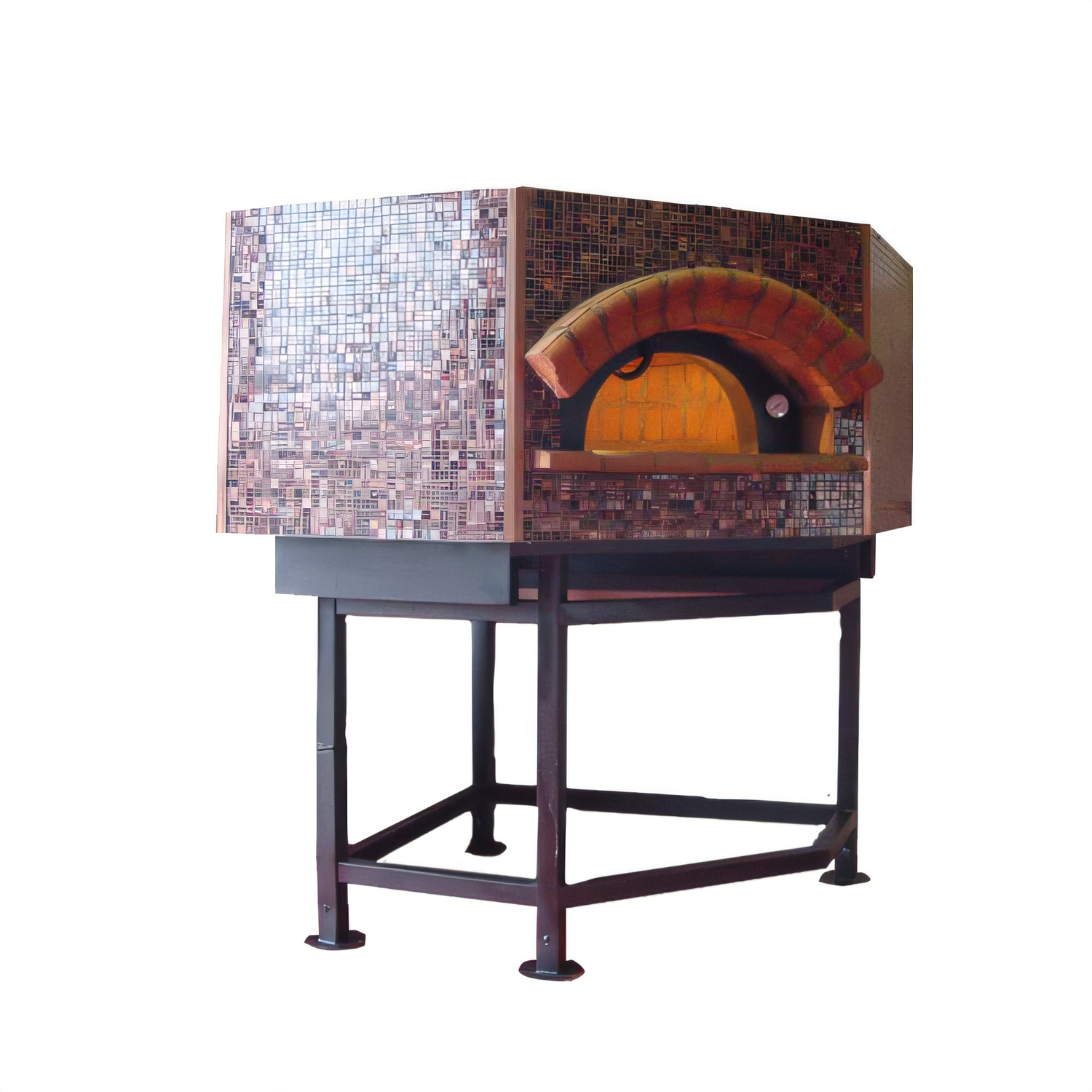

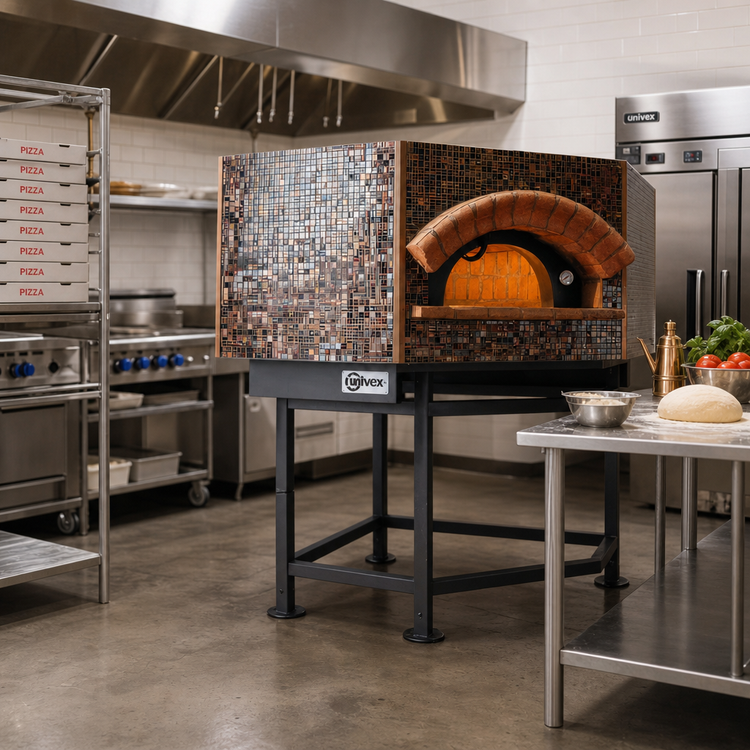

Univex DOME59P Stone Hearth Pentagonal Pizza Oven

Artisan gas-fired dome built for high-volume, authentic pizza

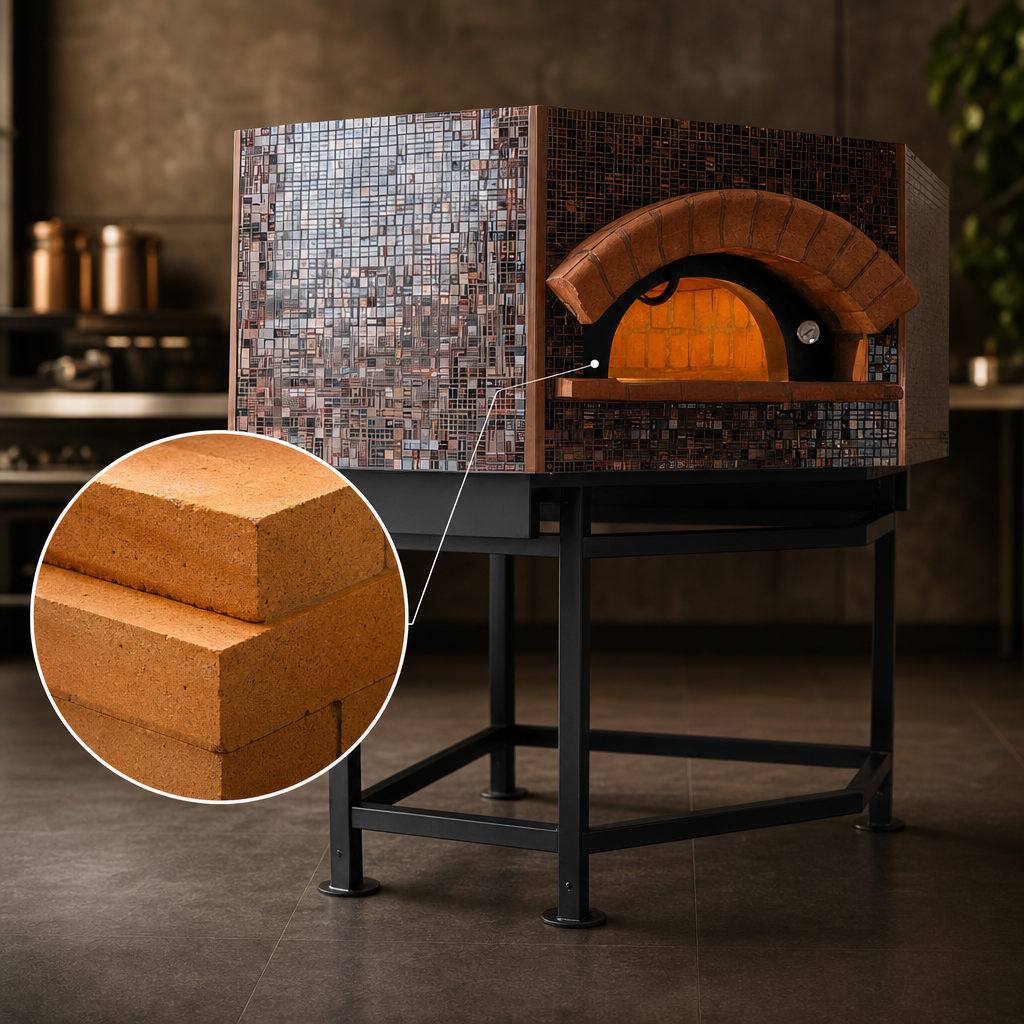

Hand-crafted from genuine refractory firebrick and wrapped in heavy insulation, the DOME59P combines old-world baking performance with modern efficiency. Its spacious pentagonal chamber turns out up to 13 full-size (12 in.) pizzas at once, while the 97,500 BTU burner maintains an even, stone-baked heat that keeps up with the busiest service.

Why you’ll love it

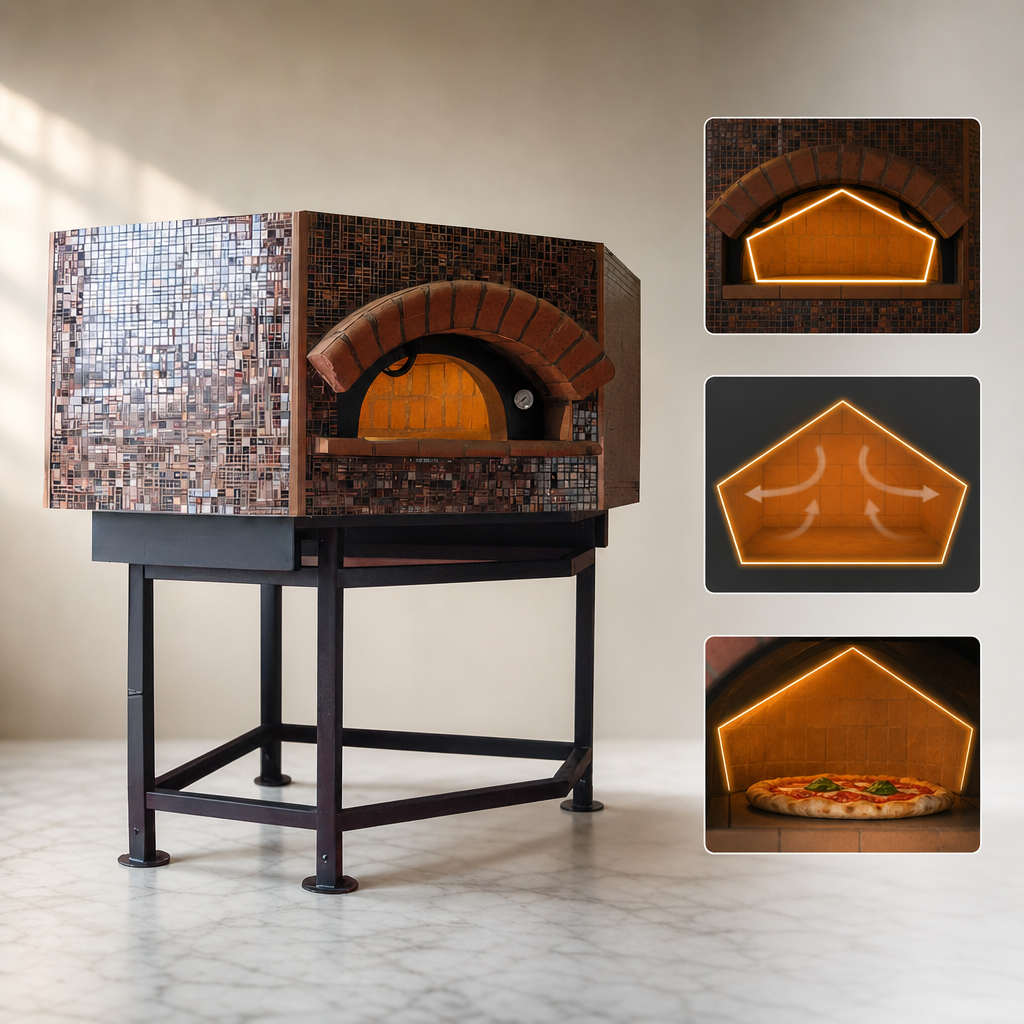

  • Pentagonal internal cooking chamber maximises floor space and heat circulation.
  • Static stone floor delivers a traditional hearth texture and blister.
  • Exterior stays cool to the touch—even at peak temperature—thanks to robust insulation.
  • Supplied fully assembled with iron stand & door for fast installation.
  • Built-in thermometer and 7 7⁄8 in. (200 mm) internal stack exhaust simplify operation & venting.
  • Runs on natural gas or propane; 3⁄8 in. NPT connection.
  • NSF & cCSAus listed; backed by a one-year, on-site parts & labour warranty.

Technical specifications

Model DOME59P
Pizza capacity 13 × 12 in. pies
Heat source Gas - 97,500 BTU (natural or propane)
Gas connection 3⁄8 in. NPT  •  NG: 4 in. WC  •  LP: 10 in. WC
Electrical 115 V / 60 Hz / 1-Ph  •  16 A
Exterior dimensions (WxDxH) 78.7 × 49.2 × 72.8 in. (200 × 125 × 185 cm)
Cooking floor width (A) 41.7 in.  (106 cm)
Weight 5,952 lb  (2,700 kg)
Vent pipe 7 7⁄8 in. Ø (200 mm) natural draft recommended
Standard accessories Iron stand, iron door, built-in thermometer, internal stack exhaust
Construction Hand-laid refractory firebrick dome with black iron exterior (custom finishes optional)
Certifications NSF • cCSAus
Installation & clearance: Maintain 6 in. (15.2 cm) from all combustible surfaces and 16 in. (40.6 cm) above. Mount on a non-combustible floor with at least 32 in. clearance around the oven sides and 40 in. at the front. Leave service access and ensure proper flue draft per local code.

Looking for a signature look? Ask about optional exterior finishes—red or yellow brick, mosaic, marble, stone and more.

Features & Specs

Manufacturer

Univex

Certifications

NSF, cCSAus

Height

72.8in

Width

78.7in

Depth

78.7in

Shipping Weight

5952.5lbs

Hearth Width / Diameter

50" - 59"

Fuel Type

gas-fired

Base Style

stationary (stand base)

Shape

round

Interior Deck Construction

stone

Specifications

Artisan Stone Hearth Pentagonal Pizza Oven, gas, (13) 12" pizza capacity, pentagonal internal cooking chamber, includes: thermometer, internal stack exhaust, iron stand & door, insulated, handmade firebrick, 115v/60/1-ph, 16 amps, 97,500 BTU, cCSAus, NSF
