Univex DOME55R Coal/Wood Fired Ovens
Univex DOME55R Coal/Wood Fired Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Univex DOME55R Coal/Wood Fired Ovens
Description

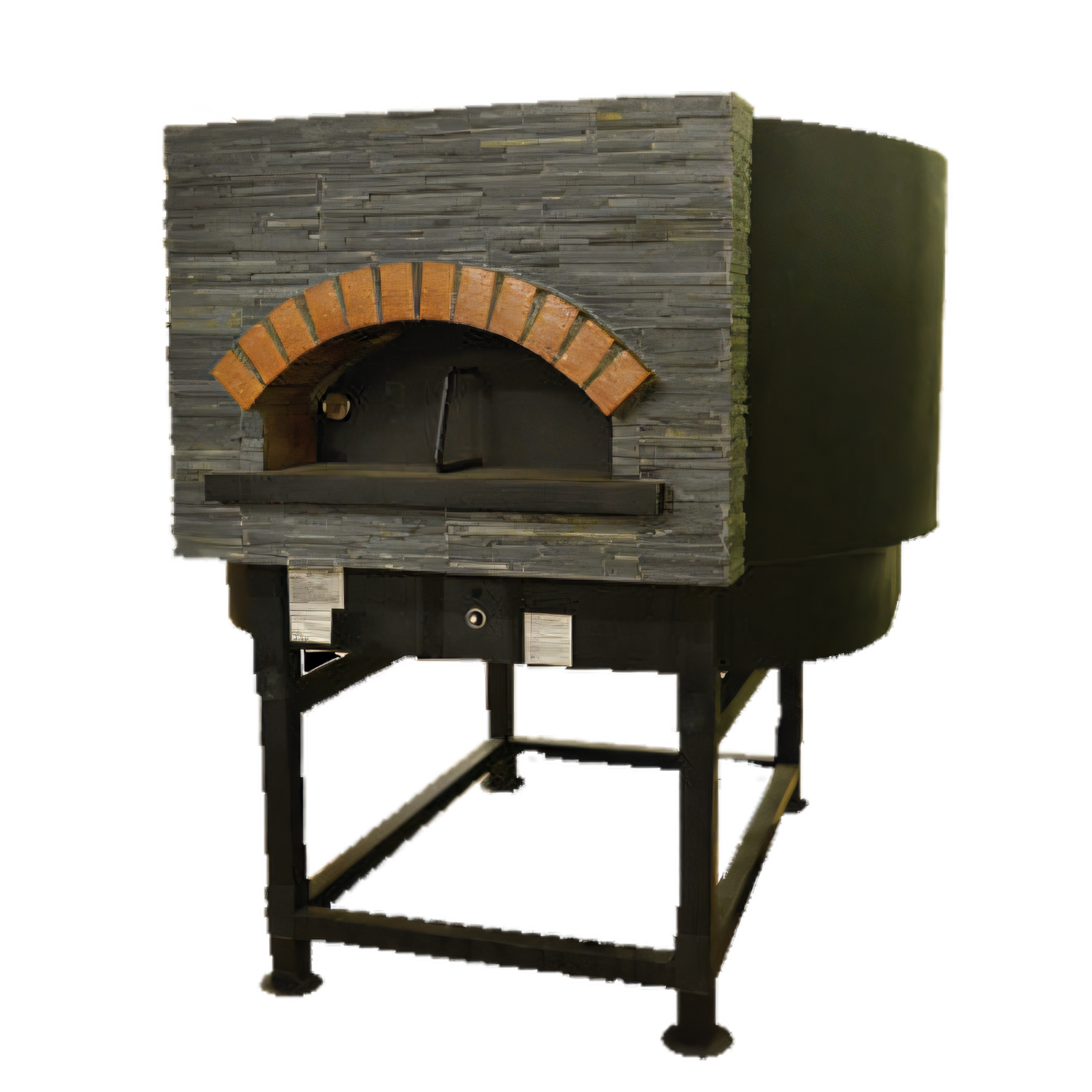

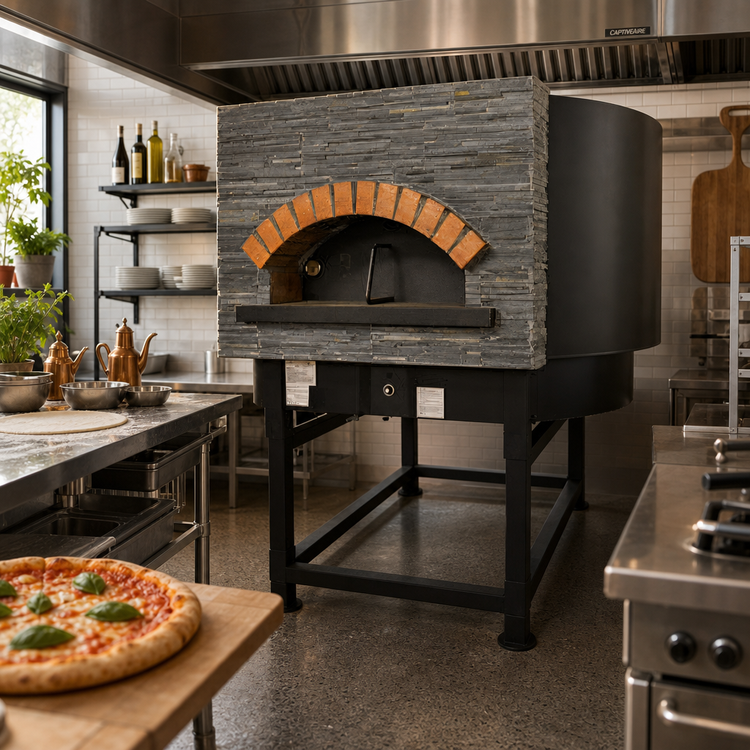

Univex DOME55R Artisan Stone Hearth Round Pizza Oven
Gas-fired | 11 × 12" pizza capacity | 97,500 BTUHand-crafted in Italy and engineered by Univex for North-American kitchens, the DOME55R brings authentic stone-hearth performance to high-volume pizzerias, bakeries, hotels and resorts. Its 55 ⅛" round firebrick chamber delivers rapid recovery, even heat distribution and the unmistakable flavor that only a true masonry oven can provide—all while staying cool to the touch on the outside.
Key benefits

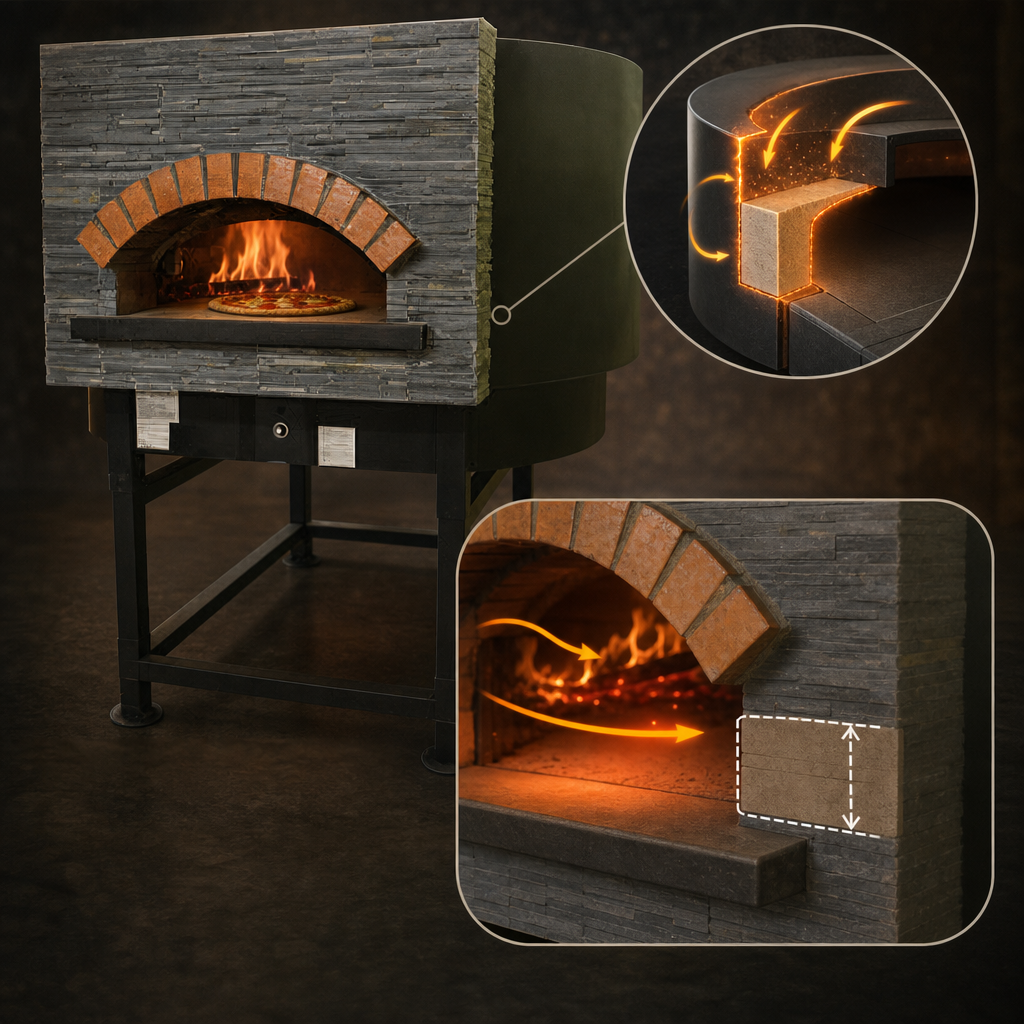

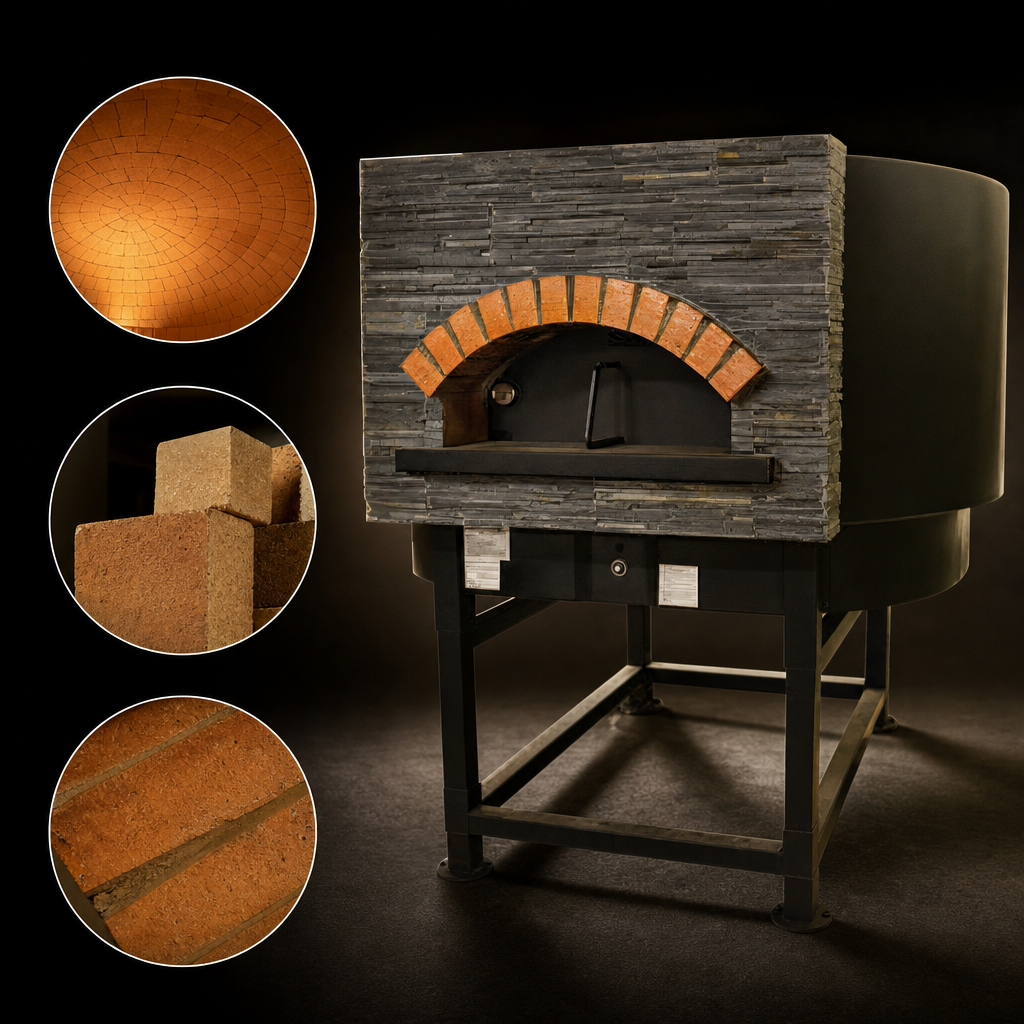

- Handmade refractory firebrick dome & static cooking floor for superior heat retention
- Generous 55 ⅛ in. (140 cm) internal diameter—bakes up to 11 standard 12" pizzas at once
- Factory-installed insulation keeps exterior surfaces safe and energy efficient
- 97,500 BTU gas burner (natural or propane) with 3⁄8" NPT connection
- Built-in analog thermometer for quick chamber-temperature checks
- Rugged black iron stand & matching iron door included for immediate installation
- Integral 7 ⅞" (200 mm) stack exhaust—ready for connection to a natural draft flue
- 115 V, single-phase electrical system powers the controls (no separate service required)
- cCSAus & NSF listed for gas safety and sanitation
Technical specifications
| Model | DOME55R |
|---|---|
| Internal chamber Ø | 55 ⅛" / 140 cm |
| Production capacity | 11 × 12" pizzas per bake cycle |
| Heat source | Gas, 97,500 BTU/h Natural Gas 4.0" WC • LP Gas 10.0" WC |
| Gas connection | 3⁄8" (0.95 cm) NPT, left-hand side |
| Electrical | 115 V / 60 Hz / 1-ph, 16 A |
| Vent connection | 7 ⅞" (200 mm) Ø stack, natural draft (200–300 CFM max. if fan is mandated) |
| Overall weight | 5,512 lb / 2,500 kg |
| Exterior dimensions (W×D×H) | 72.8" × 70.9" × 72.8" (185 × 180 × 185 cm) |
| Clearances | 6" (15 cm) sides & rear • 16" (41 cm) top • 40" (102 cm) front working space |
| Certifications | cCSAus, NSF |
| Warranty | 1-year on-site parts & labor |
What’s in the crate
- Hand-built DOME55R oven body, fully insulated
- Black iron stand (knocked-down for transport)
- Black iron oven door with viewing slot
- Analog dome thermometer (°F/°C dual scale)
- Factory-installed internal stack exhaust
- User/installation manual
Popular custom options (sold separately)
- Exterior finish kits: red or yellow brick, 10 × 10 tiles, marble, mosaic, metal leaf & more
- Decorative mantle or custom logo arch
- Under-oven wood storage base
Need help sizing your flue or choosing the right finish? Contact our food-service specialists—Univex technical support is available 24/7 at 800-258-6358.
