Univex DOME55GV Coal/Wood Fired Ovens
Description
Univex DOME55GV Stone Hearth Dome Pizza Oven
55 ⅛" round chamber • gas fired • 11-pie capacityHand-built in New Hampshire, the Univex DOME55GV pairs old-world firebrick craftsmanship with modern gas efficiency. Its 55 ⅛-inch stone hearth and 97,500 BTU burner turn out authentic, blistered-crust pizzas while the heavily insulated dome keeps the exterior cool to the touch—perfect for open-kitchen theatre and high-volume service alike.
Why chefs choose the DOME55GV

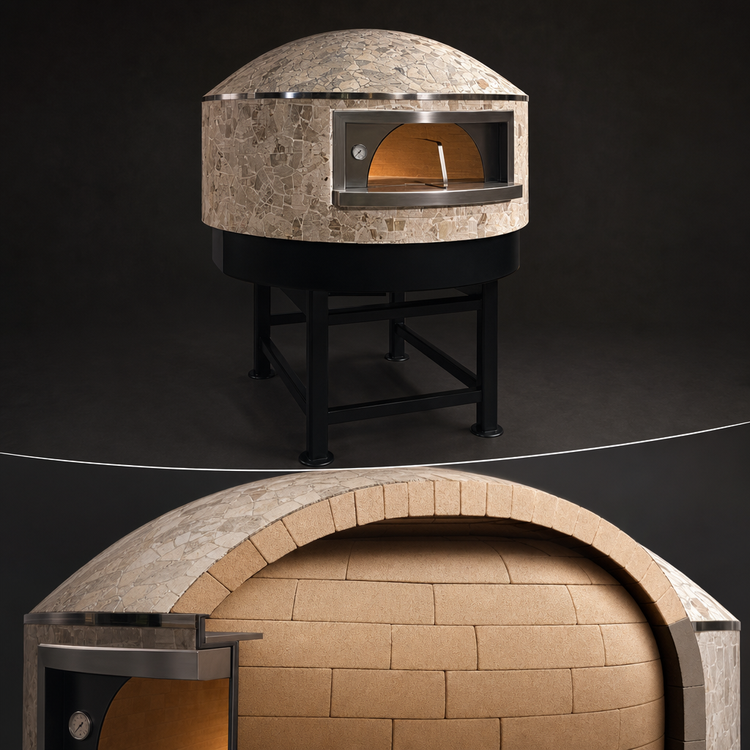

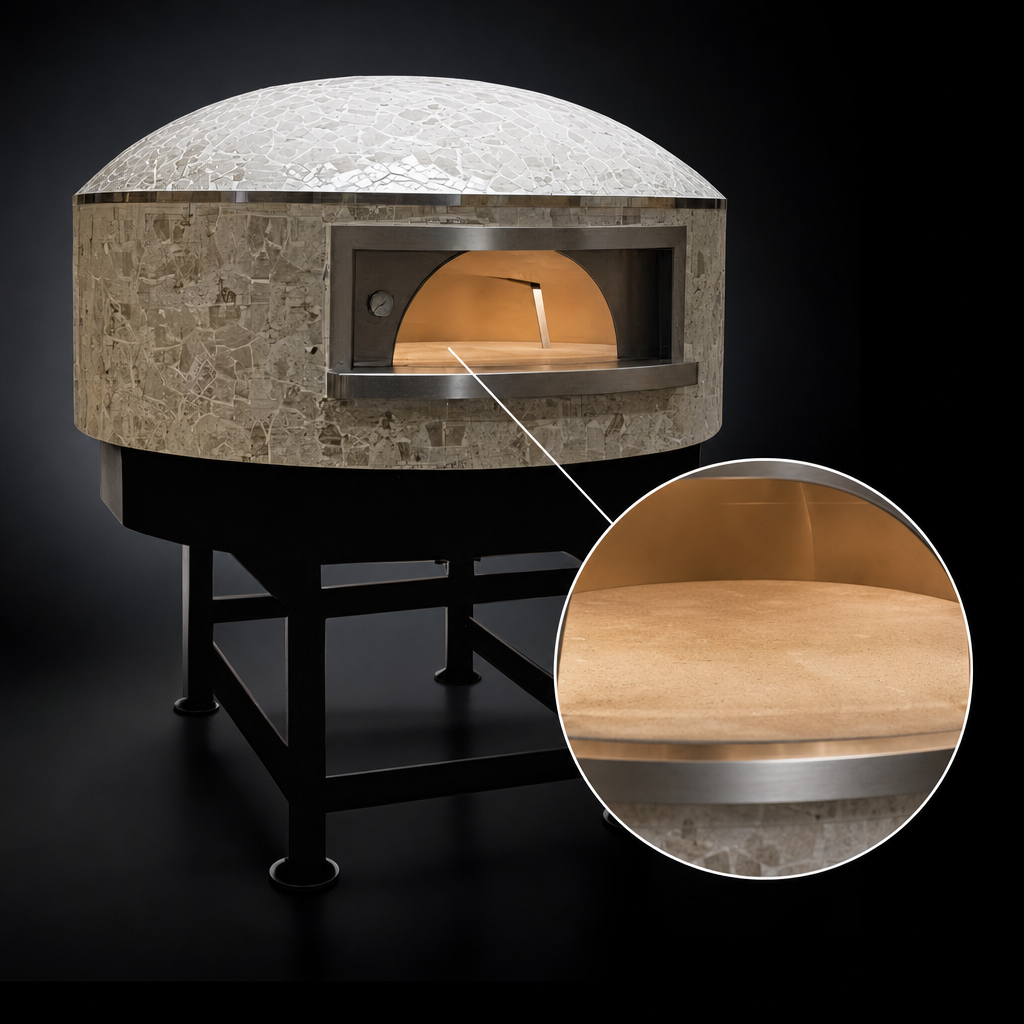

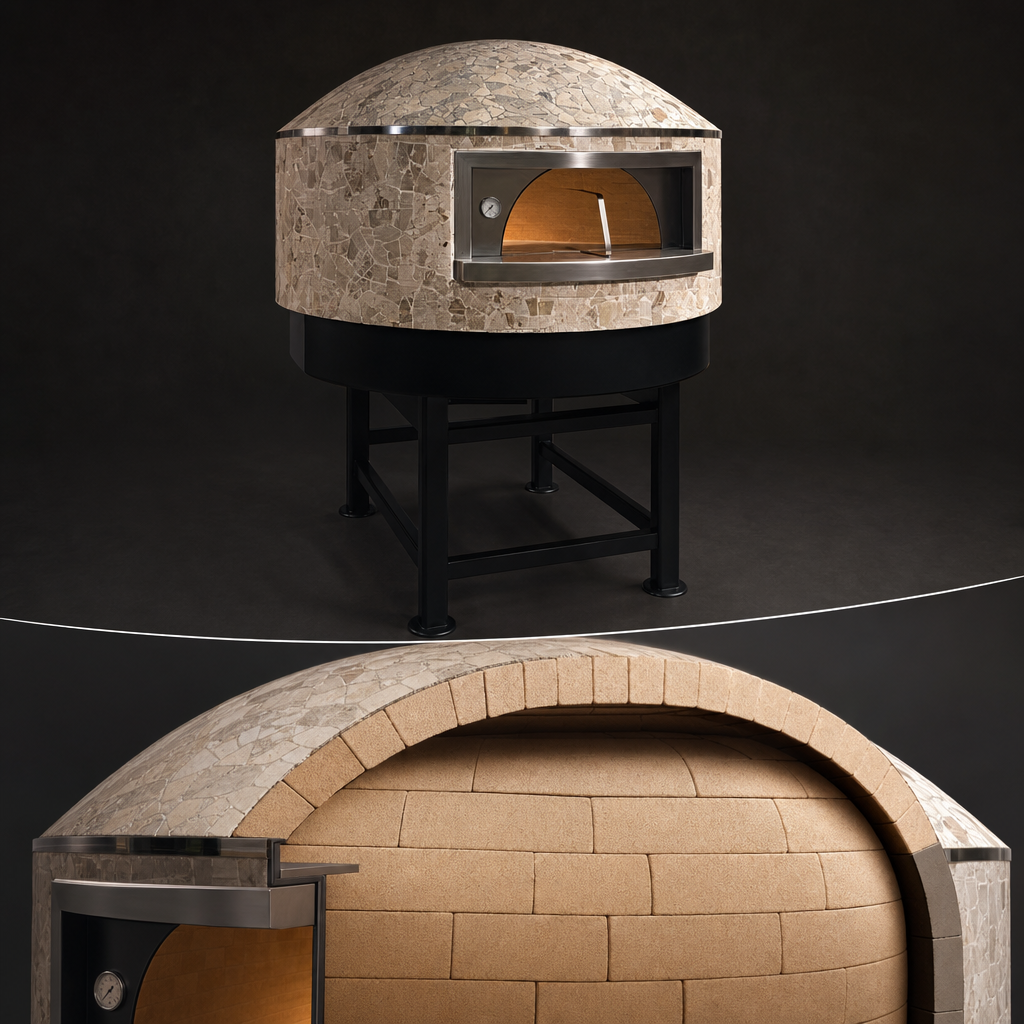

- Handmade firebrick dome & static stone floor for even, radiant heat and crisp bottoms.
- Spacious 55 ⅛" (140 cm) cooking chamber holds up to eleven 12" pies per bake cycle.
- Dense ceramic-fiber insulation locks in heat—exterior stays cool to the touch.
- Ready out of the crate: iron stand, iron door, dial thermometer and internal stack exhaust are included.
- 3/8" NPT gas inlet accepts natural gas (4" WC) or propane (10" WC).
- Low-maintenance natural draft flue (Ø 7.87")—no costly high-CFM exhaust required.
- cCSAus & NSF listed for safety and sanitation; backed by a 1-year on-site parts & labour warranty.
Technical specifications
| Model | DOME55GV |
|---|---|
| Oven type | Gas-fired, round stone hearth |
| Internal chamber Ø | 55 ⅛" / 140 cm |
| 12" pizza capacity | 11 pies |
| Overall dimensions (W × D × H) | 73" × 74" × 79" (185 × 190 × 200 cm) |
| Gas connection / BTU | 3/8" NPT • 97,500 BTU hr |
| Electrical | 115 V • 60 Hz • 1-phase • 16 A |
| Vent pipe | Ø 7.87" (200 mm) natural draft |
| Oven weight | 5,512 lb / 2,500 kg |
| Certifications | cCSAus, NSF |
| Warranty | 1 year, on-site parts & labour |
Installation & clearance requirements
- Minimum clearance from combustibles: 6" (15.2 cm) sides/back, 16" (40.6 cm) top.
- Set on a non-combustible floor with at least 32" (81.3 cm) around the oven and 40" (101.6 cm) in front.
- Provide 31 in² (200 cm²) of open area beneath the stand for combustion air.
- Recommended dedicated natural-draft flue; exhaust fan, if mandated, must not exceed 300 CFM.
- Leave sufficient access on all sides for routine service.
Looking for a signature look? The DOME55GV can be clad in black iron, marble or custom mosaic finishes—contact us for options.
