Univex

Univex Stone Hearth Pentagonal Gas Pizza Dome Oven with Stand, 9 x 12-Inch Pizza Capacity

SKU: DOME51P
$34,705.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Coal/Wood Fired Ovens Commercial Ovens Commercial Pizza Ovens New Arrivals Ovens Restaurant Equipment Univex Wood-fired Pizza Ovens

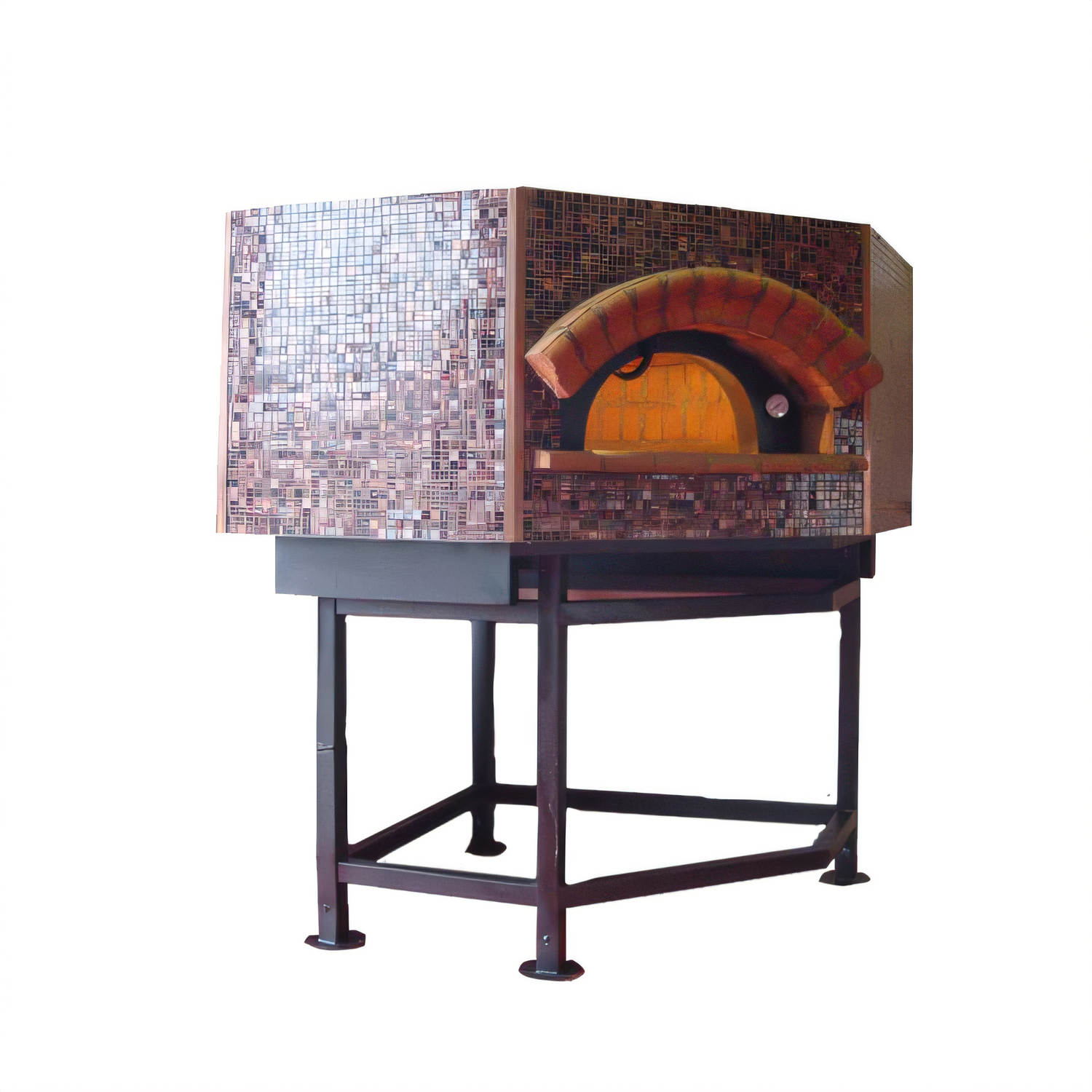

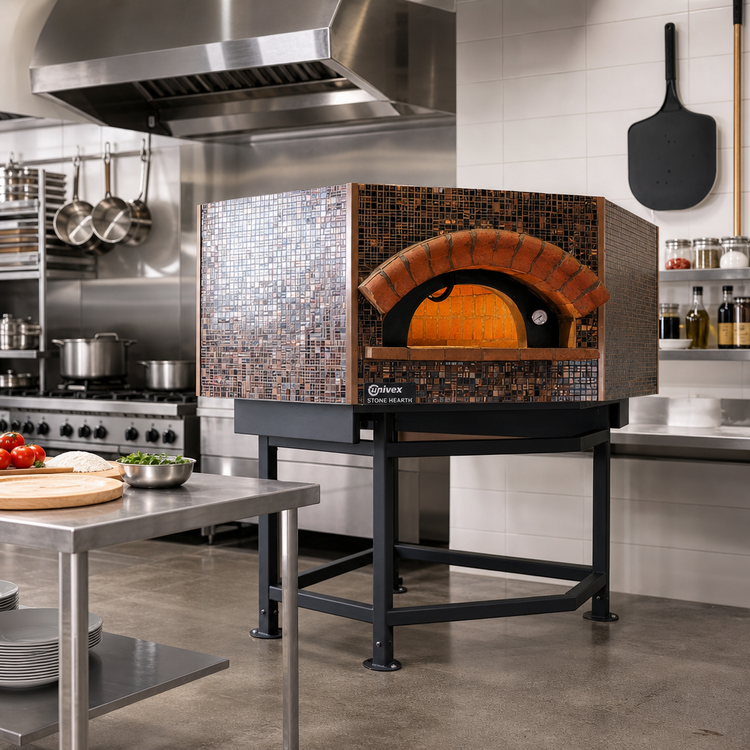

Univex Stone Hearth Pentagonal Gas Pizza Dome Oven with Stand, 9 x 12-Inch Pizza Capacity

Pentagonal stone hearth chamber, 115V/60Hz/1-phase, 92,500 BTU, floor model with stand

A heavy-duty gas stone hearth oven with a pentagonal cooking chamber and 9-pizza capacity, built for authentic high-heat baking and long heat retention.

  • Bakes up to nine 12-inch pizzas at once for busy pizzerias.
  • Handmade firebrick construction and deep insulation help retain heat and support even baking.
  • Includes an iron stand, iron door, thermometer, and internal stack exhaust.
  • Gas-fired design supports natural gas or propane installation.
  • 115V electrical service, 60 Hz, single-phase, 16 amps.
  • Custom exterior finish options are available for a distinctive look.

Overall Dimensions:

70.8"W x 70.8"D x 72.8"H

Product Weight:

5180.9 lb

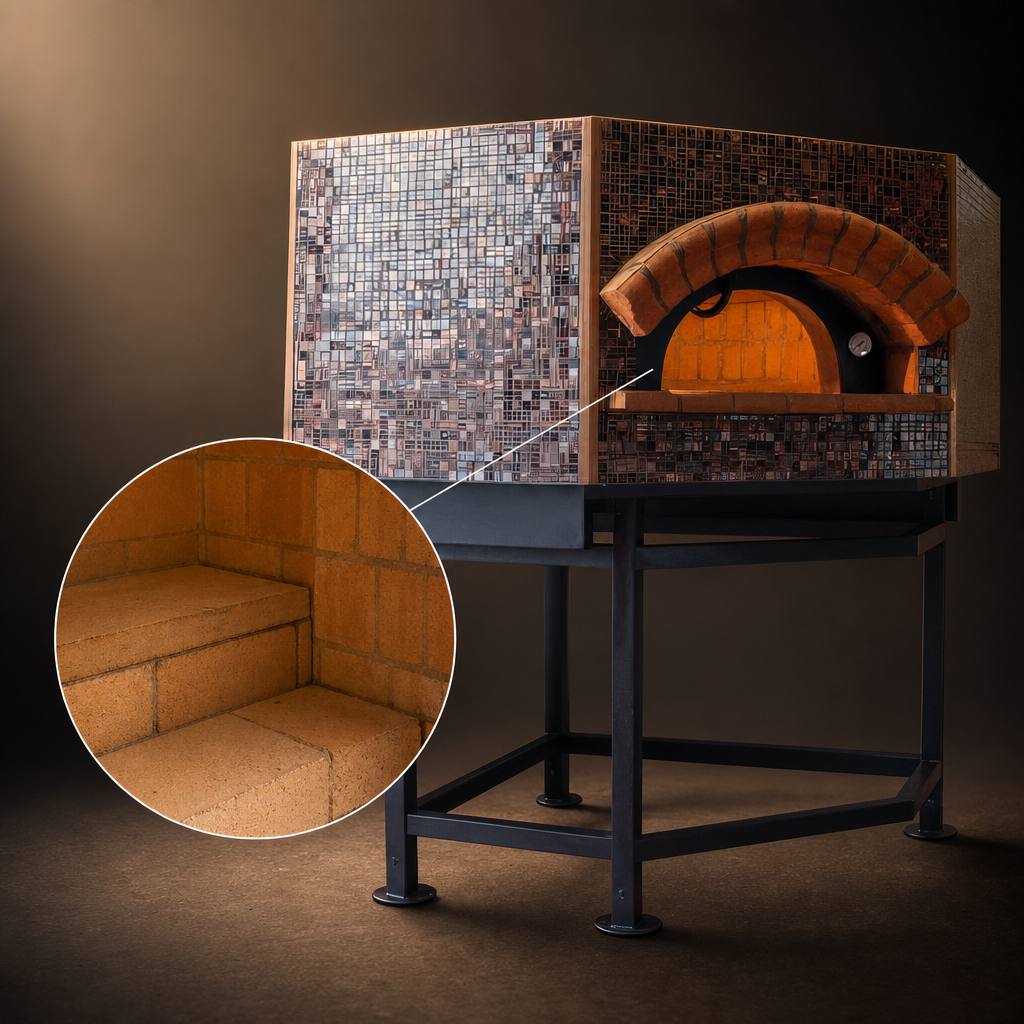

Handmade Firebrick Construction

Built with whole refractory bricks and refractory cement casting for excellent heat retention and durability.

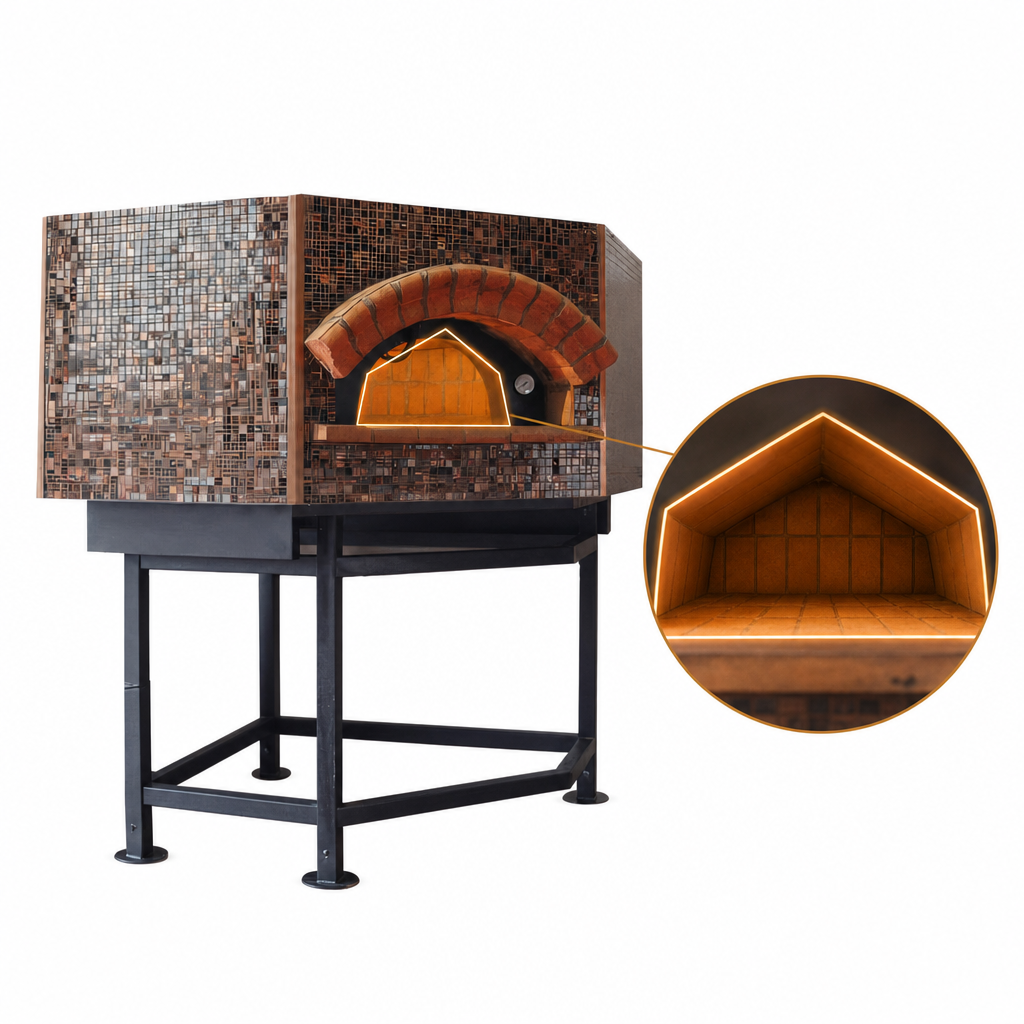

Pentagonal Internal Cooking Chamber

The pentagonal chamber supports authentic stone hearth baking and efficient heat flow.

Static Cooking Floor

A fixed cooking surface helps maintain steady heat for consistent pizza production.

Heavy Insulation Package

Seven layers of insulation help keep heat in the chamber and the exterior cooler to the touch.

Standard Accessories Included

Supplied with an iron stand, thermometer, iron door, and internal stack exhaust.

Gas-Fired Burner System

Designed for natural gas or propane operation with a 3/8 inch NPT gas connection.

Electrical Service

Requires 115V/60Hz/1-phase power at 16 amps.

Custom Exterior Options

Optional decorative finishes include red brick, yellow brick, 10 x 10 tiles, marble, metal leaves, mosaic tile, and stone.

Type Stone Hearth Pizza Dome Oven
Style Pentagonal
Installation Type Floor Model (With Stand)
Capacity 9 12-Inch Pizzas
Material Firebrick
Interior Finish Firebrick
Finish Black Iron
Voltage 115 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 92,500 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/8 Inch NPT
Gas Inlet Pressure 4 Inches W.C. Natural Gas / 10 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 71 Inches
Shipping Height 73 Inches
Shipping Weight 5,180.9 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year on-site parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual original control PDF Download PDF Brochure pizza PDF Download PDF Brochure PDF Download PDF Owner's manual digital control PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The oven can be ordered for natural gas or propane and uses a 3/8 inch NPT gas connection.
It holds up to nine 12-inch pizzas.
Standard accessories include an iron stand, thermometer, iron door, and internal stack exhaust.
The oven requires 115V, 60 Hz, single-phase power at 16 amps.
Venting depends on local code. Univex recommends a dedicated natural draft flue, and if an exhaust fan is required it should be no more than 200-300 CFM.
The cutsheet lists a one-year on-site parts and labor warranty.
