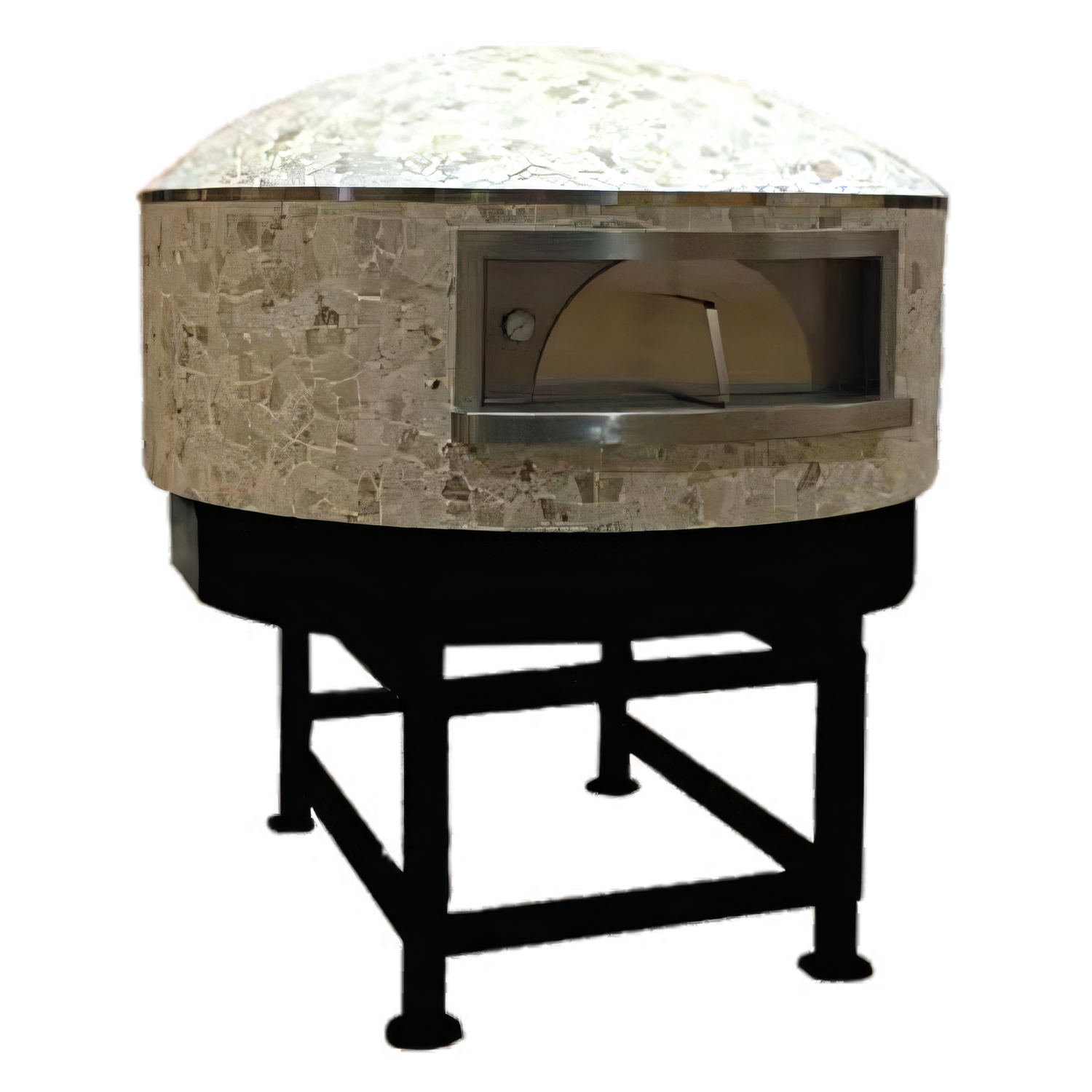

Univex DOME51GV Gas Stone Hearth Round Pizza Dome Oven with 51-1/4 Inch Chamber

9-Pizza Capacity, 115V, 92,500 BTU, Stationary Stand Base

Built for high-volume pizzerias, this handmade firebrick dome oven delivers exceptional heat retention and gradual heat release for consistent hearth-style baking.

  • Holds up to 9 twelve-inch pizzas in a large 51-1/4 inch round cooking chamber.
  • Handmade firebrick construction and heavy insulation help retain heat and keep the exterior cooler.
  • Gas-fired design delivers 92,500 BTU with support for natural gas or propane.
  • Includes a thermometer, internal stack exhaust, iron stand, and iron door.
  • Requires 115V/60Hz/1-phase power at 16 amps for electrical assistance.
  • Recommended venting depends on local code; a dedicated natural draft flue is advised.

Overall Dimensions:

69.0"W x 71.0"D x 79.0"H

Product Weight:

5291.1 lb

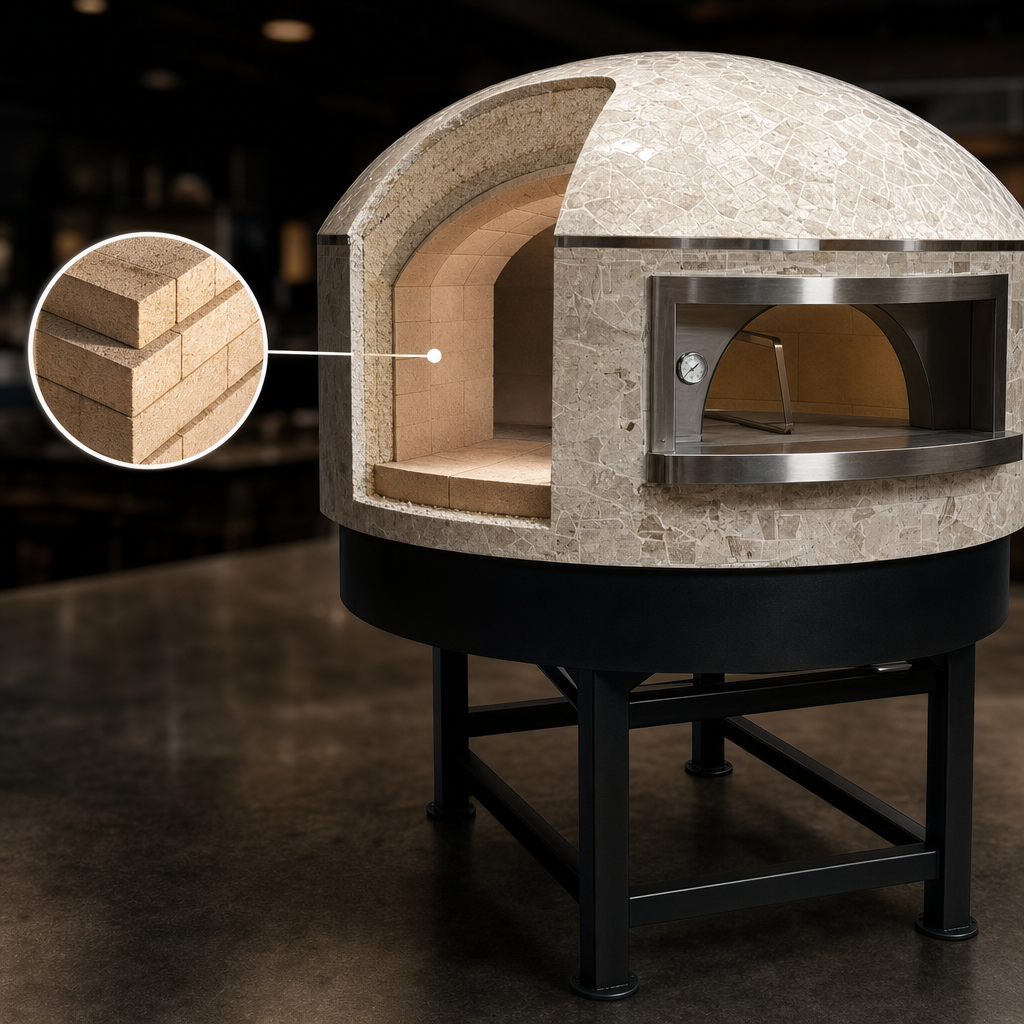

Handmade Firebrick Construction

Built from whole refractory bricks with high alumina content for strong heat retention and long service life.

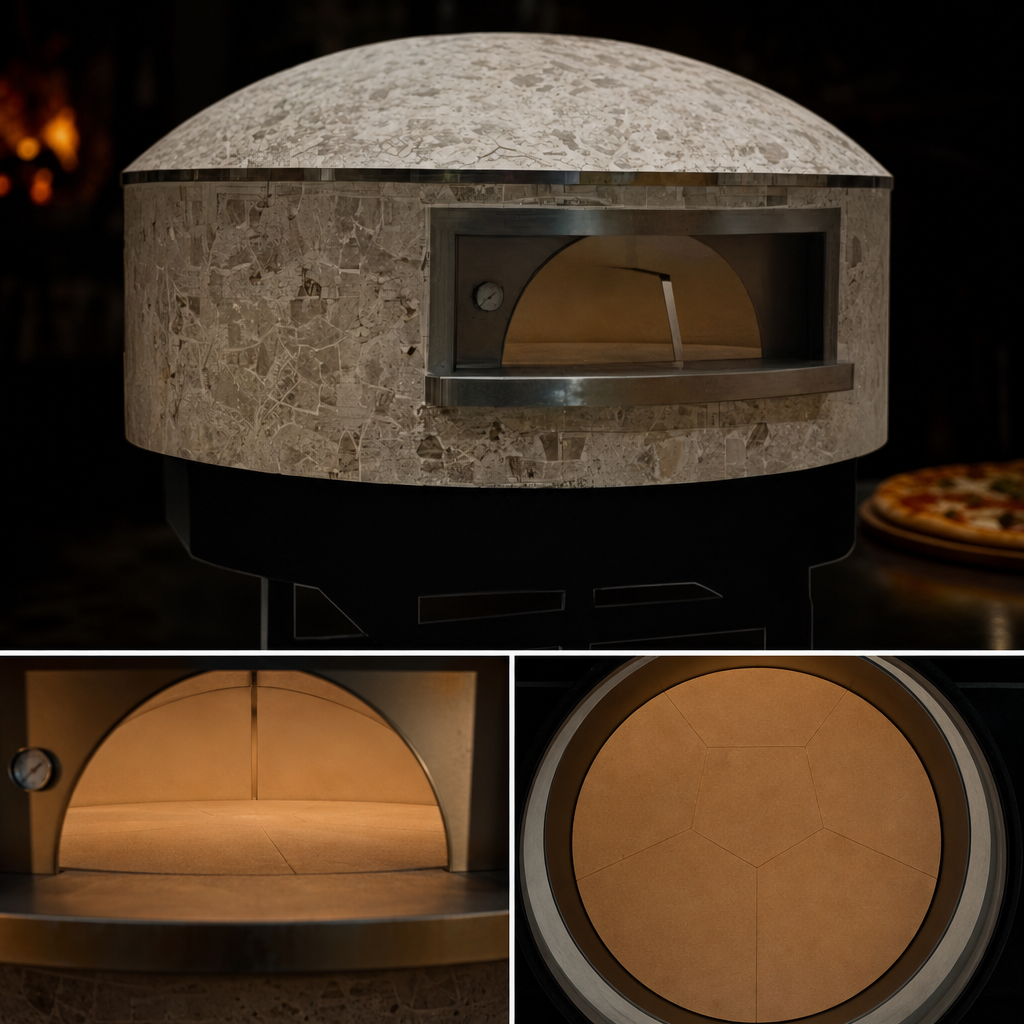

Round Static Cooking Floor

The round internal chamber and static cooking floor are designed for traditional hearth-style pizza baking.

Heavy Insulation

Seven layers of insulation help keep heat in the cooking chamber and reduce exterior heat loss.

Included Accessories

Ships with a thermometer, internal stack exhaust, iron stand, and iron door.

Gas-Fired Performance

Produces 92,500 BTU and uses a 3/8 inch NPT gas connection; supports natural gas or propane.

Standard Black Iron Walls

Comes standard with black iron walls, with optional decorative exterior finishes available.

Type Stone Hearth Pizza Dome Oven
Style Domed/Round
Installation Type Floor Model (With Stand)
Capacity 9 12-Inch Pizzas
Material Firebrick
BTU 92,500 BTU
Gas Connection Size 3/8 Inch NPT
Voltage 115 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year on-site parts and labor

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Brochure pizza PDF Download PDF Owner's manual original control PDF Download PDF Owner's manual digital control PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a capacity of 9 twelve-inch pizzas.
The round internal cooking chamber measures 51-1/4 inches in diameter.
It supports natural gas or propane, uses a 3/8 inch NPT gas connection, and requires 115V/60Hz/1-phase power at 16 amps.
Standard accessories include an iron stand, thermometer, iron door, and internal stack exhaust.
Univex recommends a dedicated natural draft flue; if an exhaust fan is required by code, it should be no more than 200-300 CFM.
The cutsheet specifies 6 inches on all sides, 16 inches at the top, and a non-combustible floor with at least 32 inches surrounding the oven and 40 inches in front.
