Univex DOME47P Coal/Wood Fired Ovens
Description

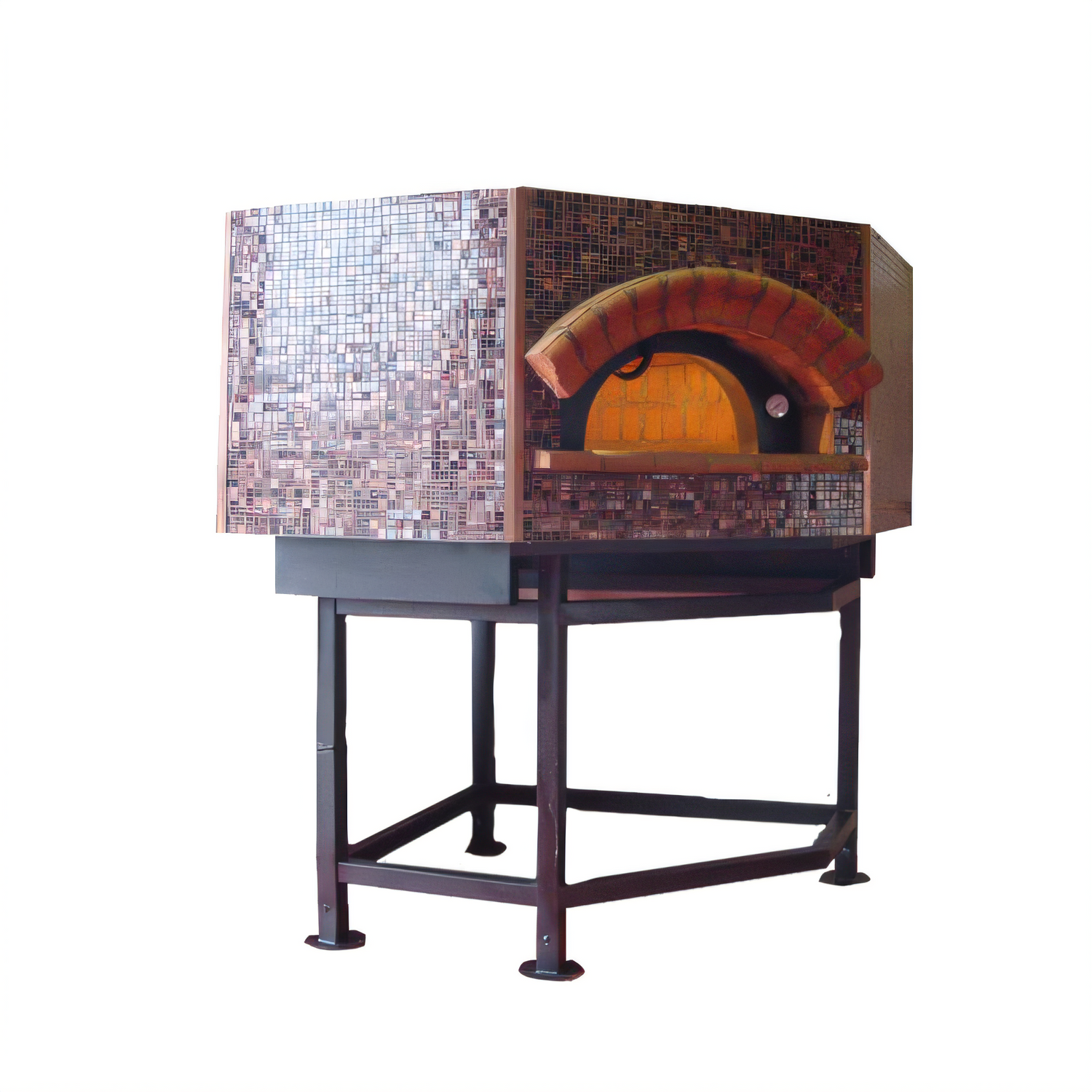

Univex DOME47P Stone Hearth Pentagonal Pizza Oven — Gas
Hand-made firebrick dome • 7 × 12" pizza capacity • 92,500 BTUGive guests an authentic, wood-fired flavor with the consistency and convenience of gas. The Univex DOME47P is a fully insulated, pentagonal stone-hearth oven that bakes up to seven 12" pizzas at once while keeping the exterior cool to the touch. Delivered ready to set, connect and start turning out artisan-quality pies in minutes.
Key features

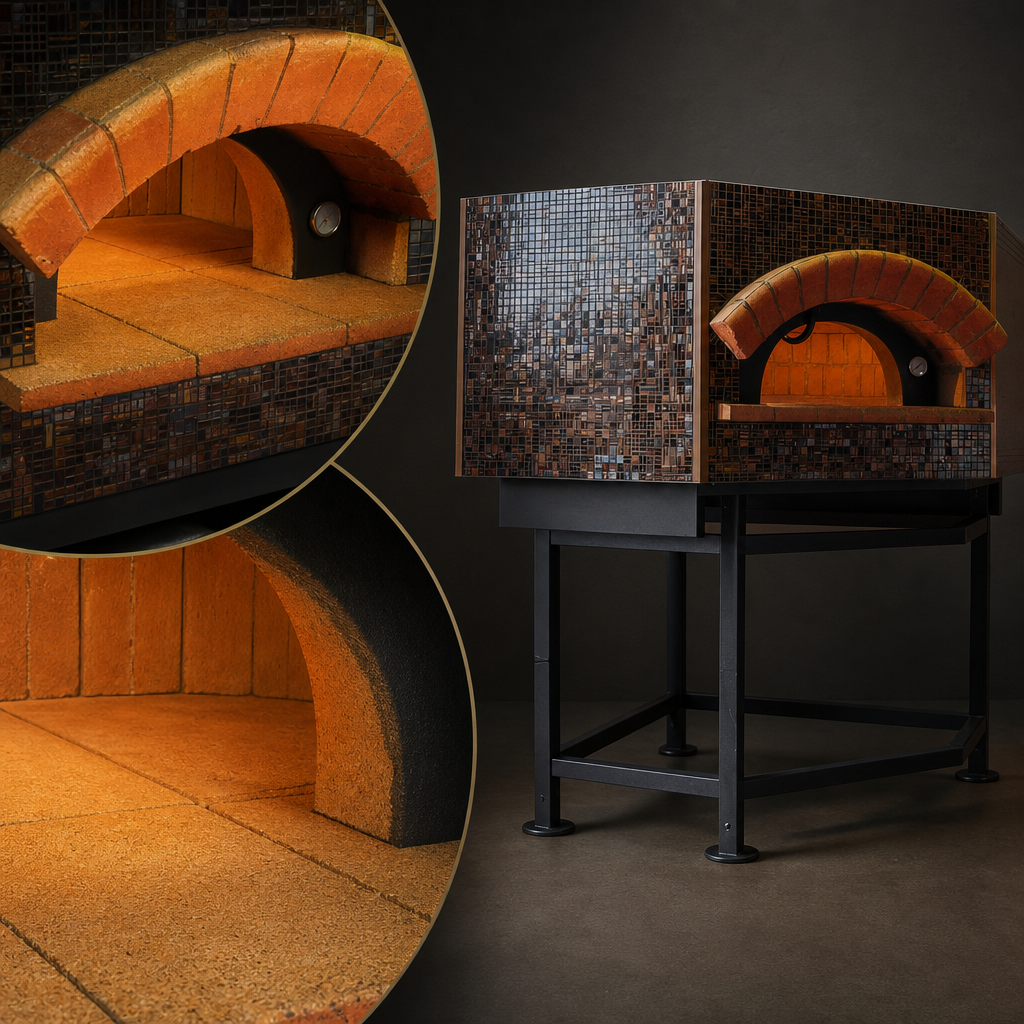

- Hand-crafted refractory firebrick cooking chamber with static baking floor

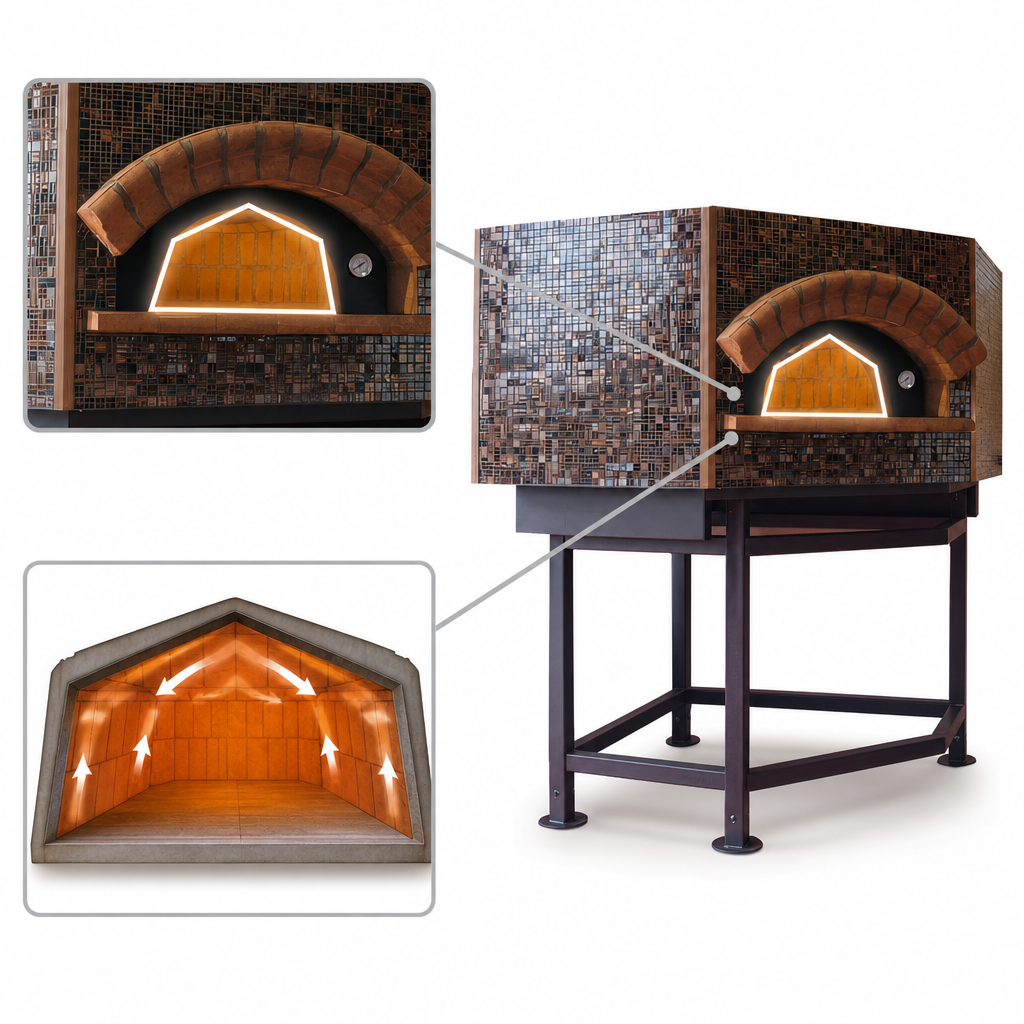

- Pentagonal geometry promotes even heat circulation and fast recovery times
- 92,500 BTU gas burner (Natural 4" WC or Propane 10" WC) with 3⁄8" NPT connection
- Factory-installed 7 7⁄8" (200 mm) internal stack exhaust & analog thermometer
- Heavy-duty iron door and welded iron stand included
- Thick mineral insulation – exterior stays cool at peak temperature
- 115 V ignition/control system (16 A, single phase)
- cCSAus & NSF listed for gas and sanitation compliance
- One-year on-site parts & labor warranty
Specifications
| Model | DOME47P |
|---|---|
| Pizza capacity | 7 × 12" pies |
| Total BTU | 92,500 BTU/hr |
| Gas type | Natural Gas (4" WC) or Propane (10" WC) |
| Gas connection | 3⁄8" NPT, rear |
| Electrical | 115 V / 60 Hz / 1-ph / 16 A |
| Vent stack | 7.87" Ø (200 mm) internal, natural draft (200–300 CFM max if fan used) |
| Exterior dimensions | A: 38.9" • B: 39.3" • C: 66.9" • D: 35.4" • E: 35.4" • F: 59" • H: 72.8" (see diagram for reference) |
| Weight | 4,850 lb (2,200 kg) |
What’s included
- Welded iron stand (provides required under-oven airflow)
- Cast-iron oven door
- Built-in stack exhaust & dial thermometer
Clearances & installation
- Minimum clearance from combustibles: 6" (sides/back) • 16" (top)
- Install on a non-combustible floor with 32" surround and 40" directly in front
- Maintain at least 31 in² (200 cm²) of open space beneath stand for ventilation
- Allow service access on all sides
Optional exterior finishes
Black iron walls are standard. Custom finishes — red or yellow brick, 10 × 10 tiles, marble, mosaic, stone and more — can be ordered to match your décor.
