Univex DOME47FT Rotating Ovens
Description

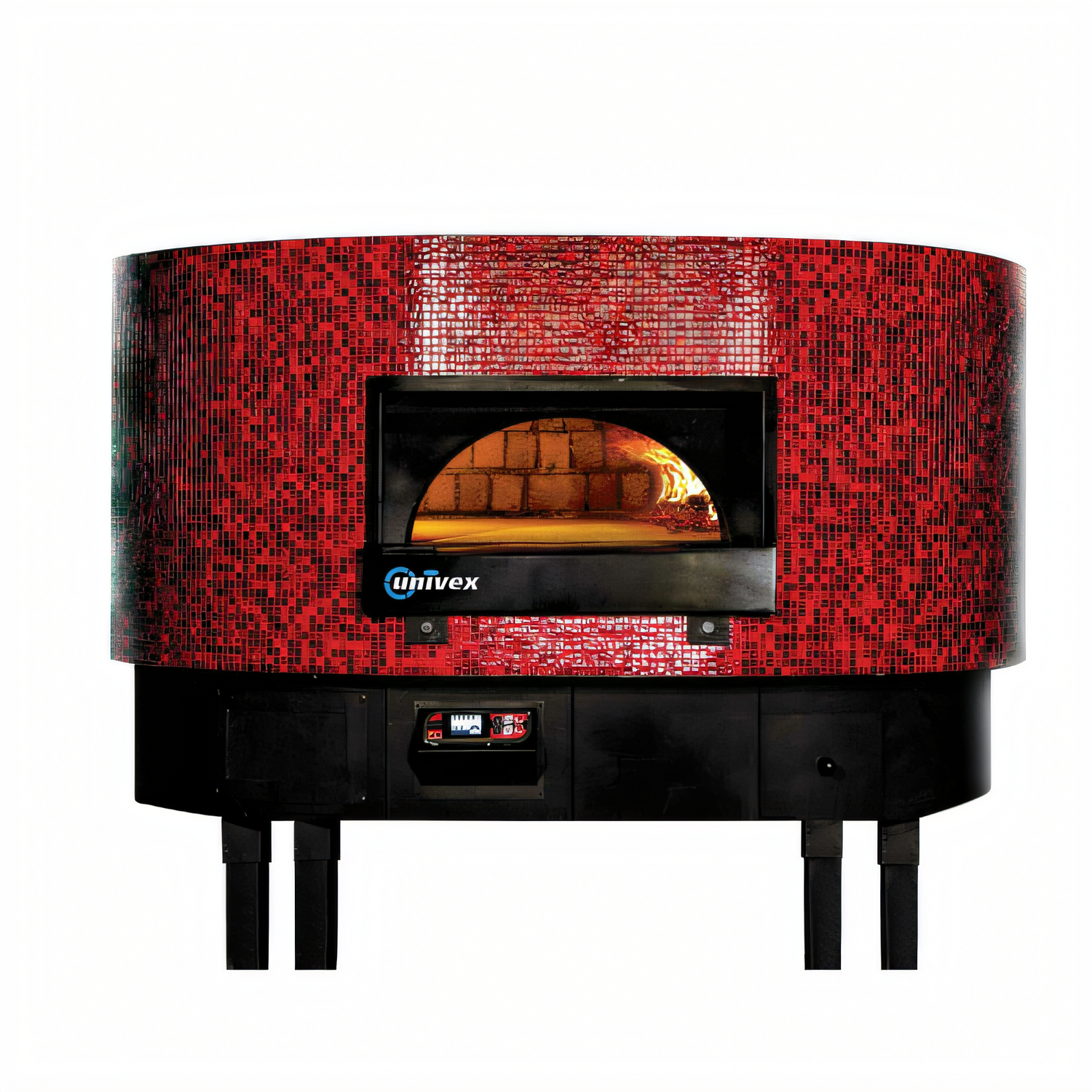

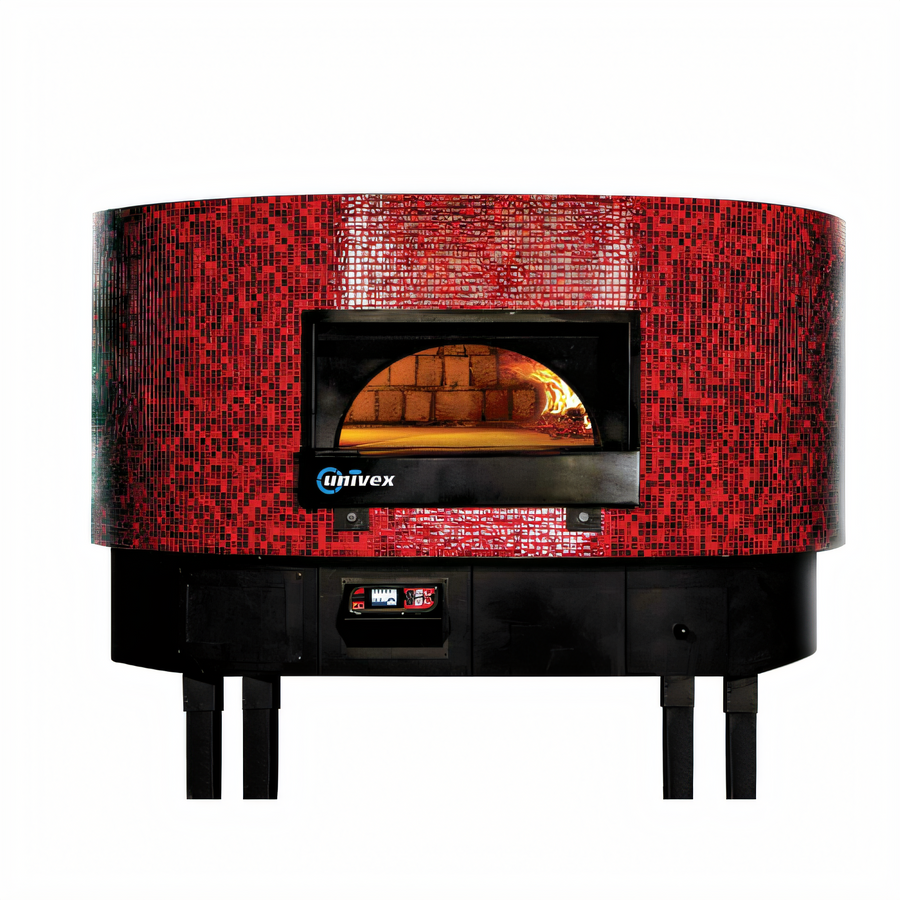

Univex Rotante47 Rotating Dome Pizza Oven
Gas • 47″ round chamber • 6 × 12″ pizza capacityHand-built in New Hampshire of genuine firebrick, the Univex Rotante47 brings authentic old-world bake quality to a modern, electronically-controlled gas oven. Its rotating 39.4″ stone deck delivers even, hands-off baking while the oven’s heavy insulation keeps the exterior cool enough to touch—even at peak temperature.
Key features at a glance
- Hand-made firebrick dome with 47″ diameter cooking chamber
- Rotating cooking floor for uniform bake on every pie
- Holds up to six 12″ pizzas simultaneously
- 92,500 BTU gas burner (natural or LP) with ¾″ NPT connection
- Full electronic control panel plus wireless remote
- Triple-layer insulation—exterior stays cool to the touch
- Flat exterior top for easy hood integration or limited staging
- cCSAus & NSF listed for gas safety and sanitation
Factory-included accessories
- 28″ H powder-coated iron stand
- Matching iron door
- Built-in analog thermometer
- Internal 7.87″ Ø (20 cm) stack exhaust – ready for flue connection
- Handheld remote control
Technical specifications
| Model | Rotante47 (gas) |
|---|---|
| Pizza capacity | 6 × 12″ pies |
| Internal chamber Ø | 47″ (119 cm) |
| Rotating deck Ø | 39.4″ (100 cm) |
| Heat input | 92,500 BTU/hr |
| Gas type / pressure | Natural Gas 4.0″ WC | LP 10.0″ WC |
| Gas connection | ¾″ NPT, rear |
| Electrical | 208–240 V / 3 ph / 60 Hz / 19 A (dedicated neutral) |
| Exterior (standard) | Black iron walls; custom mosaic or marble available* |
| Overall weight | 4,400 lb (1,995 kg) |
| Certifications | cCSAus, NSF |
| Warranty | 1 year on-site parts & labor |
Installation & clearance
- Requires forklift rated 5,000 lb with 72″ forks for placement
- Minimum 70″ wide pathway for fully-assembled delivery
- Clearances to combustibles: 6″ sides | 16″ top
- Mount on non-combustible floor with 32″ side & 40″ front working space
- Dedicated natural draft flue recommended (max 200–300 CFM exhaust assist if required by code)
*Contact your Univex dealer for custom exterior finishes, venting kits, or field assembly options.
