Univex DOME39P Coal/Wood Fired Ovens
Description

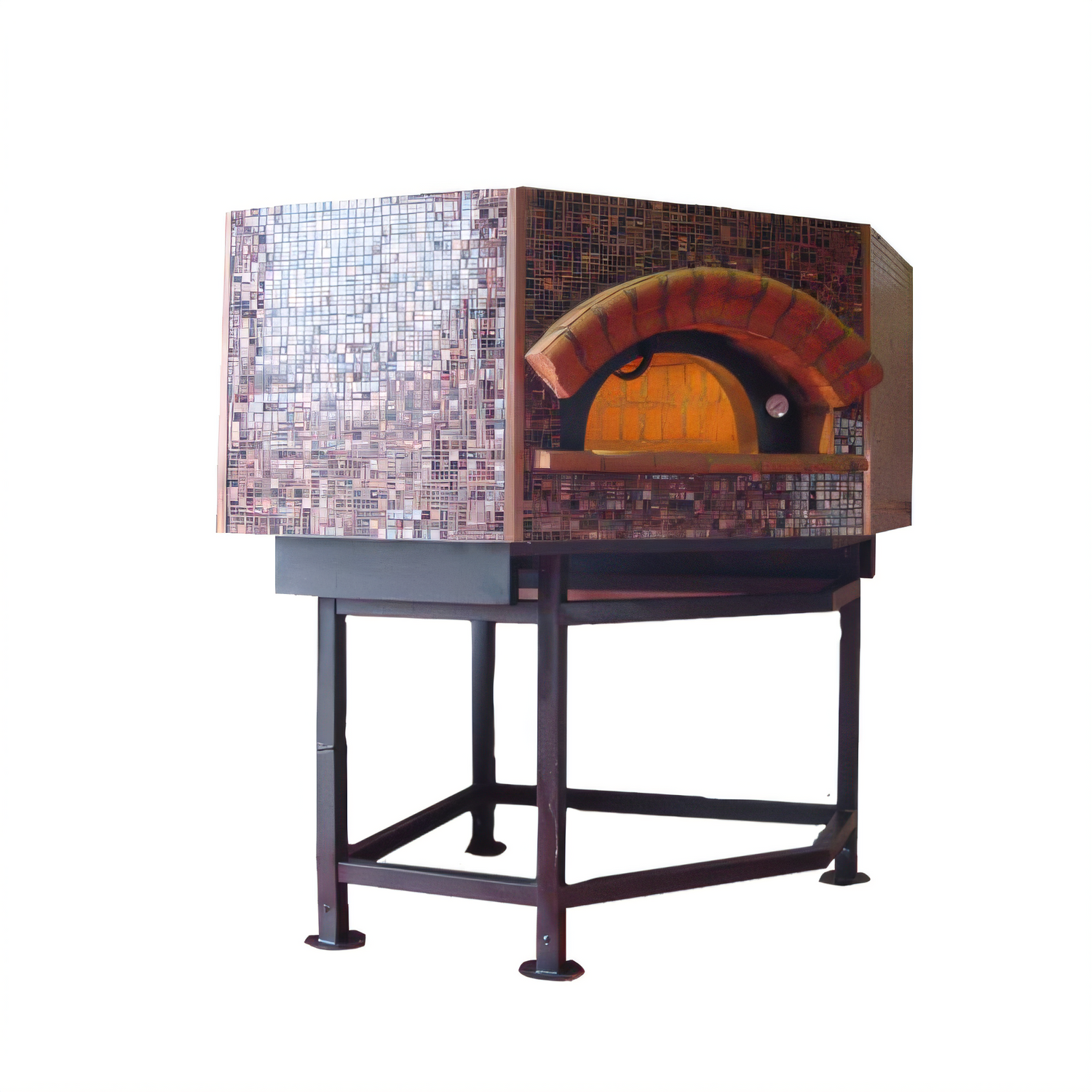

Univex DOME39P Artisan Stone-Hearth Pentagonal Pizza Oven

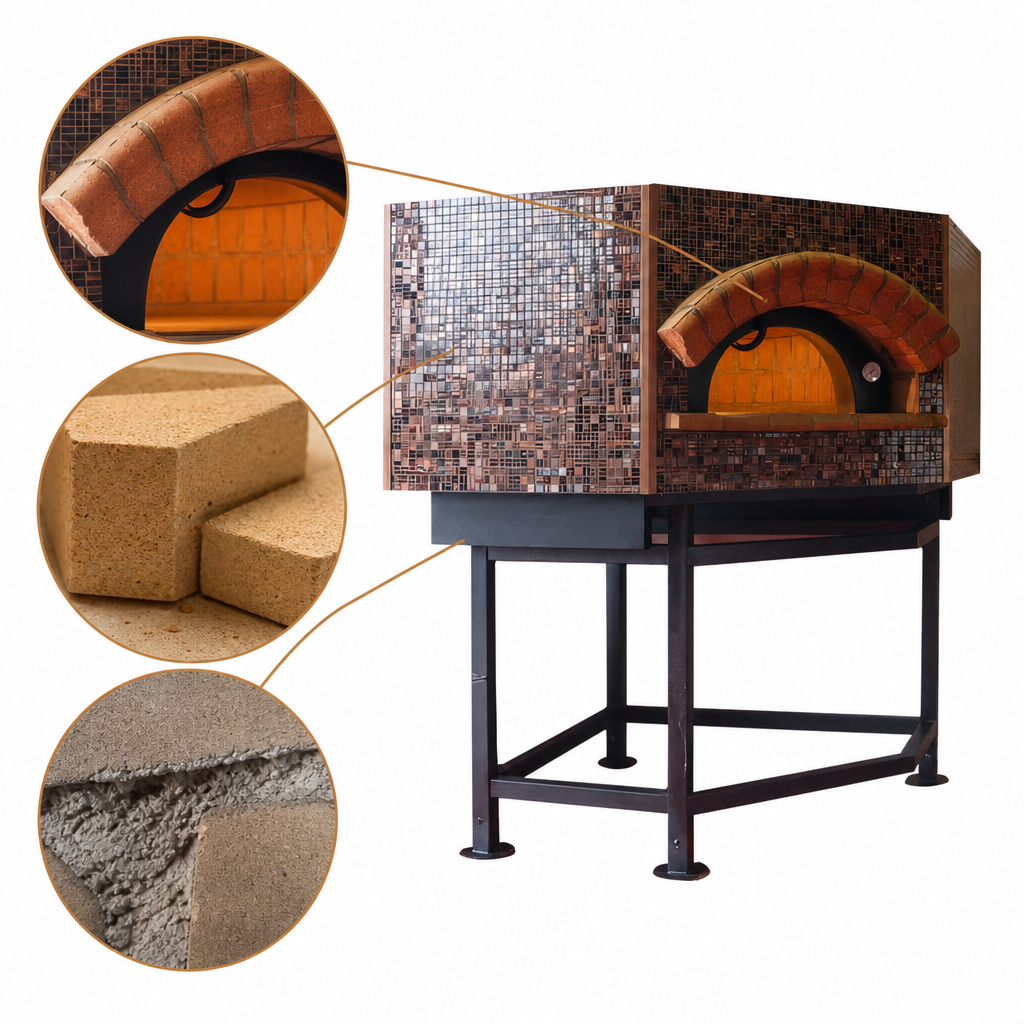

Gas • 5 × 12" pizza capacity • cCSAus & NSF listedHand-built in New Hampshire from premium firebrick, the Univex DOME39P brings authentic stone-hearth flavor and show-stopping style to any pizza program. Its unique pentagonal chamber maximizes floor space, while heavy insulation keeps the exterior cool—even at peak temperatures.
Key features
- Static stone floor made from hand-laid firebrick for crisp, evenly baked crusts.

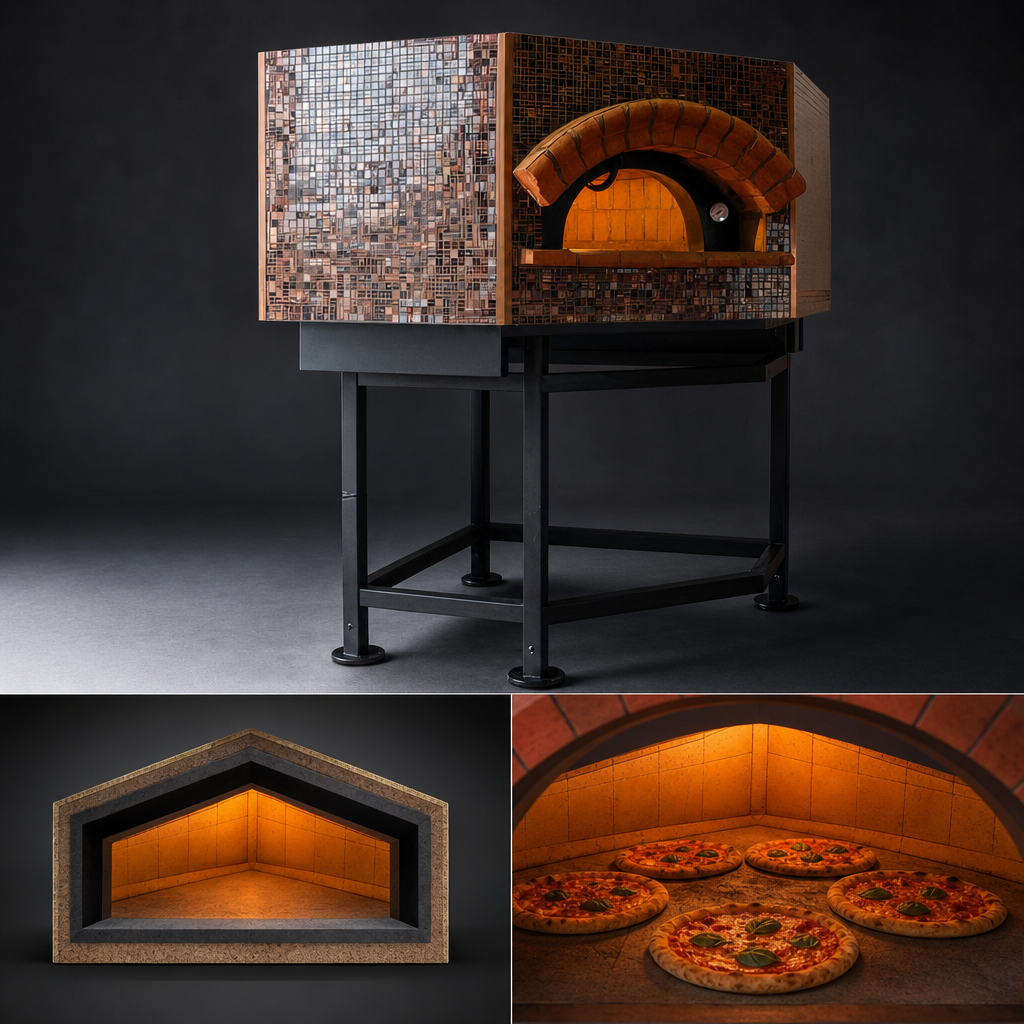

- Pentagonal internal cooking chamber holds five 12 inch pizzas at once.
- 92,500 BTU gas burner (natural or propane) with 3⁄8" NPT connection.
- Thick multi-layer insulation; outside surface stays cool to touch.
- Comes ready to install – iron stand, iron door, built-in thermometer and internal stack exhaust (7.87" Ø) are all included.
- 115 V, single-phase electrical hookup powers the controls (only 16 A).
- Black iron exterior supplied as standard; optional custom finishes available.
- One-year on-site parts & labor warranty backed by Univex 24/7 service.
Specifications
| Model | DOME39P |
|---|---|
| Fuel / Output | Natural Gas or Propane – 92,500 BTU/hr |
| Gas Pressure | NG 4.0" WC • LP 10.0" WC |
| Gas Connection | 3⁄8" NPT |
| Electrical | 115 V | 60 Hz | 1-phase | 16 A |
| Cooking Capacity | 5 × 12" pizzas (static floor) |
| Chamber Shape | Pentagonal |
| Overall Footprint (W × D) | 59" × 47.6" (150 × 121 cm) |
| Height (on stand) | 72.8" (185 cm) |
| Oven Weight | 2,645 lb (1,200 kg) |
| Vent Collar | 7.87" Ø (200 mm) |
| Certifications | cCSAus, NSF |
Installation clearances
- Combustible surfaces – 6" (15.2 cm) on all sides, 16" (40.6 cm) above.
- Set on a non-combustible floor with at least 32" (81 cm) around and 40" (102 cm) in front.
- Provide a dedicated natural draft flue; if a fan is mandated, limit to 200–300 CFM.
- Minimum service access beneath oven: 31 in² (200 cm²).
Need a statement piece? Ask about custom exterior options—brick, mosaic, marble and more—to match your décor.
