Univex DOME39GV Coal/Wood Fired Ovens
Description

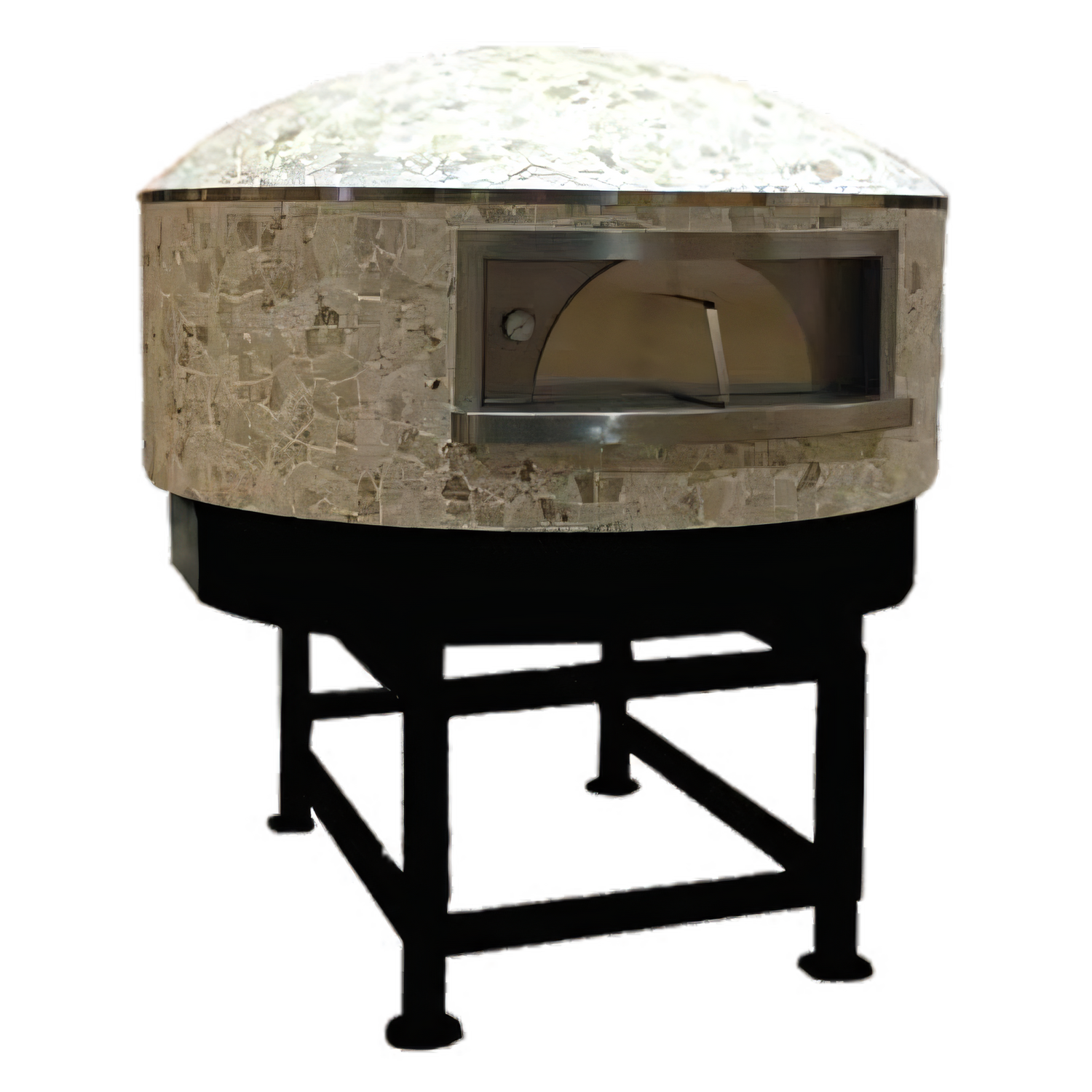

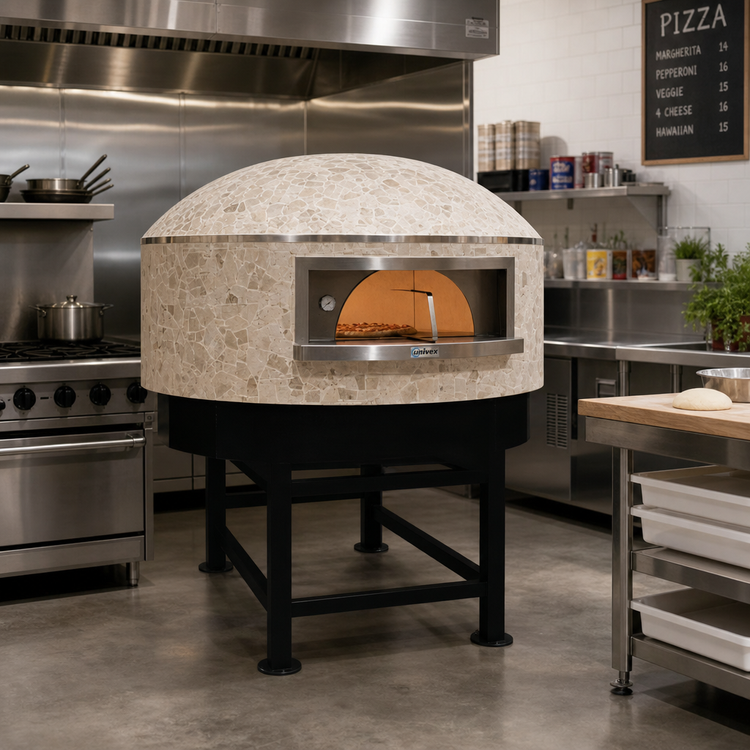

Univex DOME39GV Stone Hearth Pizza Dome Oven – 39" Round, Gas
Hand-crafted firebrick artisan oven for authentic 12" pizzasElevate your menu with blistered-edge Neapolitan pies, rustic breads and small plates fired in the same tradition as old-world Italian pizzerias. Built entirely of handmade firebrick and wrapped in high-performance insulation, the Univex DOME39GV delivers a perfectly balanced heat profile that stays rock-steady bake after bake—while the exterior remains cool to the touch.
Key advantages

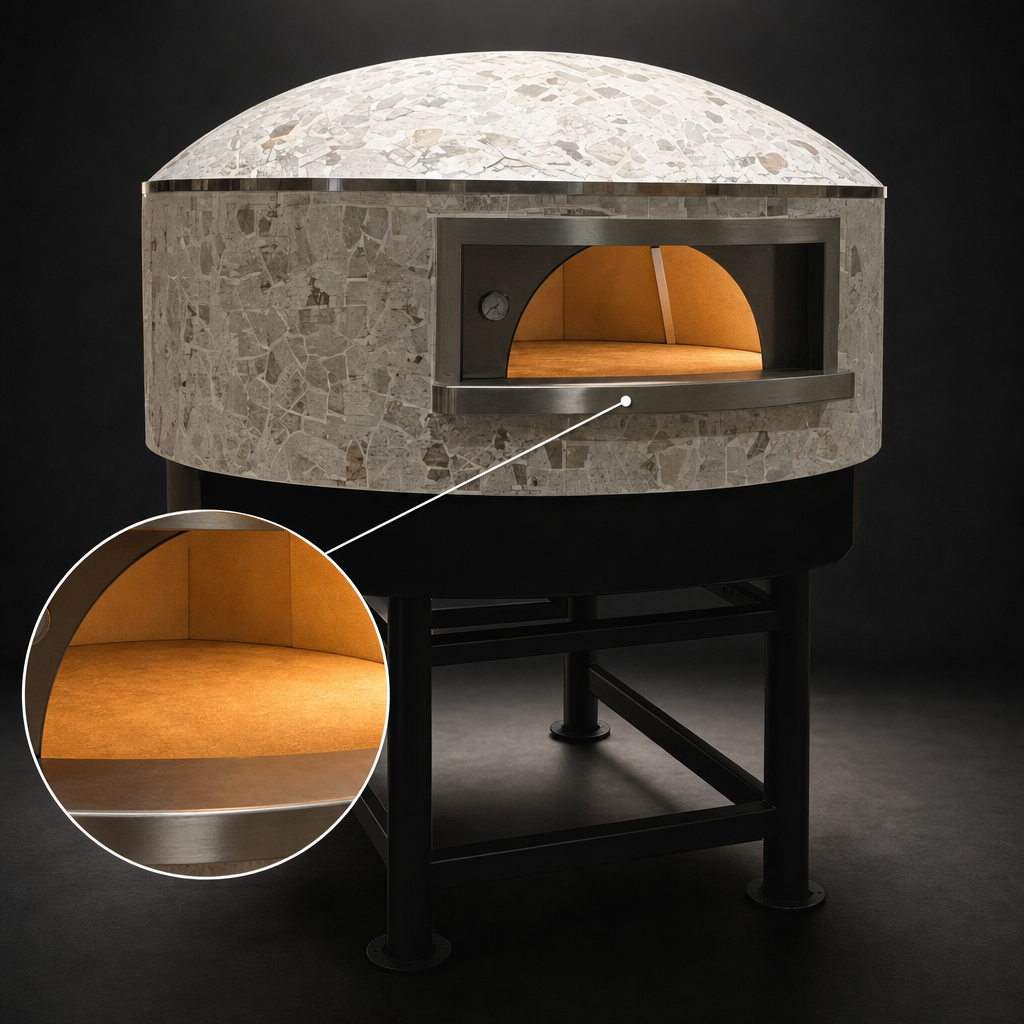

- Authentic stone hearth – static cooking floor & domed ceiling for even, radiant heat.
- 5-pizza capacity – bakes up to five 12" pies at once inside a 39 3⁄8" (100 cm) chamber.
- 92,500 BTU gas burner – natural gas or LP with quick 3⁄8" NPT hook-up.
- Highly insulated shell – exterior is cool to touch even at peak temperature.
- Plug-and-play controls – 115 V, single-phase, only 16 A.

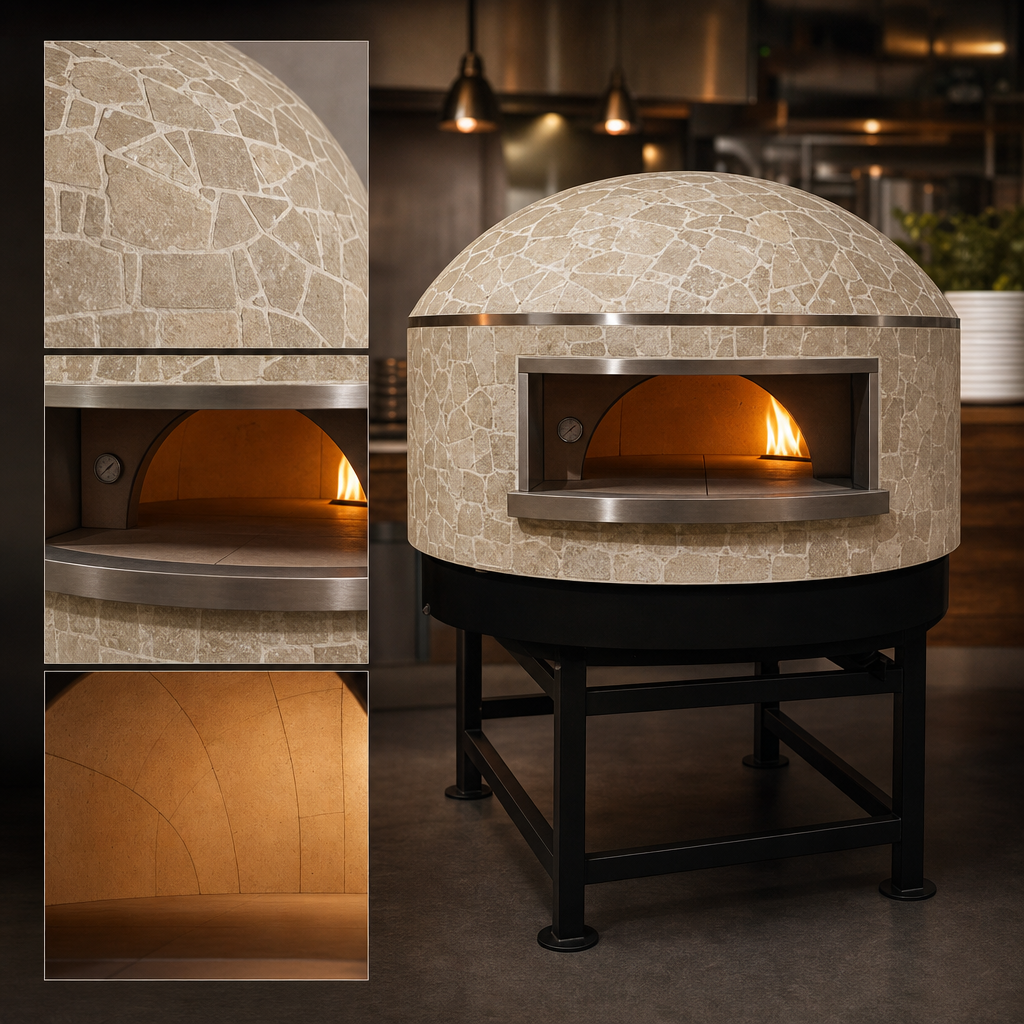

- Built to last – hand-laid firebrick, iron stand & iron door included.
- Ready for your flue – internal 7.87" (200 mm) stack exhaust & dial thermometer included.
- Commercial compliance – cCSAus & NSF listed; one-year on-site parts & labour warranty.
Technical specifications
| Model | DOME39GV |
|---|---|
| Internal chamber Ø | 39 3⁄8" / 100 cm |
| Cooking capacity | 5 × 12" pizzas per cycle |
| Fuel / Input | Natural Gas or Propane, 92,500 BTU /hr |
| Gas connection | 3⁄8" NPT NG: 4.0" WC | LP: 10.0" WC |
| Electrical | 115 V | 60 Hz | 1 ph | 16 A |
| Vent connection | 7.87" Ø (200 mm) – internal stack supplied |
| Exterior dimensions | 57" W × 59" D × 75" H (145 × 150 × 190 cm) |
| Unit weight | ≈ 2,646 lb / 1,200 kg |
| Clearances (combustibles) | 6" sides/back | 16" top |
| Floor requirements | Non-combustible surface with 32" perimeter & 40" in front |
| Certifications | cCSAus, NSF |
| Warranty | 1-year on-site parts & labour |
Finish options
Oven ships standard with black iron exterior. Custom marble or mosaic finishes are available—ask us for a quote.
Installation notes
A dedicated natural draft flue is recommended. Where local code mandates a powered exhaust, fan capacity must not exceed 200–300 CFM. Leave adequate access for service after installation.
