Univex

Univex Hydraulic Spiral Bowl Lifter for Removable Wheeled Bowls, 105-Inch Discharge Height

SKU: BSBL105
$59,553.60
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Prep Equipment Parts General Restaurant Equipment Parts Mixer Attachments & Accessories New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts Univex

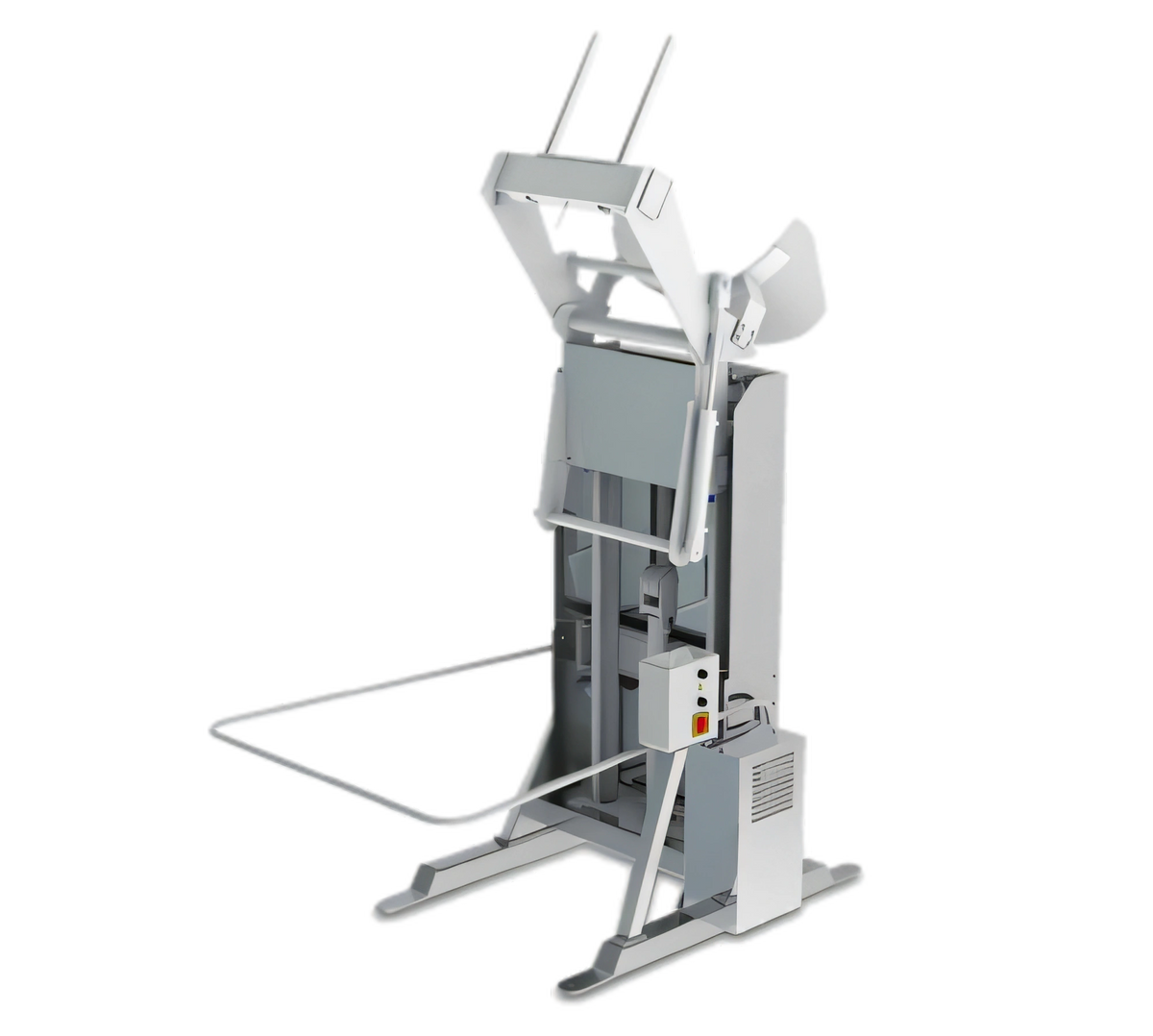

Univex Hydraulic Spiral Bowl Lifter for Removable Wheeled Bowls, 105-Inch Discharge Height

Single-Button Operation, Built-In Safety Guard, 3 HP, 220V/60/3-Phase

Lift and unload heavy dough bowls quickly and safely with a rugged hydraulic bowl lifter built for high-volume spiral mixer operations.

  • Designed for spiral mixers with removable, wheeled bowls.
  • 105-inch discharge height supports efficient bowl unloading.
  • Single-button operation keeps control simple for operators.
  • Built-in safety guard helps protect the operator during use.
  • Single hydraulic piston with two balance pistons provides lift and tipping motion.
  • Heavy-duty welded steel construction is built for demanding bakery use.
  • 3 HP, 220V/60Hz/3-phase power requirements support dependable operation.

Overall Dimensions:

52.4"W x 85.8"D x 158.7"H

Product Weight:

1455.0 lb

Designed For Spiral Mixers

Built to lift and discharge bowls from spiral mixers equipped with removable, wheeled bowls.

Single-Button Operation

Easy controls simplify lifting and unloading for the operator.

Hydraulic Lift System

A single hydraulic piston provides lifting power while two balance pistons handle the tipping motion.

Built-In Safety Guard

Safety protection helps shield the operator during the bowl lifting process.

Heavy-Duty Welded Construction

Welded steel construction is designed for durability in demanding bakery environments.

3 HP Motor

Provides the power needed for reliable lifting and unloading cycles.

105-Inch Discharge Height

High discharge height supports unloading into adjacent equipment or containers.

Clearance Guidance

Documentation recommends allowing 6 inches beyond the posted dimensions for complete clearance.

Type Spiral Bowl Lifter
Style Hydraulic
Controls Single Button
Installation Type Floor Model
Capacity 400 Kilograms
Material Steel
Voltage 220 Volts
Amps 8.5 Amps
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 53 Inches
Shipping Depth 86 Inches
Shipping Height 159 Inches
Shipping Weight 1,455 lb.

Certifications & Compliance

Warranty & Protection

1-year on-site parts and labor.

Documents

PDF Cutsheet PDF Download PDF Brochure bakery PDF Download PDF Brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for spiral mixers equipped with removable, wheeled bowls.
The lifter uses simple single-button operation.
It includes a built-in safety guard and a protected work area.
The unit requires 220V, 60 Hz, 3-phase power and draws 8.5 amps.
The brochure lists a maximum lift of 400 kg.
Allow 6 inches beyond the posted dimensions for complete clearance.
