Univex ARD24 Dough Dividers & Rounders
Univex ARD24 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description
Univex ARD24 Automatic Round Dough Divider
24-piece hydraulic divider | 4.58 – 29.2 oz portions in ±7 secondsSuper-charge output without sacrificing accuracy. The Univex ARD24 transforms a single dough mass into 24 perfectly weighed rounds in mere seconds—delivering up to 2,800 pieces every hour. A rugged hydraulic drive, multilingual programmable controls and a mobile, painted-steel cabinet make it the go-to divider for busy bakeries, pizzerias and commissaries.
Key Features
- Fully automatic cycle—close the lid, let the machine divide, and it re-opens on its own.
- Wide portion range: 4.58 oz – 29.2 oz (130 g – 830 g) to cover rolls, loaves, pizza dough and more.

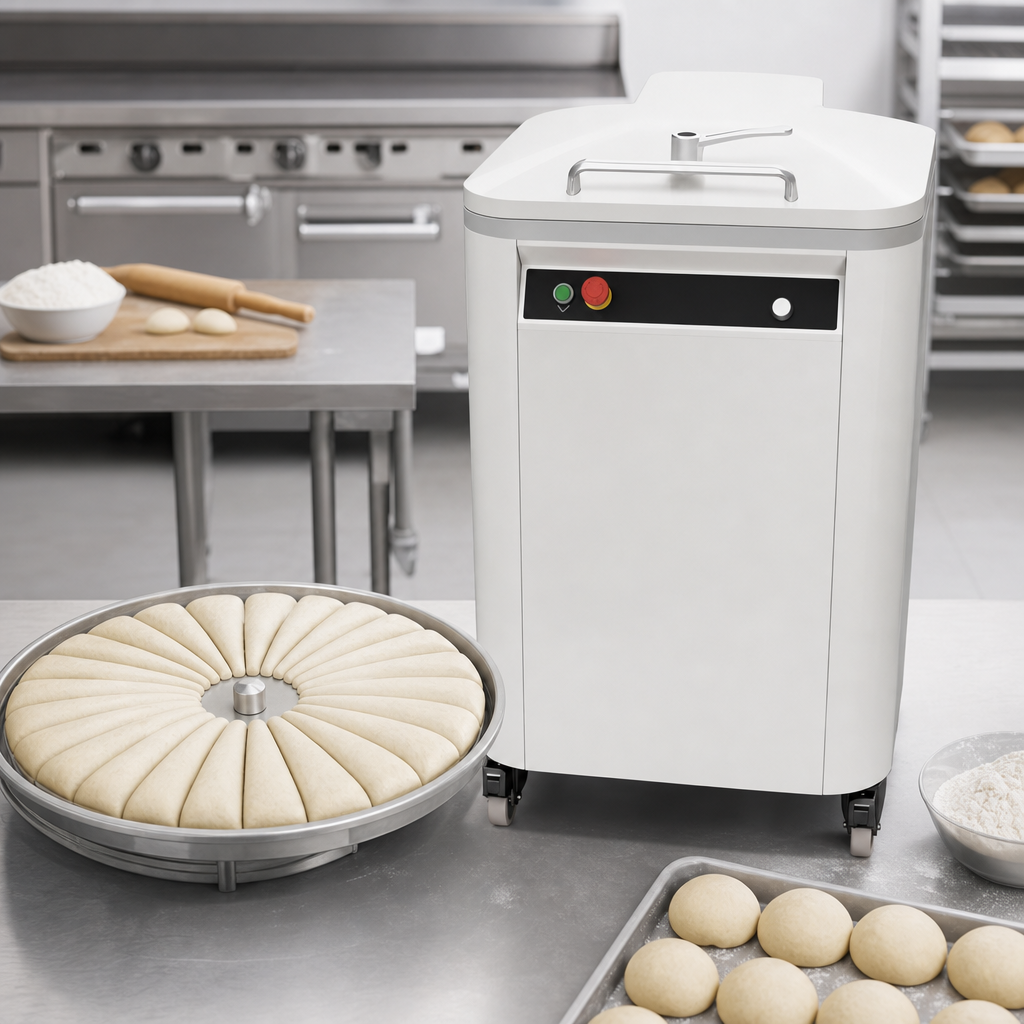

- 24 identical pieces per cycle; up to 2,800 pieces per hour for serious volume.

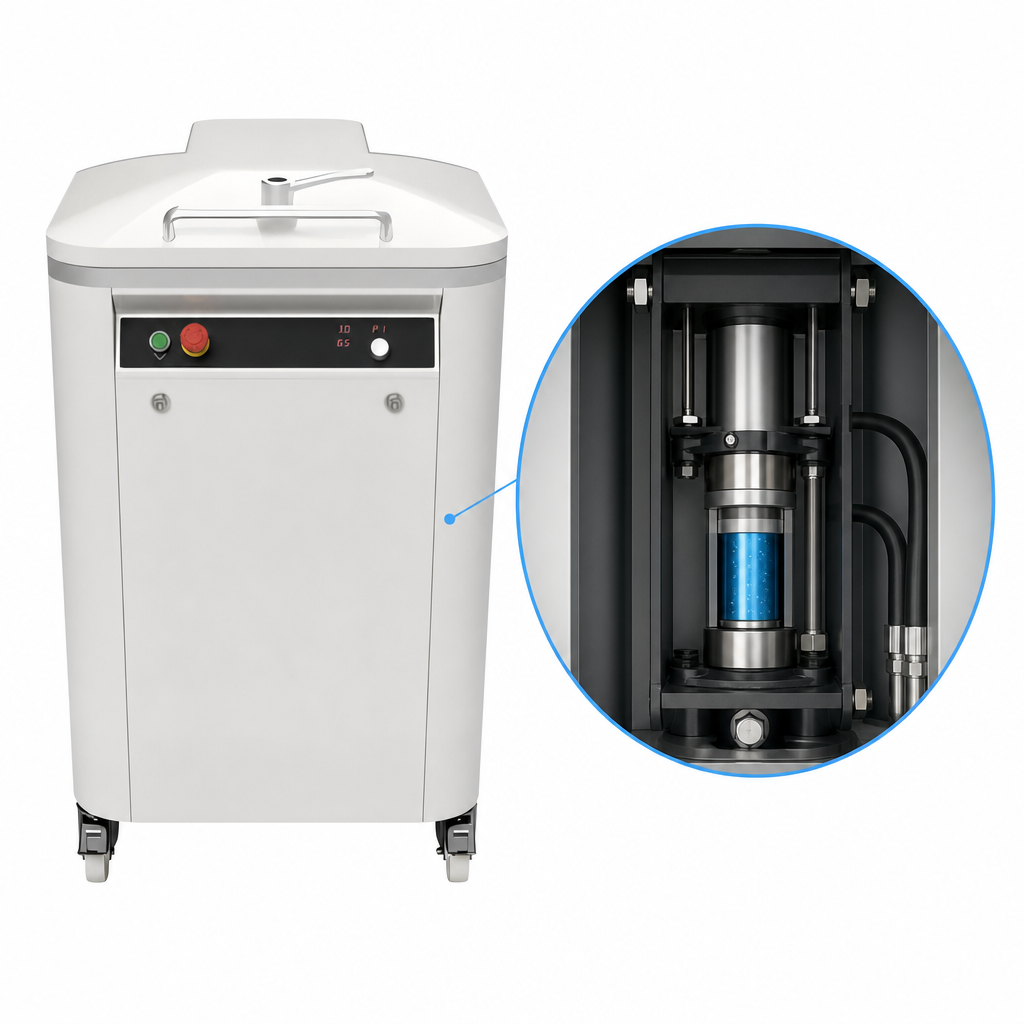

- Hydraulic power plant delivers quiet, consistent pressure and long service life.
- Multilingual programmable control board simplifies training and repeatability.
- Painted-steel housing on four locking casters—easy to roll, rock-solid when stationed.
- Food-safe & field-approved: cETLus and ETL-Sanitation listed.
- Backed by a 1-year, on-site parts & labor warranty from Univex.
Technical Specifications
Model | ARD24 |
---|---|
Dough weight range | 4.58 – 29.2 oz (130 – 830 g) |
Pieces per cycle | 24 |
Cycle time | ≈ 7 seconds |
Maximum output | Up to 2,800 pieces/hour* |
Mechanical drive | Hydraulic, fully automatic |
Control interface | Programmable, multilingual |
Cabinet material | Painted steel |
Mobility | 4 locking casters |
Certifications | cETLus, ETL-Sanitation |
Standard power | 208-240 V / 3 Ph / 1.01 hp (0.75 kW) / 3.77 A |
Optional power | 110 V / 1 Ph / 1.01 hp (0.75 kW) / 12 A |
Plug (3-phase) | NEMA L15-20P |
Dimensions (W × D × H) | 29.5″ × 29.5″ × 43 1⁄8″ (74.9 × 74.9 × 109.5 cm) |
Net weight | 507.1 lb (230 kg) |
