Univex ARD20 Dough Dividers & Rounders
Description

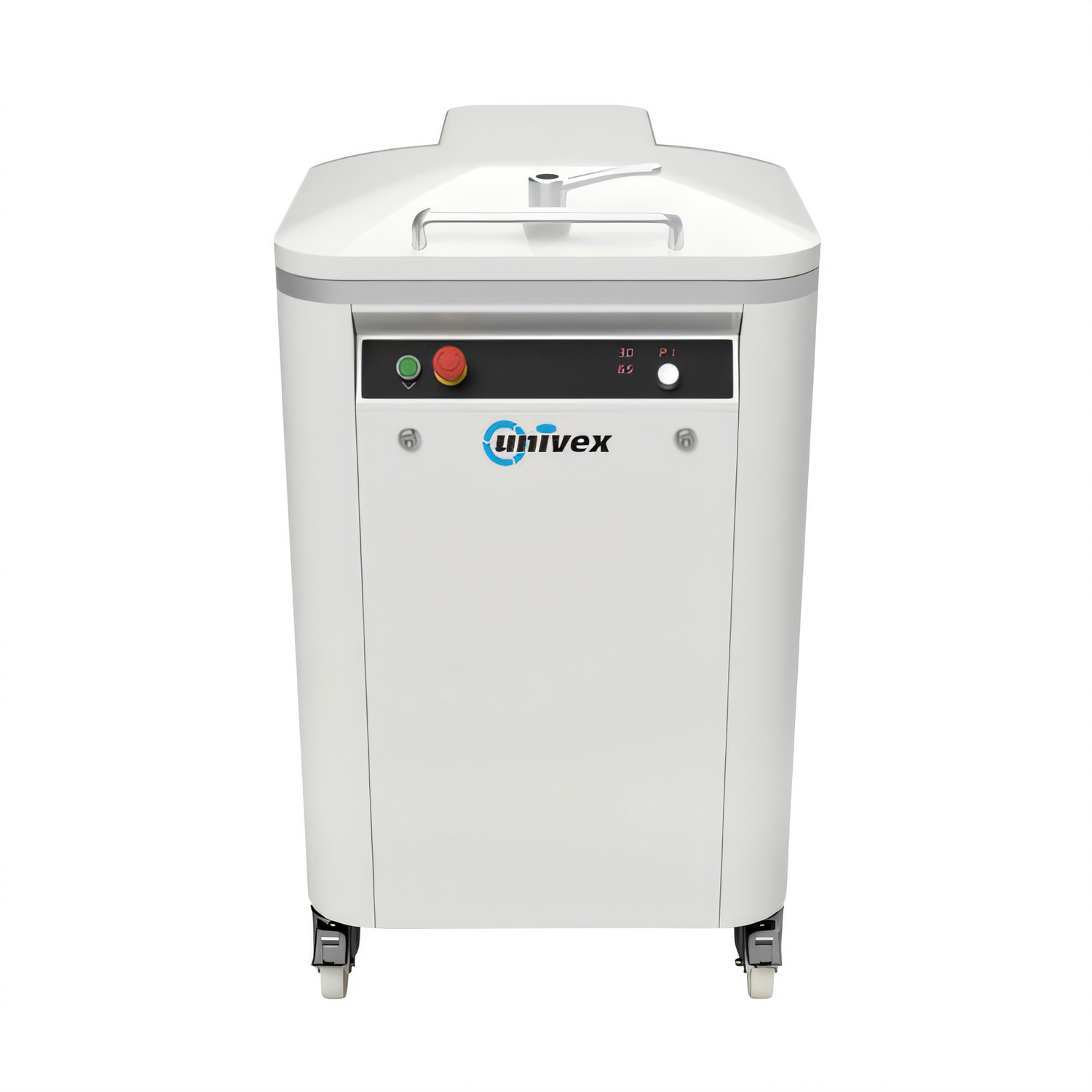

Univex ARD20 Automatic Round Dough Divider
Hydraulic 20-portion divider • 5.3–35.27 oz range • up to 1,800 pcs/hrStop hand-cutting and start producing perfectly weighted dough every seven seconds. The Univex ARD20’s powerful hydraulic system, programmable controls and mobile painted-steel cabinet make high-volume portioning fast, accurate and effortless.

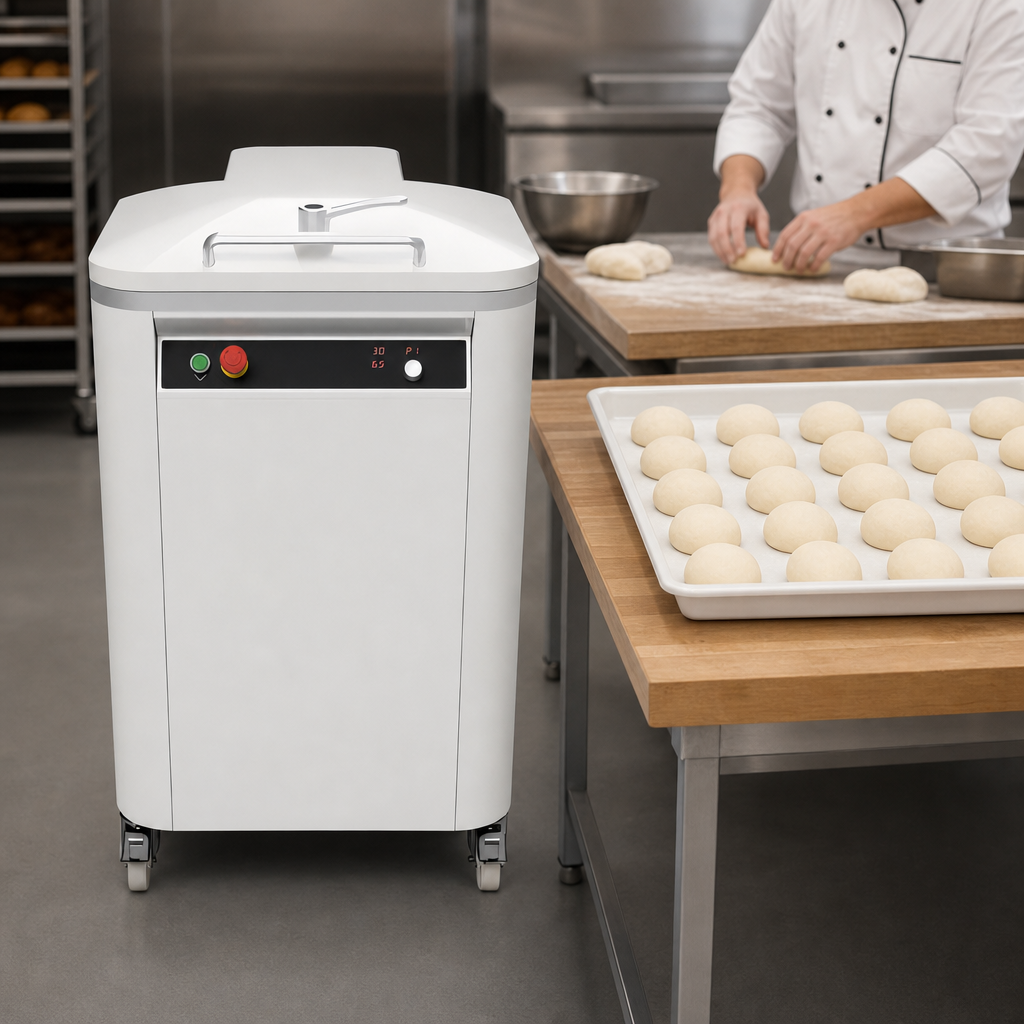

Close the lid, press start and walk away—the ARD20 automatically divides, releases and re-opens, freeing your staff for other tasks.
Key benefits
- Wide weight range: 5.3 oz – 35.27 oz (150 g – 1,000 g) per piece

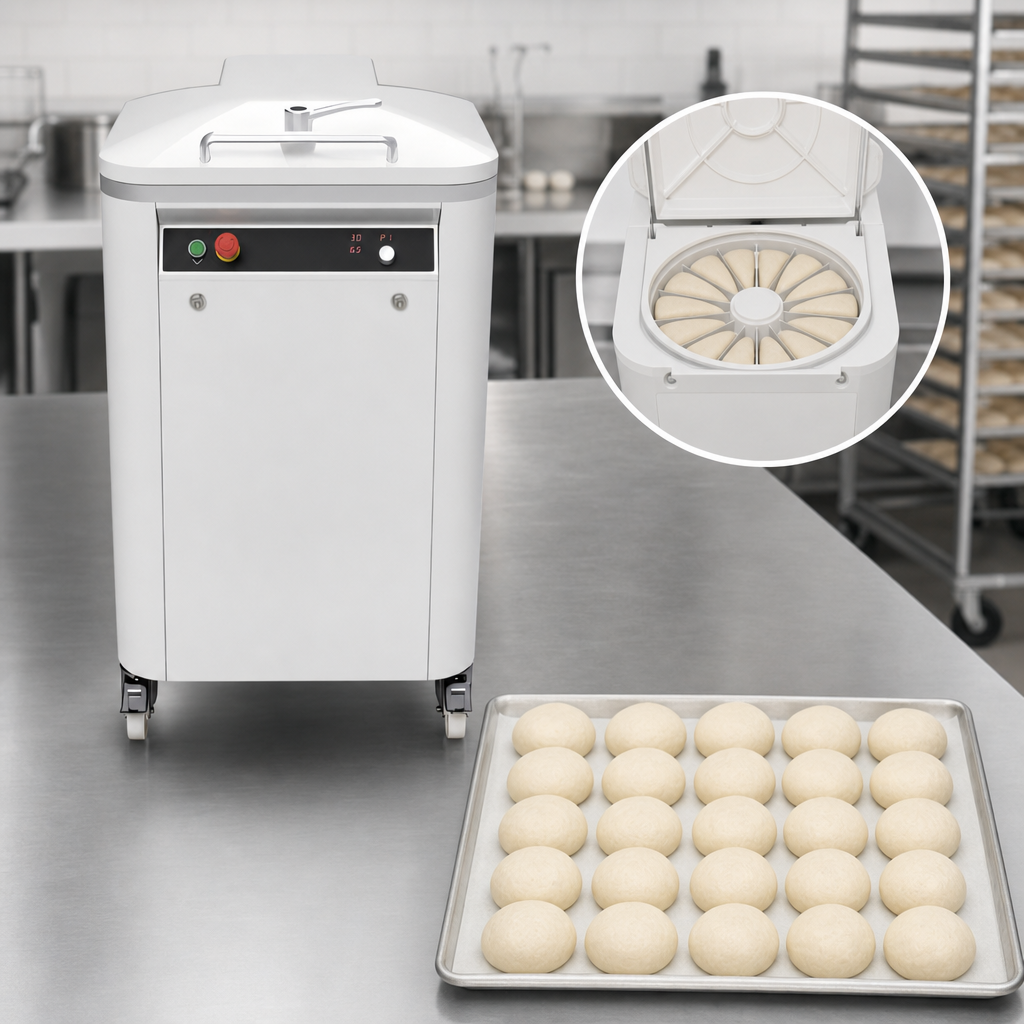

- 20 equal pieces in only 7 seconds (≈1,800 pieces/hour)
- Hydraulic drive guarantees consistent pressure and accuracy
- Simple one-touch cycle with automatic lid lift
- Programmable control board with multilingual interface
- Painted steel housing and smooth interior for quick wipe-down
- Locking swivel casters—easy to move, rock-solid in use
- cETLus & ETL-Sanitation listed for electrical and food safety compliance
- One-year on-site parts & labor warranty backed by Univex 24/7 support
Specifications
| Pieces per cycle | 20 |
|---|---|
| Piece weight range | 5.3 oz – 35.27 oz (150 g – 1,000 g) |
| Cycle time | ≈7 seconds |
| Maximum output | Up to 1,800 pieces/hour* |
| Motor | 1.01 hp (0.75 kW) hydraulic pump |
| Standard electrical | 208-240 V / 3 ph / 3.77 A • NEMA L15-20P |
| Optional electrical | 110 V / 1 ph / 12 A |
| Cabinet construction | Painted steel |
| Overall dimensions | 57 in H × 29.5 in W × 29.5 in D (144.8 cm × 74.9 cm × 74.9 cm) |
| Net weight | 507 lb (230 kg) |
| Shipping weight | 532 lb (241.3 kg) |
| Certifications | cETLus • ETL-Sanitation |
| Warranty | 1 year on-site parts & labor |
*Production estimate based on a complete start-to-finish cycle (including loading & unloading) of approximately 30 seconds. Actual throughput will vary with dough type, operator technique and workspace layout.
