Univex AQD80 Dough Dividers & Rounders
Univex AQD80 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Univex AQD80 Dough Dividers & Rounders
Description

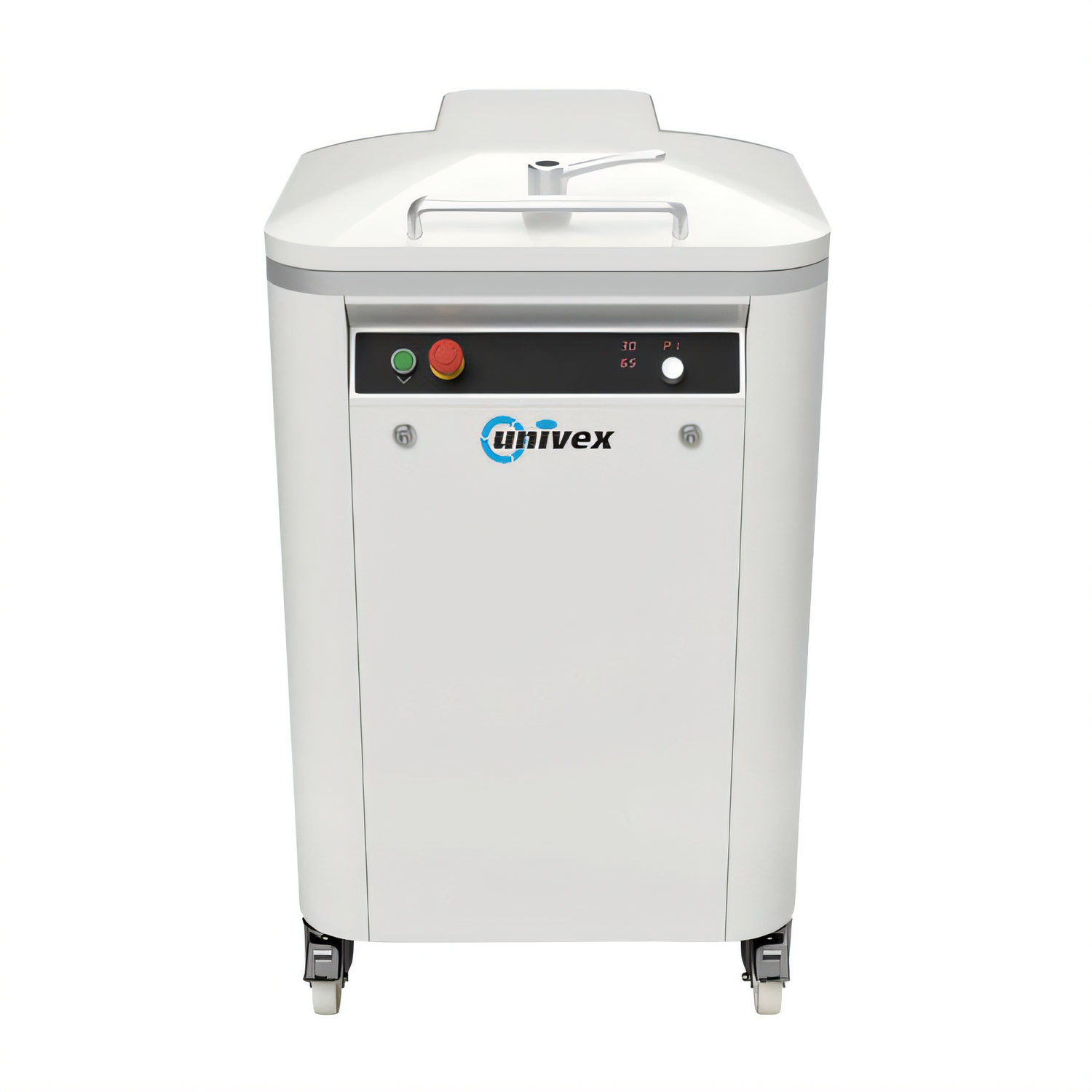

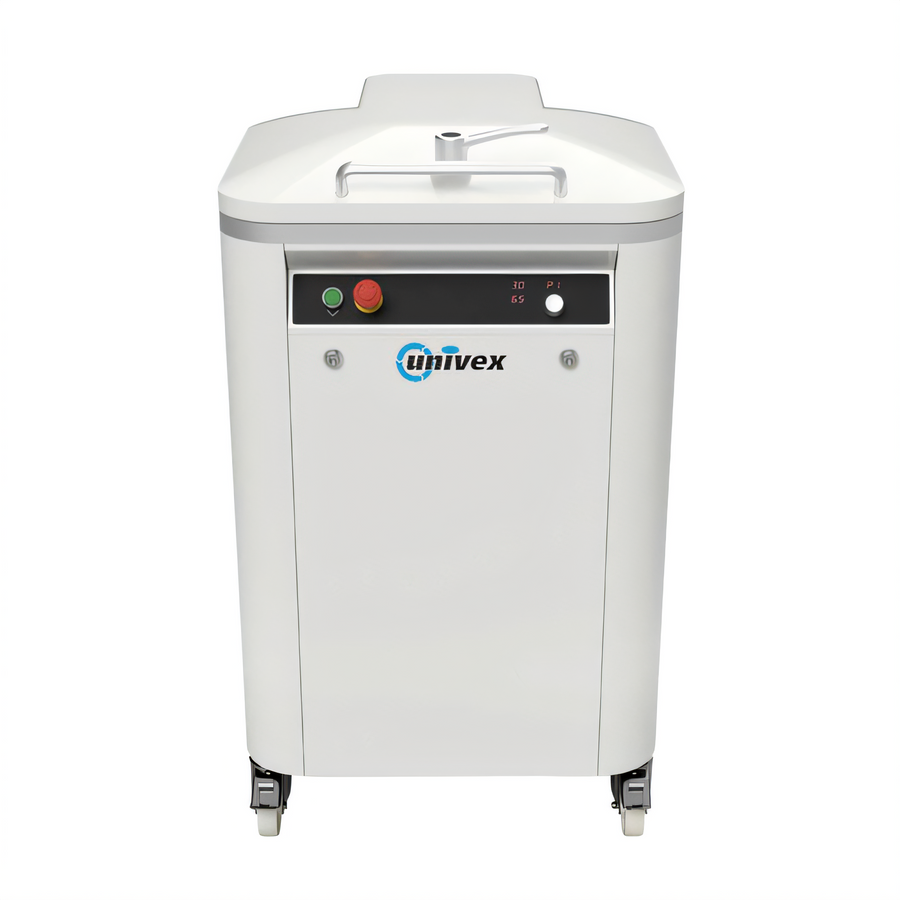

AQD80 Automatic Square Dough Divider
by Univex – 80 perfectly even portions in just 7 secondsThe Univex AQD80 takes the labor, inconsistency, and slow-downs out of dough portioning. With powerful hydraulic action and an easy-to-use programmable control board, this painted-steel workhorse delivers up to 9,600 square pieces per hour, each weighing 1.41 – 8.81 oz (40 – 250 g). Close the lid, and the machine does the rest—opening automatically once the cycle is complete. Consistent results, minimal training, and industry-leading speed make the AQD80 a must-have for high-volume bakeries, pizzerias, and commissaries.
Why you’ll love it

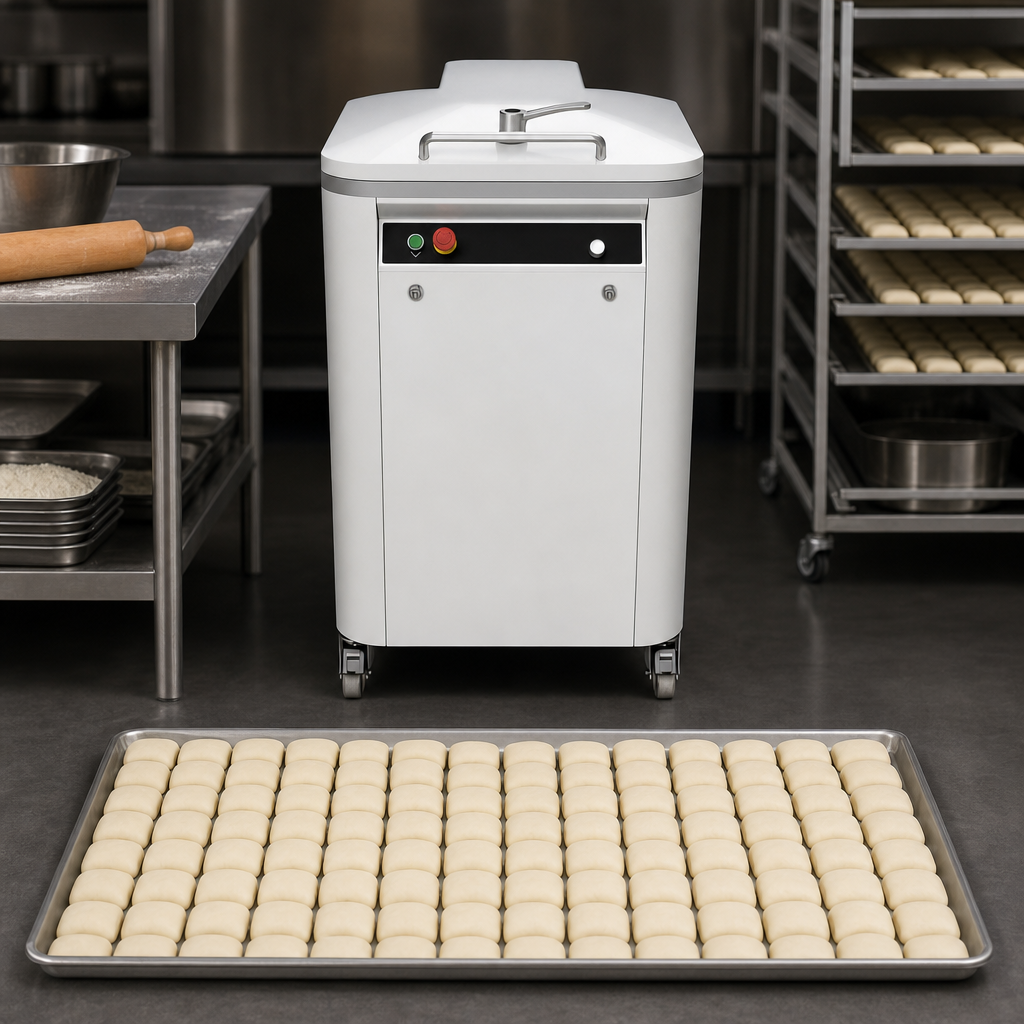

- Divides 80 equal, square dough pieces per cycle in ≈ 7 seconds
- Portion weight range: 1.41 – 8.81 oz (40 – 250 g)
- Hydraulic drive delivers uniform pressure for consistent piece weights

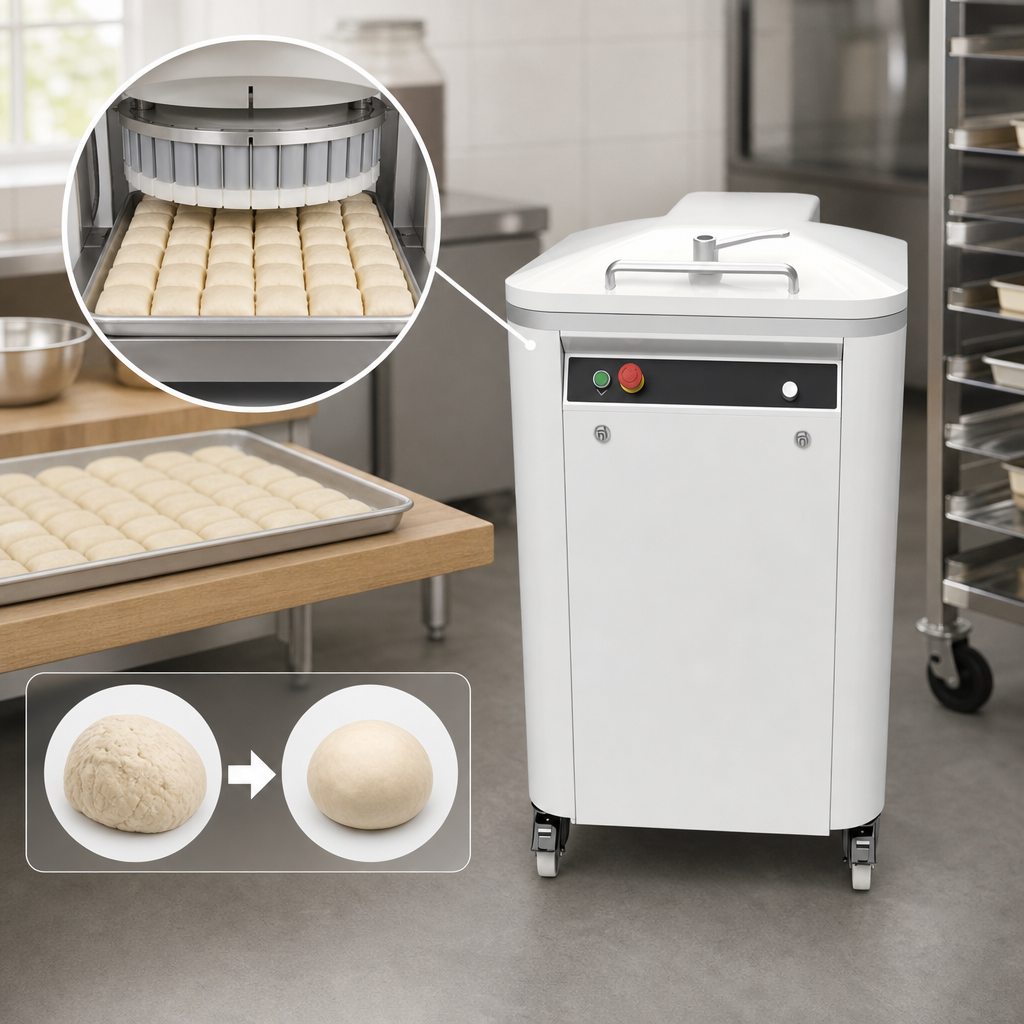

- One-touch operation – close the lid and the cycle starts & finishes automatically
- Programmable control board with multi-language interface
- Heavy-duty painted steel construction stands up to continuous commercial use
- cETLus & ETL-Sanitation listed for electrical safety and food-contact compliance
- Backed by a 1-year, on-site parts & labor warranty from Univex
Technical specifications
| Model | AQD80 |
|---|---|
| Pieces per cycle | 80 (square) |
| Portion size range | 1.41 – 8.81 oz (40 – 250 g) |
| Cycle time | ≈ 7 seconds |
| Hourly capacity | Up to 9,600 pieces |
| Drive system | Hydraulic |
| Controls | Programmable board, multiple languages |
| Construction | Painted steel cabinet |
| Overall dimensions (H x W x D) | 57" x 29.5" x 29.5" (144.8 x 74.9 x 74.9 cm) |
| Press dimension | 3.9" x 3.9" (10 x 10 cm) |
| Net / shipping weight | 507.1 lb / 532 lb (230 kg / 241.3 kg) |
| Electrical (standard) | 208-240 V, 3-Phase, 1.01 hp (0.75 kW), 3.77 A | NEMA L-15-20P |
| Electrical (optional) | 110 V, 1-Phase, 1.01 hp (0.75 kW), 12 A (special order) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1 year on-site parts & labor |
Production estimate based on a 30-second start-to-finish process and includes operator prep time.
Need help choosing or configuring your Univex Divider? Use the live chat or email our team for expert assistance.
