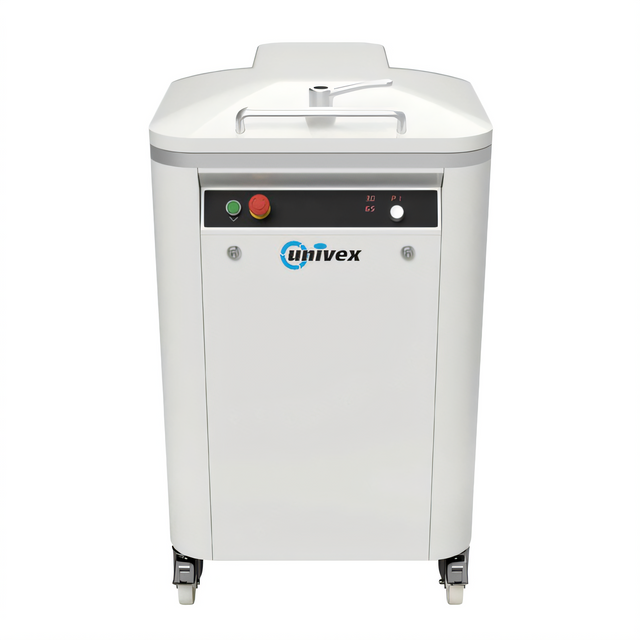

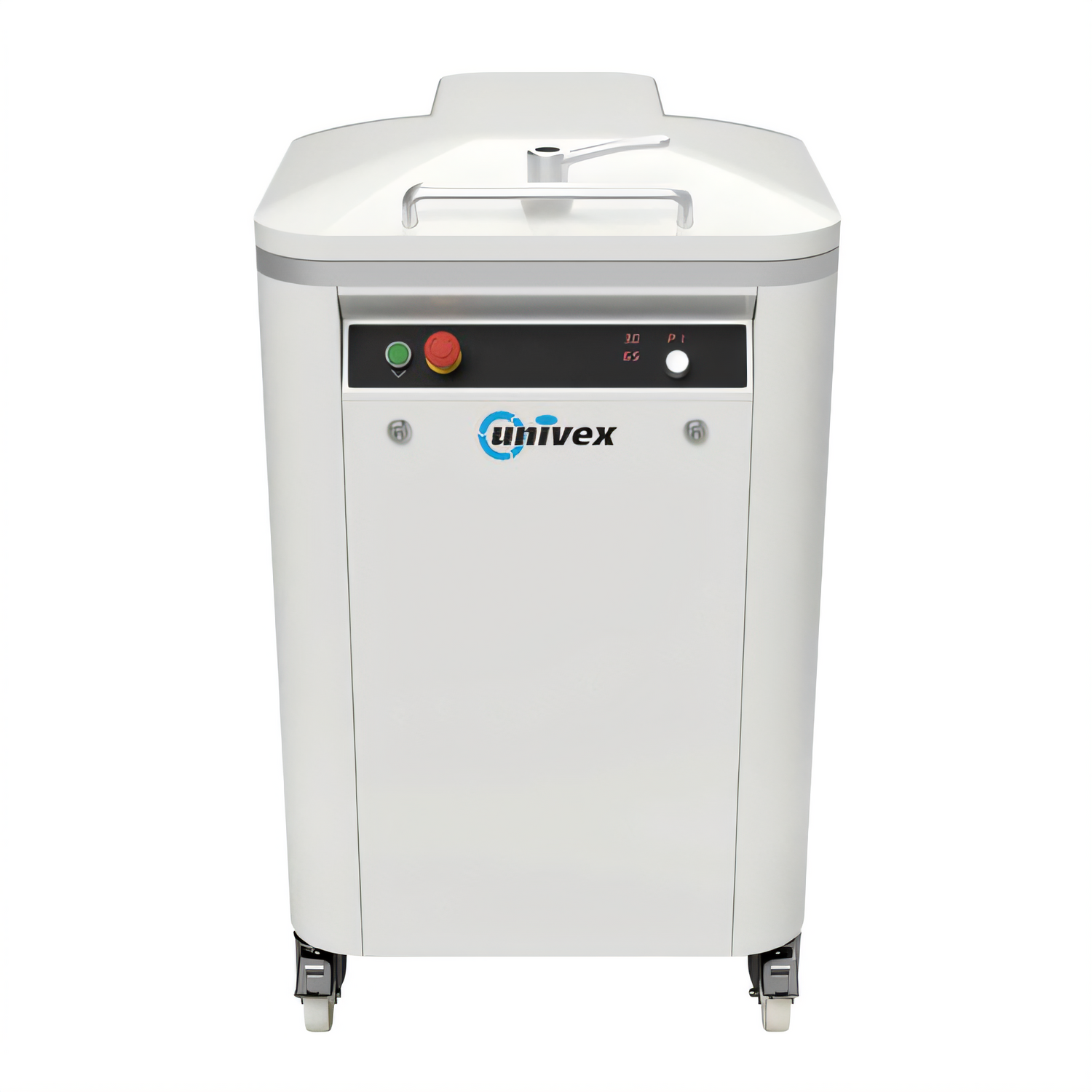

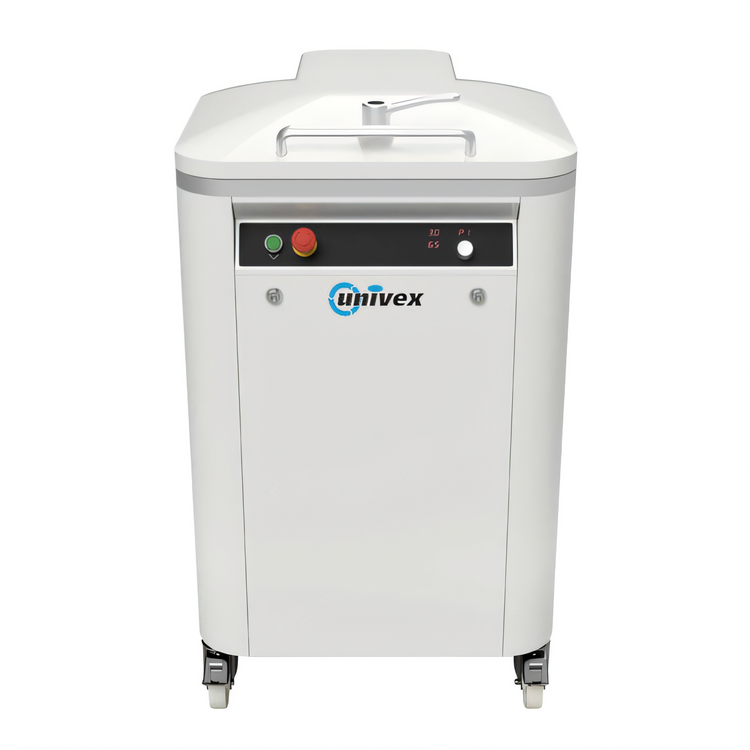

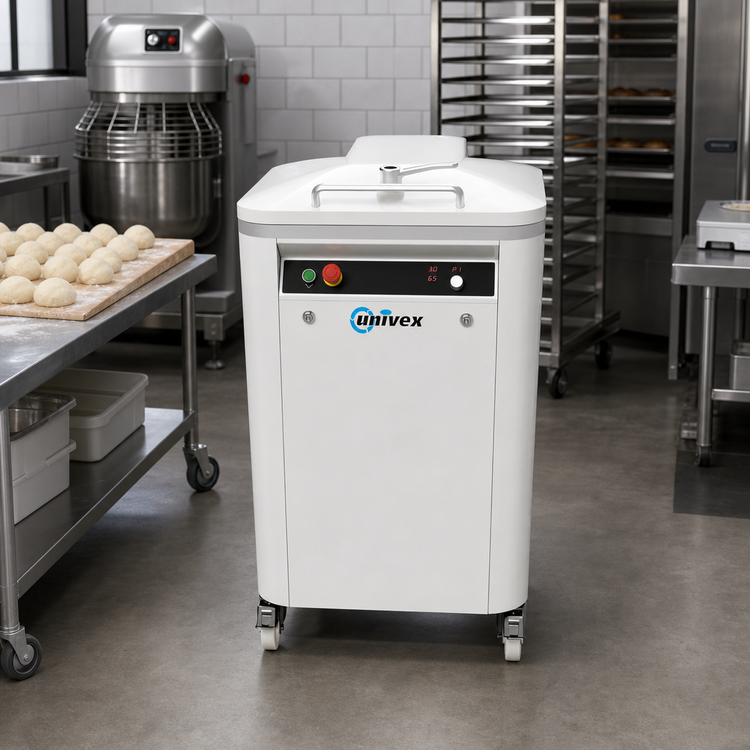

Univex AQD40 Automatic Floor Model Square Dough Divider, 2.82-17.6 oz, 4,800 Pieces/Hour

SKU: AQD40
$15,529.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Dividers Dough Dividers & Rounders Dough Preparation Equipment Dough Preparation Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment Univex

Univex AQD40 Automatic Floor Model Square Dough Divider, 2.82-17.6 oz, 4,800 Pieces/Hour

Hydraulic Operation, Programmable Control Board, Multiple Languages

Automatically divide dough into 40 uniform pieces in a single cycle to speed up production and improve consistency.

  • Automatically divides dough into 40 equal weighted and shaped pieces at once.
  • Handles dough portions from 2.82 to 17.6 oz. (80 to 500 g).
  • Produces up to 4,800 pieces per hour for high-volume operations.
  • Programmable control board supports multiple languages for easier operation.
  • Hydraulic-powered design is built for reliable, repeatable portioning.
  • Simple close-lid operation starts the cycle and opens automatically when complete.

Overall Dimensions:

23.88"W x 26.88"D x 43.13"H

Product Weight:

532.0 lb

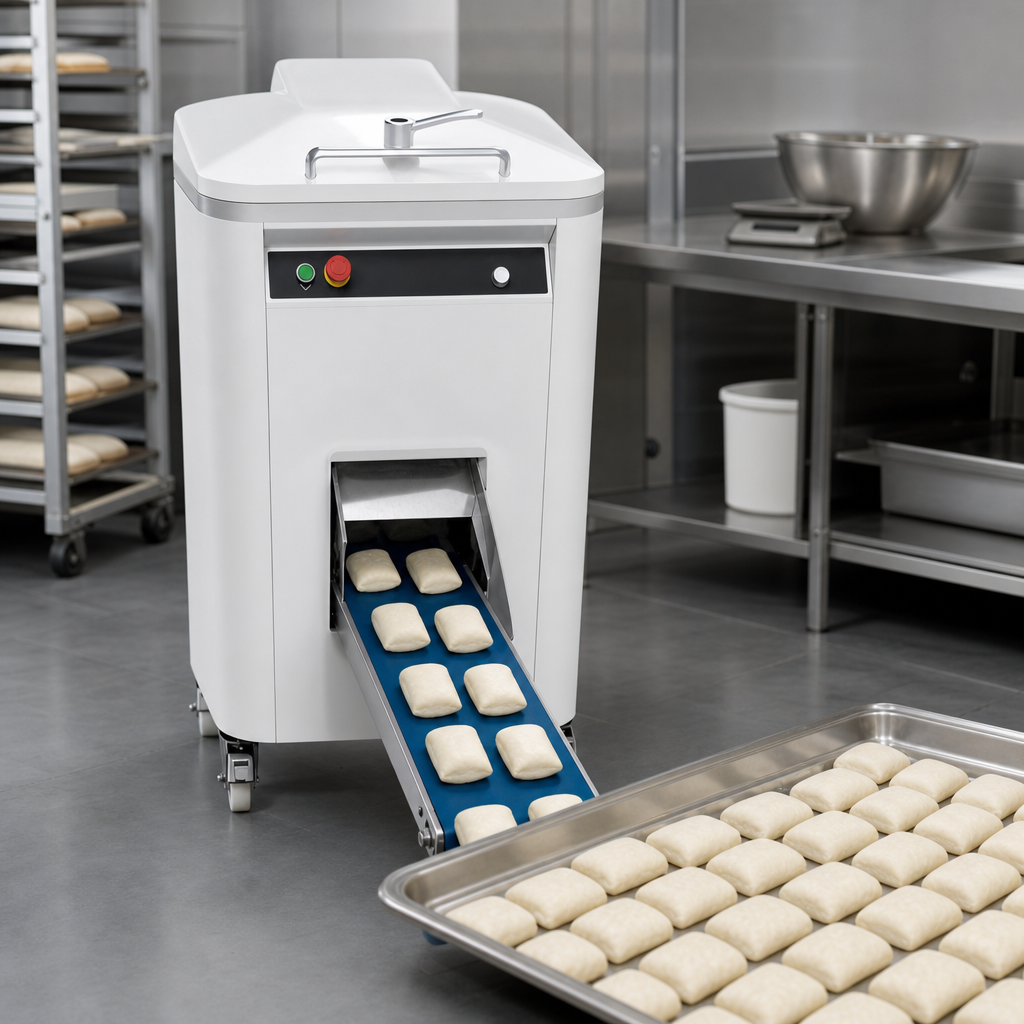

Automatic Dough Division

Automatically portions dough without manual cutting to improve consistency and speed.

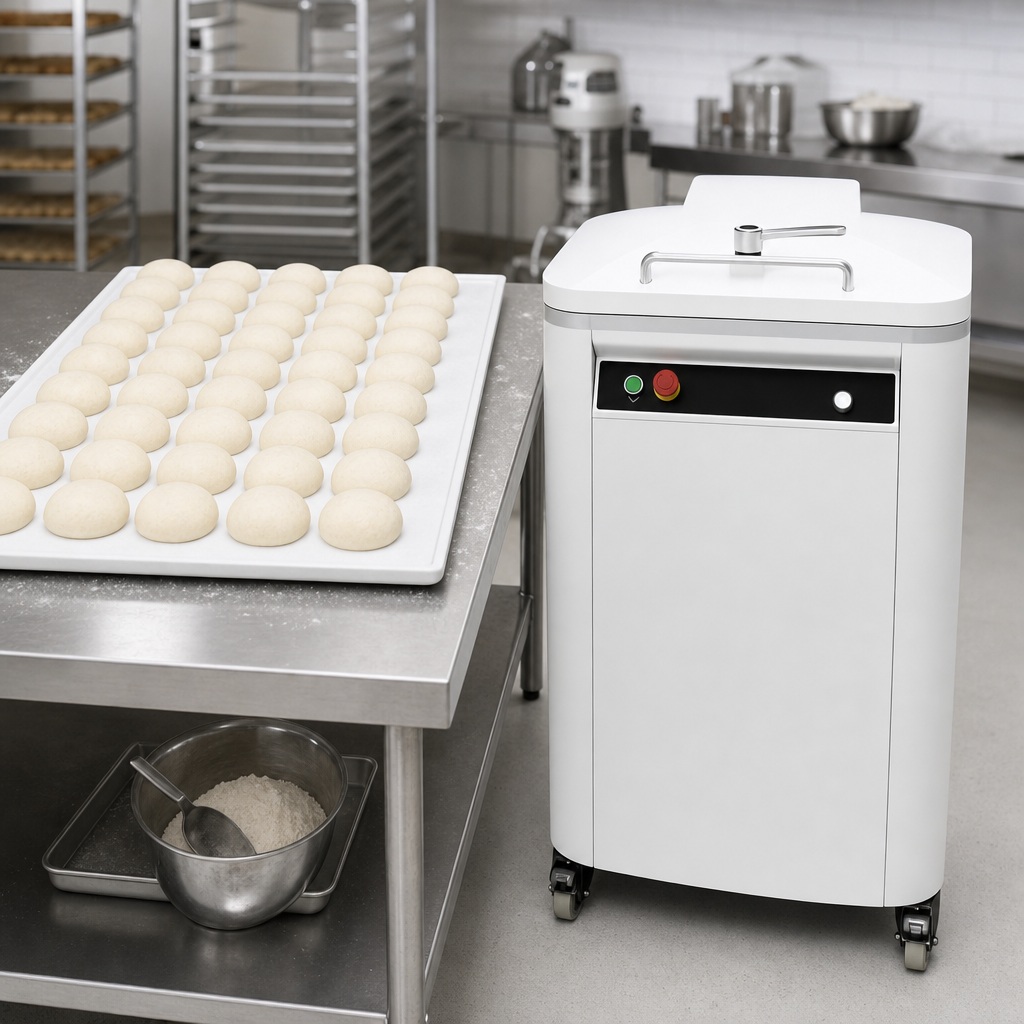

40-Piece Batch Output

Produces 40 equal weighted and shaped pieces at once for efficient batch production.

High Hourly Output

Capable of producing up to 4,800 pieces per hour.

Hydraulic Operation

Strong hydraulic machine design supports dependable portioning performance.

Programmable Control Board

Programmable controls make it easy to set and repeat production cycles.

Multiple Languages

Control interface supports multiple languages for easier use by different operators.

Simple Lid-Closed Cycling

Close the lid to start the cycle; the machine runs automatically and opens when finished.

Painted Steel Construction

Durable painted steel construction is designed for commercial kitchen use.

Type Dough Divider
Style Square
Installation Type Floor Model
Capacity 2.82 to 17.6 Ounces
Hourly Production 4,800 Pieces Per Hour
Controls Programmable Control Board
Material Steel
Finish Painted
Voltage 208-240 Volts
Phase 3-Phase
Hertz 60 Hz
Amps 3.77 Amps
Watts 0.75 kW
Plug Type NEMA L-15-20-P
Shipping Width 24 Inches
Shipping Depth 27 Inches
Shipping Height 44 Inches
Shipping Weight 532 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year on-site parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces 40 equal weighted and shaped pieces at once.
It handles dough portions from 2.82 to 17.6 oz. (80 to 500 g).
The AQD40 can produce up to 4,800 pieces per hour.
The machine uses a hydraulic system with a programmable control board. Close the lid to start the cycle, and it opens automatically when the cycle is complete.
The product includes a 1-year on-site parts and labor warranty.
