Univex AQD30 Dough Dividers & Rounders
Description

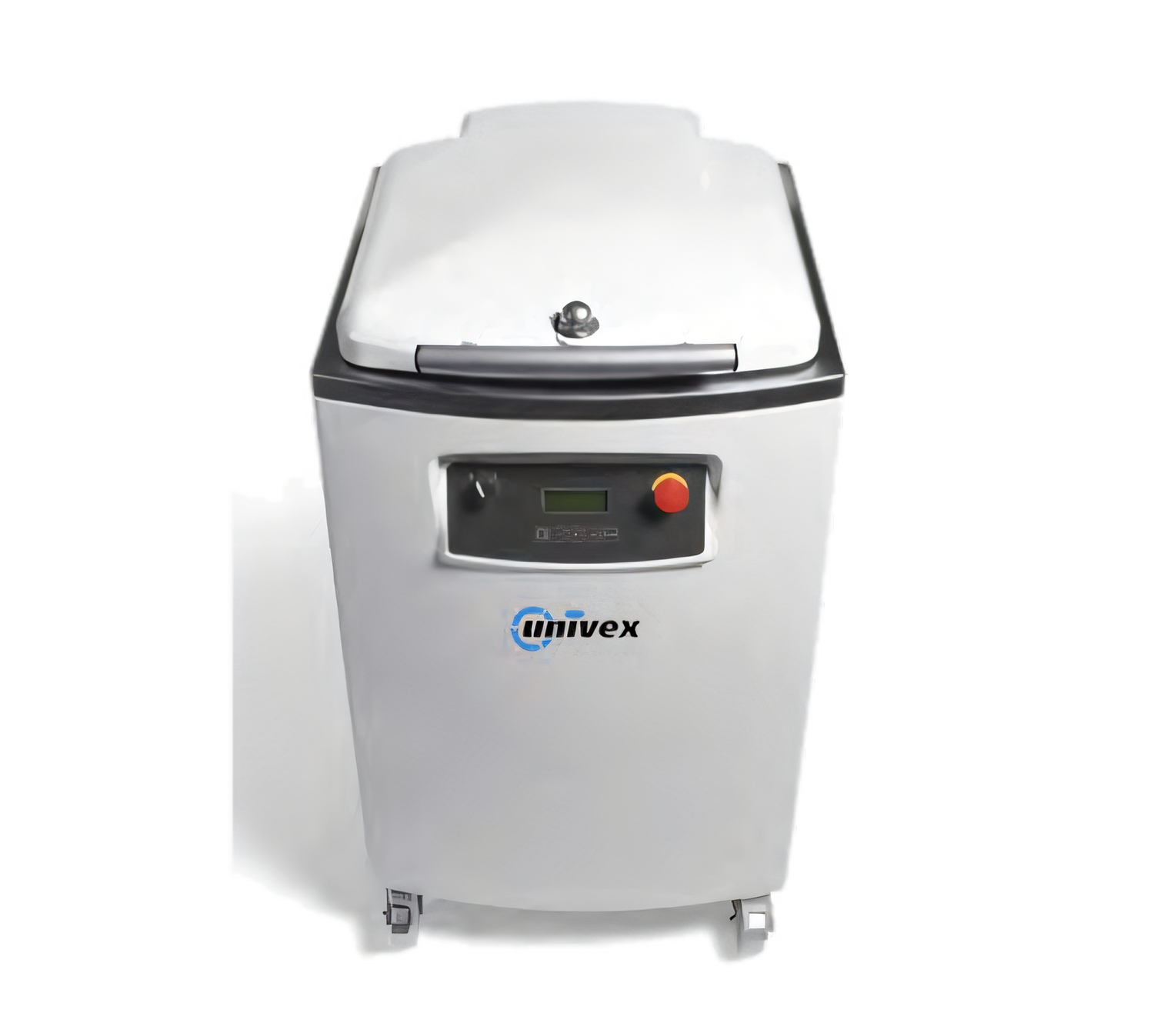

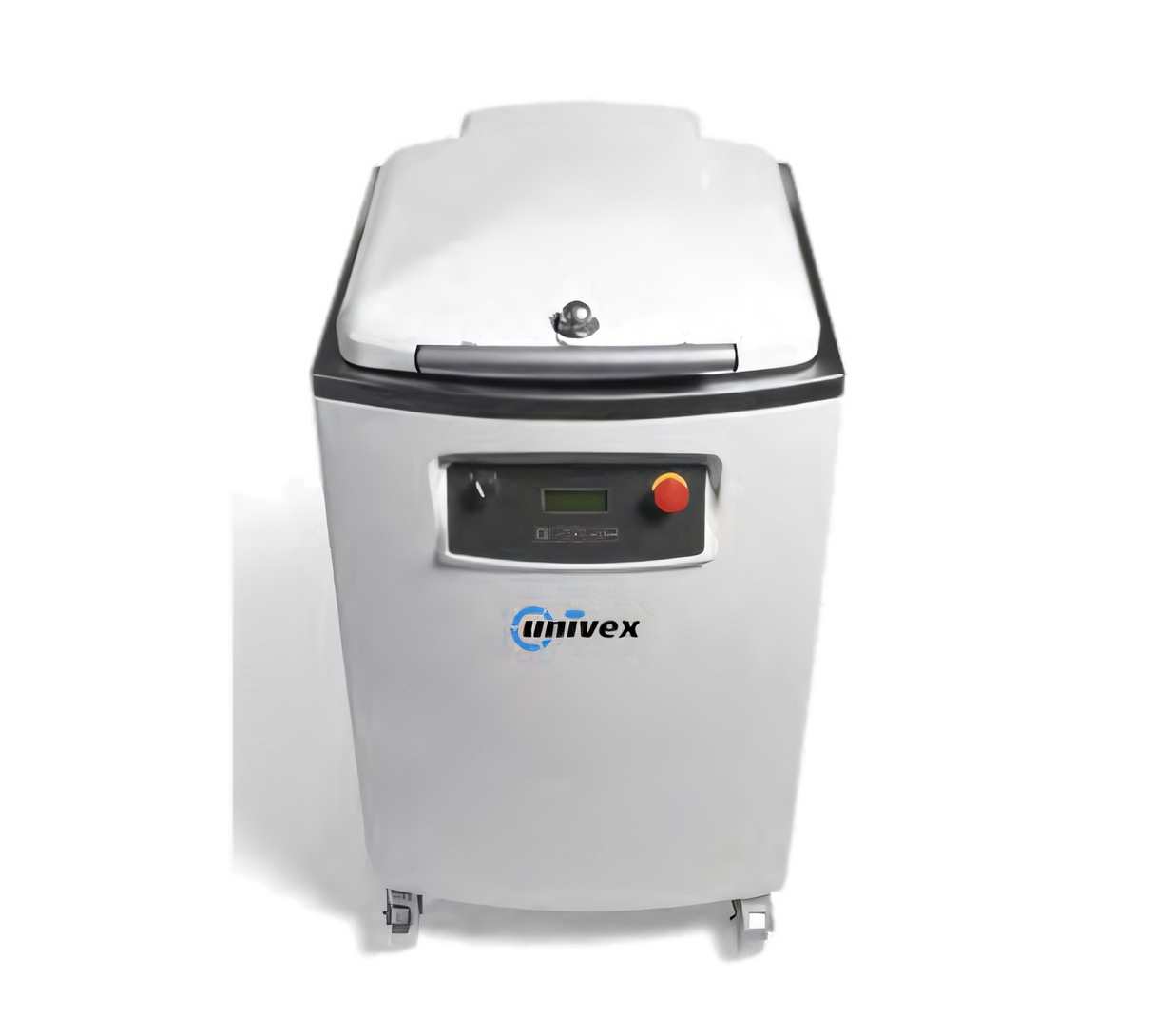

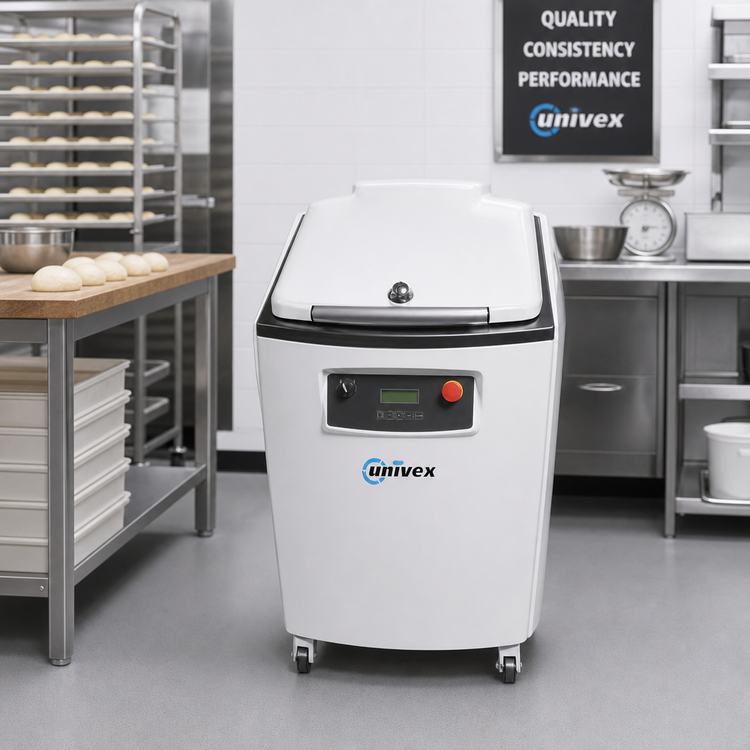

Univex AQD30 Automatic Square Dough Divider
30-piece hydraulic divider • 3.50 – 23.2 oz (100 – 660 g) portionsBuilt for high-volume bakeries that refuse to compromise on accuracy or speed, the Univex AQD30 takes an entire 8 lb (≈3.6 kg) dough block and turns it into 30 perfectly weighted squares in just seven seconds. Close the lid, let the hydraulic system work its magic, and watch the cover open automatically—cycle after cycle, up to 3,600 pieces every hour.
Key Features
- Divides dough automatically—no manual cutting or scaling required.
- 30 equal pieces per cycle in ≈7 seconds (≈3,600 pieces/hr).

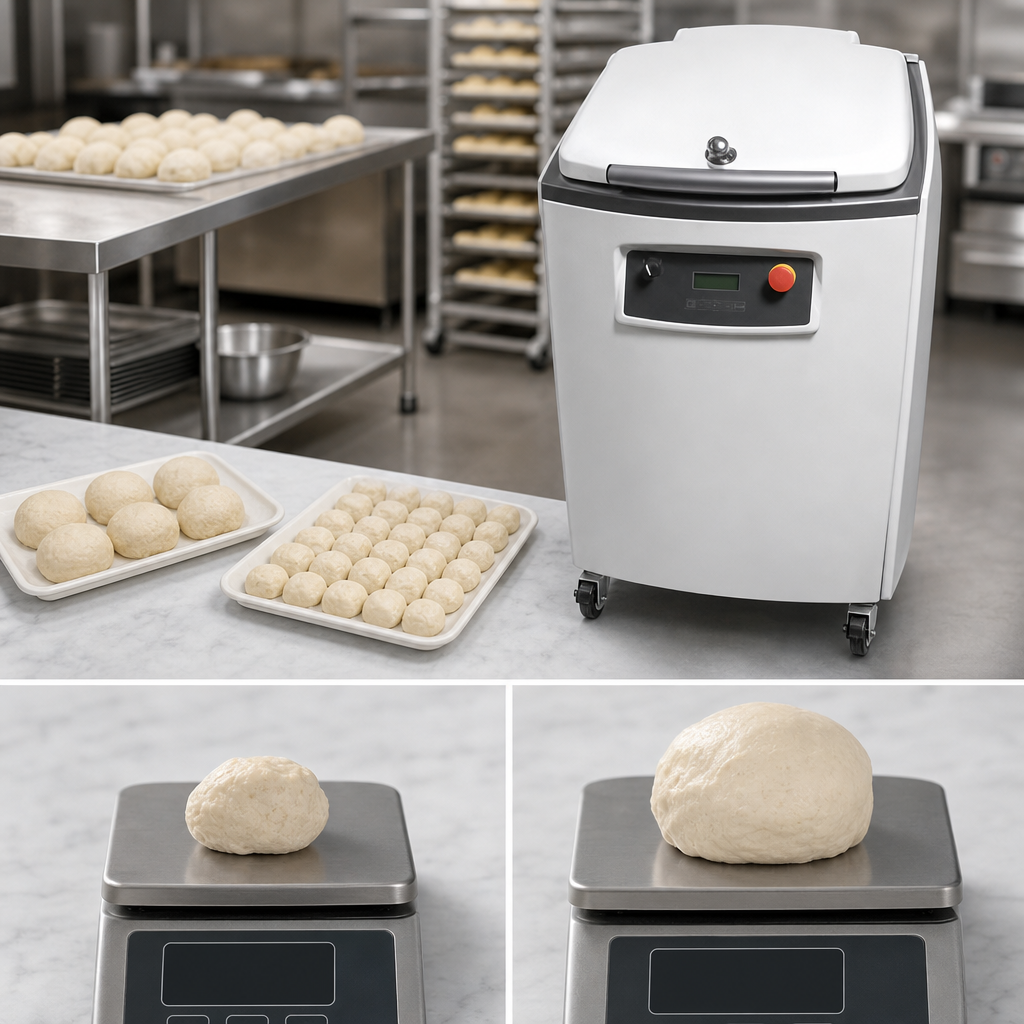

- Wide portion range: 3.50 – 23.2 oz (100 – 660 g).
- Powerful hydraulic drive delivers consistent pressure and quiet operation.
- Programmable control board with multiple language support simplifies training.
- One-touch operation—close the lid, the machine completes the cycle and re-opens automatically.
- Heavy-duty, painted-steel cabinet with locking casters withstands daily bakery abuse.
- cETLus and ETL-Sanitation listed for easy code compliance.
- Backed by Univex’s one-year, on-site parts & labor warranty.
Performance At-a-Glance
| Pieces per cycle | 30 |
|---|---|
| Cycle time | ≈7 seconds* |
| Hourly capacity | Up to 3,600 pieces |
| Portion size range | 3.50 – 23.2 oz (100 – 660 g) |
| Drive system | Hydraulic |
| Cabinet | Painted steel |
| Control panel | Programmable, multi-language |
Electrical
| Standard voltage | 208-240 V / 60 Hz / 3-phase |
|---|---|
| Optional voltage | 110 V / 60 Hz / 1-phase |
| Motor power | 1 hp (0.75 kW) |
| Amps (208-240 V) | 3.77 A |
| Amps (110 V) | 12 A |
| NEMA plug | L15-20P (3-phase) |
Dimensions & Shipping
| Overall dimensions (H × W × D) | 57" × 29.5" × 29.5" (144.8 cm × 74.9 cm × 74.9 cm) |
|---|---|
| Net weight | 507 lb (230 kg) |
| Shipping weight | 532 lb (241 kg) |
*Production estimate includes average loading and prep time (≈30 seconds start-to-finish).
