Univex AQD24 Dough Dividers & Rounders
$14,179.20
Unit price
/
Unavailable
Description

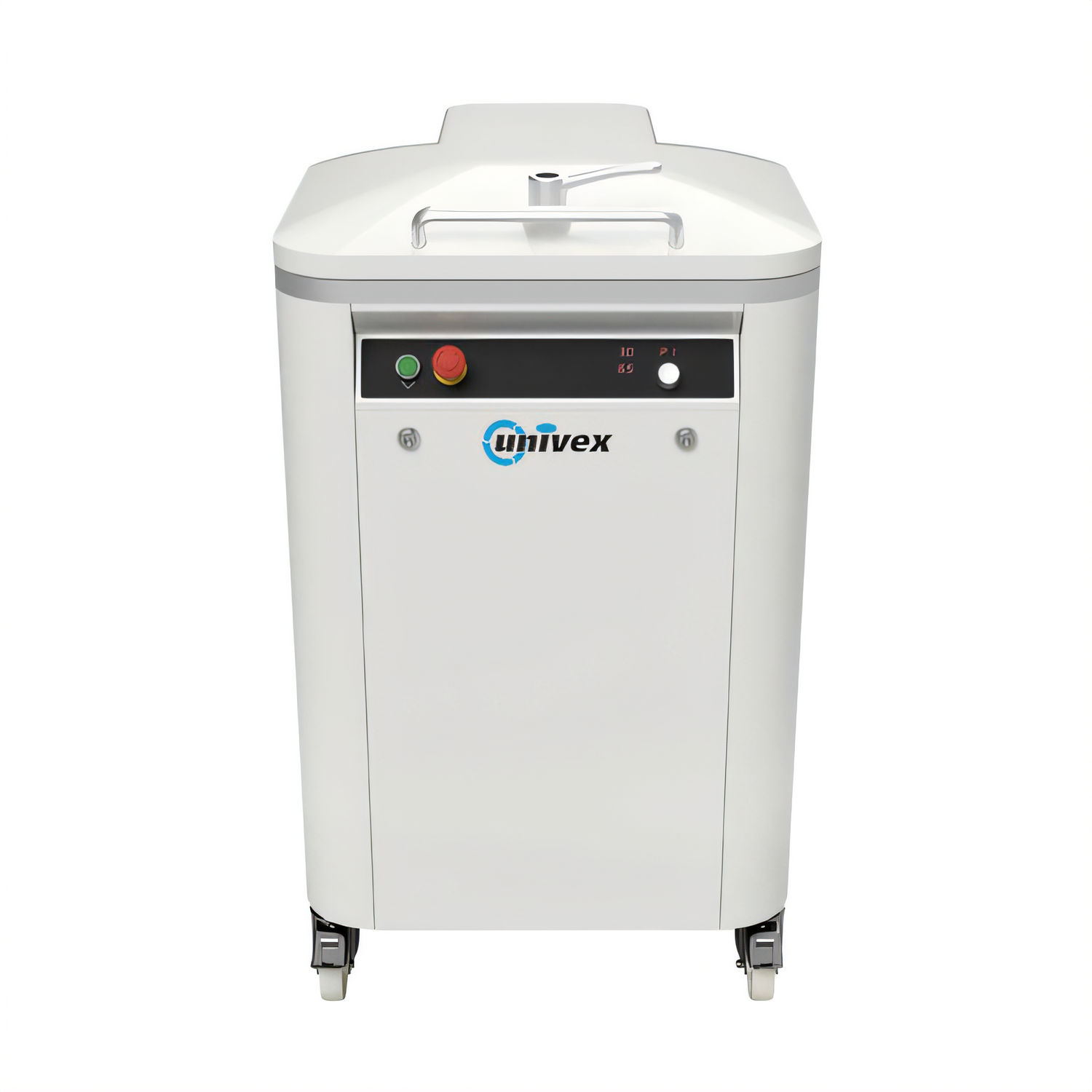

Univex AQD24 Automatic Square Dough Divider
High-speed, hydraulic divider – 24 identical portions in secondsDesigned for busy bakeries, commissaries and pizzerias, the Univex AQD24 takes the guesswork—and the labor—out of portioning dough. Close the lid, press start and let the heavy-duty hydraulic system create 24 perfectly square pieces in a single seven-second cycle.
Key Features

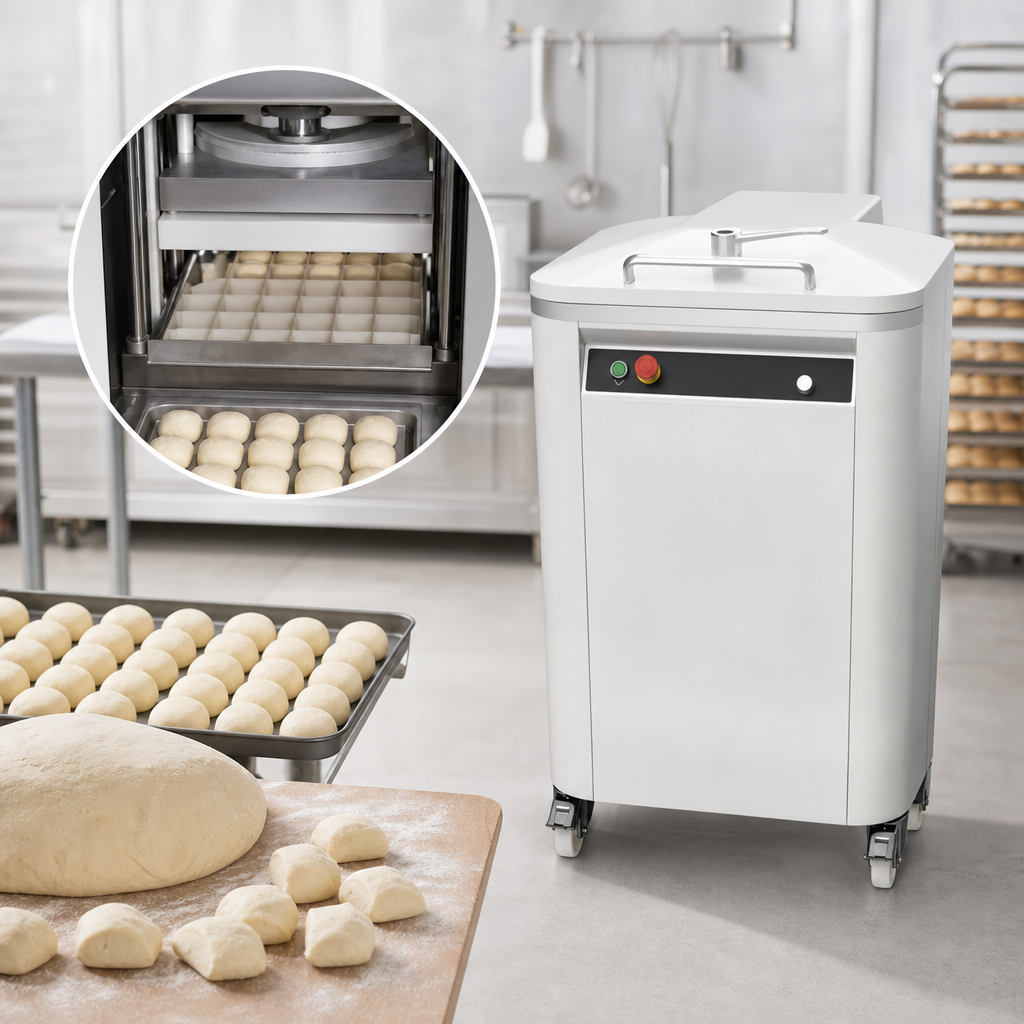

- Divides dough into 24 equal, square pieces every cycle.
- Wide portion range: 4.5 – 29.27 oz (130 – 830 g) per piece.
- Approx. 7-second divide cycle; up to 2,800 pieces per hour*.
- Powerful, long-life hydraulic drive for consistent compression and clean cuts.
- Simple one-touch operation—lid locks, divides and re-opens automatically.
- Programmable control board with multi-language interface speeds staff training.
- Durable, easy-clean painted steel cabinet built for commercial kitchens.
- Safety-interlocked lid; cETLus & ETL-Sanitation listed for North American compliance.
- Backed by a 1-year on-site parts & labor warranty.
Performance & Capacity
| Pieces per cycle | 24 |
|---|---|
| Portion weight range | 4.5 – 29.27 oz (130 – 830 g) |
| Divide cycle time | ≈ 7 seconds |
| Maximum hourly output | Up to 2,800 pieces* |
Technical Specifications
| Model | AQD24 |
|---|---|
| Drive system | Hydraulic |
| Construction | Painted steel |
| Overall dimensions (H × W × D) | 57" × 29.5" × 29.5" (144.8 × 74.9 × 74.9 cm) |
| Net / Shipping weight | 507 lb / 532 lb (230 kg / 241 kg) |
| Standard electrical | 208-240 V, 3-Ph, 1.01 HP (0.75 kW), 3.77 A |
| Plug (standard) | NEMA L15-20P |
| Optional electrical | 110 V, 1-Ph, 1.01 HP (0.75 kW), 12 A |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1 year – on-site parts & labor |
*Production estimate includes loading and unloading; based on a complete 30-second start-to-finish cycle.
Important: This divider must be connected to the correct voltage and phase by a qualified
electrician. Verify power requirements before installation.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
43.13in
Width
23.88in
Depth
26.88in
Shipping Weight
532.0lbs
Style
floor model
Hourly Production
750 - 3000 pieces per hr
No of Portions
24 pieces
Power Type
automatic
Specifications
Dough Divider, automatic, square, 4.5 - 29.27 oz., 24 pieces/7 seconds (2800 pieces/hour), programmable control board, multiple languages, hydraulic powered, painted steel, cETLus, ETL-Sanitation
