Univex | SKU:
AQD10
Univex AQD10 Dough Dividers & Rounders
$13,874.40
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Univex AQD10 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Univex AQD10 Dough Dividers & Rounders
$13,874.40
Unit price
/
Unavailable
Description

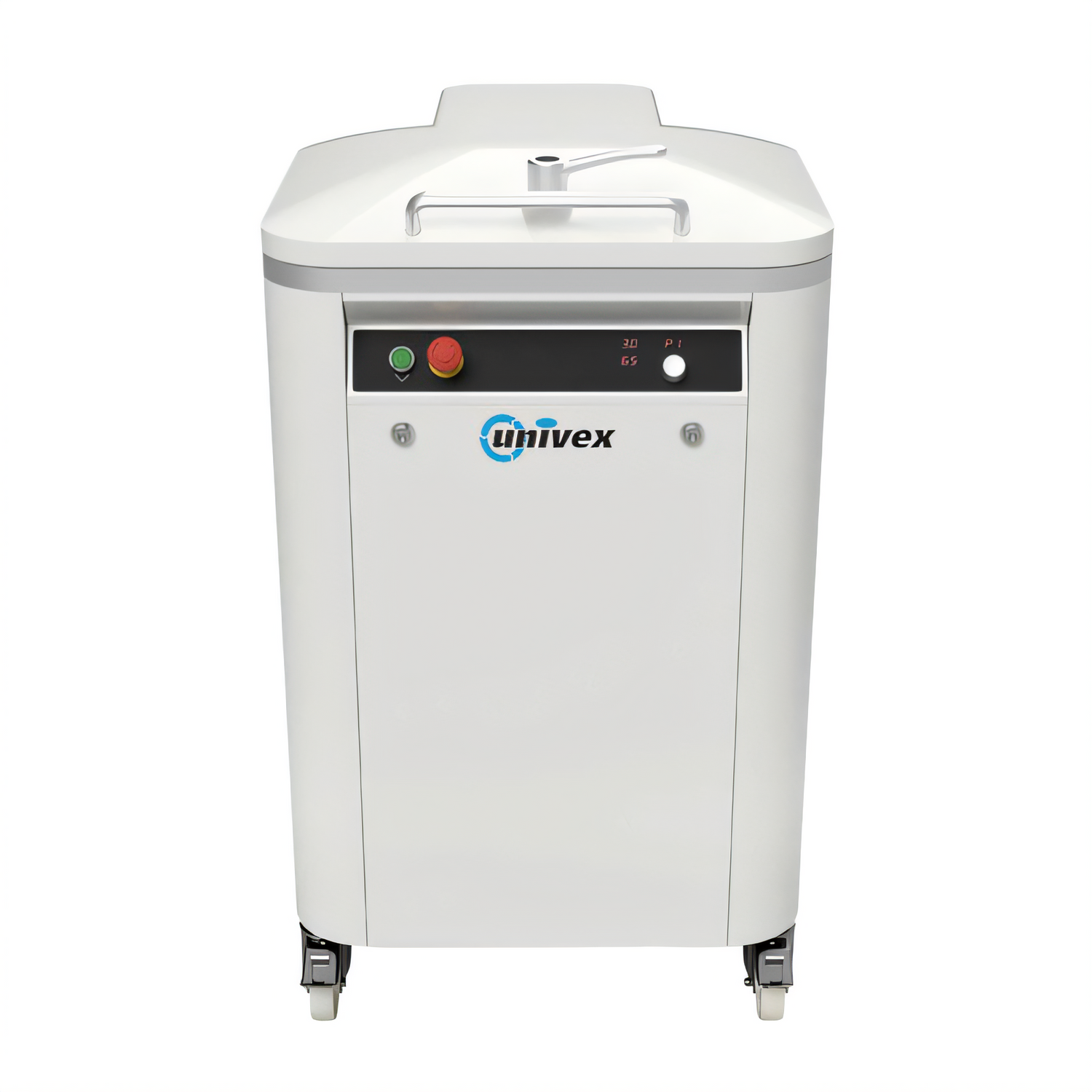

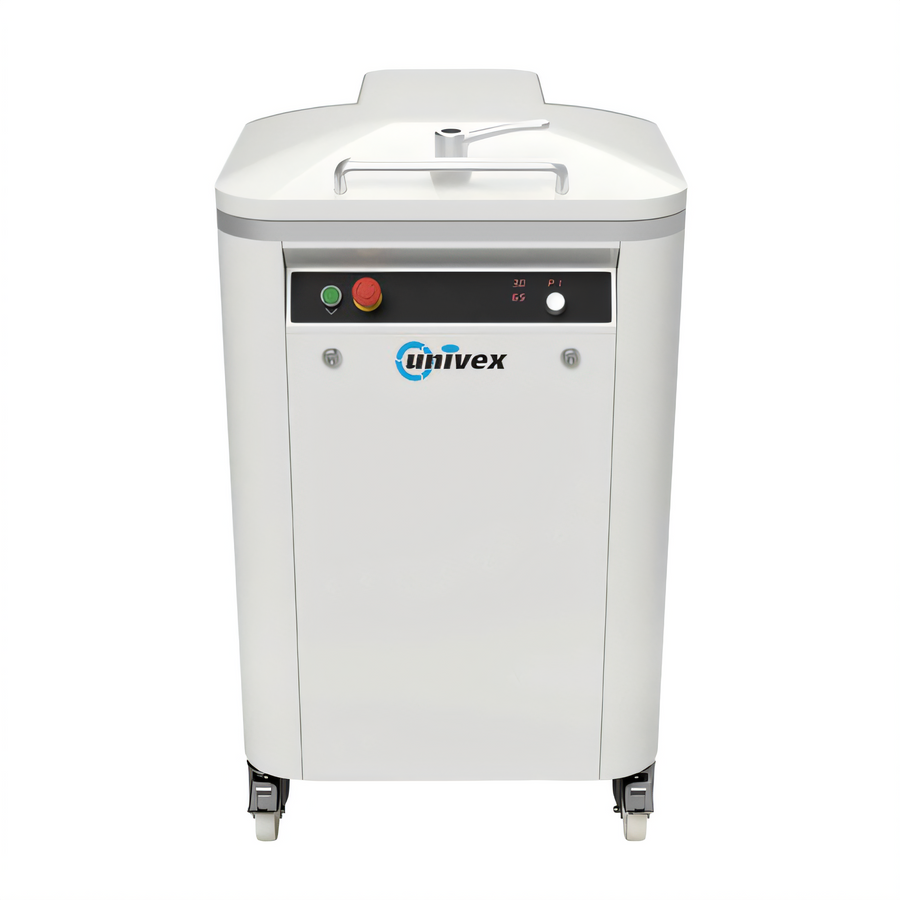

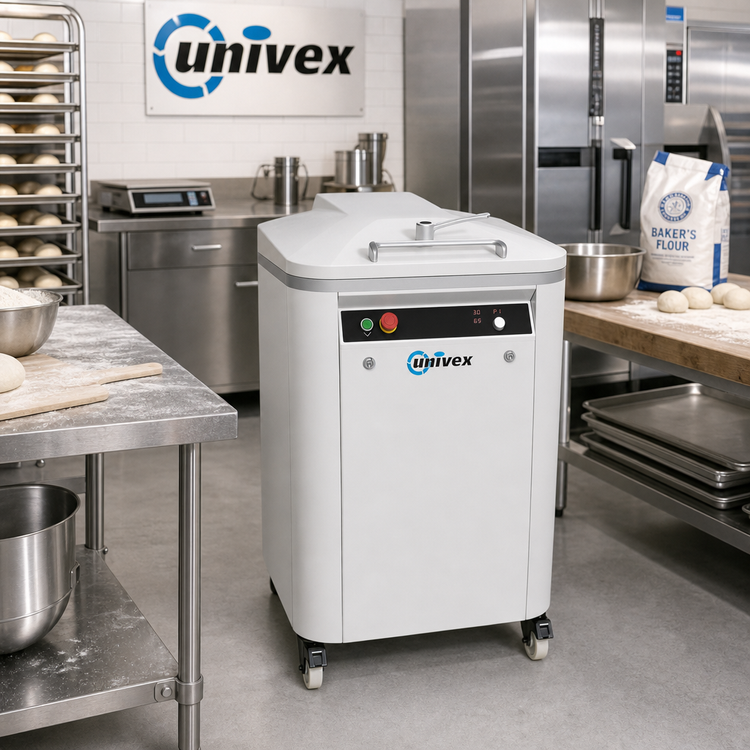

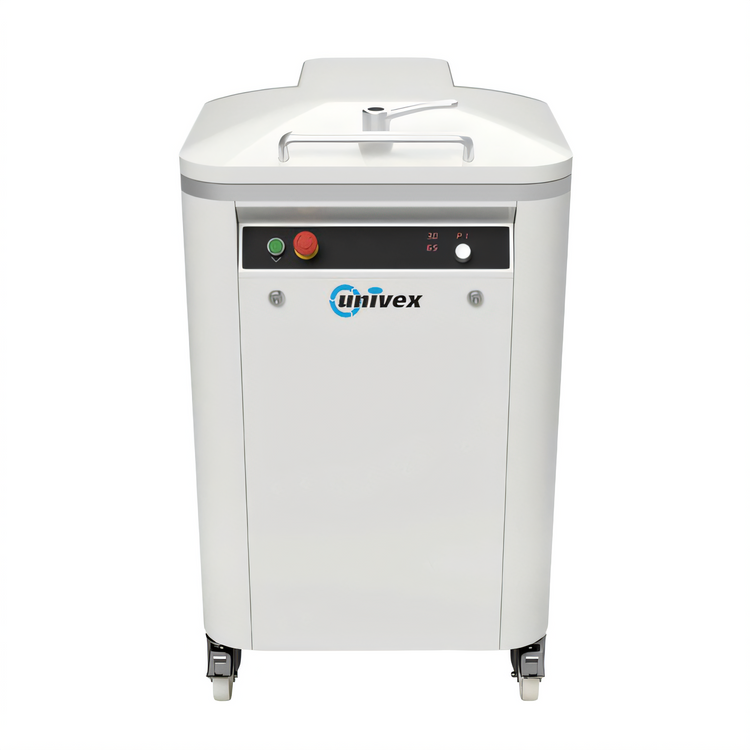

Univex AQD10 Automatic Square Dough Divider
10-piece hydraulic divider • 10.58 – 70.54 oz (300 – 2000 g) • up to 1,200 pieces/hourSlice prep time without sacrificing precision. The Univex AQD10 is a heavy-duty, hydraulic dough divider that transforms a full batch into ten perfectly weighted, square pieces in just seven seconds—ideal for focaccia, ciabatta, pizza and more.
Why Bakers Choose the AQD10

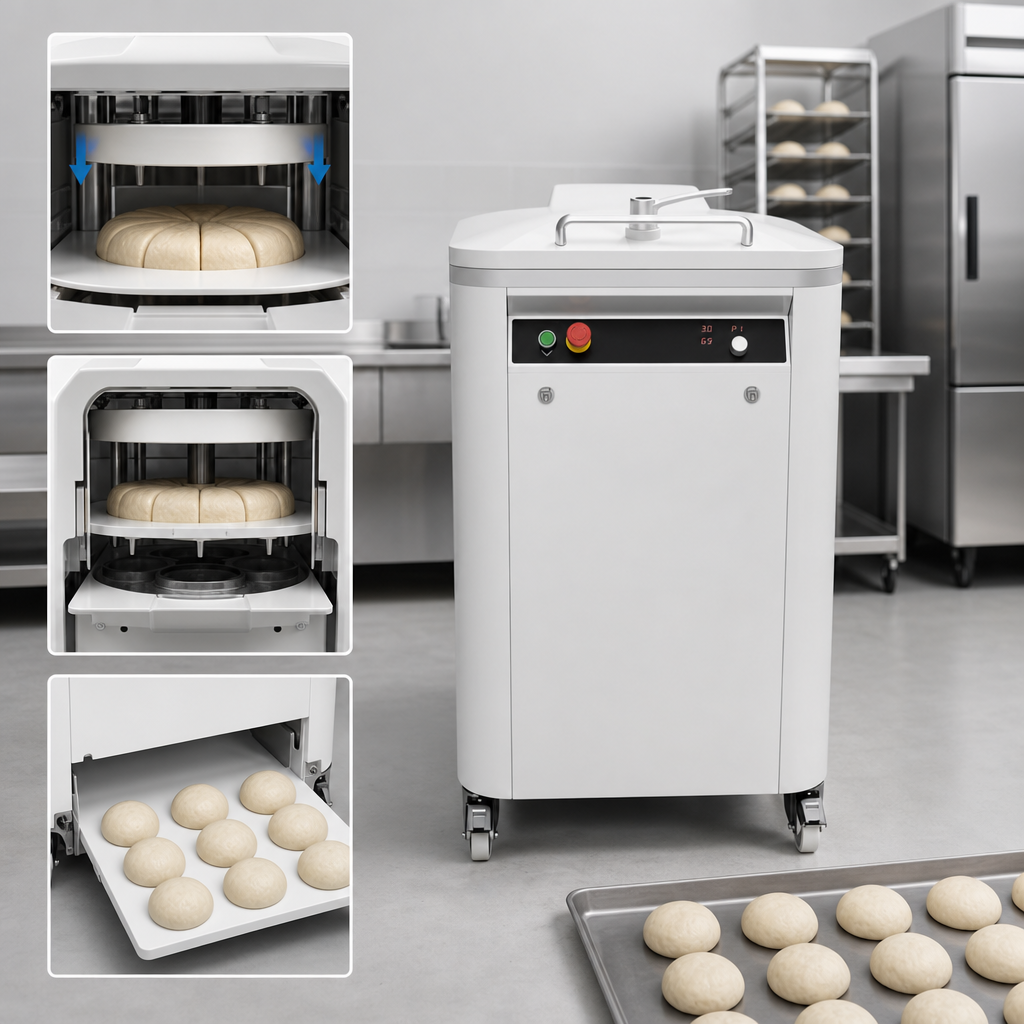

- Automatic cycle: close the lid and the machine divides & reopens by itself.
- 10 equal pieces every 7 seconds – up to 1,200 pieces per hour.*
- Wide weight range of 10.58 oz to 70.54 oz (300 g – 2,000 g) per piece.
- Hydraulic power delivers quiet, effortless dividing and long-term durability.

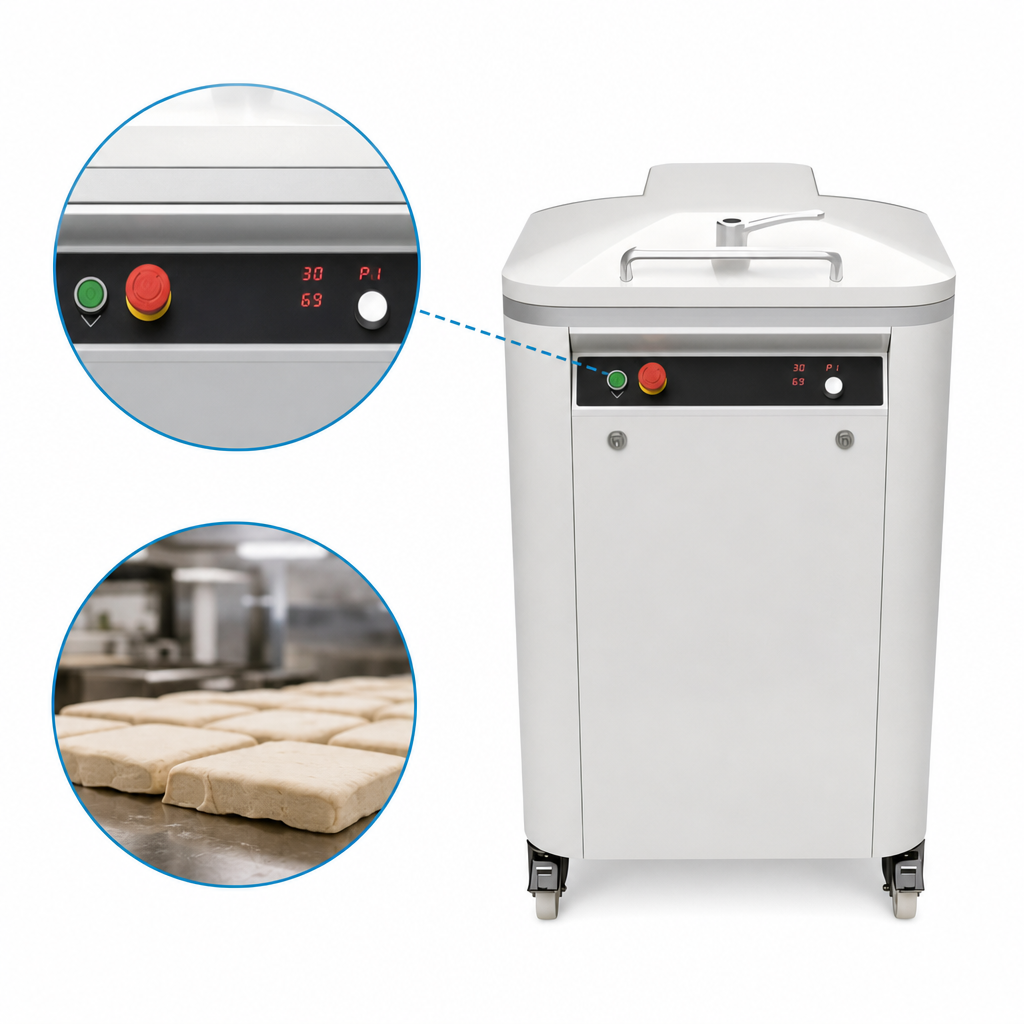

- Programmable control board with multilingual interface for easy staff training.
- Painted steel cabinet stands up to daily bakery, pizzeria and commissary use.
- Certified cETLus & ETL-Sanitation for food-safe operation in North America.
- One-year, on-site parts & labor warranty backed by Univex’s nationwide service network.
*Production estimate based on a 30-second start-to-finish process, including loading and unloading time.
Technical Specifications
| Model | AQD10 |
|---|---|
| Pieces per Cycle | 10 (square) |
| Cycle Time | ≈ 7 seconds |
| Hourly Capacity | Up to 1,200 pieces |
| Weight Range (per piece) | 10.58 oz – 70.54 oz (300 g – 2,000 g) |
| Press Dimension | 3.9 × 7.8 in (10 × 19.8 cm) |
| Drive System | Hydraulic |
| Standard Electrical | 208-240 V / 3 ɸ / 1.01 hp (0.75 kW) / 3.77 A |
| Optional Electrical | 110 V / 1 ɸ / 1.01 hp (0.75 kW) / 12 A |
| NEMA Plug | L15-20P (3-phase) |
| Overall Dimensions | 57 in H × 29.5 in W × 29.5 in D (144.8 cm × 74.9 cm × 74.9 cm) |
| Net / Shipping Weight | 507 lb (230 kg) / 532 lb (241 kg) |
| Cabinet Construction | Painted steel |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Included with Your Purchase
- Univex AQD10 automatic square dough divider
- Factory-installed programmable control board (multi-language)
- Power cord & NEMA L15-20P plug (standard model)
- Comprehensive owner’s manual
- On-site start-up warranty coverage
Installation Note: This unit must be properly installed and connected to the
correct voltage by a qualified technician. Failure to do so may void the warranty and
could result in equipment damage.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
43.13in
Width
23.88in
Depth
26.88in
Shipping Weight
532.0lbs
Hourly Production
750 - 3000 pieces per hr
No of Portions
10 pieces
Style
floor model
Power Type
automatic
Specifications
Dough Divider, automatic, square, 10.58 - 70.54 oz., 10 pieces/7 seconds (1200 pieces/hour), programmable control board, multiple languages, hydraulic powered, painted steel, cETLus, ETL-Sanitation
