Univex  |  SKU: ADCD1224

Univex ADCD1224 Dough Dividers & Rounders

$16,161.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

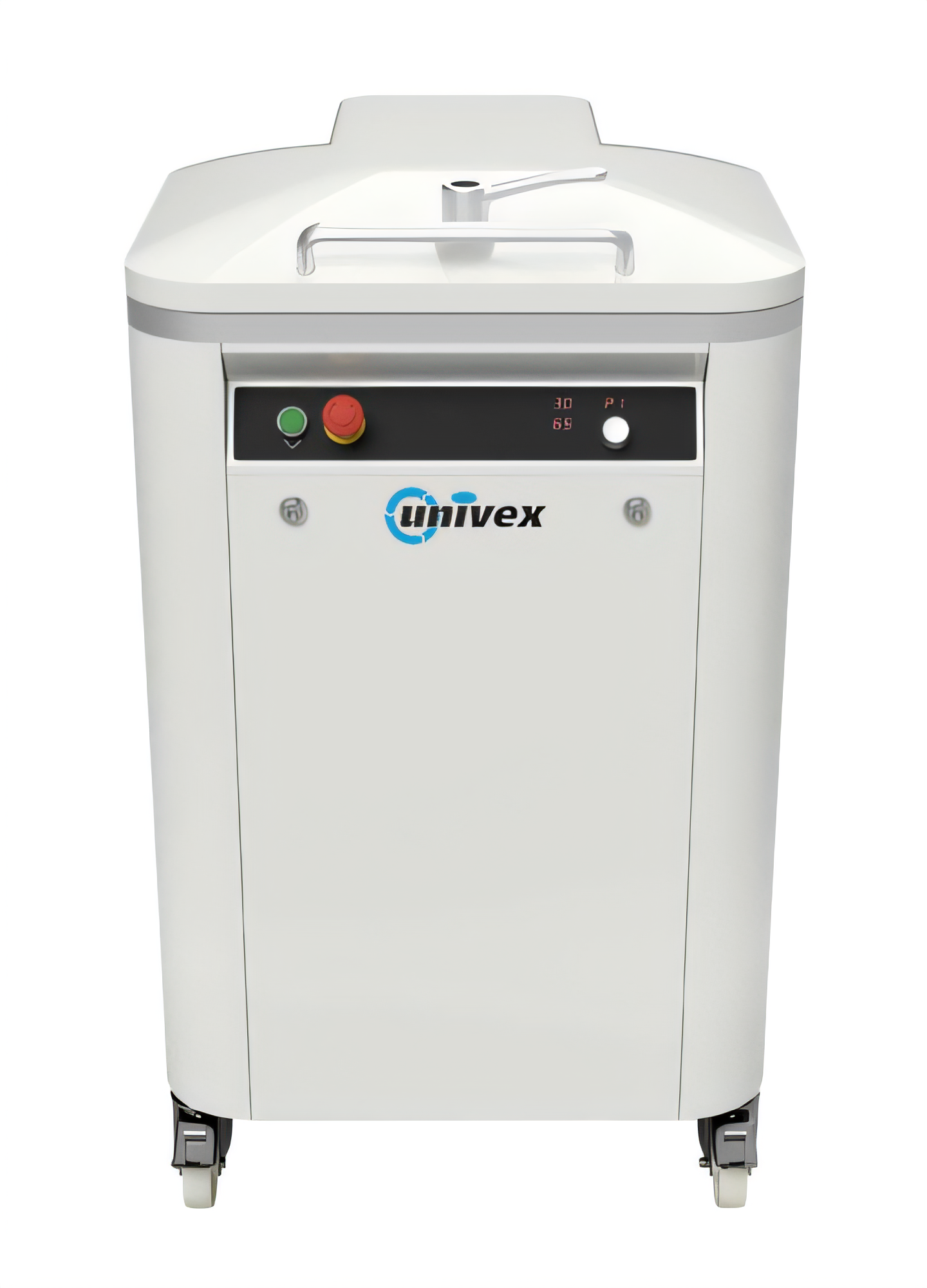

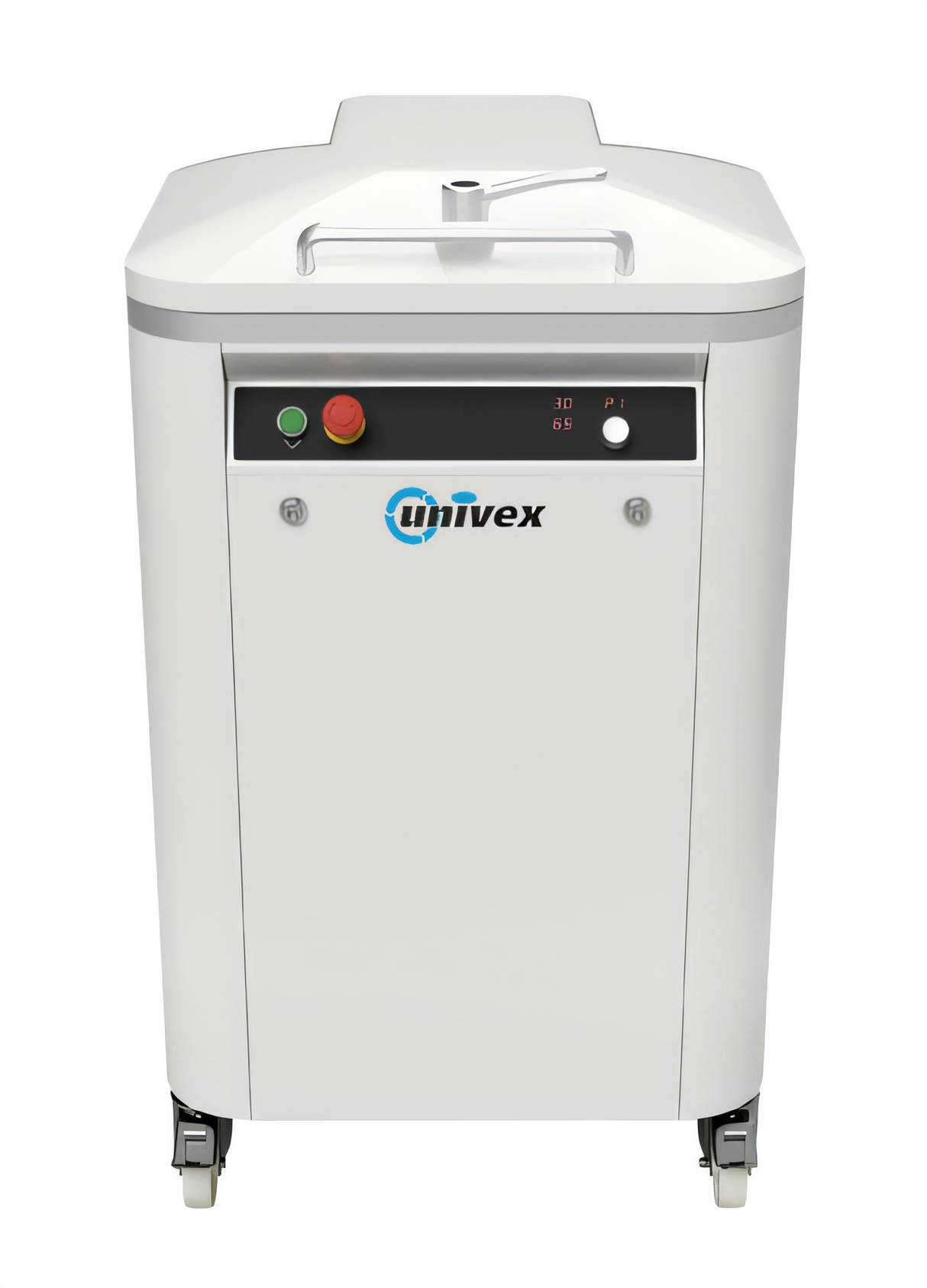

Univex ADCD1224 Automatic Square Double-Cut Dough Divider

Hydraulic 12/24-piece divider  |  up to 2,800 pieces per hour

Cut hours off your dough-prep time and deliver perfectly weighted, perfectly shaped pieces every single cycle. The Univex ADCD1224 pairs rugged hydraulic power with push-button simplicity, giving bakeries, pizzerias and commissaries a rock-solid divider that keeps pace with high-volume production—day in, day out.

Key features

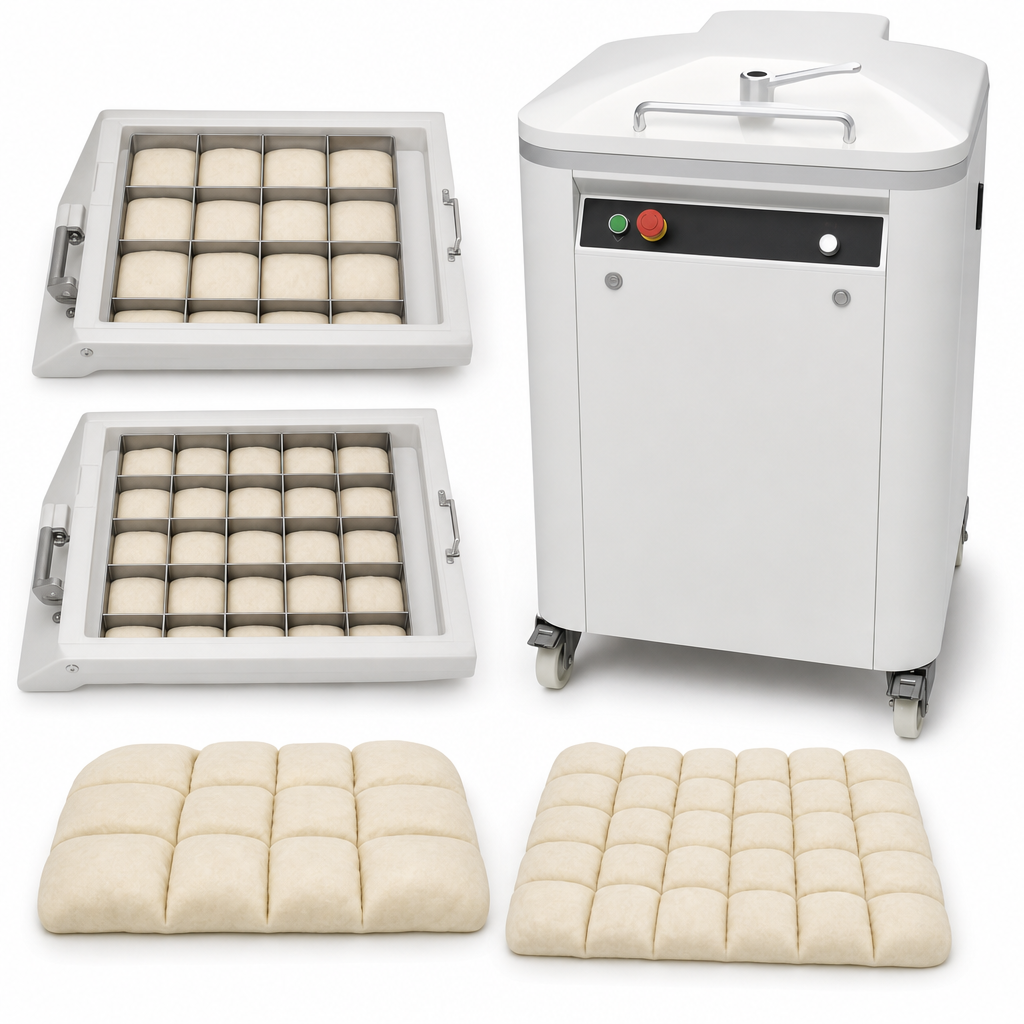

  • Automatic square divider produces 12 or 24 identical pieces in one cycle.
  • Portion range per piece: 10.58 – 63.49 oz (260 – 1,500 g) in 12-piece mode or 5.29 – 31.74 oz (130 – 750 g) in 24-piece mode.
  • Up to 1,400 / 2,800 pieces per hour (12-piece / 24-piece), based on a 30-second complete cycle.
  • Heavy-duty hydraulic system ensures consistent, even pressure on every press.
  • Intuitive, multi-language programmable control board—close the lid, press start and the machine completes the cycle and opens automatically.
  • cETLus and ETL-Sanitation certified for electrical and food-safety compliance in North America.
  • Includes a 1-year on-site parts & labor warranty backed by Univex’s nationwide service network.
Product specifications
Model ADCD1224
Pieces per cycle 12 or 24
Portion range (per piece) 12-piece: 10.58 – 63.49 oz (260 – 1,500 g)
24-piece: 5.29 – 31.74 oz (130 – 750 g)
Hourly production 12-piece mode: up to 1,400 pcs/hr
24-piece mode: up to 2,800 pcs/hr
Estimate based on a complete 30-second cycle, including prep time.
Drive system Hydraulic
Control panel Programmable, multi-language, automatic lid close/open
Electrical (60 Hz) Standard: 208–240 V / 3-phase / 1.01 hp (0.75 kW) / 3.77 A
Optional: 110 V / 1-phase / 1.01 hp (0.75 kW) / 12 A
NEMA L-15-20P (standard)
Certifications cETLus, ETL-Sanitation
Overall dimensions (H × W × D) 57″ × 29.5″ × 29.5″ (144.8 × 74.9 × 74.9 cm)
Net weight 507 lb (230 kg)
Shipping weight 532 lb (241 kg)
Warranty 1-year on-site parts & labor
Installation note: Equipment must be installed and connected by a qualified technician in accordance with all local electrical codes. Failure to follow proper installation and maintenance procedures may void the warranty.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

43.13in

Width

23.88in

Depth

26.88in

Shipping Weight

532.0lbs

Hourly Production

750 - 3000 pieces per hr

No of Portions

24 pieces

Style

floor model

Power Type

automatic

Specifications

Dough Divider, automatic, square,12/24-piece double cut, 10.58/5.29 oz. to 63.49/31.74oz portion size, 1400/2800 pieces per hour production, programmable control board, multiple languages, hydraulic powered, cETLus, ETL-Sanitation
