Univex ABDR52 Dough Dividers & Rounders
Univex ABDR52 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Univex ABDR52 Dough Dividers & Rounders
Description

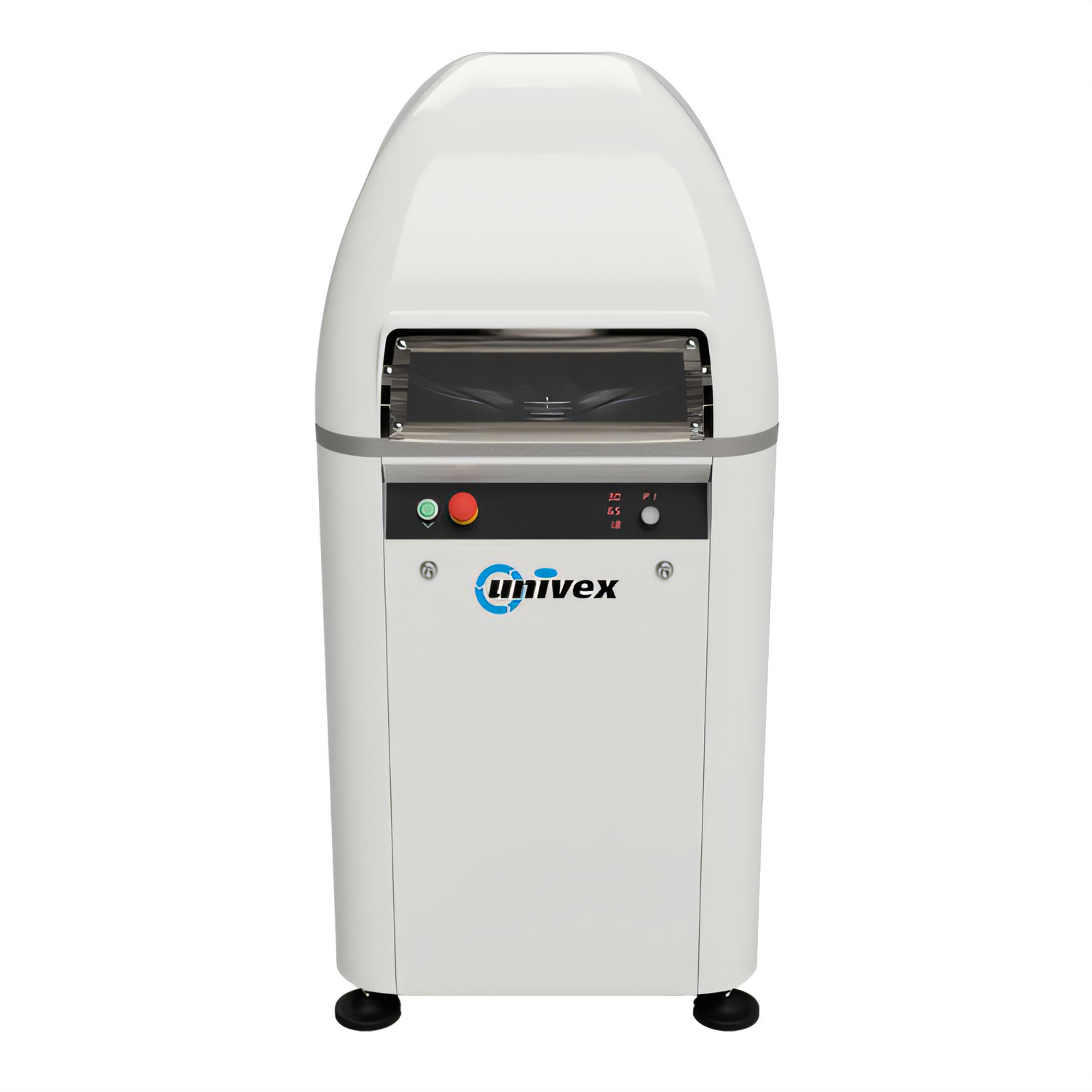

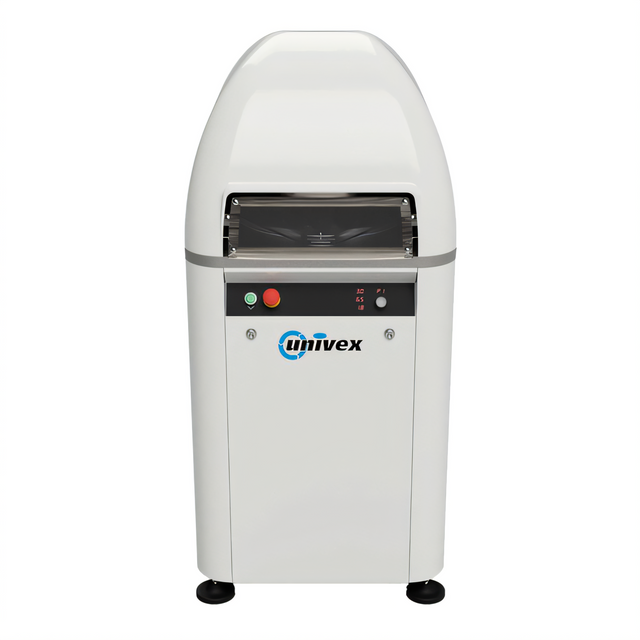

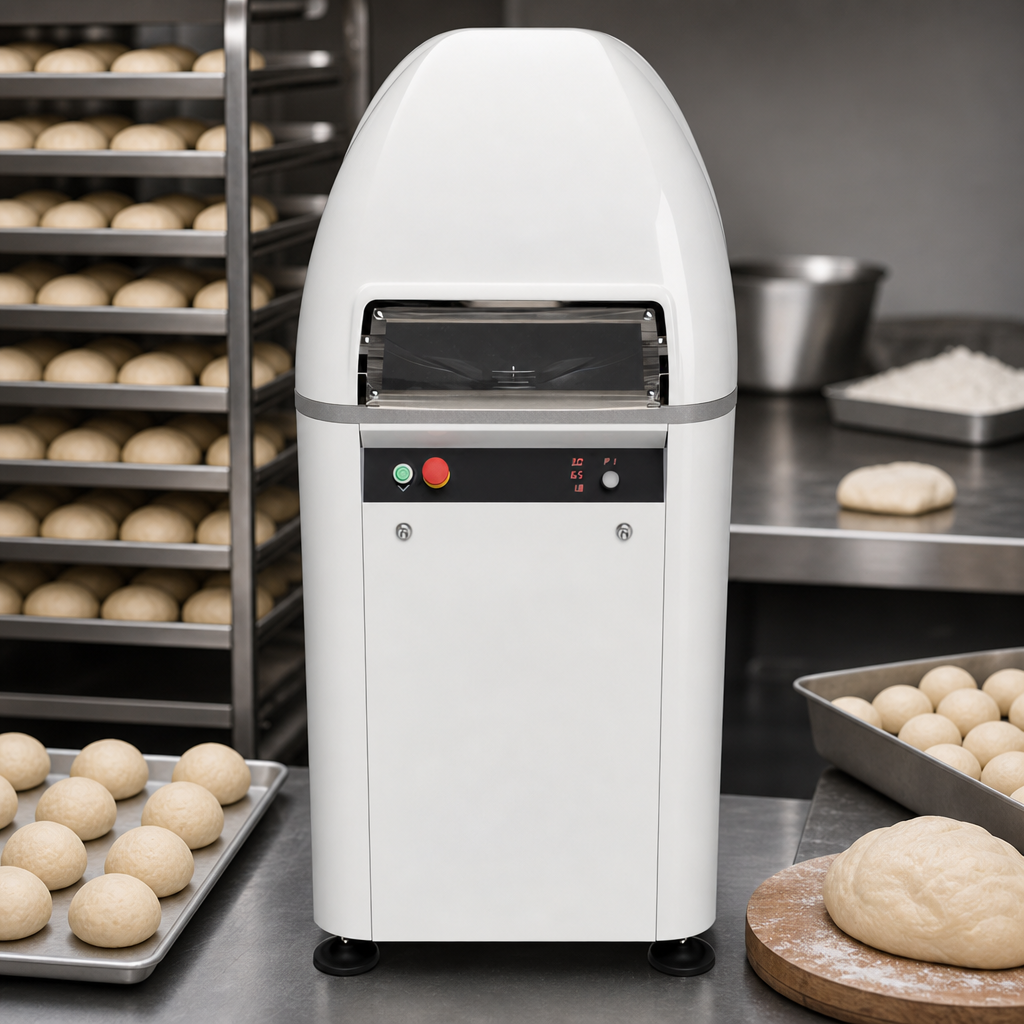

Univex ABDR52 Automatic Bun Divider/Rounder
52-part hydraulic divider/rounder • 0.42 – 1.41 oz (12 – 40 g) portionsSuper-charge your bun production with the Univex ABDR52. In only 7 seconds it divides and rounds 52 perfectly equal pieces—up to 9,300 buns per hour—all while keeping operators safe and your dough consistent, batch after batch.
Why you’ll love it

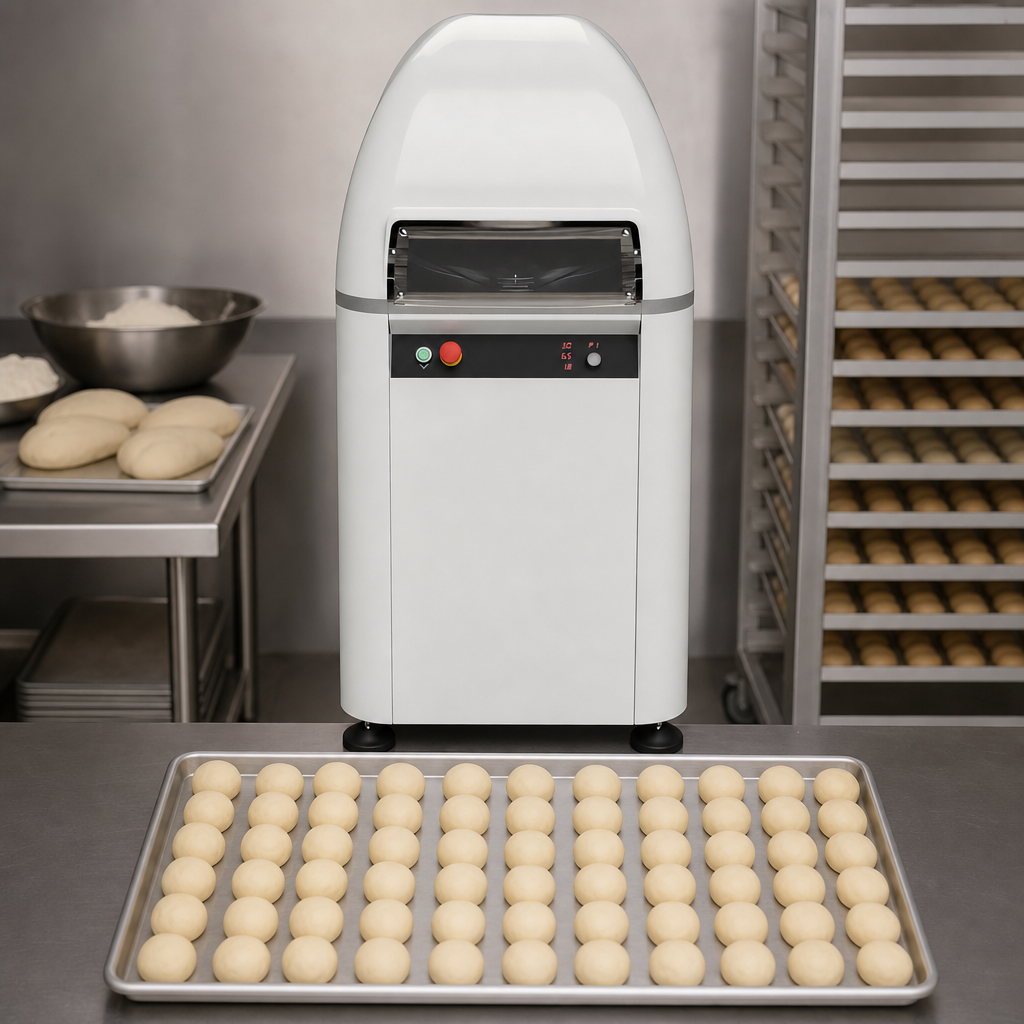

- Lightning-fast: 52 pieces every 7 s (≈ 9,300 pcs/hr)
- Wide weight range: 0.42 – 1.41 oz (12 – 40 g) per dough ball
- Powerful, low-maintenance hydraulic drive
- Dual start buttons & clear trays for maximum operator safety/visibility
- Programmable control board with multi-language interface
- Includes 3 food-grade, transparent 52-division dough trays
- Painted steel cabinet with adjustable leveling feet
- cETLus & ETL-Sanitation listed for North American compliance
Specifications
| Pieces per cycle | 52 |
|---|---|
| Cycle time | Approx. 7 seconds |
| Dough weight range | 0.42 – 1.41 oz (12 – 40 g) |
| Hourly output | Up to 9,300 pieces |
| Power (standard) | 1.7 hp | 208-240 V | 3-phase | 6.87 A |
| Power (optional) | 1.6 hp | 110 V | 1-phase | 20 A |
| NEMA plug | L-15-20P |
| Overall dimensions | 65″ H × 29.5″ W × 29.5″ D (165.1 × 74.9 × 74.9 cm) |
| Net / Shipping weight | 451.9 lb / 563 lb (205 kg / 255.4 kg) |
| Construction | Painted steel cabinet | clear polycarbonate trays |
| Included accessories | 3 × 52-division clear dough trays |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Electrical installation must supply a true 208-240 V range and is not compatible with Delta 3-phase configurations. Always have a qualified electrician connect the unit.
