Univex | SKU:
ABDR11
Univex ABDR11 Dough Dividers & Rounders
$22,797.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Univex ABDR11 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Univex ABDR11 Dough Dividers & Rounders
$22,797.00
Unit price
/
Unavailable
Description

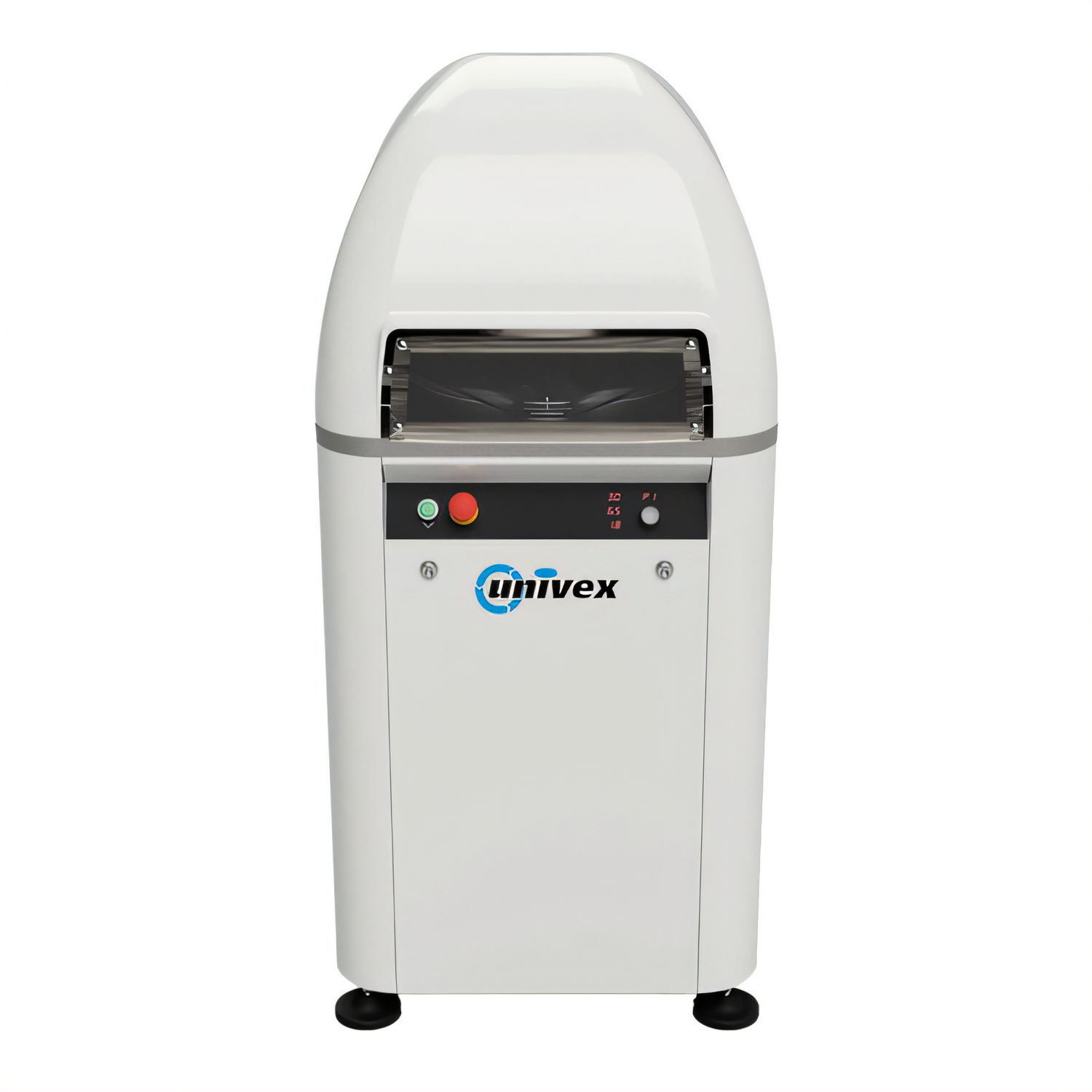

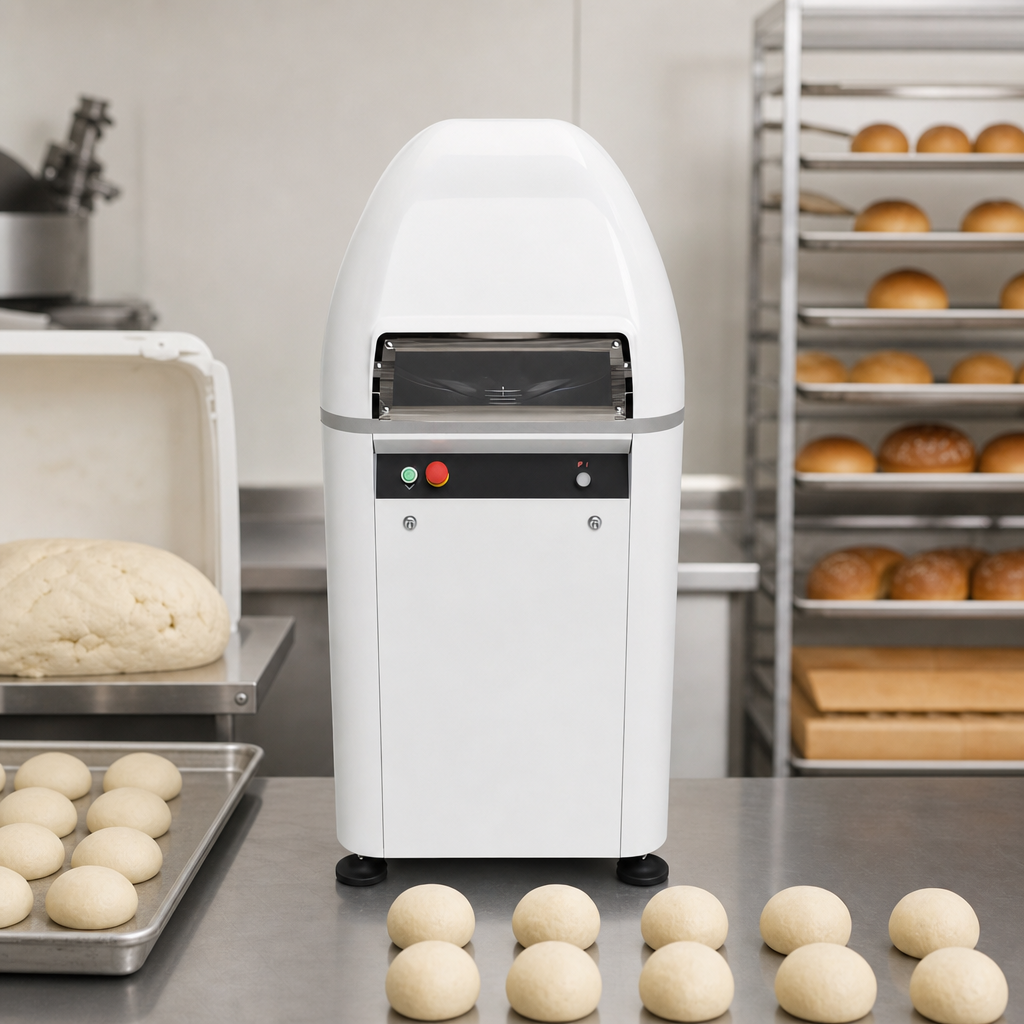

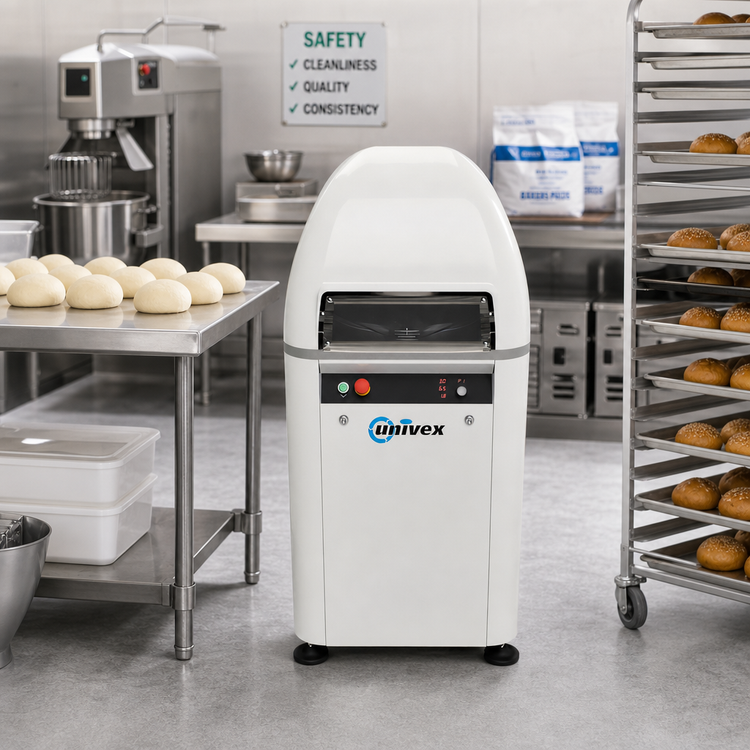

Univex ABDR11 Automatic Bun Divider/Rounder
11-division | 6.35 – 17.64 oz (180 – 500 g) dough range | Up to 1,900 pcs/hrEngineered for high-volume bakeries that refuse to compromise on accuracy or speed, the Univex ABDR11 delivers 11 perfectly rounded, equal-weight dough pieces every seven seconds—no manual scaling, no re-rounding, just consistent results loaf after loaf, bun after bun.
Why You’ll Love It
- Fully automatic hydraulic action both divides and rounds in a single cycle.
- Programmable control board with multiple language selection for effortless operation & training.
- Dual two-hand start buttons prevent accidental engagement and keep staff safe.

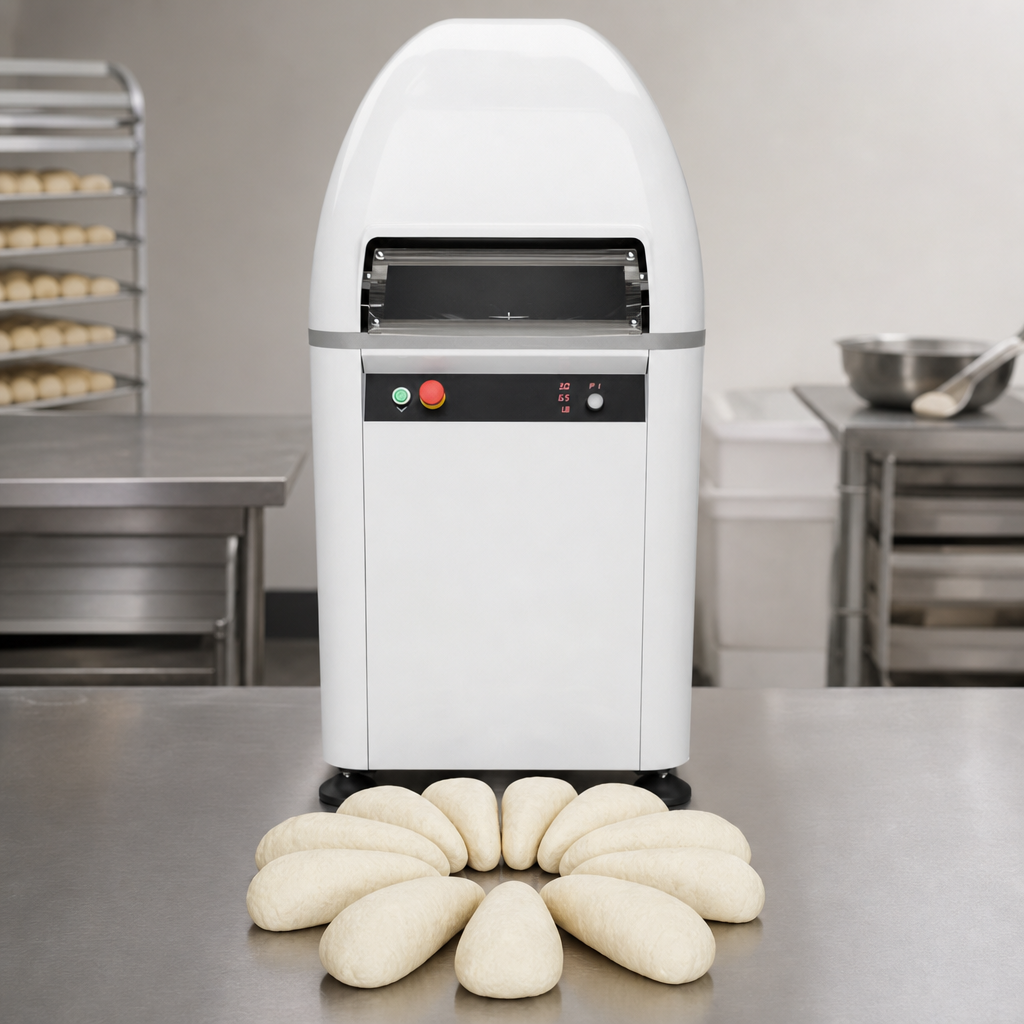

- 11 equal pieces in ≈ 7 sec; produce up to 1,900 pieces per hour.
- Handles a generous dough-weight range—ideal for dinner rolls, burger buns, artisan boules and more.
- Heavy-duty painted steel cabinet with adjustable leveling feet stands up to daily bakery demands.
- cETLus & ETL-Sanitation listed for worry-free code compliance.
What’s in the Box
- (3) clear 11-division dough trays for immediate production
- Owner’s manual & quick-start programming guide
Technical Specifications
| Model | ABDR11 |
|---|---|
| Dough weight range (per piece) | 6.35 – 17.64 oz | 180 – 500 g |
| Pieces per cycle | 11 |
| Cycle time | ≈ 7 sec (≈ 20 sec incl. prep) |
| Hourly output | Up to 1,900 pieces |
| Power source | Hydraulic |
| Control panel | Programmable, multi-language |
| Standard voltage* | 208 – 240 V, 3 Ph, 1.7 hp (1.3 kW), 6.87 A |
| Optional voltage* | 110 V, 1 Ph, 1.6 hp (1.2 kW), 20 A |
| NEMA plug | L-15-20P |
| Overall dimensions (HxWxD) | 65" x 29.5" x 29.5" (165.1 cm x 74.9 cm x 74.9 cm) |
| Net / Shipping weight | 451.9 lb (205 kg) / 563 lb (255.4 kg) |
| Construction | Painted steel, adjustable leveling feet |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Electrical Notice: The ABDR11 is not compatible with Delta-configured 3-phase power and
requires a true 208 – 240 V supply when installed on 3-phase service.
Production figures are based on factory testing and may vary according to dough recipe and operator technique.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
57.0in
Width
25.9in
Depth
27.5in
Shipping Weight
563.0lbs
Hourly Production
800 - 3000 pieces per hr
Power Type
automatic
Specifications
Bun Divider/Rounder, automatic, 6.35 - 17.64 oz., 11 pieces/7 seconds (1900 pieces/hour), programmable control board, dual start buttons, (3) clear 11 division trays, multiple languages, hydraulic powered, painted steel, leveling feet, cETLus, ETL-Sanitation
