U.S. Cooler

Fastcooler Indoor Walk-In Freezer with Insulated Floor, 7'-10" x 7'-10" x 7'-6", Remote Low-Temp Refrigeration

SKU: FI88FL.PA110
$17,490.93
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Merchandising & Display Refrigeration New Arrivals Open-Air Coolers Refrigeration, Freezing & Ice Restaurant Equipment U.S. Cooler

Fastcooler Indoor Walk-In Freezer with Insulated Floor, 7'-10" x 7'-10" x 7'-6", Remote Low-Temp Refrigeration

Stucco Embossed Galvalume Panels, 4" Extruded Insulation, 34" x 76" Door

A compact indoor walk-in freezer package with insulated modular panels and pre-assembled low-temp refrigeration for dependable -10°F storage.

  • Indoor walk-in freezer with insulated floor, wall, and ceiling panels.
  • Compact 7'-10" x 7'-10" x 7'-6" footprint with a standard 34" x 76" passage door.
  • Stucco-embossed galvalume steel panels and 4" extruded insulation help maintain cold temperatures.
  • Cam-lock modular assembly and factory test assembly support faster installation.
  • Pre-assembled remote low-temp refrigeration is rated for -10°F service and 110°F ambient conditions.

Overall Dimensions:

94.0"W x 94.0"D x 90.0"H

Product Weight:

1547.0 lb

Insulated Floor, Wall & Ceiling Panels

Complete walk-in enclosure includes insulated floor, wall, and ceiling panels.

Stucco Embossed Galvalume Steel

26-gauge galvalume steel skins provide durable interior and exterior panel surfaces.

4-Inch Extruded Insulation

Rigid insulation core helps maintain freezer temperature and thermal stability.

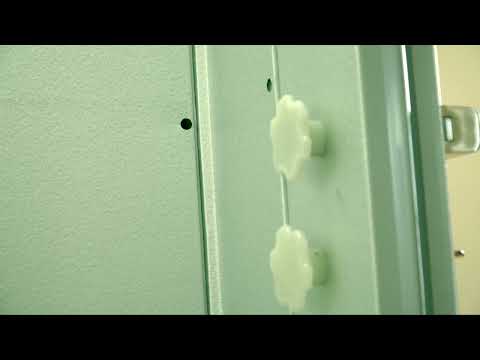

Cam-Lock Modular Assembly

Inside-operable cam-action locks and tongue-and-groove panel joints speed field assembly.

Standard 34" x 76" Freezer Door

Flush-mounted door includes heater wire on all four sides, magnetic gaskets, closer, and manual lock override.

Pre-Assembled Remote Refrigeration

Outdoor low-temp refrigeration package is set up for -10°F service, 2 HP, 208-230V, single-phase power, and 110°F ambient conditions.

Factory-Test-Assembled Package

Walk-in panels are test assembled at the factory and shipped with installation instructions and layout drawings.

Type Walk-In Freezer
Style Indoor
Installation Type Freestanding
Material Galvalume Steel
Finish Stucco Embossed
Insulation Type Extruded Polystyrene
Insulation Thickness 4 Inches
Assembly Type Cam-Lock
Refrigeration Type Remote Low Temp Outdoor
Refrigerant Type R448A
Temperature Range -10°F
Ambient Temperature 110°F
Horsepower 2 HP
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Door Size 34 x 76 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 94 Inches
Shipping Depth 94 Inches
Shipping Height 90 Inches
Shipping Weight 1,547 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

10-year limited warranty on walk-in panels; 1-year on hardware and refrigeration equipment.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Specifications PDF Download PDF Spec - left hinge PDF Download PDF Brochure PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. It is supplied with insulated floor, wall, and ceiling panels.
The standard passage door is 34" x 76".
It is specified for low-temp freezer service at -10°F.
The refrigeration package is 208-230V, 60 Hz, single-phase, and 2 HP.
Yes. The drawing lists left or right hinge options, and the door location can be specified on the left or front wall.
Panels carry a 10-year limited warranty, and hardware plus refrigeration equipment carry a standard 1-year warranty. Extended compressor and labor coverage are available as options.
