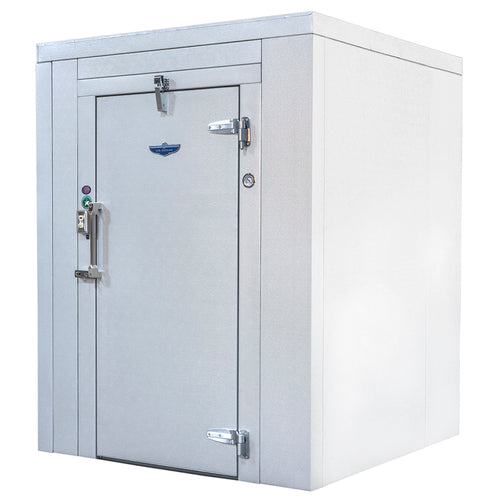

U.S. Cooler Fastcooler™ CI68NF.PA95 Indoor Walk-In Cooler, 5'10.5" x 7'10" x 7'6" Floorless with Remote Refrigeration

5'-10 1/2" x 7'-10" x 7'-6" Nominal Size, Floorless, Stucco Embossed Galvalume, Remote Medium Temperature Refrigeration

Designed for fast and accurate assembly, the U.S. Cooler Fastcooler™ CI68NF.PA95 provides efficient and reliable medium temperature refrigeration for indoor commercial use.

  • Modular, precision-formed panels with cam-action locking devices for rapid field assembly.
  • 4-inch thick extruded polystyrene insulation ensures superior temperature retention (R-28.8 minimum).
  • Durable 26 gauge stucco embossed galvalume steel finish for walls and ceiling.
  • Includes a pre-assembled remote medium temperature refrigeration system, ideal for +35°F applications.
  • Standard 34" x 76" flush-mounted door equipped with essential features like sweep gaskets, magnetic gaskets, light fixture, and dial thermometer.
  • Floorless design with vinyl floor screeds with NSF® approved cove, suitable for indoor installations.

Overall Dimensions:

70.5"W x 94.0"D x 90.0"H

Product Weight:

1137.0 lb

Modular Panel Construction

Constructed with prefab, precision-formed, modular panels featuring cam-action locking devices for accurate and rapid field assembly, operable from inside the walk-in.

High-Density Extruded Polystyrene Insulation

All wall and ceiling panels utilize 4" thick, high-quality, rigid extruded polystyrene insulation (1.6 lb density) with an R-factor of not less than 7.2 per inch, providing an initial fresh R-28.8 minimum total wall R factor for excellent thermal efficiency. Insulation is HFC and CFC free, made from 60% recycled materials, and 100% recyclable.

Durable Metal Skins

Inner and outer metal skins of the panels are made from 26 gauge stucco embossed galvalume steel, ensuring durability and a professional finish for walls and ceilings.

Tongue and Groove Panel Joints

Panels connect via tongue and groove joints sealed with double-barreled NSF® approved gaskets, preventing swelling and mold formation by eliminating wood from the profile.

Floorless Design with Vinyl Screeds

Designed as a floorless unit, it includes vinyl floor screeds with NSF® approved cove both inside and out for a clean and sanitary installation.

Standard Passage Door

Features a 34" x 76" flush-mounted door with suitable sweep and magnetic gaskets, door closer, pre-wired vapor proof light fixture, light switch with pilot light, dial thermometer, manual internal lock override, chrome plated cam lift hinges, and chrome plated door latches with strike.

Pre-Assembled Remote Refrigeration System

Equipped with a pre-assembled remote medium temperature refrigeration system designed for a +35°F cooler application, suitable for 95°F average outdoor ambient, ensuring efficient cooling performance.

Type Walk-In Cooler
Style Modular
Installation Type Floor Model (Floorless)
Nominal Short Side 6 Feet
Nominal Long Side 8 Feet
Nominal Height 7 Feet 6 Inches
Interior Finish 26 Gauge Stucco Embossed Galvalume
Exterior Finish 26 Gauge Stucco Embossed Galvalume
Insulation Material 4 Inches Extruded Polystyrene
Insulation R-Factor R-28.8 Minimum Total Wall R Factor
Door Size 34 Inches x 76 Inches
Refrigeration Type Remote Medium Temperature
Temperature Range +35°F
Outdoor Ambient Temperature 95°F Average
Horsepower 1/2 HP
Voltage 208-230 Volts
Hertz 60 Hz
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 94 Inches
Shipping Height 90 Inches
Shipping Weight 1137 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

10-year limited warranty on walk-in panels, 1-year warranty on hardware and refrigeration equipment.

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Specifications PDF Download PDF Spec - left hinge PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Fastcooler™ CI68NF.PA95 uses 4-inch thick, high-quality, rigid extruded polystyrene insulation in its walls and ceiling panels. This insulation is HFC and CFC free, made from 60% recycled materials, and provides an R-28.8 minimum total wall R factor.
The CI68NF.PA95 model is an indoor walk-in cooler. While optional rain and sloped roof packages are available for other outdoor models, this specific configuration does not include them as standard.
The standard door for the CI68NF.PA95 is 34" x 76" and is flush-mounted. It includes sweep and magnetic gaskets, a door closer, pre-wired vapor proof light fixture, light switch with pilot light, dial thermometer, manual internal lock override, and chrome plated cam lift hinges and latches.
No, the CI68NF.PA95 is a floorless walk-in cooler. It is supplied with vinyl floor screeds, featuring NSF® approved coves both inside and out, designed for installation on an existing floor.
This model comes with a pre-assembled remote medium temperature refrigeration system. It is designed to maintain a +35°F internal temperature, suitable for average outdoor ambient temperatures of 95°F, and operates on 1/2 HP, 208-230V/60/1-Ph.
