TurboChef (Middleby)

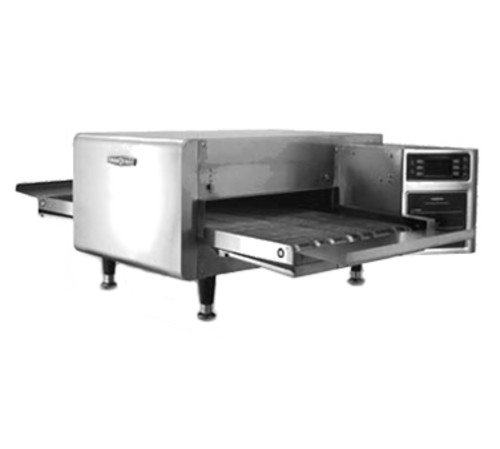

TurboChef High h Conveyor 2020 Ventless Countertop Single-Deck Electric Conveyor Oven with 20-Inch Belt

SKU: HCT-9500-501-V
$18,349.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

TurboChef High h Conveyor 2020 Ventless Countertop Single-Deck Electric Conveyor Oven with 20-Inch Belt

3-Phase 208/240V, 7-Inch Touchscreen, Stainless Steel

This ventless countertop conveyor oven delivers fast, high-heat cooking in a compact, stackable package with intuitive touchscreen control.

  • Ventless design with internal catalytic filtration helps limit smoke, grease, and odor emissions.
  • Compact single-deck countertop footprint with a 20-inch belt and 20-inch cook chamber.
  • 7-inch capacitive touchscreen with one-touch icon controls for easy operation.
  • Variable-speed impingement airflow, idle mode, and self diagnostics support speed and consistency.
  • Stackable up to 3 high with optional stacking kits for future growth.
  • Includes a plug and cord, two 6-inch conveyor extensions, and a Cleaner Only Starter Kit.

Overall Dimensions:

48.3"W x 35.7"D x 17.0"H

Product Weight:

300.0 lb

Ventless Catalytic Filtration

Internal catalytic filtration helps limit smoke, grease, and odor emissions for ventless operation.

7-Inch Capacitive Touchscreen

Tempered-glass display with one-touch icon controls simplifies operation.

Cool-To-Touch Stainless Steel Construction

430 stainless steel exterior with cool-to-touch covers and panels helps improve durability and operator comfort.

20-Inch Cook Chamber And Belt

A 20-inch cook chamber and 20-inch wide belt deliver a compact, high-throughput footprint.

Variable-Speed Impingement Airflow

Independently controlled top and bottom air impingement with variable-speed blower motors supports rapid, even cooking.

Idle Mode And Self Diagnostics

Idle mode conserves energy during slow periods and built-in self diagnostics help monitor oven components.

Stackable Design Up To 3 High

The oven can be stacked up to three high when used with stacking kits.

Flexible Feed Direction And Smart Voltage Sensing

Left- or right-feed belt direction can be set via software, and U.S. units include smart voltage sensor technology.

Type Conveyor Oven
Style Ventless
Installation Type Countertop
Controls One-Touch Touchscreen
Material 430 Stainless Steel
Interior Finish Stainless Steel
Capacity 2.8 Square Feet
Cooking Surface Width 20 Inches
Cooking Surface Depth 48.3 Inches
Temperature Range Up to 550°F
Voltage 208/240 Volts
Phase 3-Phase
Hertz 50/60 Hz
Amps 40 Amps
Watts 14.4 kW
Plug Type NEMA 15-50P
Cord Length 6 Feet
Breaker Size 50 Amp
Shipping Width 55 Inches
Shipping Depth 43 Inches
Shipping Height 27 Inches
Shipping Weight 300 Pounds
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

Yes. It is designed for ventless operation and uses internal catalytic filtration, but local AHJ approval and food-type limitations still apply.
It has a 20-inch wide belt and a 20-inch cook chamber, with a 2.8 square foot baking area.
The U.S. ventless model requires 208/240 VAC, 3-phase power, 40 amps, and a NEMA 15-50P plug.
Yes. It can be stacked up to 3 high when used with stacking kits.
The oven includes a plug and cord, two 6-inch conveyor extensions, and a Cleaner Only Starter Kit.
Yes. The conveyor feed direction can be set to either left or right via software.
