TurboChef (Middleby)

TurboChef High h Conveyor HhC 1618 Standard 36-Inch Countertop Conveyor Oven, 3-Phase

SKU: HCS-9500-511
$14,238.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

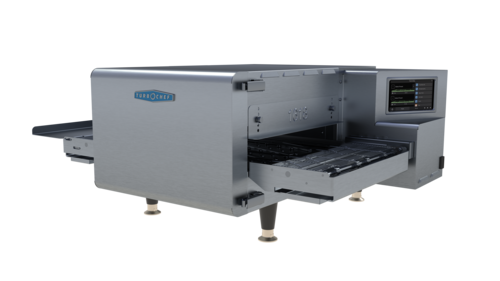

TurboChef High h Conveyor HhC 1618 Standard 36-Inch Countertop Conveyor Oven, 3-Phase

Single Deck, 16" x 18" Cook Chamber, 36" Conveyor

A compact, high-heat conveyor oven with variable-speed impingement airflow, touchscreen control, and built-in diagnostics for fast, consistent cooking.

  • 36-inch conveyor and single-deck countertop design fit compact kitchen footprints.
  • 16-inch wide by 18-inch long cook chamber supports high-throughput cooking.
  • Independently controlled top and bottom air impingement promotes even browning and consistent results.
  • Variable-speed blower motors, idle mode, and smart voltage sensing support efficient operation.
  • Built-in self diagnostics help monitor oven components and simplify maintenance.
  • Stainless steel construction and cool-to-touch panels improve durability and operator safety.
  • Software-selectable left or right feed direction and stackable design up to 3 high add flexibility.

Overall Dimensions:

36.0"W x 31.7"D x 17.0"H

Product Weight:

235.0 lb

High-Heat Transfer Cooking

Designed for accelerated cooking in a compact footprint.

Independent Top And Bottom Air Impingement

Top and bottom air can be controlled separately for more even cooking results.

Variable-Speed Airflow System

Variable-speed blower motors and recirculating impingement airflow help match output to production demand.

Idle Mode

Supports energy conservation during slower periods.

Built-In Self Diagnostics

Monitors oven components to help simplify troubleshooting and service.

Smart Voltage Sensor Technology

Helps the oven adapt to power conditions in U.S. installations.

Stainless Steel Construction

430 stainless steel exterior with all stainless steel interior construction for durability.

Cool-To-Touch Panels

Exterior covers and panels are designed to stay cool to the touch for safer operation.

Software-Selectable Feed Direction

Conveyor belt direction can be set to left or right via software.

Stackable Design

Can be stacked up to three high when used with stacking kits.

Included Conveyor Accessories

Includes a plug and cord (6 ft. nominal) and two 6-inch conveyor extensions.

Touchscreen Controls

Touchscreen control interface for operator-friendly use.

Type Conveyor Oven
Style Standard
Installation Type Countertop
Controls Touchscreen
Capacity 2 Square Feet
Cooking Surface Width 16 Inches
Cooking Surface Depth 18 Inches
Material 430 Stainless Steel
Interior Finish Stainless Steel
Voltage 208/240 Volts
Amps 23 Amps
Watts 7.4 kW
Hertz 50/60 Hz
Phase 3-Phase
Plug Type NEMA 15-30P
Breaker Size 30 Amp
Shipping Width 36 Inches
Shipping Depth 32 Inches
Shipping Height 17 Inches
Shipping Weight 235 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Frequently Asked Questions

The oven has a 16-inch wide by 18-inch long cook chamber and a 36-inch conveyor belt.
The 3-phase version uses 208/240 VAC, 23 amps, 50/60 Hz, and a NEMA 15-30P plug with a 30-amp breaker.
Yes. It includes a plug and cord (6 ft. nominal) and two 6-inch conveyor extensions.
Yes. The conveyor feed direction can be changed to left or right via software.
Yes. It is stackable up to 3 high when used with stacking kits.
The maximum operating temperature is 600°F.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
