TurboChef (Middleby)

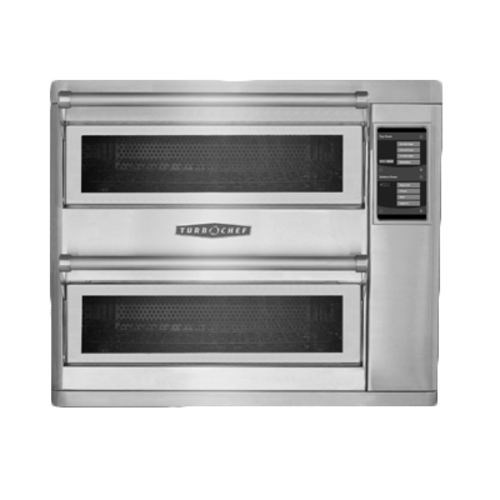

TurboChef Double Batch Double Deck Ventless Countertop Oven, 3-Phase

SKU: HHD-9500-814-DL
$17,797.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

TurboChef Double Batch Double Deck Ventless Countertop Oven, 3-Phase

Half-Size, 2 Independent Decks, 16-Inch Pizza Capacity Per Deck

A compact, ventless double-deck oven that combines fast impingement cooking, programmable controls, and independent cavities for busy kitchens.

  • Two independent decks let you cook different items or batches at the same time.
  • Ventless operation with internal catalytic filtration helps simplify installation in approved applications.
  • Half-sheet pan and 16-inch pizza capacity per deck supports popular menu items.
  • Programmable touchscreen controls, smart menu functions, and built-in diagnostics streamline operation.
  • Stackable countertop design saves space in compact kitchens.
  • Stainless steel exterior and 304 stainless steel interior are built for heavy-duty use.

Overall Dimensions:

27.7"W x 31.7"D x 23.2"H

Product Weight:

322.0 lb

Two Independent Cook Chambers

Two fully insulated cavities let you run separate items or batches at the same time.

Ventless Catalytic Filtration

An integral recirculating catalytic converter supports ventless operation and helps reduce smoke, grease, and odor.

7-Inch Capacitive Touch Screen

Tempered-glass touchscreen with one-touch operation and a multi-language interface simplifies daily use.

Half-Sheet Pan / 16-Inch Pizza Capacity

Each deck is sized to handle half-sheet pans or a 16-inch pizza.

Variable-Speed Impingement System

High-speed recirculating air and oscillating racks support fast, even cooking with reduced spotting.

Smart Voltage Sensor Technology

Built-in voltage sensing helps the oven operate across supported North American supply conditions.

Stackable Countertop Design

Space-saving design can be stacked with the required stacking kit and includes a rubber seal for surface mounting.

Stainless Steel Construction

Stainless steel front, top, and sides with a 304 stainless steel interior stand up to heavy kitchen use.

Built-In Diagnostics And USB Compatibility

Self-diagnostics monitor oven components and performance, while USB support helps with menu and service tasks.

Type Ventless Oven
Style Double Deck
Installation Type Countertop
Controls Programmable Touchscreen
Compartments 2
Capacity Half-Sheet Pan / 16-Inch Pizza Per Deck
Pan Size Half-Sheet Pan
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel
Voltage 208/240 Volts
Amps 30 Amps
Watts 8.32/9.6 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type NEMA 15-30P
Cord Length 6 Feet
Shipping Width 28 Inches
Shipping Depth 32 Inches
Shipping Height 24 Inches
Shipping Weight 322 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Frequently Asked Questions

Yes. It uses an integral recirculating catalytic converter and is listed for ventless operation; the cutsheet notes ventless certification exclusions for fatty raw proteins.
Yes. The oven has a stackable design, but a stacking kit is required.
Each deck accepts a half-sheet pan or a 16-inch pizza.
It requires 208/240 VAC, 3-phase, 60 Hz power at 30 amps and uses a NEMA 15-30P plug.
The standard package includes an oven cleaner, oven guard, aluminum paddle, two trigger sprayers, standard racks, and top and bottom jetplates.
Yes. The oven includes a plug and cord with a nominal 6-foot length.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
