Turbo Air TUF-60SD-D4-N Super Deluxe Undercounter & Worktop Refrigeration
Turbo Air TUF-60SD-D4-N Super Deluxe Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

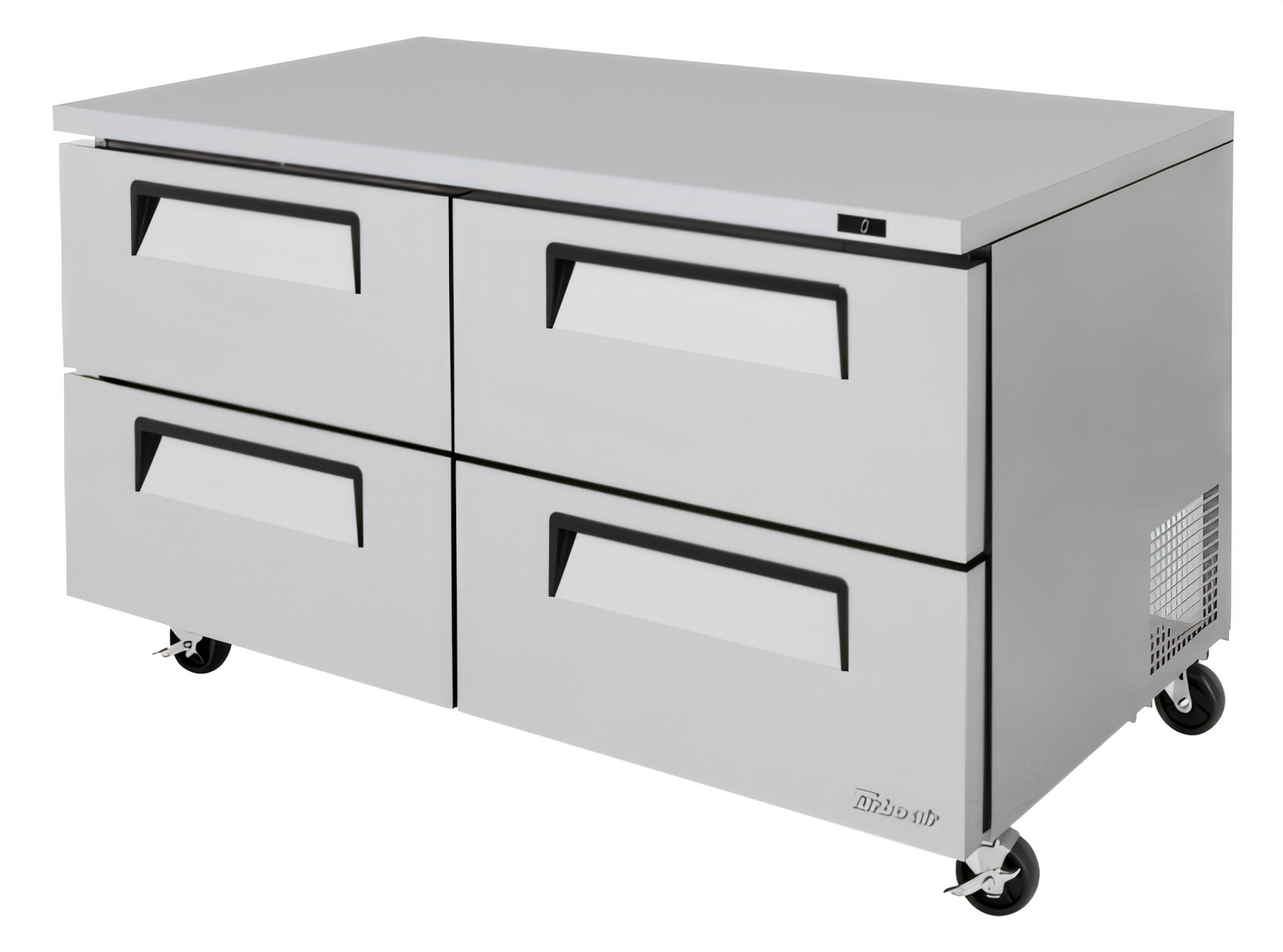

Turbo Air Super Deluxe Undercounter Freezer – 60" | 4-Drawer
Model TUF-60SD-D4-N • 17.2 cu. ft.Built for demanding commercial kitchens, the Super Deluxe undercounter freezer delivers rock-solid performance from –10 °F to 0 °F while keeping your worktop clutter-free. Its self-cleaning condenser, eco-friendly R-290 refrigerant and all-stainless construction combine to save energy, reduce maintenance and extend product life.
Key Features

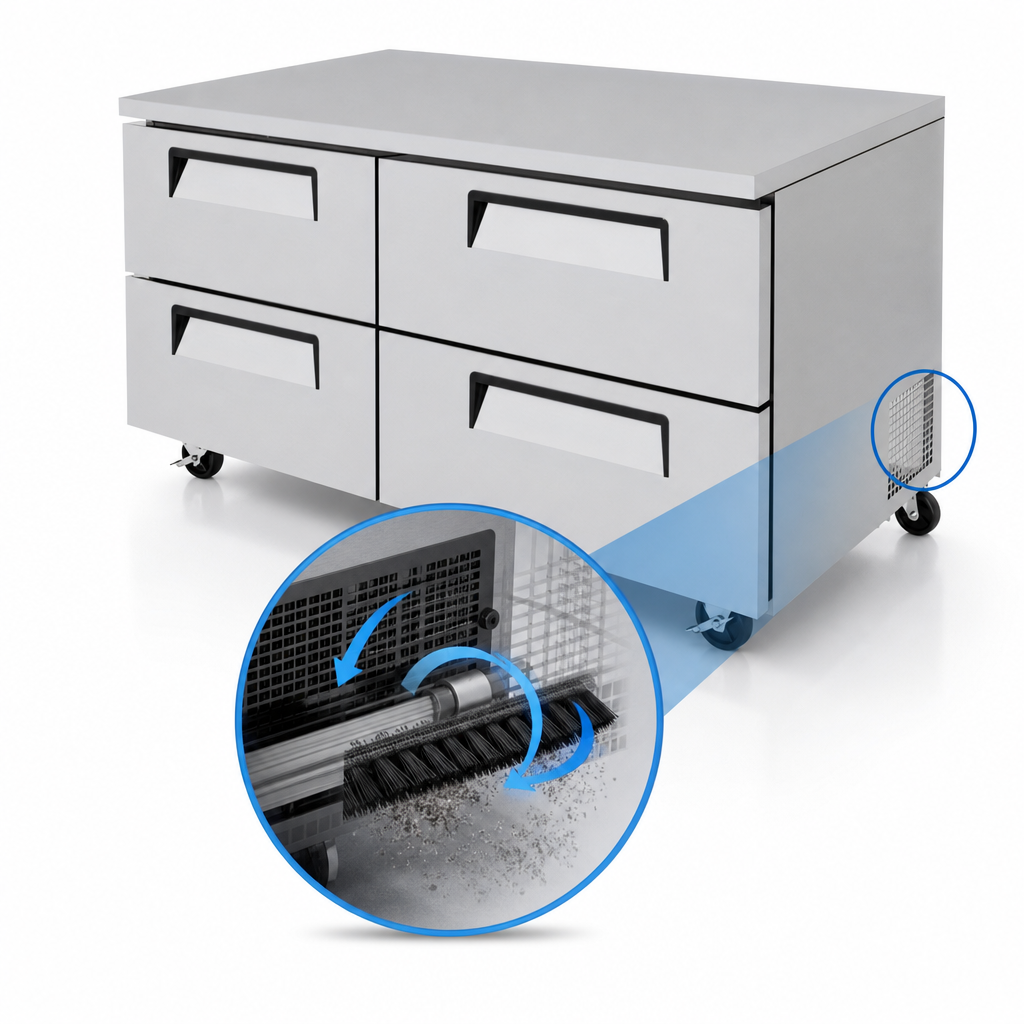

- Patented Self-Cleaning Condenser sweeps dust away every 24 hours to maintain peak cooling efficiency.

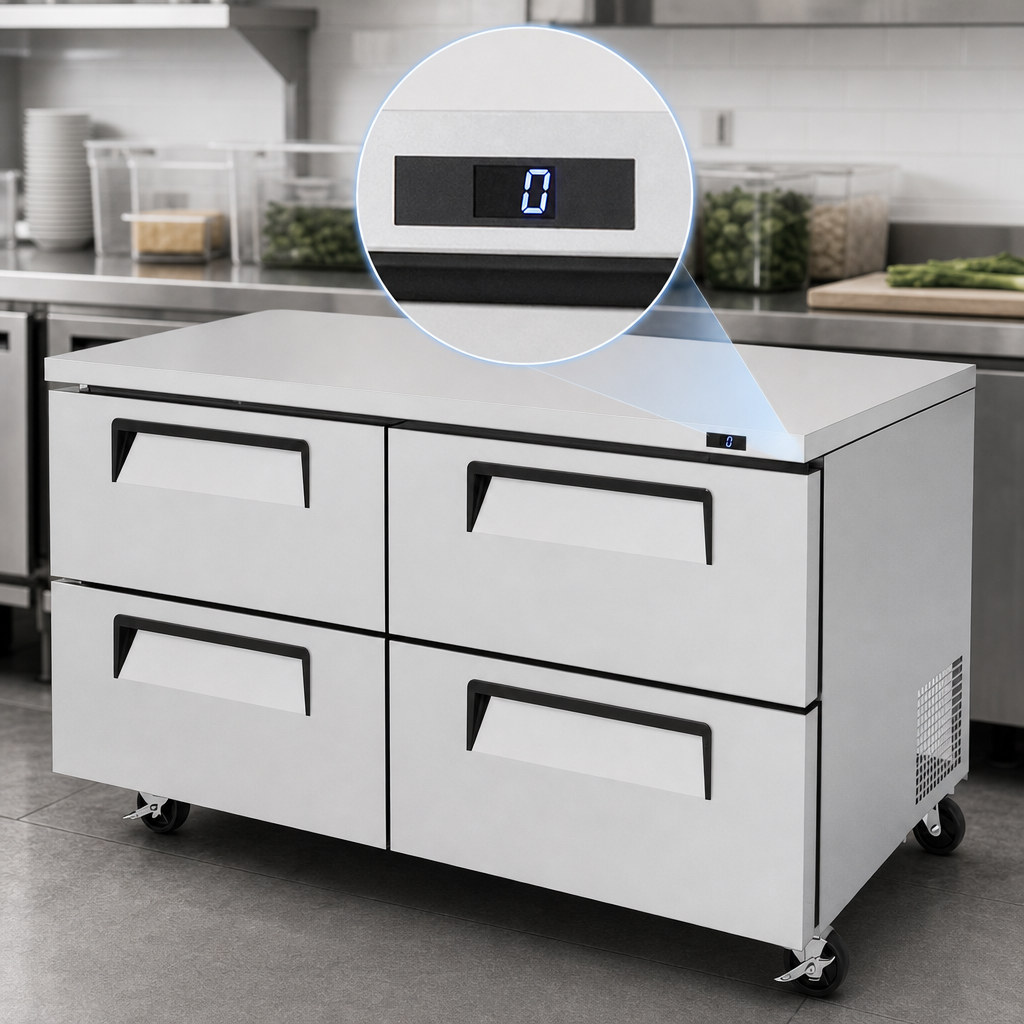

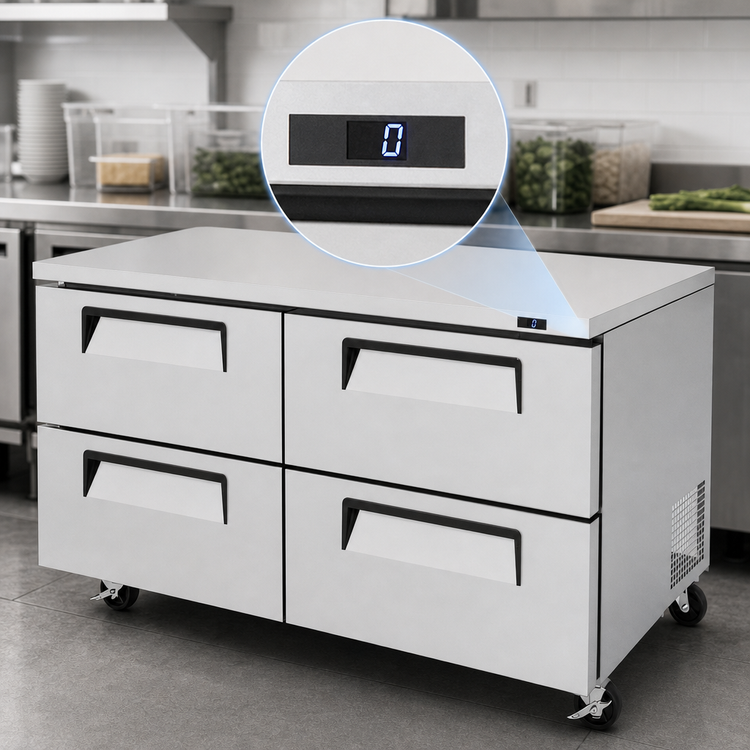

- Digital temperature control & monitor with easy-to-read external LED display.
- Eco-friendly R-290 refrigerant (ODP 0 / GWP 3) meets DOE & EPA SNAP requirements.
- Stainless-steel cabinet & drawers with galvanized back & bottom for lasting durability and simple sanitation.
- High-density polyurethane insulation is foamed-in-place and CFC-free for maximum cold retention.
-
Drawer flexibility – each drawer fits:
- 1 × full-size pan (up to 6" deep)
- 3 × 1/3-size pans, or
- 6 × 1/6-size pans (pans not included)
- Anti-corrosion coated evaporator for longer service life.
- 4" locking swivel casters pre-installed for effortless mobility.
Specifications
Exterior Dimensions (W × D × H) | 60 1/4" × 30" × 30 1/2" + 4 1/2" caster height | + 1" rear spacers |
---|---|
Net Capacity | 17.2 cu. ft. |
Drawers | 4 full-extension, stainless steel |
Temperature Range | –10 °F to 0 °F |
Compressor | 1/2 HP, rear-mounted | Self-contained |
Refrigerant | R-290 Hydrocarbon |
Electrical | 115 V / 60 Hz / 1-phase | 8.0 A | NEMA 5-15P (10 ft. cord) |
Net / Gross Weight | 250 lb / 288 lb |
Warranty (U.S.A.) | 5 years parts & labor • 7 years compressor |
Optional Accessories
- 1", 2.5" or 5" casters (brake & non-brake)
- Leveling legs
- 6" ABS or stainless-steel legs
- Back splash guard (TU-60B)
- Single overshelf (TSOS-5S) or double overshelf (TSOS-5R-T)
Design and specifications are subject to change without notice.
