Description

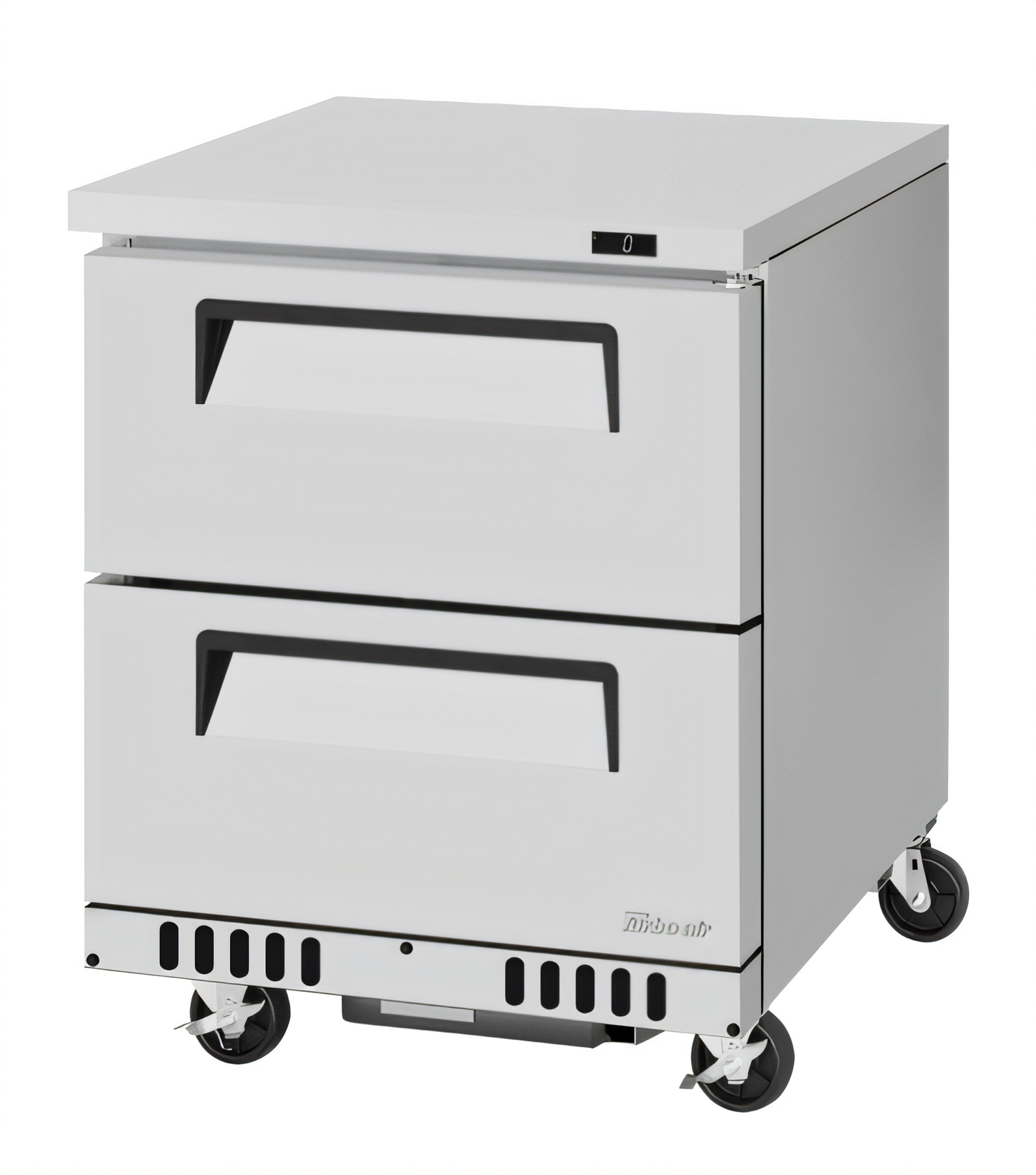

Turbo Air “Super Deluxe” Undercounter Freezer
Model TUF-28SD-D2-FB-N | 27-1/2" W | 11.1 cu ft | (2) DrawersBuilt for kitchens that demand rock-solid cold holding in the tightest footprints, the Turbo Air Super Deluxe undercounter freezer delivers -10 °F to 0 °F storage with a patented self-cleaning condenser, front-breathing airflow, and a rugged all-stainless-steel cabinet. Slide it under a worktop, load the drawers with 1/6-size pans up to 6" deep, and enjoy years of worry-free performance backed by Turbo Air’s industry-leading 5 year parts & labor / 7 year compressor warranty.
Why You’ll Love It
- Patented Self-Cleaning Condenser sweeps away dust daily to maintain peak performance and cut service calls.

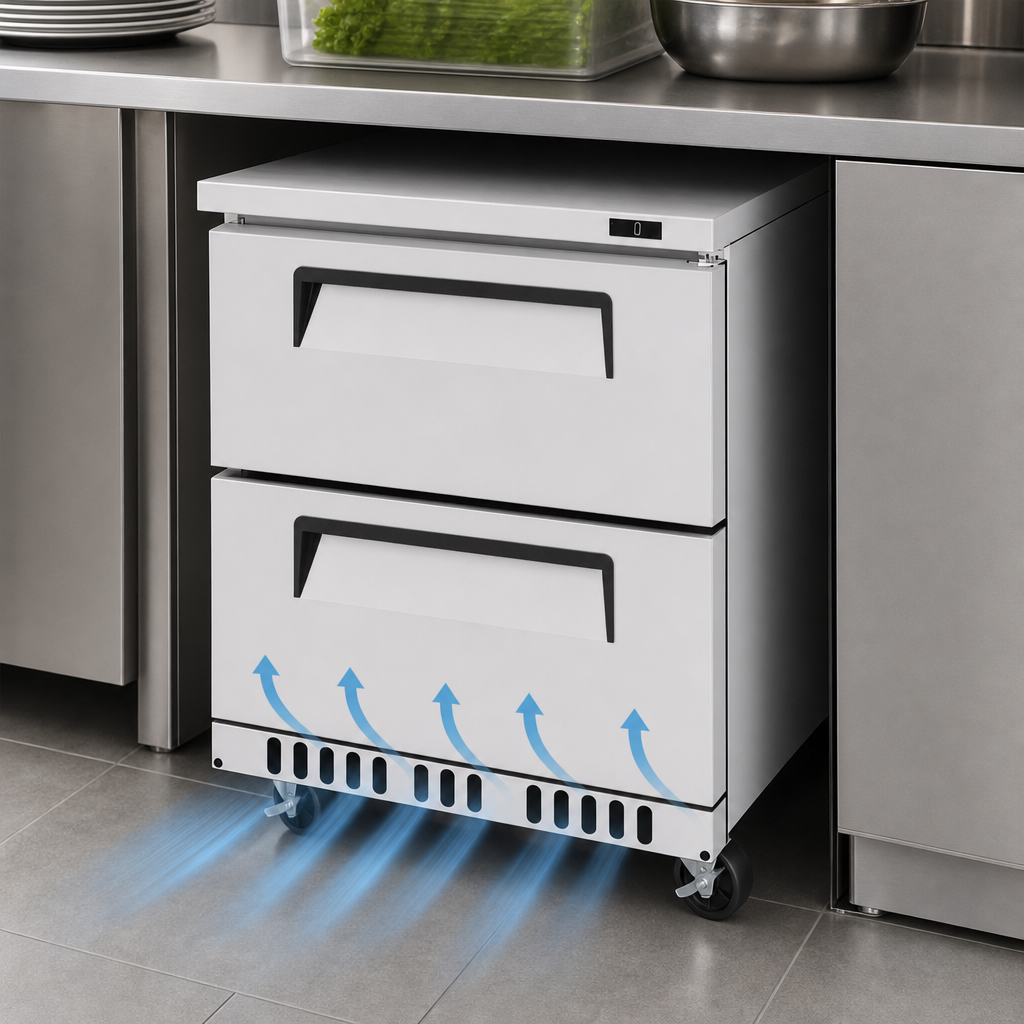

- Front Breathing design lets the unit sit flush against walls or other equipment—no side or rear clearance required.
- Eco-friendly R290 hydrocarbon refrigerant (ODP 0, GWP 3) meets the latest DOE & EPA standards.
- Digital temperature control & LED read-out for at-a-glance monitoring.
- All-stainless interior, exterior & drawers (galvanized steel back/bottom) for maximum hygiene and durability.

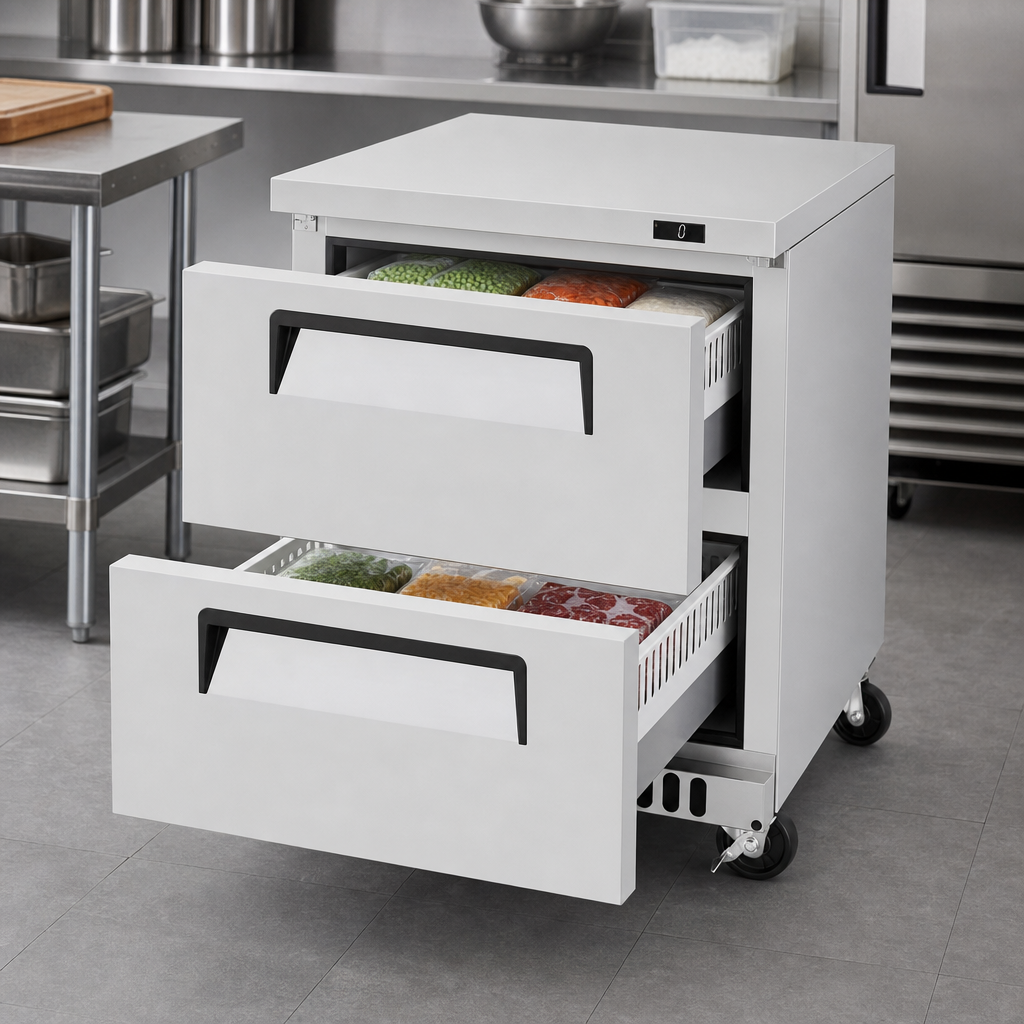

- Stainless steel drawers each fit (9) 1/6-size pans, 6" deep; bottom drawer fits (6) 1/6-size pans (pans not included).
- High-density CFC-free foam insulation locks in cold while reducing energy use.
- Anti-corrosion coated evaporator stands up to high-moisture environments.
- 4" locking swivel casters come pre-installed for easy mobility and quick cleaning.
Cold Performance You Can Count On
- Temperature range: -10 °F → 0 °F (-23 °C → -18 °C)
- 1/4 HP self-contained compressor, 4.5 A, 115 V / 60 Hz / 1-ph
- Front-mounted NEMA 5-15P cord & 10 ft power lead
- Self-diagnostic monitoring system alerts staff to performance issues before they become problems.
Technical Specifications
| Capacity | 11.1 cu ft (314 L) |
|---|---|
| Exterior Dimensions (W × D × H)* | 27 1/2" × 30" × 30 1/2" |
| Drawer Count / Pan Capacity | (2) drawers — top: (9) 1/6 pans, bottom: (6) 1/6 pans |
| Refrigerant | R-290 Hydrocarbon |
| Compressor | 1/4 HP, front-breathing |
| Electrical | 115 V, 60 Hz, 1-phase, 4.5 A, NEMA 5-15P |
| Construction | Stainless steel interior & exterior, galvanized steel back/bottom |
| Casters | (4) 4" swivel — front locking |
| Certifications | cETLus, ETL-Sanitation |
| Shipping Weight | 195 lb |
*Height does not include the 4-1/2" caster height.
Industry-Leading Warranty
5 Year Parts & Labor + 7 Year Compressor coverage (U.S.A. only).
Optional Accessories (Sold Separately)
- Low-profile 1" caster kit
- 5" heavy-duty casters (with or without brakes)
- 6" ABS or stainless steel legs
- 3/8" drain pan & mounting brackets
- Stainless steel backsplash guard
Drawer pans and food pans are shown for illustration only and are not included with the unit.
