Key specifications
- Amps
- 13 Amps
- Phase
- 1-Phase
- Dimensions
- 71.38"W × 33.0"D × 52.5"H
- Type
- Refrigerated Display Case
- Style
- Low Profile
- Installation Type
- Drop-In
Spec sheet

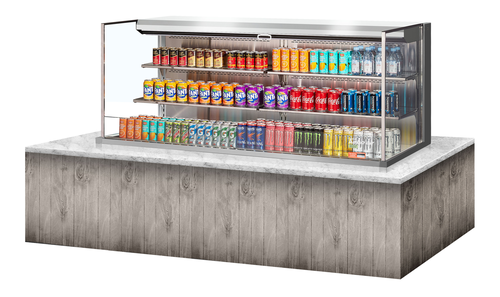

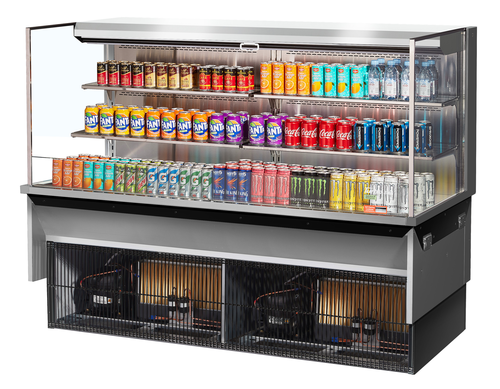

Turbo Air TOM-72L-UF-S-3SI-N Low-Profile Drop-In Horizontal Open Refrigerated Display Case, 71-7/8-Inch, 23.4 Cu. Ft., Self-Contained
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Turbo Air TOM-72L-UF-S-3SI-N is a low-profile, drop-in horizontal open refrigerated display case with self-contained refrigeration and 23.4 cu. ft. capacity.
- Stainless steel interior and exterior, including the back wall and deck pan.
- Two-tier display configuration with four glass shelves plus a deck.
- Tempered glass front shield and side walls with LED interior lighting.
- Self-cleaning condenser with a front fine-mesh filter and daily rotating brush.
- Solar digital thermometer and digital electronic thermostat with defrost control.
- R-290 hydrocarbon refrigerant, front air intake, and rear air discharge.
- Includes a night cover and uses a 220-volt, 13-amp, single-phase connection with a NEMA 6-20P cord.
Overall Dimensions:
71.38"W x 33.0"D x 52.5"HProduct Weight:
854.0 lbDrop-In Installation
Designed as a drop-in horizontal open display case.
Low-Profile Format
Low-profile design for refrigerated open product display.
Self-Cleaning Condenser
A front fine-mesh filter and rotating brush remove condenser buildup daily.
Display Configuration
Two tiers with four glass shelves plus a deck.
Tempered Glass Panels
Tempered glass front shield and side walls provide the specified display enclosure.
Refrigeration System
Self-contained refrigeration uses R-290 hydrocarbon refrigerant.
Controls and Monitoring
Includes a solar digital thermometer and digital electronic thermostat with defrost control.
Interior Lighting
LED interior lighting.
Stainless Steel Construction
Stainless steel interior and exterior, including the back wall and deck pan.
Airflow
Front air intake and rear air discharge.
Night Cover
A night cover is included.
