Key specifications
- Amps
- 18 Amps
- Phase
- 1-Phase
- Dimensions
- 68.75"W × 33.25"D × 78.38"H
- Type
- Open Display Merchandiser
- Style
- Vertical
- Installation Type
- Floor Model
Spec sheet

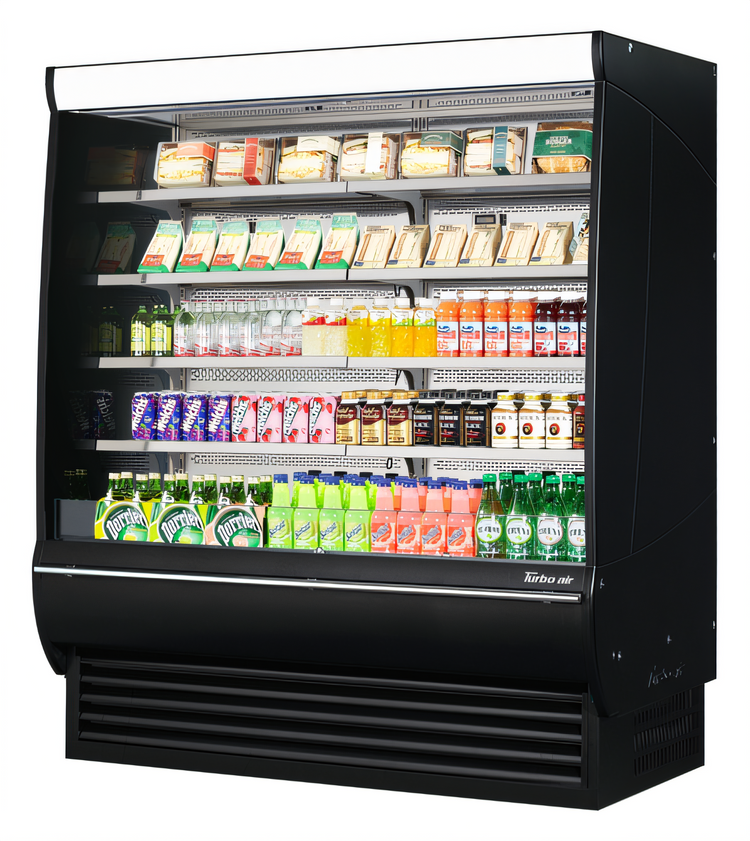

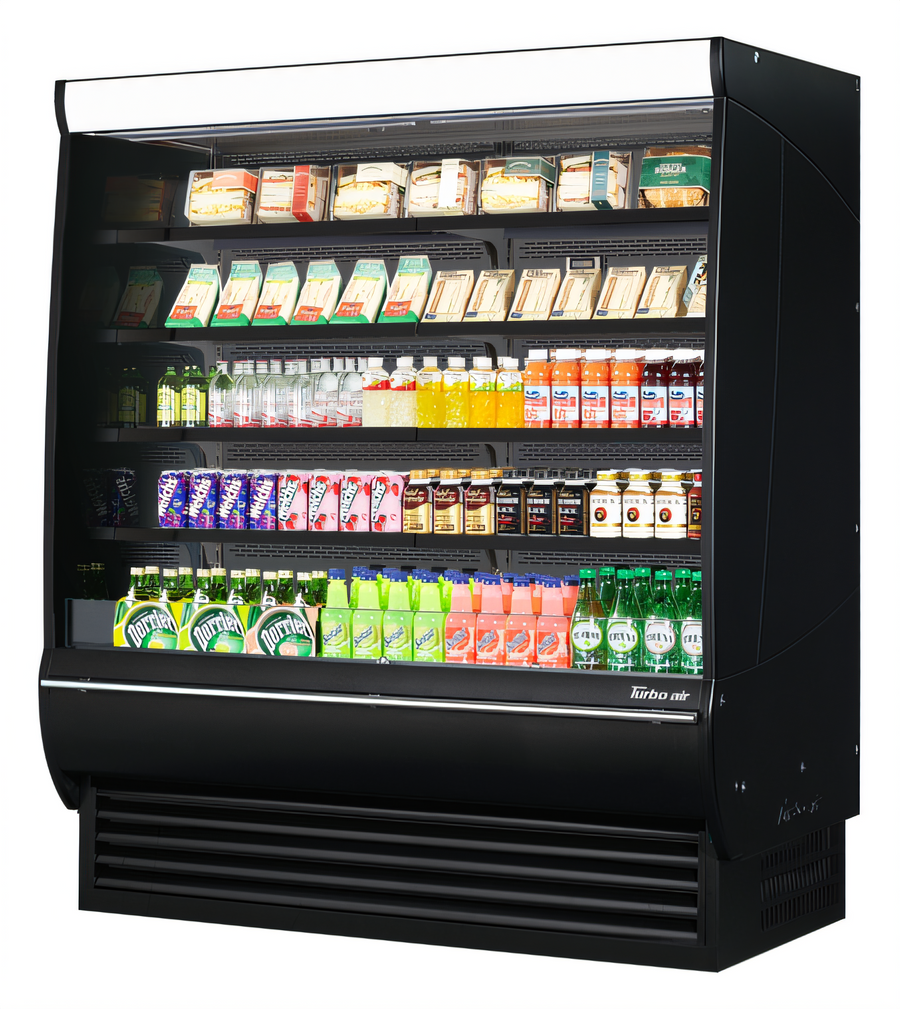

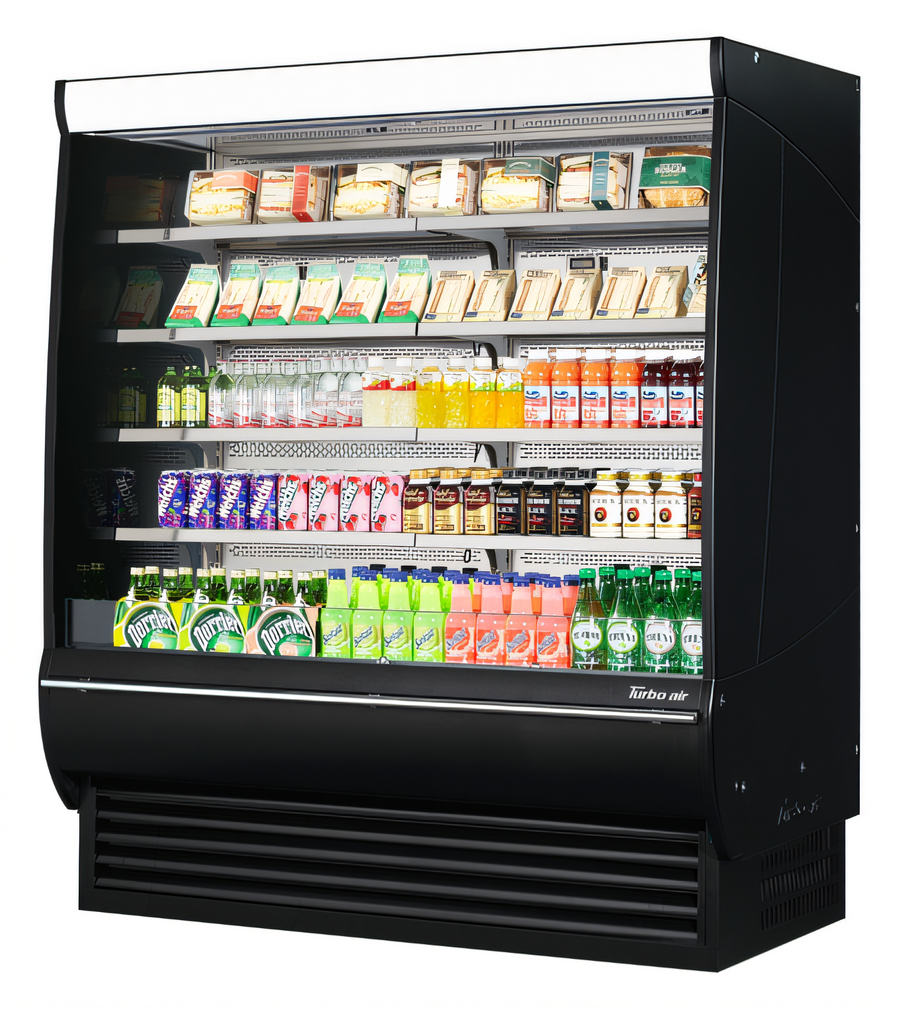

Turbo Air TOM-72DXB-SP(-A)-N Vertical Open Display Merchandiser, 34.1 Cu. Ft., 4-Tier, Self-Contained, Black
- TOM-72DXB-SP(-A)-N
- TOM-72DXB-N
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Vertical open display merchandiser with a 34.1 cu. ft. capacity, open front, tempered glass front shield, solid side walls, and a black exterior.
The self-contained plug-in system uses R-290 refrigerant and includes a self-cleaning condenser, LED interior lighting, an LED advertising top panel, and a standard energy-saving night curtain.
- Four tiers with eight shelves
- Stainless steel interior for SP-N or black coated interior with mirrored sides for SP-A-N
- Front air intake and rear air discharge
- 220 Volts, 18 Amps, 60 Hz, 1-Phase, NEMA 6-20P
Overall Dimensions:
68.75"W x 33.25"D x 78.38"HProduct Weight:

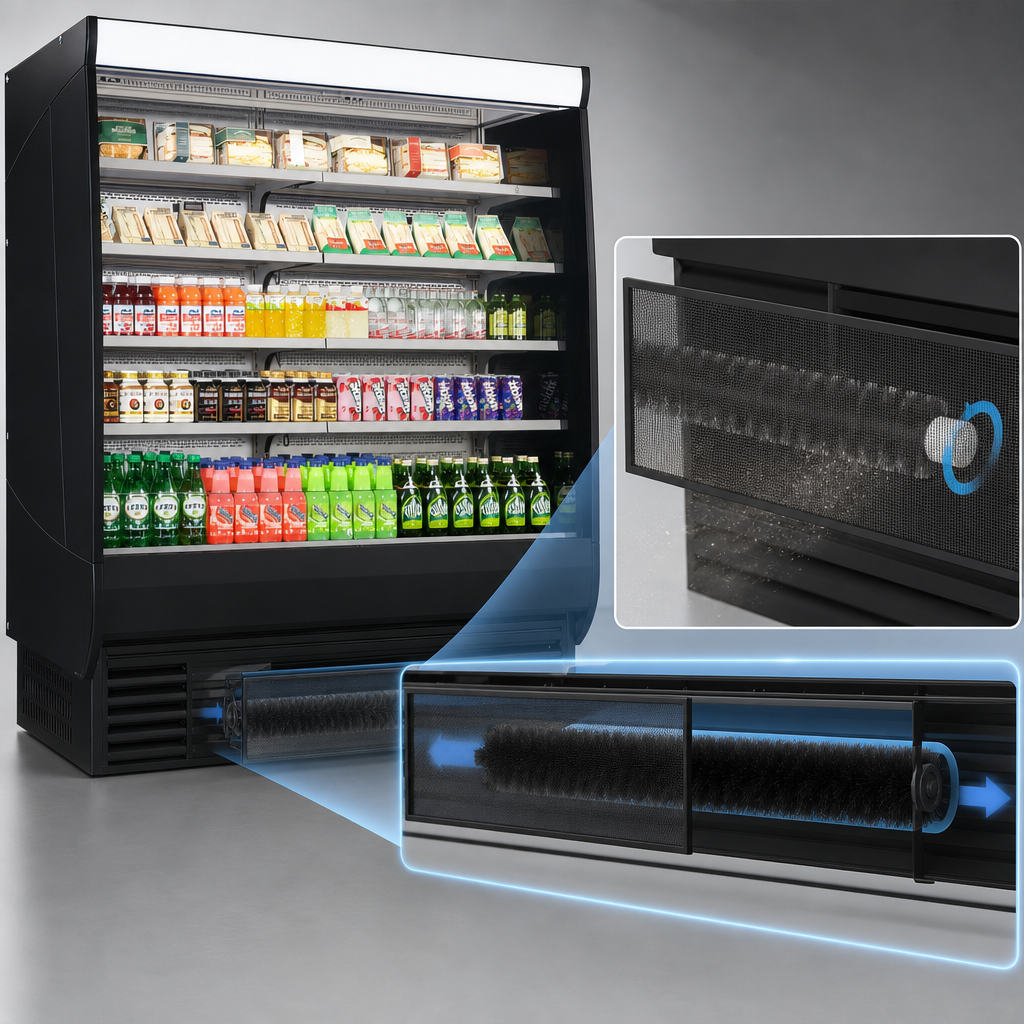

1064.0 lbSelf-Cleaning Condenser
A fine mesh filter and daily rotating brush help remove condenser buildup.
Open-Front Display
The open front provides product access, with a tempered glass front shield and solid side walls.

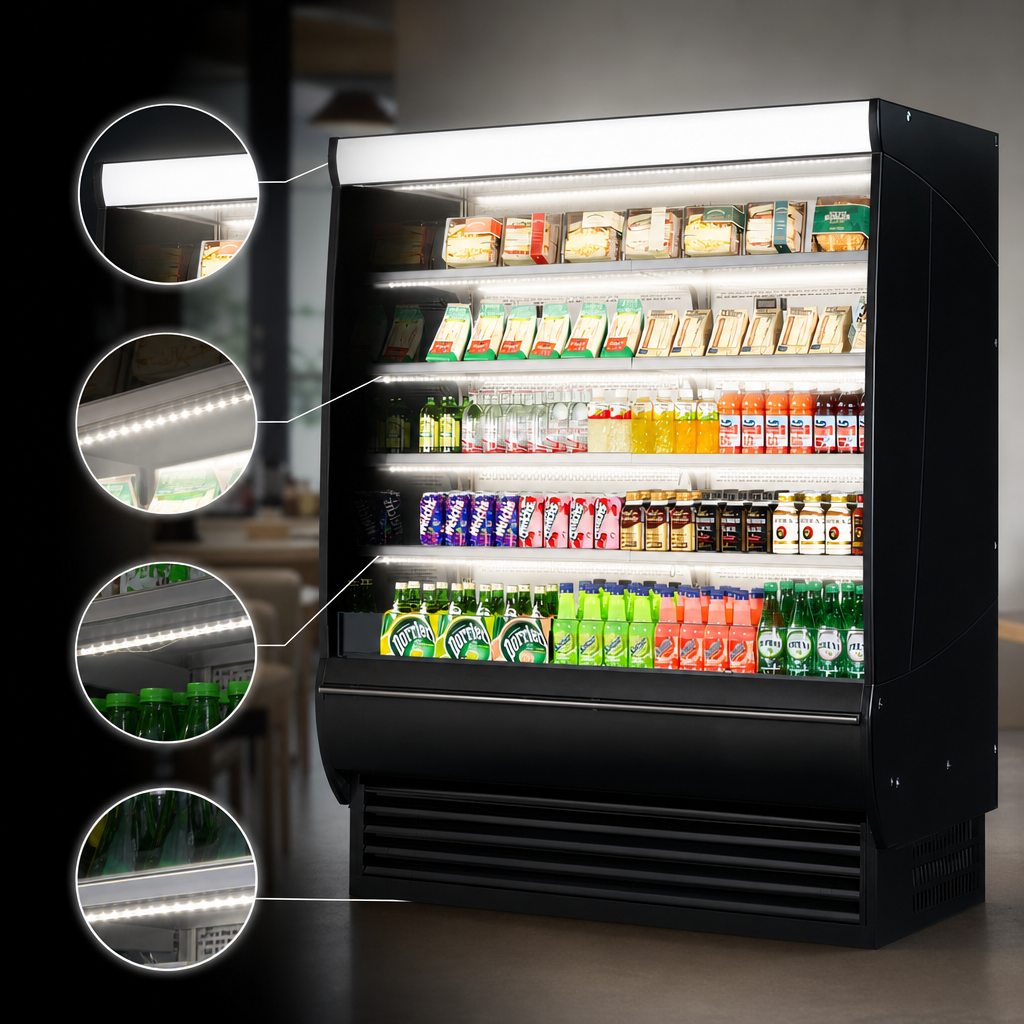

LED Merchandising Lighting
LED interior lighting is provided under each shelf, along with an LED advertising top panel.
Self-Contained Refrigeration
The plug-in refrigeration system uses R-290 refrigerant and requires no plumbing.
Interior Finish Options
The SP-N configuration has a stainless steel interior; the SP-A-N configuration has a black coated interior with mirrored sides.
Energy-Saving Night Curtain
An energy-saving night curtain is standard.
Airflow Configuration
The unit uses front air intake and rear air discharge.
Digital Controls
The unit includes a digital electronic thermostat with defrost control and a solar powered digital thermometer.
