Key specifications
- Amps
- 11.3 Amps
- Phase
- 1-Phase
- Dimensions
- 35.88"W × 33.75"D × 37.75"H
- Type
- Refrigerated Display Case
- Style
- Horizontal Open
- Installation Type
- Drop-In
Spec sheet
Turbo Air TOM-36L-UFD-W(B)-1SI-N Drop-In Horizontal Open Refrigerated Display Case, Deck-Only, 4.6 Cu. Ft., Self-Contained, 115V
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

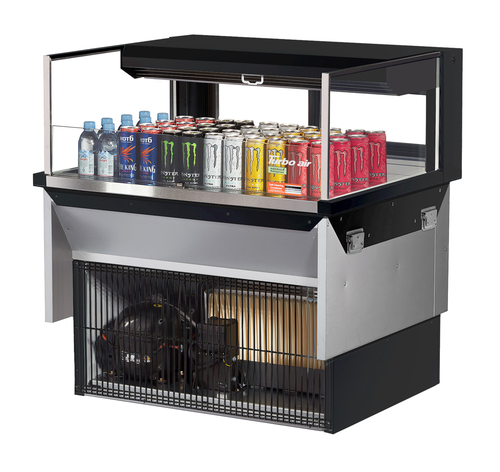

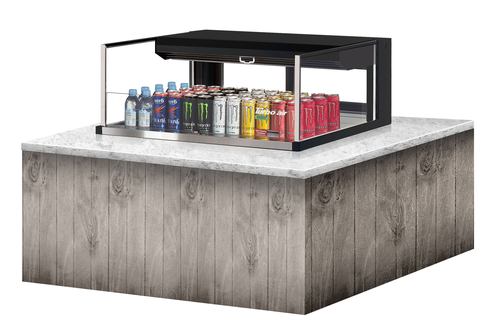

Turbo Air TOM-36L-UFD-W(B)-1SI-N is a low-profile, drop-in horizontal open refrigerated display case with a 4.6 cu. ft. capacity and deck-only configuration. Its self-contained refrigeration system uses a self-cleaning condenser with front air intake and rear air discharge.
The case features a tempered glass front shield and side walls, rear sliding glass doors, LED interior lighting, a solar digital thermometer, and a digital electronic thermostat with defrost control. A night cover is included.
- 115 Volts, 60 Hz, single-phase electrical operation
- R-290 hydrocarbon refrigerant
- Stainless steel interior
- White or black exterior colors are standard; specify exterior color
Overall Dimensions:
35.88"W x 33.75"D x 37.75"HProduct Weight:
421.0 lbSelf-Cleaning Condenser
A fine mesh filter and rotating brush remove condenser buildup daily.
Open Display Design
Horizontal open-top design with a deck-only product presentation.
Tempered Glass Panels
Tempered glass front shield and side walls support product visibility.
Rear Sliding Glass Doors
Sliding glass doors provide rear product loading and unloading.
LED Interior Lighting
LED lighting illuminates the interior display area.
Digital Temperature Controls
Includes a solar digital thermometer and digital electronic thermostat with defrost control.
Front and Rear Airflow
Front air intake and rear air discharge.
Night Cover
A night cover is included.
Plug-In Installation
The cutsheet specifies simple plug-in installation and no plumbing required.
Adjustable Bolt Height
Bolt height is adjustable up to 2.75 inches.
CFC-Free Insulation
High-density polyurethane cell insulation is specified as CFC free.
