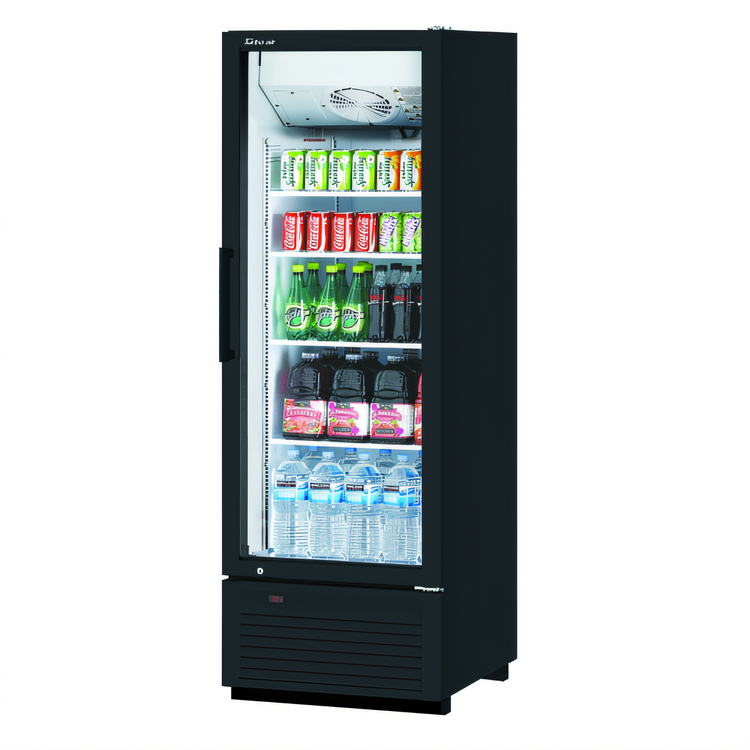

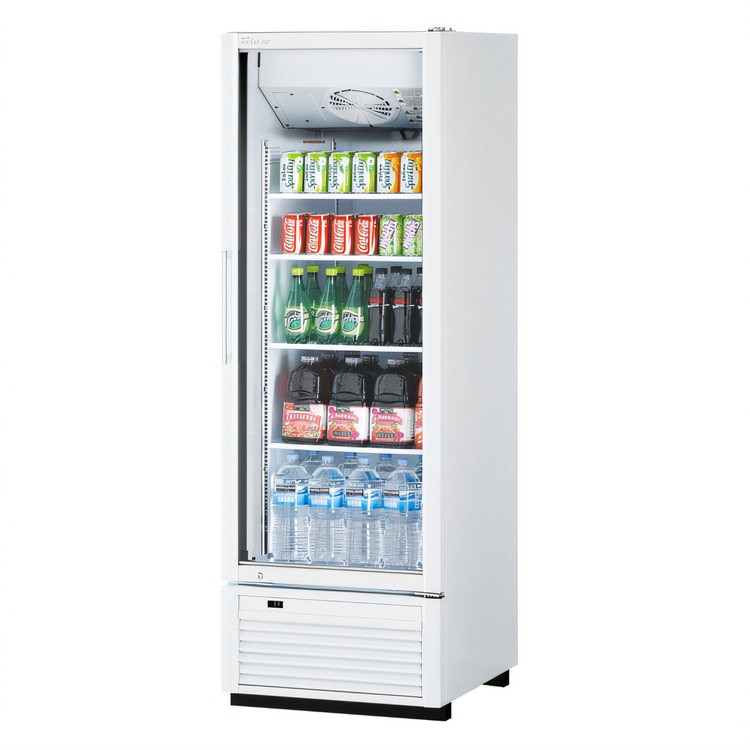

Turbo Air Super Deluxe 19.02 Cu. Ft. Single-Section Glass Door Refrigerated Merchandiser, Bottom-Mounted, Right-Hinged

SKU: TGM-23SDH-N6
$4,166.39
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Turbo Air Super Deluxe 19.02 Cu. Ft. Single-Section Glass Door Refrigerated Merchandiser, Bottom-Mounted, Right-Hinged

Self-contained refrigeration with LED lighting, four adjustable shelves, and a white interior.

Built for high-visibility beverage merchandising, this 19.02 cu. ft. unit keeps product in the 33° F to 38° F range while simplifying monitoring and maintenance.

  • 19.02 cu. ft. capacity holds up to 405 12-oz bottles, with room for 486 bottles when an additional shelf is used.
  • Self-contained, bottom-mounted refrigeration keeps the cooling system accessible and supports a clean front display.
  • Double-pane Low-E glass door includes a lock and door-activated alarm to help secure merchandise.
  • Exterior digital thermometer/controller and self-diagnostic monitoring system simplify operation.
  • LED interior lighting, four adjustable PE-coated wire shelves, and a white interior help products stand out.
  • Self-cleaning condenser device, automatic fan motor delays, and R600a refrigerant support efficient, low-maintenance performance.

Overall Dimensions:

27.0"W x 30.25"D x 77.0"H

Product Weight:

325.0 lb

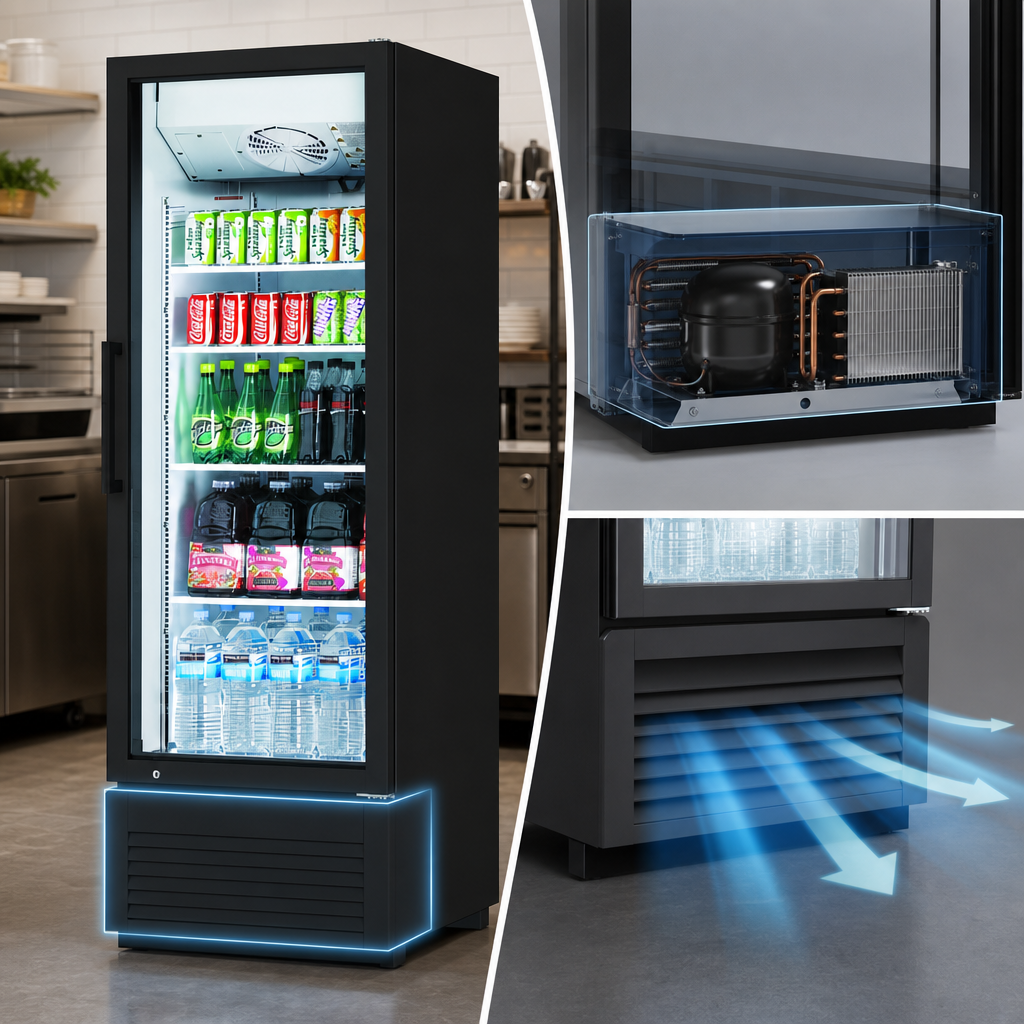

Self-Contained Bottom-Mounted Refrigeration

The refrigeration system is built into the cabinet and located at the bottom for service access and efficient product presentation.

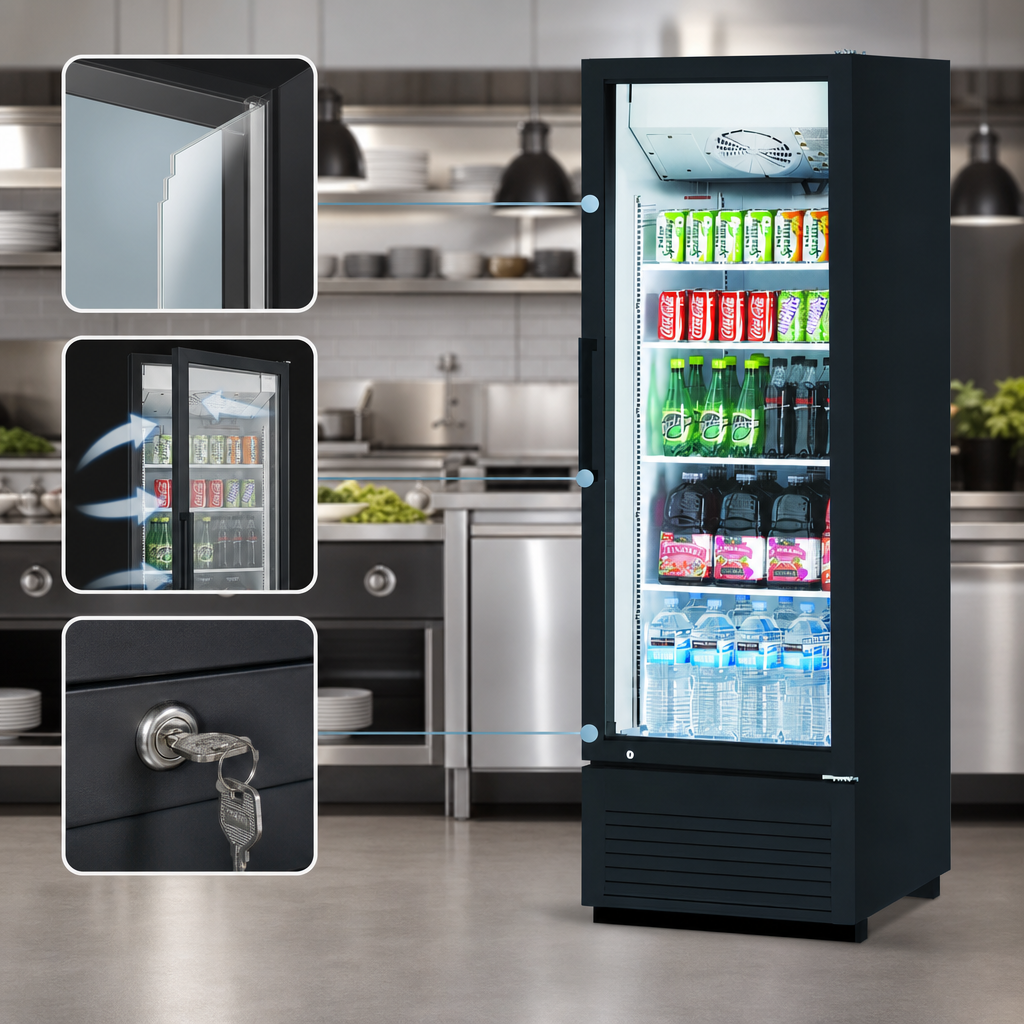

Right-Hinged Double-Pane Low-E Glass Door With Lock

A clear, insulated glass door improves visibility, helps reduce heat transfer, and includes a lock for added security.

Door-Activated Alarm System

Alerts staff when the door is left open, helping protect temperature performance and product quality.

Exterior Digital Thermometer & Controller

Allows temperature monitoring and control from outside the cabinet for easier day-to-day operation.

Self-Diagnostic Monitoring System

Helps identify operational issues quickly so service needs can be addressed sooner.

LED Interior Lighting

Bright, efficient lighting improves product visibility inside the merchandiser.

Four Adjustable PE-Coated Wire Shelves

Provides flexible merchandising space for bottles and cans, with durable coated wire construction.

Self-Cleaning Condenser Device

Helps reduce condenser maintenance and supports more consistent refrigeration performance.

Automatic Fan Motor Delays

Helps manage airflow and cooling performance during door openings and system cycling.

R600a Hydrocarbon Refrigerant

Uses R600a refrigerant for modern, efficient refrigerated merchandising.

White Interior

A clean white cabinet interior helps highlight the displayed product.

Type Glass Door Merchandiser
Style Single Section
Installation Type Freestanding
Capacity 19.02 Cu. Ft.
Temperature Range 33° F to 38° F
Refrigeration Type Self-Contained, Bottom Mounted
Refrigerant Type R600a Hydrocarbon
Compressor Horsepower 1/5 HP
Voltage 115 Volts
Amps 2.2 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 31 Inches
Shipping Height 77 Inches
Shipping Weight 325 lb.

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Frequently Asked Questions

It maintains a temperature range of 33° F to 38° F.
The cabinet has 19.02 cu. ft. of capacity and holds up to 405 12-oz bottles, or 486 bottles with an additional shelf.
It operates on 115V/60/1-phase power, draws 2.2 amps, and uses a NEMA 5-15P plug.
Yes. The glass door includes a lock, and the unit also has a door-activated alarm system.
Four adjustable PE-coated wire shelves are included.
It uses self-contained, bottom-mounted refrigeration with R600a hydrocarbon refrigerant.
